Lithium Battery Cutting Blades Industry - Production, Manufacturing, Supply, Origin, Price, Factory
lithium battery cutting blade industry focuses on high-precision tools essential for manufacturing lithium-ion batteries. These blades are used to slit and cut delicate materials like electrode foils (copper and aluminum) and separators without creating burrs or dust, which can cause battery short c…
Enquire now
Lithium battery cutting blade industry


Industry Specifications
Standard precision requirements in the industry typically include:
- Thickness Tolerance: Often as tight as pm 0.001mm to pm 0.002mm.
- Parallelism: Frequently maintained within 0.002mm for stable cutting.
- Hardness: Usually ranges from HRC 90 pm 1^\circ\) for tungsten carbide variants
Electrode plates are one of the core components in a lithium battery. Those electrodes are usually cut from metallic foils, either copper or aluminum, which have been coated with anode materials or cathode materials. The foil slitting process needs to be very precise and accurate as any burrs lefts on the edge of foil strips would possibly short out the lithium battery. This calls for sharp, reliable tungsten carbide machine knife.
We keep in stock various sizes of foil slitting blade. These blades can be either used as the upper knife or lower knife on the slitting machine. Most of the blades are wear-resistant circular knives with a prefect roundness, ready to deliver smooth, clean cuts. Blade edges are closely inspected against even the slightest defects to ensure the best possible cutting results with no burrs. With this cutting blade, your slitting machine hardly needs any blade replacement over the rest of its working life.
This tungsten carbide machine knife works best on metallic foils. Of course, the cutting blade is also suitable for slitting battery separators, electrical insulators (adhesive taps for example), carrier tapes, cover tapes, polarizing films, etc.
Lithium battery positive and negative electrode cutting knife
These blades are mainly used for cutting positive and negative electrode sheets in the manufacturing process of lithium-ion batteries, and are compatible with many mainstream slitting machine brands in the industry.
-
Applicable models: ARECONN, HAONENG, SEVENSTAR, CLG Electric, NISHIMURA
-

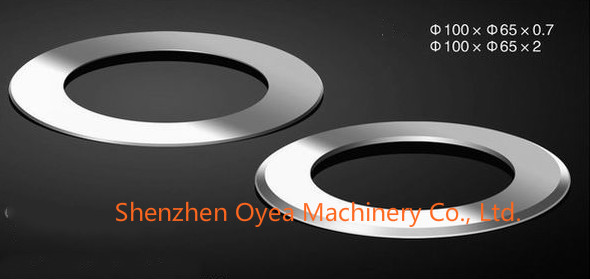

Ф100 × Ф65 × 0.7
-
Ф100 × Ф65 × 2
-
Ф68 × Ф46 × 0.5
-
Ф60 × Ф40 × 5
-
Applicable models: NISHIMURA, HONBRO
-
Ф100 × Ф65 × 1
-
Ф100 × Ф65 × 3
-
Applicable models: NISHIMURA, HONBRO, HAONENG
-
Ф110 × Ф90 × 1
-
Ф110.2 × Ф90 × 1
-
Ф110 × Ф75 × 3
-
Applicable models: Toray, DALI, SHIFT HORSE
-

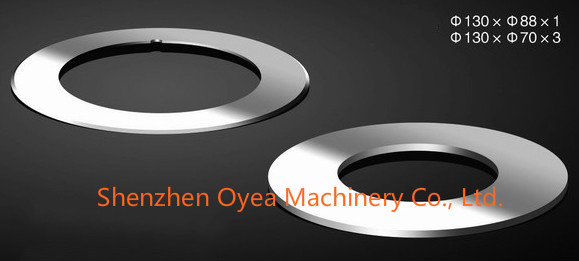

Ф130 × Ф88 × 1
-
Ф130 × Ф70 × 3
-
Ф130 × Ф70 × 5
⚡ Parallel plate capacitor electrode cutter
These blades are specifically designed for cutting the electrode plates of parallel plate capacitors.
-
Applicable models: Not specified (general parallel plate capacitor electrode cutting)
-
Ф68 × Ф46 × 0.5 (Note: This specification appears in both lithium battery and capacitor applications in your list)
Explanation of the meaning of specifications and numbers:
Taking Ф100 × Ф65 × 0.7 as an example:
-
The first number (Ф100) : Blade outer diameter (mm)
-
The second number (Ф65) : Inner diameter of the cutting tool / Borehole diameter (mm)
-
The third number (0.7) : Blade thickness (mm)
If you have more questions to know ,please contact us .
