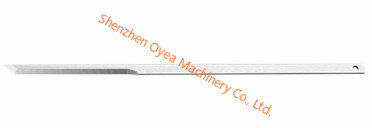

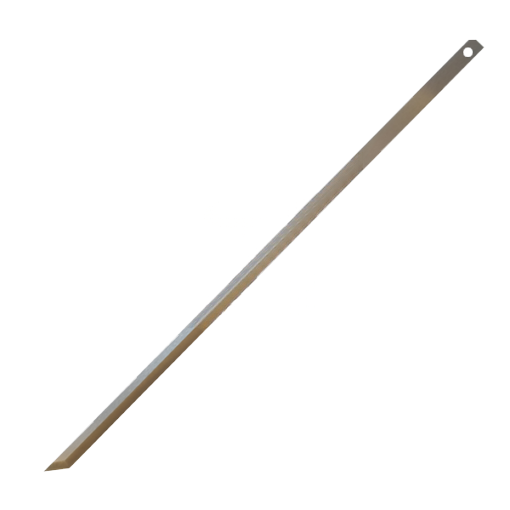

LECTRA Vector Q50 Cutter knife Blades 305*8.5*2.4 mm(801438)

The LECTRA Vector Q50 Cutter knife blade (Part Number: 801438) is a single-hole, High-Speed Steel (HSS) blade specifically designed for precision cutting of textiles, canvas, and carbon fibers in Vector Q50, iQ50, and iX6 machines. It measures 305mm in length, 8.5mm in width, and 2.4mm in thickness,… Enquire now

Description

LECTRA Vector Q50 Cutter knife Blade 305*8.5*2.4 mm(801438)

Key Features
Dimensions: 305 x 8.5 x 2.4 mm (Height x Width x Thickness).
Part Number: 801438.
Material: High-Speed Steel (HSS) for improved durability and sharp performance.
Design: Single hole, typically used as a multi-layer flat or oscillating knife.
Compatibility: Designed for Vector Q50, iQ50, and iX6 automatic cutting machines.Application: Suitable for cutting canvas, carbon fibers, foil, glass fibers, non-woven fabrics, and polyester fabrics.

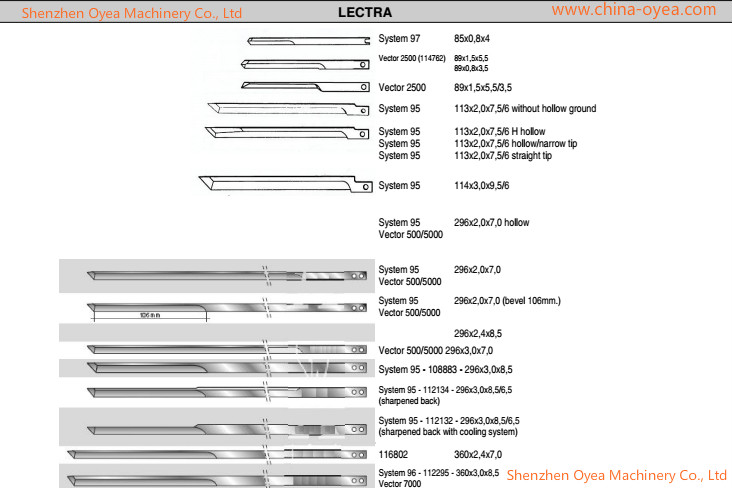

For more Lectra Cutter Knife Blade (CNC knife)
Length*Width*Thickness
System 97 85x0.8x4mm
Vector 2500 89x1.5x5.5/3.5mm No.801220,114782
Vector 2500 89x1.5x5.5mm No.801224
System 95 113x2.0x6/7.5mm
Vector 5000 296x2.0x7mm 304g/box
Vector 5000 296x3.0x7mm
Vector 7000 360x2.4x7mm 116802 360*8.5*3mm 801217
System 96 VECTOR 7000 360x2.4x8.5mm 112295
Lectra Vect?r S96 Cutter Knife 296 x 3 x 8.5mm
Vectorfasion MP9 MP6: 364mmX8.5mmX2.4mm 801269
Vectorfasion MP6: 295mmX8.5mmX2.4mm 454g/box
System 97: 89x0.8x4mm
System 95: 113X2.0X7.5/6 without hollow ground
113X2.0X7.5/6 H HOLLOW
113X2.0X7.5/6 HOLLOW/NARROW TIP
113X2.0X7.5/6 STRAIGHT TIP
System 95: 114X3.0X9.5/6 without hollow ground
System 95/VECTOR 500/5000 296 x 2.0x 7mm HOLLOW/LONG BEVEL
System 95/VECTOR 500/5000: 296 x 2.0x 7mm (106mm bevel) / 296 x 2.4x 8.5mm
System 95 296 x 3.0x 8.5mm/296 x 3.0x 8.5/6.5mm/108883/112134/112132
