Solid Carbide Max Life Compression Spiral(1,2 and 3 Flute)

Solid Carbide Max Life Compression Spiral,Max life compression spiral,Solid Carbide compression bits Enquire now

Description

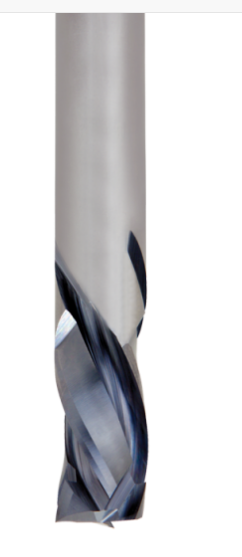

Solid Carbide Max Life Compression Spiral(1,2 and 3 Flute)

Solid Carbide Max Life Compression Spiral bits are specialized router bits designed to provide clean, splinter-free edges on both the top and bottom of a workpiece. By combining an up-cut bottom section with a down-cut top section, these bits pull material toward the center of the board, making them essential for double-sided laminates, plywood, and abrasive materials like MDF

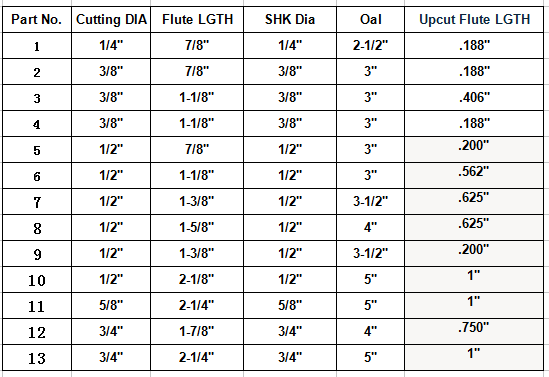

Single Flute Solid Carbide Compression Spirals

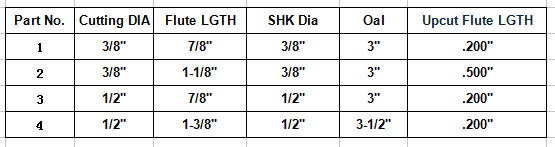

Double Flute Solid Carbide Compression Spirals

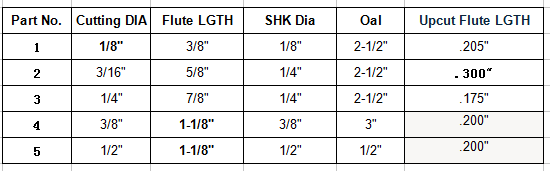

Three Flute Solid Carbide Compression Spirals

Flute Count Comparison

The number of flutes on a compression bit dictates the balance between speed, chip clearance, and finish quality:

Flute Count	Primary Use & Benefits	Best For
1-Flute	Maximum chip clearance and heat dissipation; allows for fast feeds without melting or burning.	Plastics, acrylics, and some soft metals.
2-Flute	The most versatile general-purpose option, balancing a smooth finish with efficient chip removal.	Plywood, general woodworking, and standard CNC nesting.
3-Flute	Provides the smoothest finish due to more cutting edges engaging the material per rotation.	Hardwoods, particle board, and high-speed CNC applications.
