Square End Miniature Stub Sold Carbide End Mill（2 Flute）

A 2‑flute square‑end miniature stub solid‑carbide end mill is a compact, rigid micromilling cutter designed for small‑diameter slotting, profiling, and plunging in metals and hard materials.

Enquire now

Description

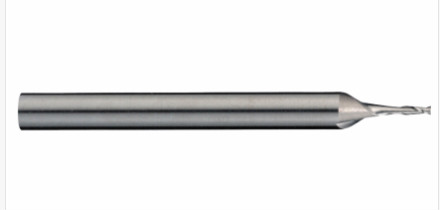

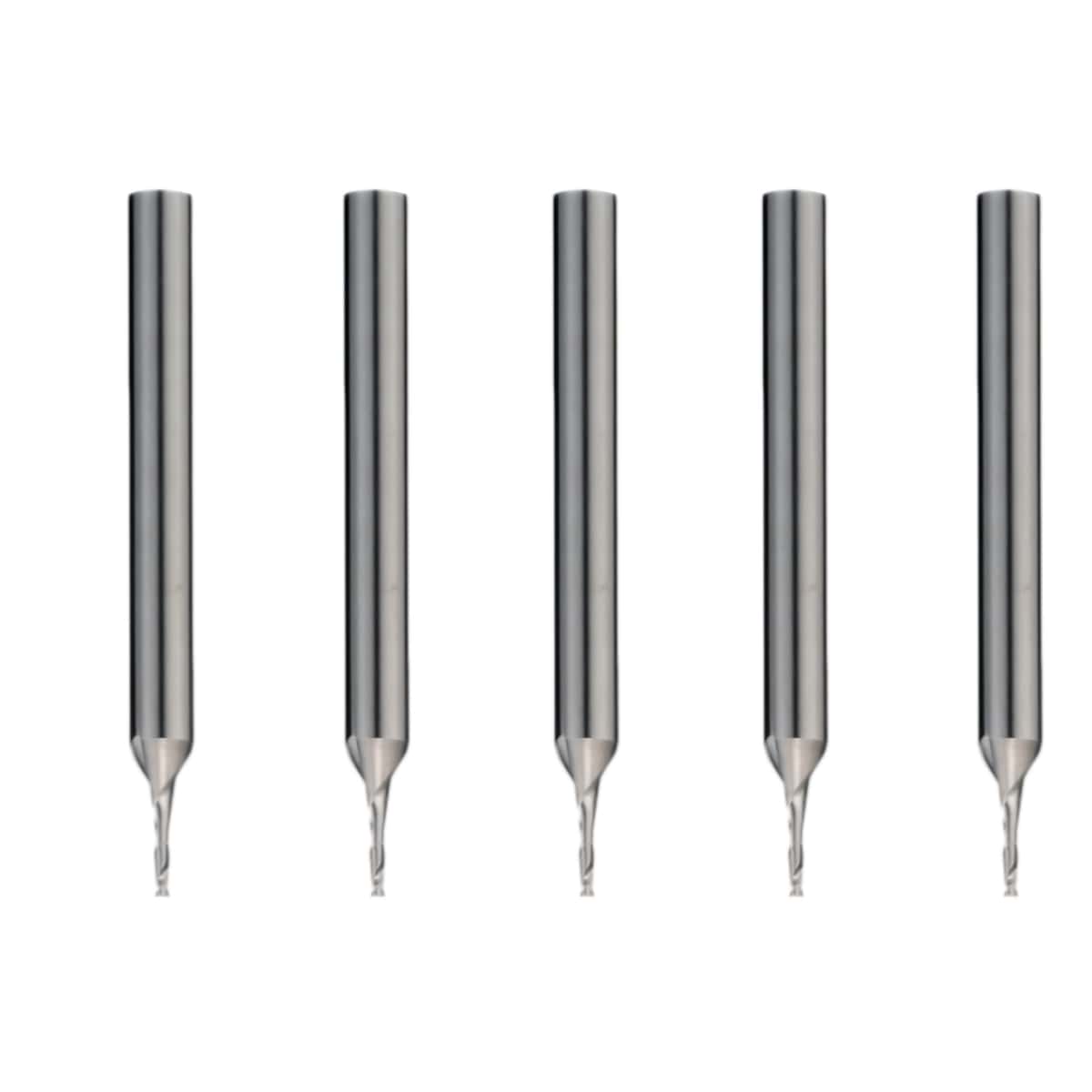

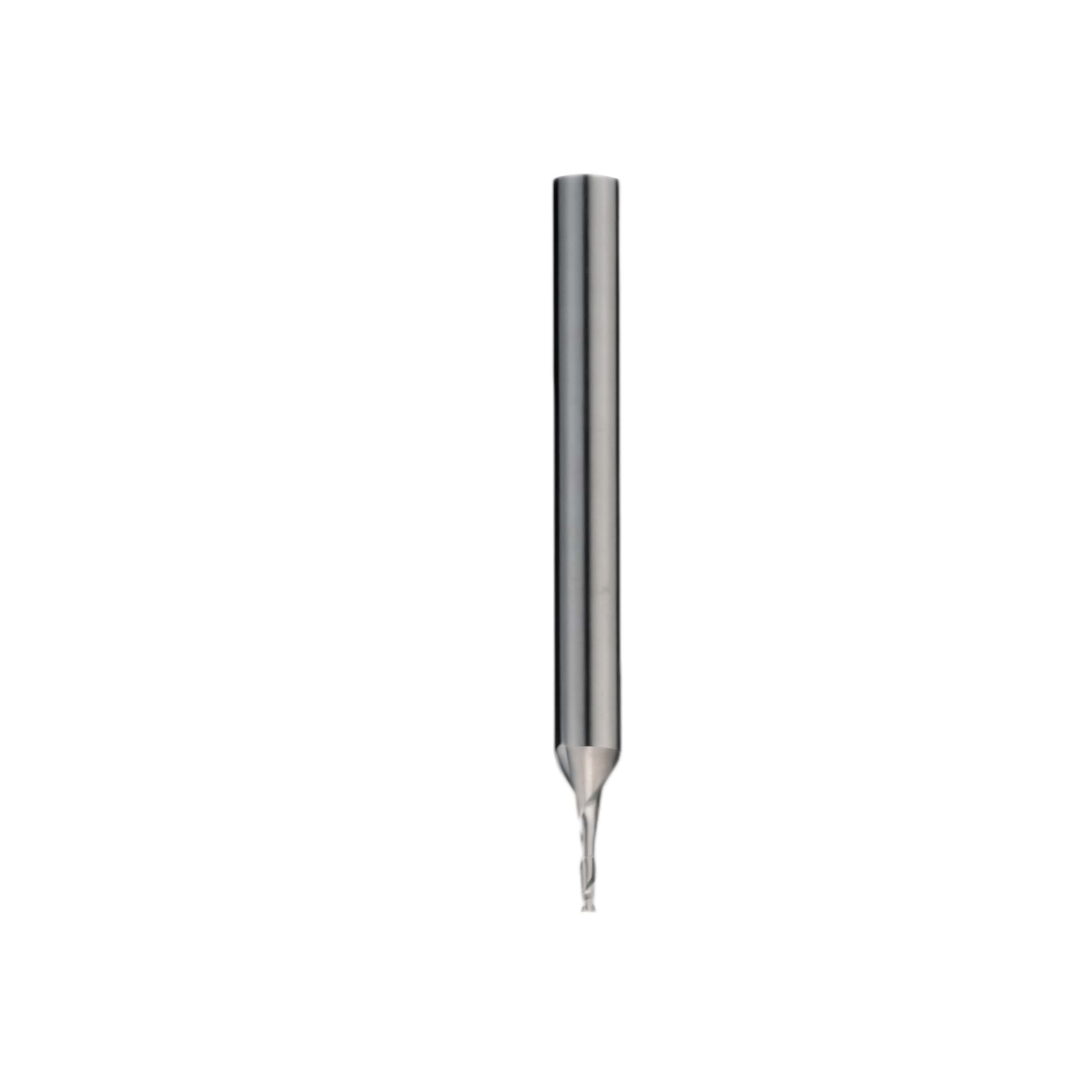

Square End Miniature Stub Sold Carbide End Mill（2 Flute)

A 2-Flute Square End Miniature Stub Solid Carbide End Mill is a highly rigid precision CNC cutting tool designed for detailed milling, profiling, and slotting. The stub length configuration minimizes the Length of Cut (LOC), providing the highest possible tool rigidity to eliminate tool deflection and prevent breakage when machining at miniature diameters.

Technical Advantages of This Configuration

2-Flute Geometry: Ideal for softer metals (like aluminum) and plastics because the large flute valley offers massive chip-clearing pockets, preventing melting and chip re-cutting.
Stub Length: Shorter cutting edges mean the force is distributed closer to the spindle tool holder, vastly increasing rigidity compared to standard-length miniature bits.
Square End: Produces flat-bottomed cuts, sharp 90-degree internal steps, and clean vertical walls.
