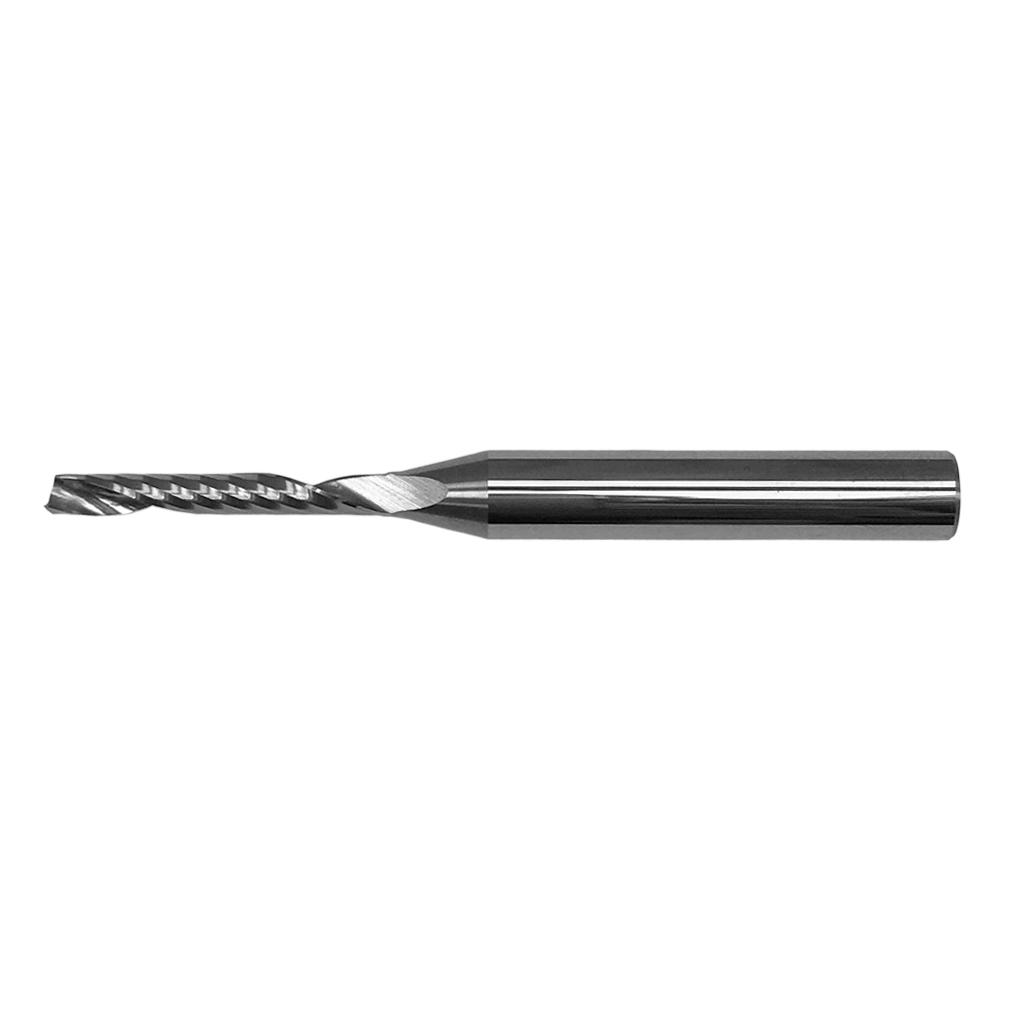

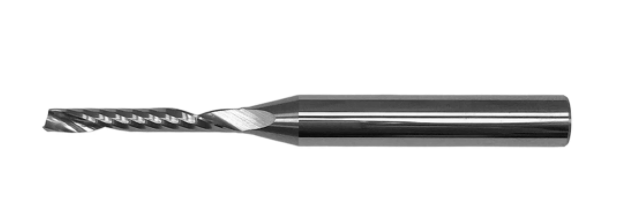

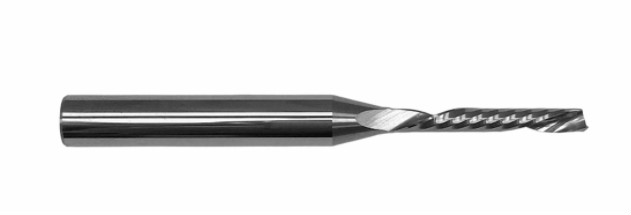

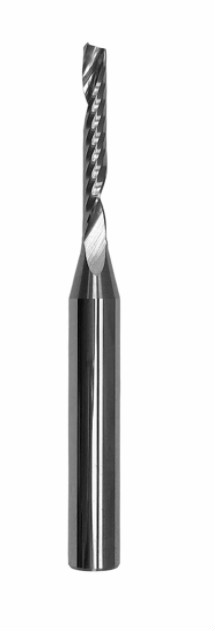

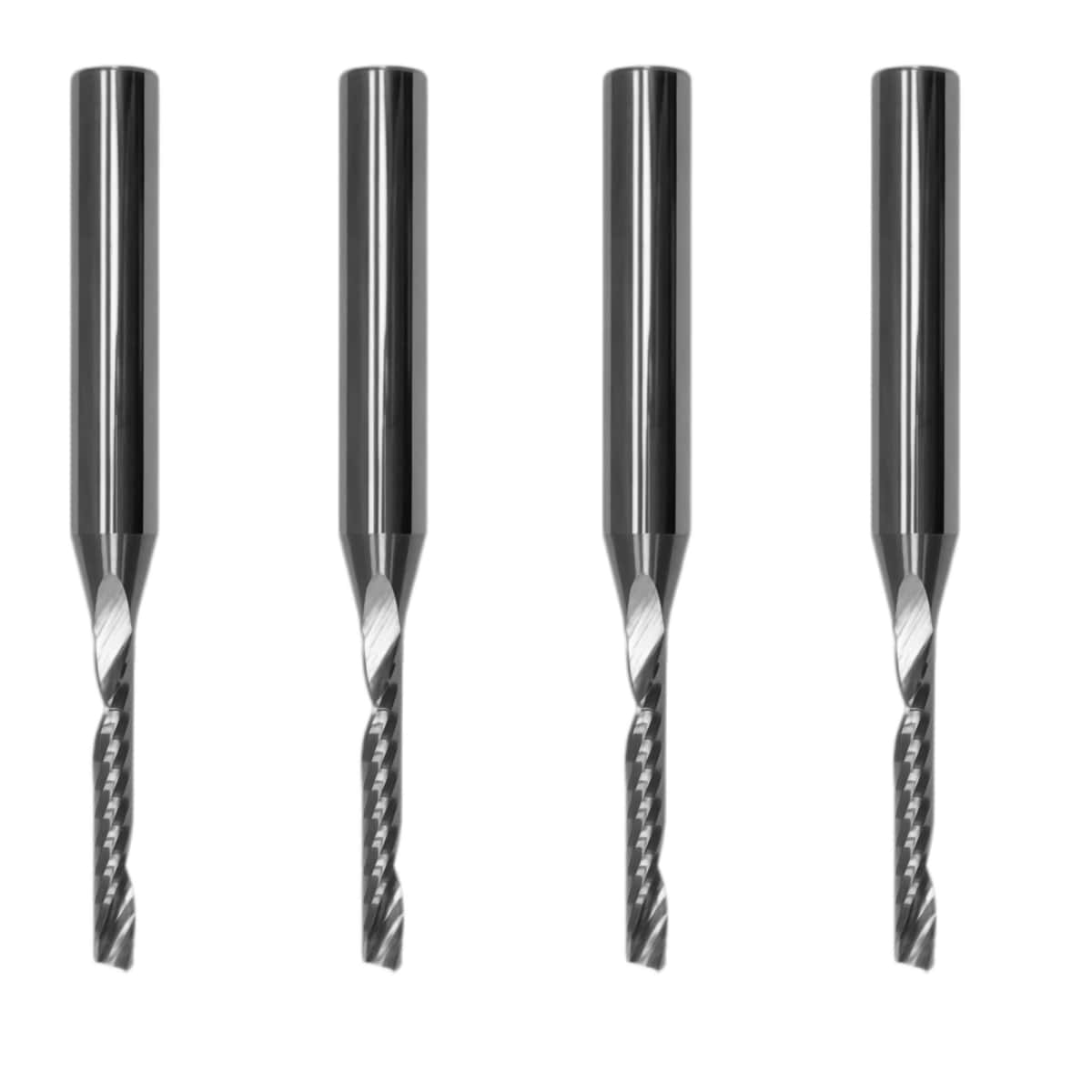

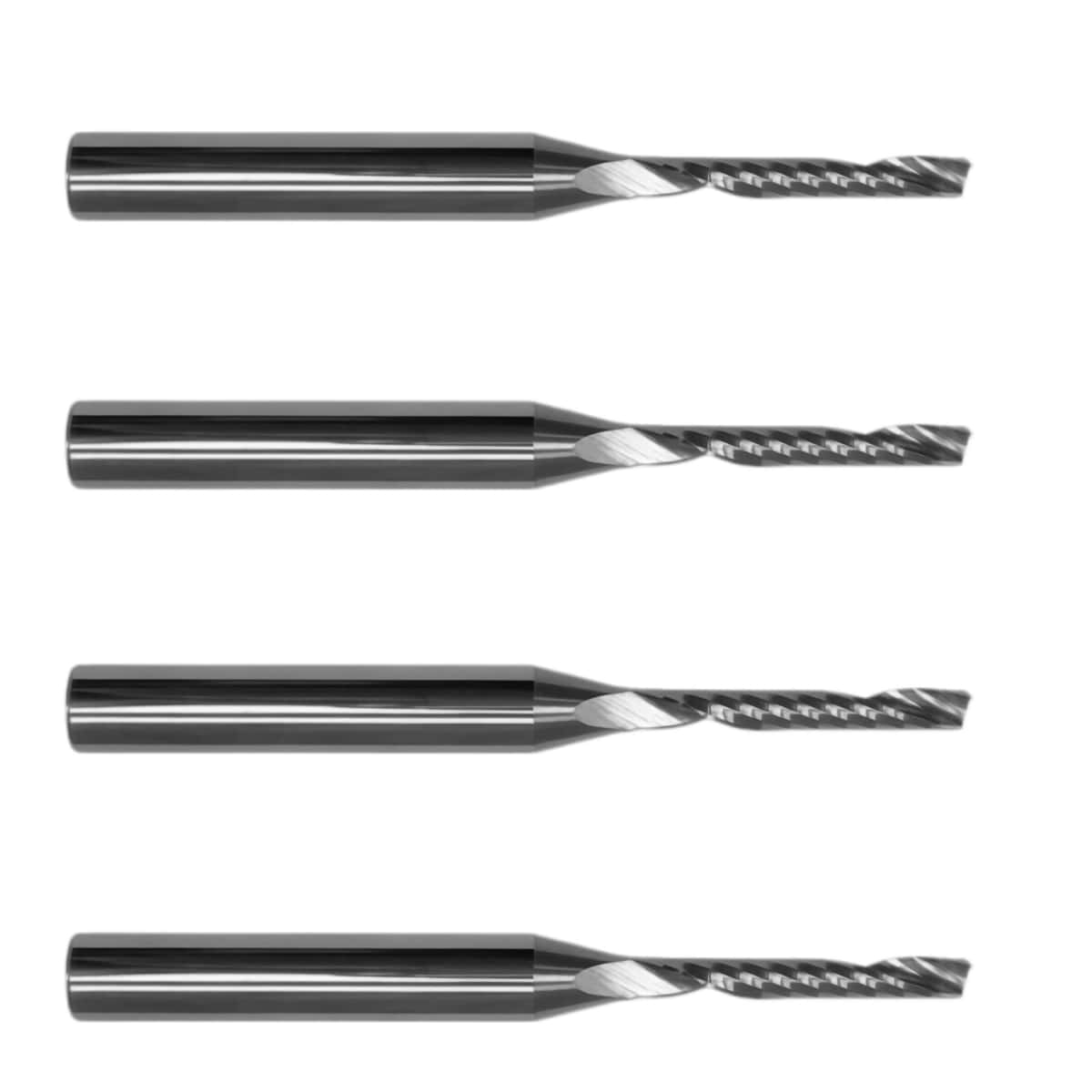

Esko Kongsberg Bit-Aus06-3022-60 G42449440 42449439 Tungsten Carbide Router Milling Bit
Esko Kongsberg BIT-AUS06-3022-60 (Part Numbers: 42449439 / G42449440) is a premium, solid tungsten carbide single-flute up-cut router milling bit. It is custom-engineered specifically for high-speed, high-precision acrylic and plastics routing on Kongsberg Precision Cutting Systems flatbed digital c… Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Aus06-3022-60 G42449440 42449439 Tungsten Carbide Router Milling Bit
Esko Kongsberg Bit-Aus06-3022-60 G42449440 42449439 Tungsten Carbide Router Milling Bit

Key Technical Specifications
  • Milling Type: Single O-flute, right-hand spiral (Up-Cut).
  • Shank Diameter: 6.0 mm.
  • Cutting/Tip Diameter: 3.0 mm.
  • Maximum Cutting Depth: 22.0 mm (optimized for materials up to 20mm thick).
  • Total Length: 50.0 mm to 60.0 mm.
  • Designation: "Super Sharp" geometry.

Primary Material Applications
  • Acrylic Panels (PMMA, Plexiglas, Perspex).
  • Polycarbonate (PC) and rigid plastics.
  • Polymers like Polyethylene (PE), Polypropylene (PP), and Polyamide (PA).

Hardware Compatibility & Chuck Requirements
To operate this specific bit on your Kongsberg PCS table, it must be paired with the correct tooling configuration based on your spindle type:
  • Flawless Edge Quality: The "Super Sharp" single-flute design ensures clean chip evacuation, minimizing heat build-up and preventing melted edges on plastic substrates.
  • Extended Tool Life: Constructed from ultra-fine micro-grain tungsten steel for superior wear resistance during long production runs.
Esko Kongsberg Bit-Aus06-3022-60 G42449440 42449439 Tungsten Carbide Router Milling Bit
