Ecocam E18 Tungsten Carbide (Vhm) Round Shank Knife Blades Part 220018

china XKEC0018 Ecocam E18 solid carbide round shank insert ( part number 220018) is a high-rigidity, single-edged, general-purpose tungsten carbide (VHM) Knife Blades. As a standard 6mm round shank Knife Blades, Enquire now

Description

Ecocam E18 Tungsten Carbide (Vhm) Round Shank Knife Blades Part 220018

Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam e18 Blade,Ecocam e18,Ecocam Blades

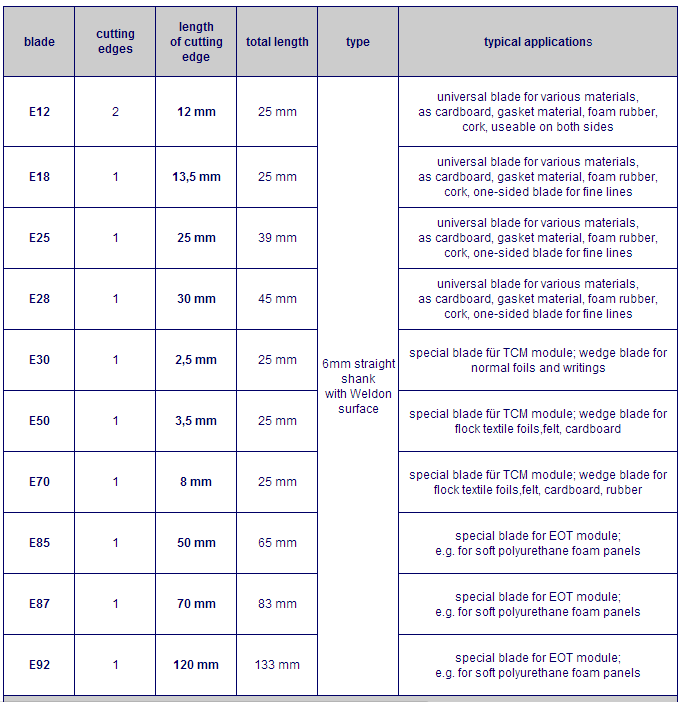

Ecocam Carbide blades - E18
Universal blade for various materials, as cardboard, gasket material, foam rubber, cork, one-sided blade for fine lines
Cutting edges: 1
Length of cutting edge: 13,5 mm
Total length: 25 mm
Type: 6mm straight shank with Weldon surface

Used With ECOCAM Holder: EOT/TCM

Description: Round Point, Tip Center

Notes: Universal blade for various materials; use for fine contour cutting

This replacement blade is sintered and precision ground from 100% solid carbide/tungsten carbide (VHM) and is perfectly compatible with the following systems:
• Ecocam hardware : perfectly compatible with EOT-2 and EOT-3 electric high-frequency vibration knife modules, as well as TCM-3 and TCM-4 tangential drag knife control modules.
• Mainstream integrated flatbed cutting machine : widely used as a high-performance replacement consumable on various digital machining centers equipped with 6mm side-fixed tool holders, such as ShopSabre CNC, ShopBot, and Avid CNC.

Best processing materials

Its 70° sharp design provides extremely low lateral resistance during cutting, making it particularly precise when cutting sharp small arcs and fine interior angles.
• Thick cardboard, folding carton
• Industrial grade rubber and plastic sealing gasket materials (Gasket / Rubber)
• Medium and high density foam (Foam)
• Cork pads and various flexible insulating composite sheets
