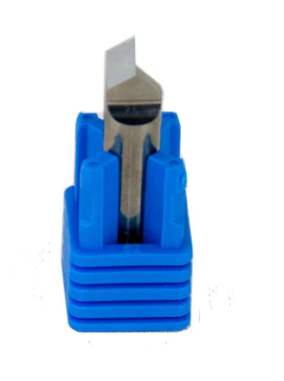

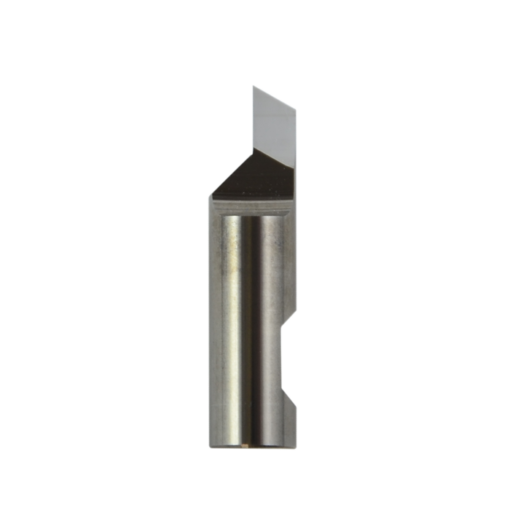

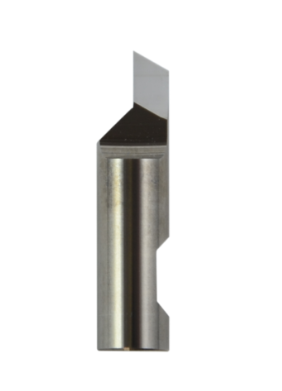

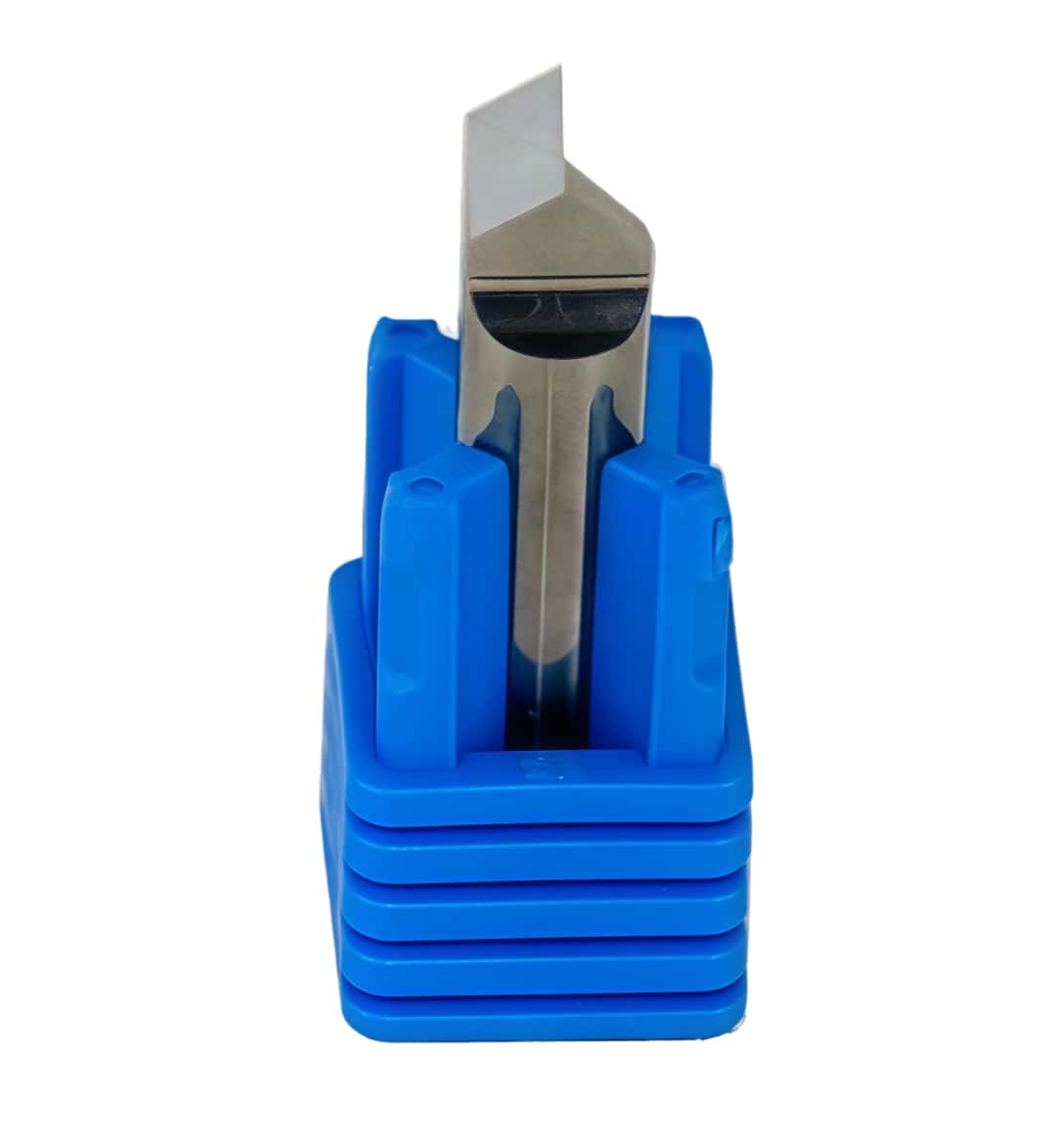

1. Technical Specifications

• Blade Style: Wedge Blade (30° cutting/wedge angle)

• Material: VHM (Vollhartmetall / Solid Carbide / Tungsten Steel)

• Cutting Edges: 1

• Shank Diameter: 6 mm (Round shank, typically featuring a flat Weldon surface for secure locking)

• Cutting Edge Length: 2.5 mm

• Overall Length (OAL): 25 mm

• Official OEM Part Number: 220030 (Ecocam)



2. Primary Applications & Materials

Because of its tiny 2.5 mm cutting edge length and sharp 30° wedge angle, the E30 blade is not meant for thick foams or heavy gaskets . Instead, it is the go-to choice for intricate, low-profile, and highly detailed graphic work :

• Vehicle & Signage Vinyl: Cutting standard graphic vinyl and reflective lettering.

• Fine Text & Details: Intricate plotting or writing where larger blades would lift or tear thin material on sharp corners.

• Magnetic Foils: Slicing through thin magnetic sheet stock cleanly.

• Adhesive & Masking Films: Precision kiss-cutting or through-cutting of backing sheets.
