Ecocam W60 CNC Systems Carbide Round Shank Shaft ​Oscillation Wave Cut Sawtooth Blades Part 220110
china Ecocam W60 (Part #220110)wave cut / serrated blade made of tungsten carbide. It features a 58 mm max cutting depth, 73 mm total length, and 6 mm shank diameter with a Weldon surface. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

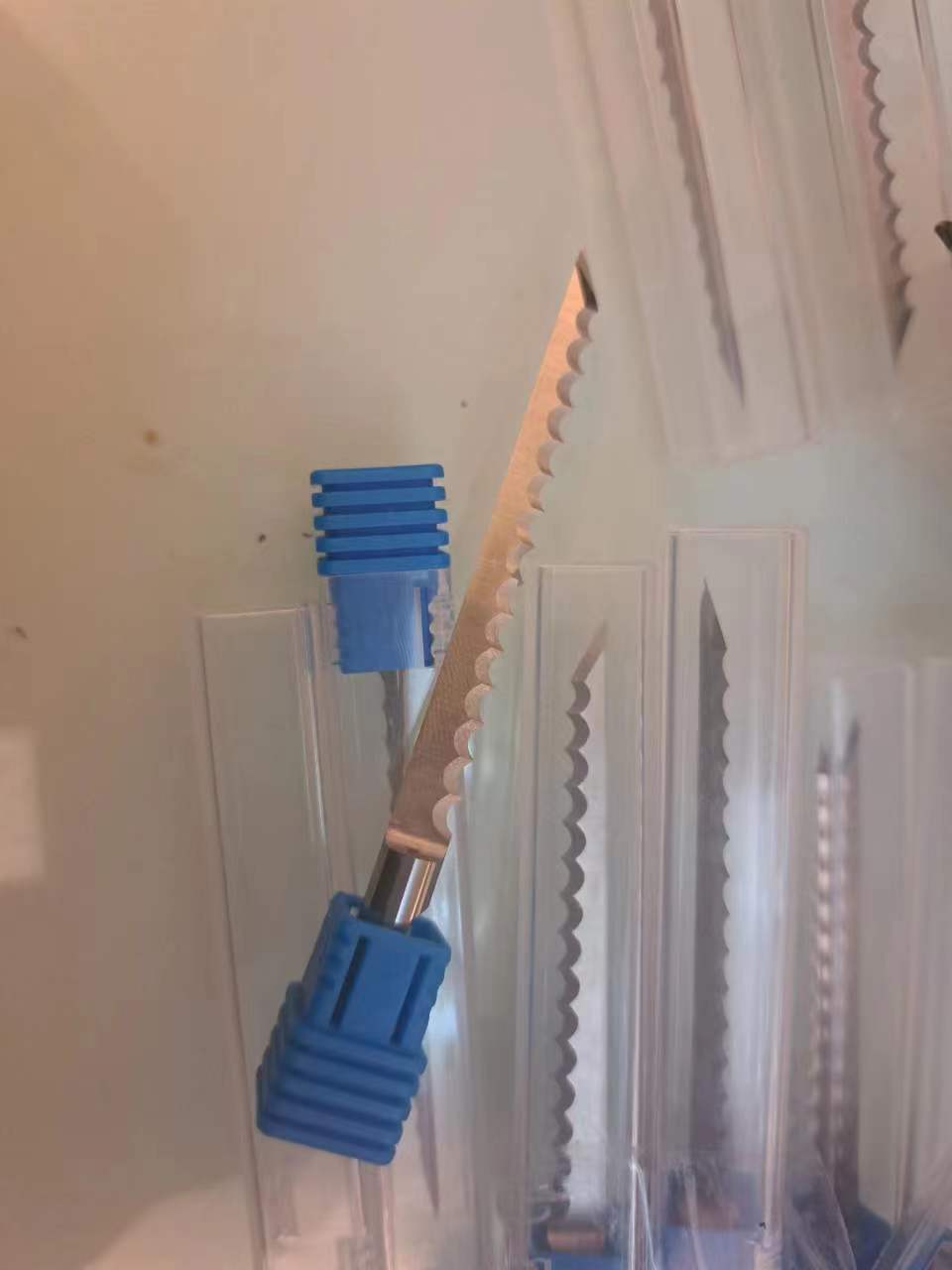

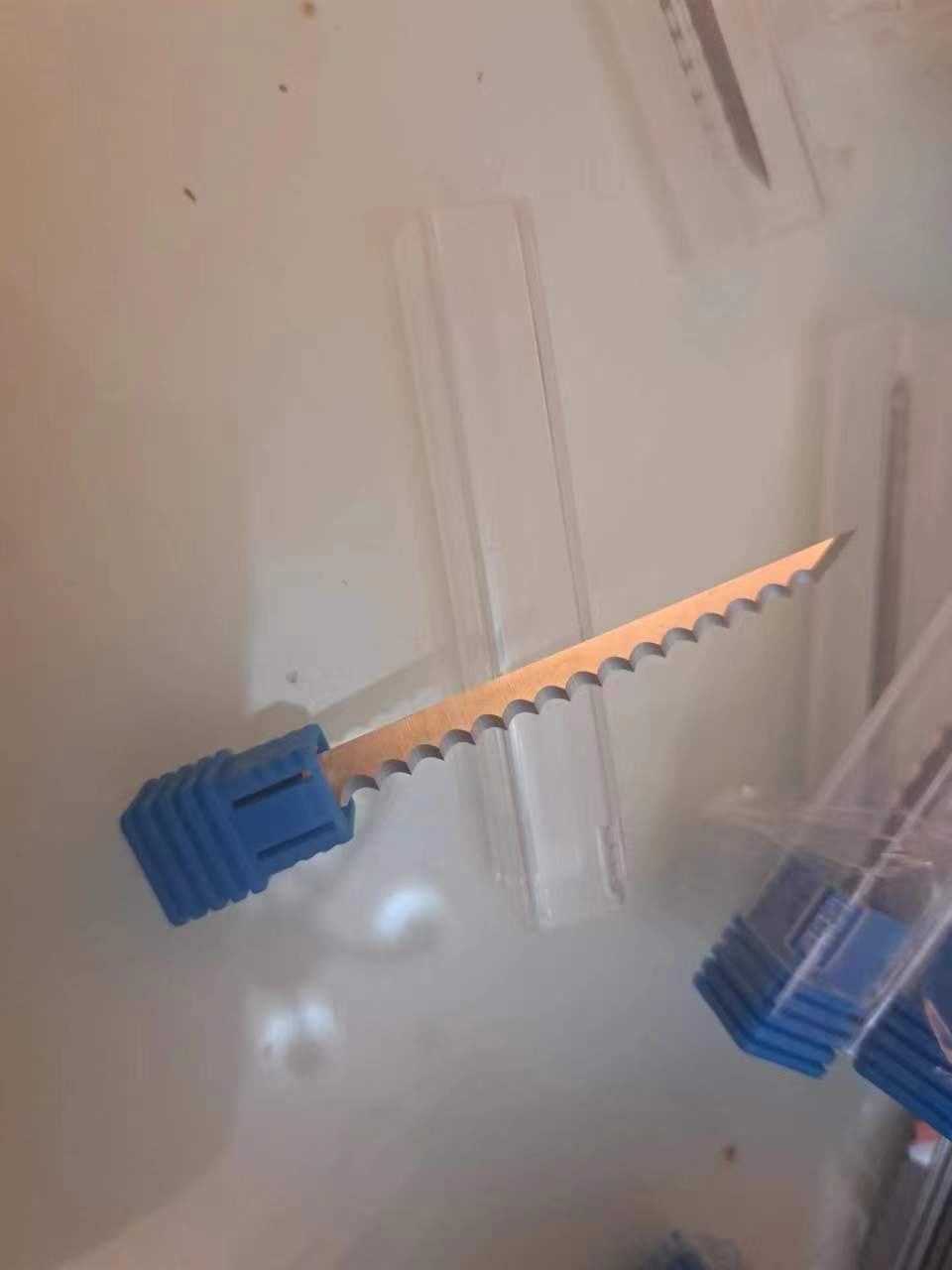

Ecocam W60 CNC Systems Solid Carbide Round Shank Shaft Oscillation Wave Cut Sawtooth Blades Part 220110

Ecocam W60 CNC Systems Solid Carbide Round Shank Shaft Oscillation Wave Cut Sawtooth Blades

Ecocam W60 Vibrating Wave Cutting/Serrated Blade (Part No.: 220110) is a high-performance solid carbide (tungsten carbide) tool designed specifically for CNC cutting systems (such as Ecocam EOT-2, EOT-3 cutting/vibrating tool modules). It is primarily used in digital flatbed cutting machines and plotters, enabling efficient and precise machining of various soft, honeycomb, or multi-layered composite materials.

Core Technical Parameters

• Part No .: 220110
• Shank type : 6.0 mm round shank with Weldon side-locking clamping plane (ensuring clamping stability under high-frequency vibration).
• Material : Solid Carbide (VHM), possessing extremely high wear resistance and bending strength.

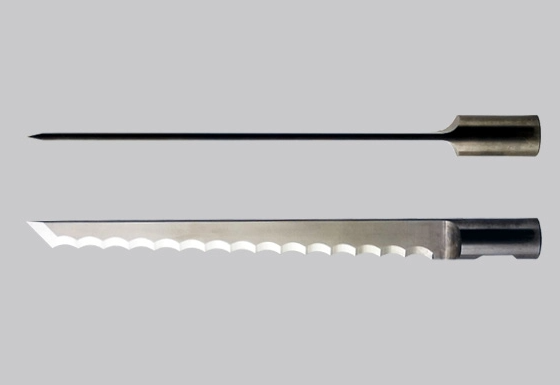

• Cutting edge geometry : Wave Cut / Corrugated Geometry
• Maximum cutting depth : 35 mm

Applicable processing materials

Thanks to its unique wavy cutting edge design, the 220110 insert offers better chip resistance and lower cutting resistance than ordinary flat-blade inserts when cutting the following materials:
• Soft polyurethane foam panels
• Corrugated cardboard and honeycomb structures
• Stationery and specific packaging padding

Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam W60 Blade,Ecocam W60

If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
           1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.  Contact with us ,you will get more than what you can !
