iEcho E26-2C Cutter Oscillating Knife Blades-Replace Compatible Supply Manufacturing Shop

iEcho E26-2C cutter oscillating knife blade is a 30 mm tall, 0.63 mm thick oscillating blade with a 22°/63° cutting angle and a listed max cutting depth of 8.7 mm on one source, while other compatible replacement listings show up to 10 mm. Enquire now

Description

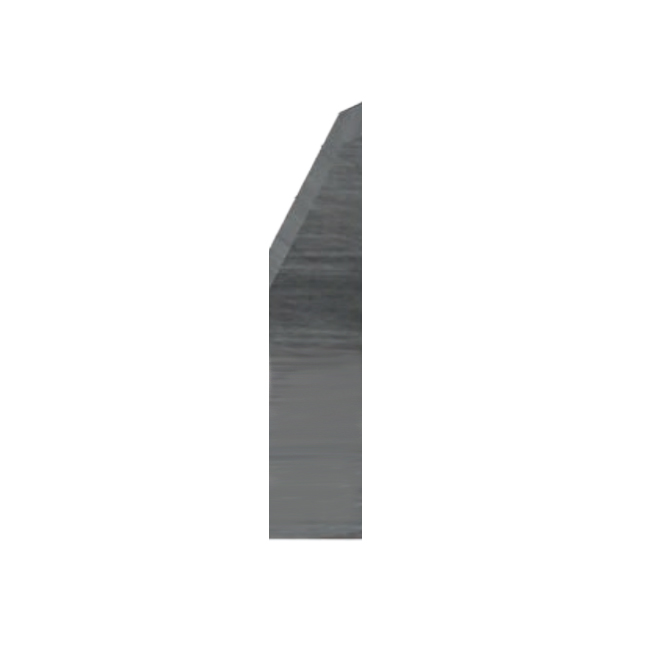

iEcho E26-2C Oscillating Knife Blades

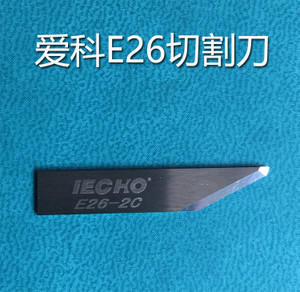

iEcho E26-2C Cutter Oscillating Knife Blades

IECHO E26-2C vibrating insert is an industrial-grade, high-precision tungsten carbide (carbide) cutting tool designed for the IECHO (Aiko) intelligent digital cutting system.It is mainly installed on the head of an electric vibratory tool (EOT) or a pneumatic vibratory tool (POT) for high-speed cutting of non-metallic medium- and high-density flexible materials.

E26-2C Blade Core Technical Specifications

Material : High-quality cemented carbide tungsten steel, which has extremely high wear resistance and hardness.

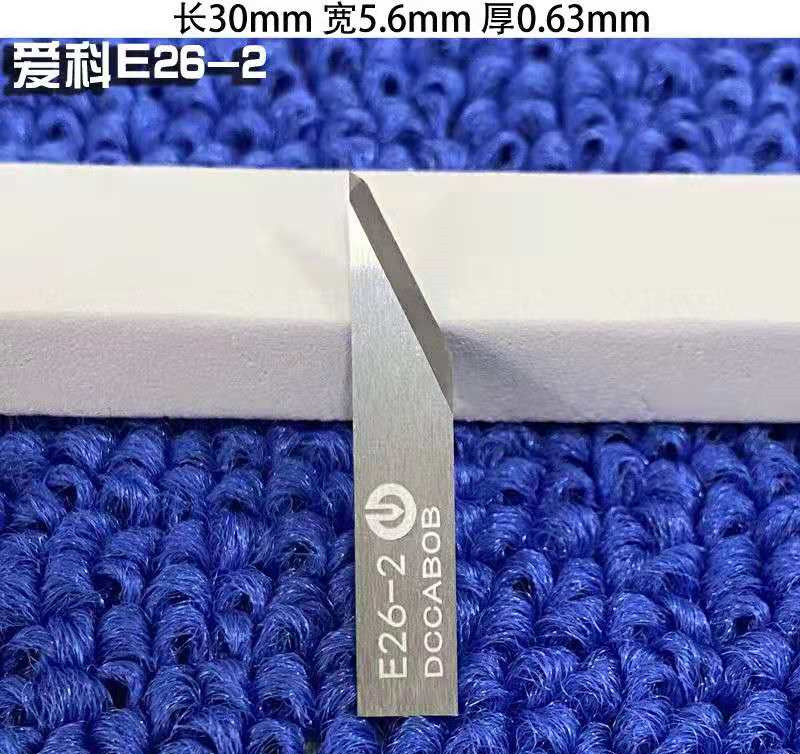

Blade thickness : 0.63 mm .
Blade height : 30.00 mm .
Blade width : 5.60 mm .
Maximum cutting depth : 8.7 mm - 10.00 mm .
Cutting angle : 22° / 63° double-edge design .
Shank clamping : Flat clamping opening (Flat 0.63mm).

Applicable processing materials

This blade model is ideal for cutting the following semi-rigid and composite soft materials due to its sharp and rigid cutting edge design:

Composite materials : carbon fiber, glass fiber, prepreg.
Packaging label : Corrugated cardboard, honeycomb cardboard, thick cardboard, felt.
Sealing and Leather : Natural rubber, gaskets, genuine leather, automotive interior leather goods.
Textiles : Non-woven fabrics, nylon fabrics, polyester fiber fabrics.

Software and Control Integration: IECHO Cutter Server

In actual industrial production, the efficient operation of the E26-2C cutting blade relies entirely on the IECHO Cutter Server (digital cutting service system) .

Intelligent tool library matching : In the Cutter Server software, operators can directly select and activate "EOT" in the tool configuration list (Die Cutting / Tool Library), and the system will automatically match the 30mm length parameter of E26-2C to prevent cutting through the felt pad.
Process control : The control system automatically optimizes corner deceleration, blade lifting height, and high-frequency vibration of 15,000 RPM based on the blade thickness and angle to ensure smooth and burr-free cutting edges.
Compatible models : This blade is fully compatible with the flat cutting heads of multiple digital cutting machines such as IECHO BK4, TK4S, and PK
