iEcho E28L E28-2C Oscillating Knives Knife Blades For Iecho Flatbed Cutter Shop In China

iEcho E28L / E28-2C oscillating knife blade is a tungsten-carbide replacement blade for iEcho flatbed cutting machines, especially the BK and TK series Enquire now

Description

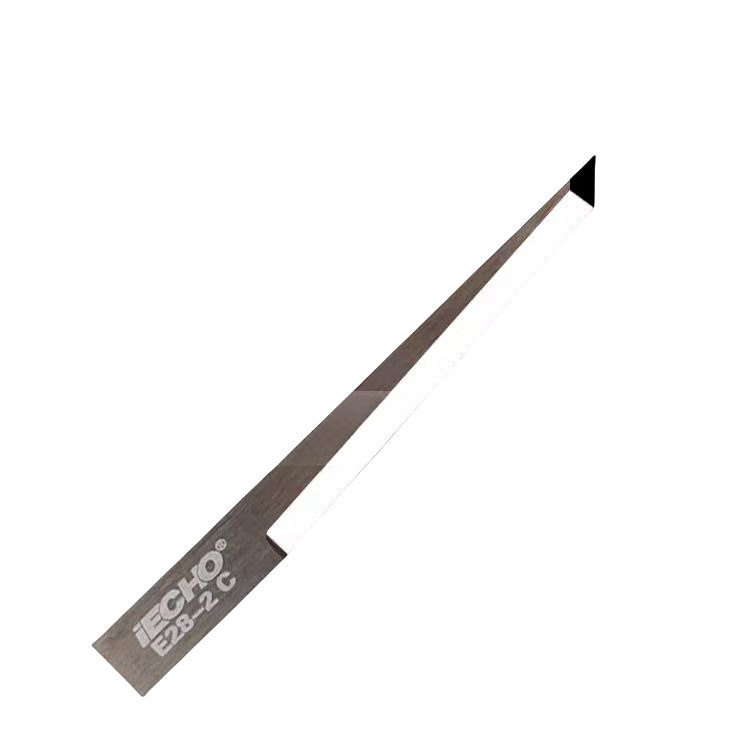

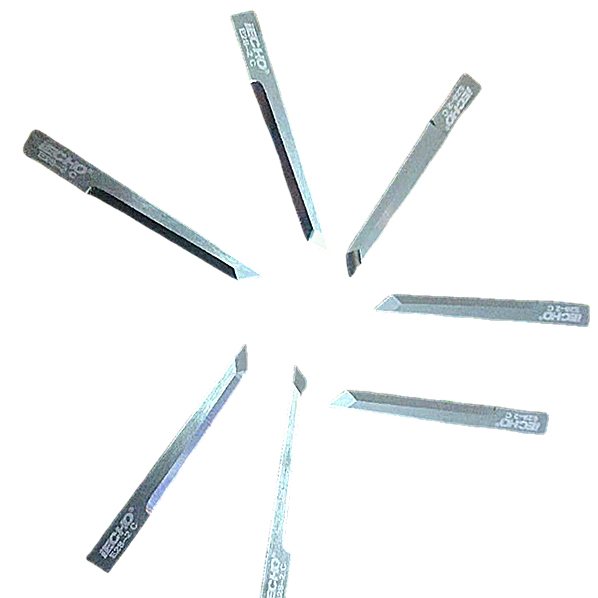

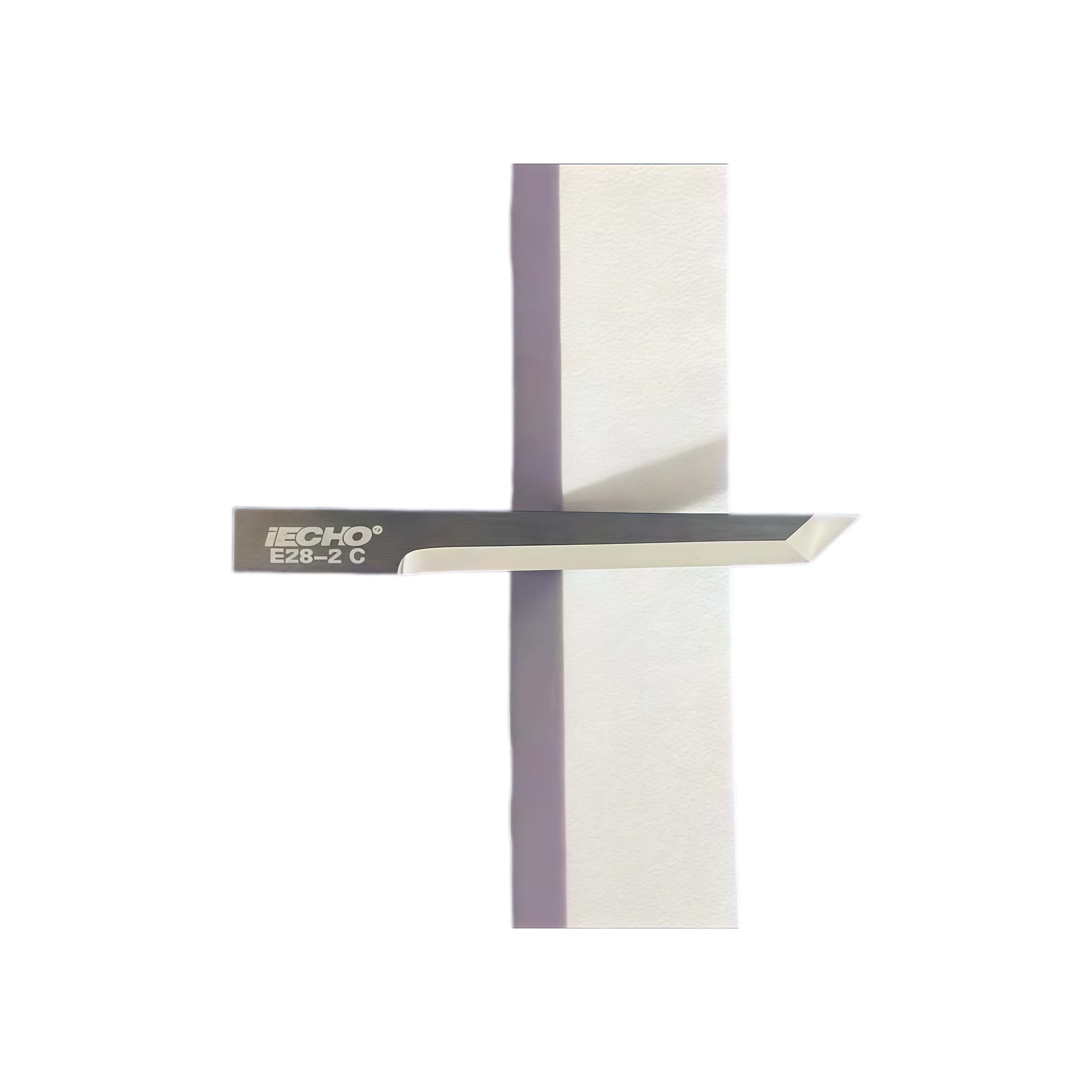

iEcho E28L/E28-2C Oscillating Knife Blades

iEcho E28L E28-2C Oscillating Knives Knife Blades

The iEcho E28L and E28-2C are high-precision oscillating knife blades designed for iEcho CNC flatbed cutting machines, particularly those in the BK and TK series. These blades are typically made from tungsten carbide (tungsten steel) to ensure durability, wear resistance, and the ability to maintain a sharp edge under high-temperature working conditions.

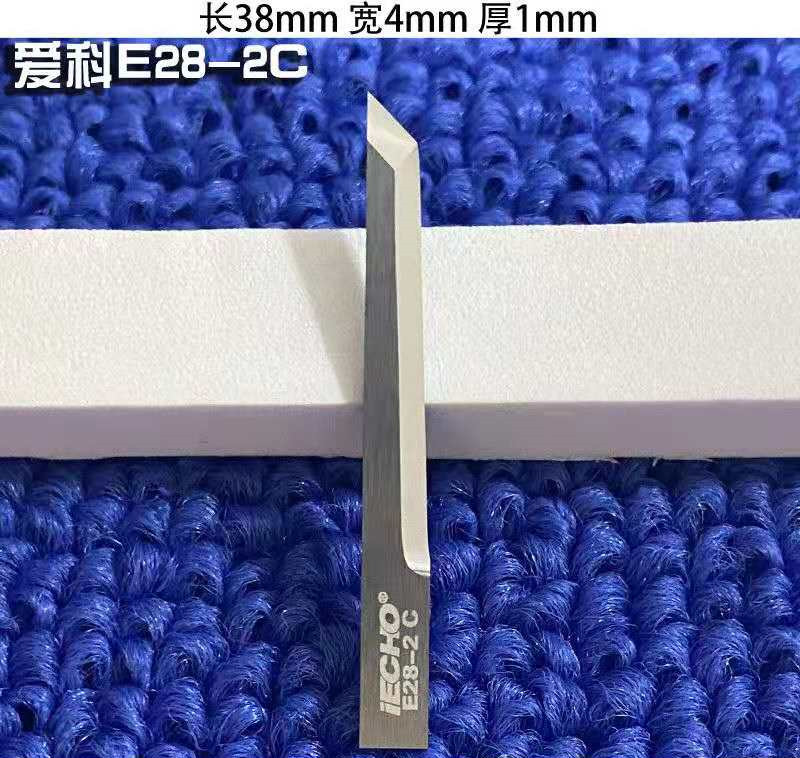

Knife height: 38mm
Thickness: 1 mm
Max. cutting depth:24.0mm
Knife type: Oscillating
Angle: 45/86°
Suitable for machine manufacturer:
Cutworx Apex CWX/CWT E28L iEcho E28L/E28-2C

Recommended Materials
These blades are specifically engineered to handle soft, thick, or semi-rigid materials including:
Corrugated Board: Both standard cardboard and plastic corrugated board.
Foam Products: Foam board, foam, and insulating mats.
Plastics & Composites: ABS plastic, carbon fiber prepreg, and seal rings.
Soft Goods: Carpet, wire loop pads, and grey cardboard.

Hardware compatibility

This blade can be seamlessly and natively integrated into iEcho's digital flatbed cutters (such as large and medium-sized BK, TK, SK, and even small PK series) and installed in the following tool head modules:

EOT (Electric Oscillating Tool): Suitable for medium-density materials with a thickness of around 20mm.
POT (Pneumatic Oscillating Tool): Utilizes high-stroke, high-power pneumatic cutting with a 1mm thick E28C blade to cut hard, dense materials.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
