iEcho E41 Oscillating Knives Knife Blades For Iecho Flatbed Cutter Shop In China

iEcho E41 oscillating knife blade is commonly listed as a tungsten-carbide replacement blade for iEcho automated cutting machines, with a 25 mm height, 5.6 mm width, 0.63 mm thickness, 15°/80° angle, and 8.7 mm max cutting depth. Enquire now

Description

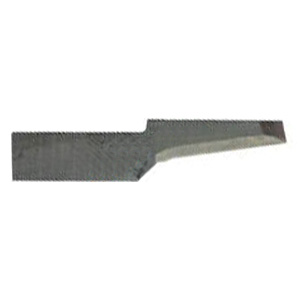

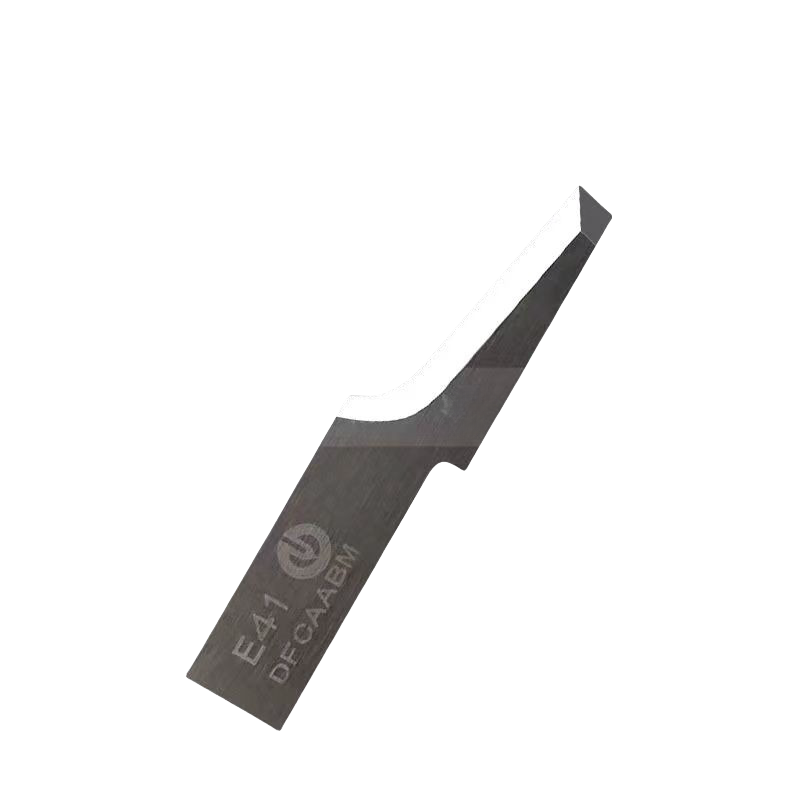

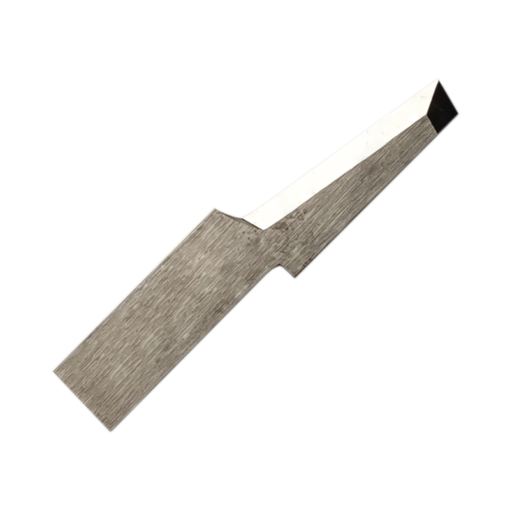

iEcho E41 Oscillating Knife Blades

iEcho E41 Oscillating Knives Knife Blades

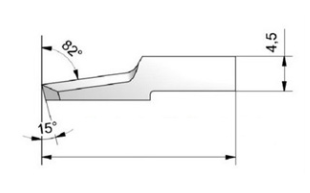

Knife height: 25mm
Thickness: 0.63mm
Max. cutting depth:11mm
Knife type: Oscillating
Angle:15/80°

Best applicable materials

Due to its thin blade, high rigidity, and sharp edge, the E41 is ideal for machining hard/semi-hard materials that require smooth, burr-free edges, complex curves, or medium toughness.

Composite and technical fibers : aramid fibers, carbon fiber prepreg, and glass fiber cloth.
Natural and synthetic leather : genuine leather for automotive interiors, heavy-duty leather, and artificial leather.
Technical textiles and felts : sound insulation felt, high-density nylon fabric, polyester fiber sound-absorbing panels.
Paper products and lightweight boards : thin cardboard, high-density multilayer cardboard, composite foam board.

Tool module compatibility

This blade is perfectly compatible with the entire range of iEcho digital cutting machines (such as large and medium-sized BK and TK machines, or small PK intelligent prototyping machines), and is typically embedded in the following tool heads:

EOT (Electric Vibratory Knife) : Utilizing a micron-level 0.63mm chuck, combined with the high-frequency vibration of the EOT, it performs high-speed, precision edge-following cutting.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
