iEcho E14 Drag Knife Blades For Iecho Digital Cutter/ Flatbed Cutting Machine

iEcho E14 drag knife blade is a tungsten carbide replacement blade for iEcho digital cutter and flatbed cutting machine setups, with common listings showing a 50 mm knife height, 1.5 mm thickness, 14 mm max cutting depth, and 45° / 90° cutting angle. Enquire now

Description

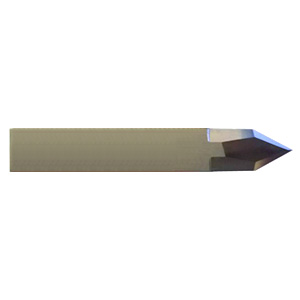

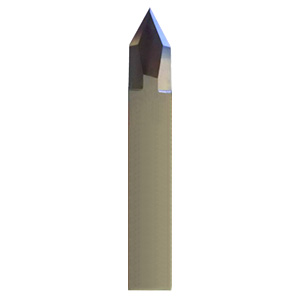

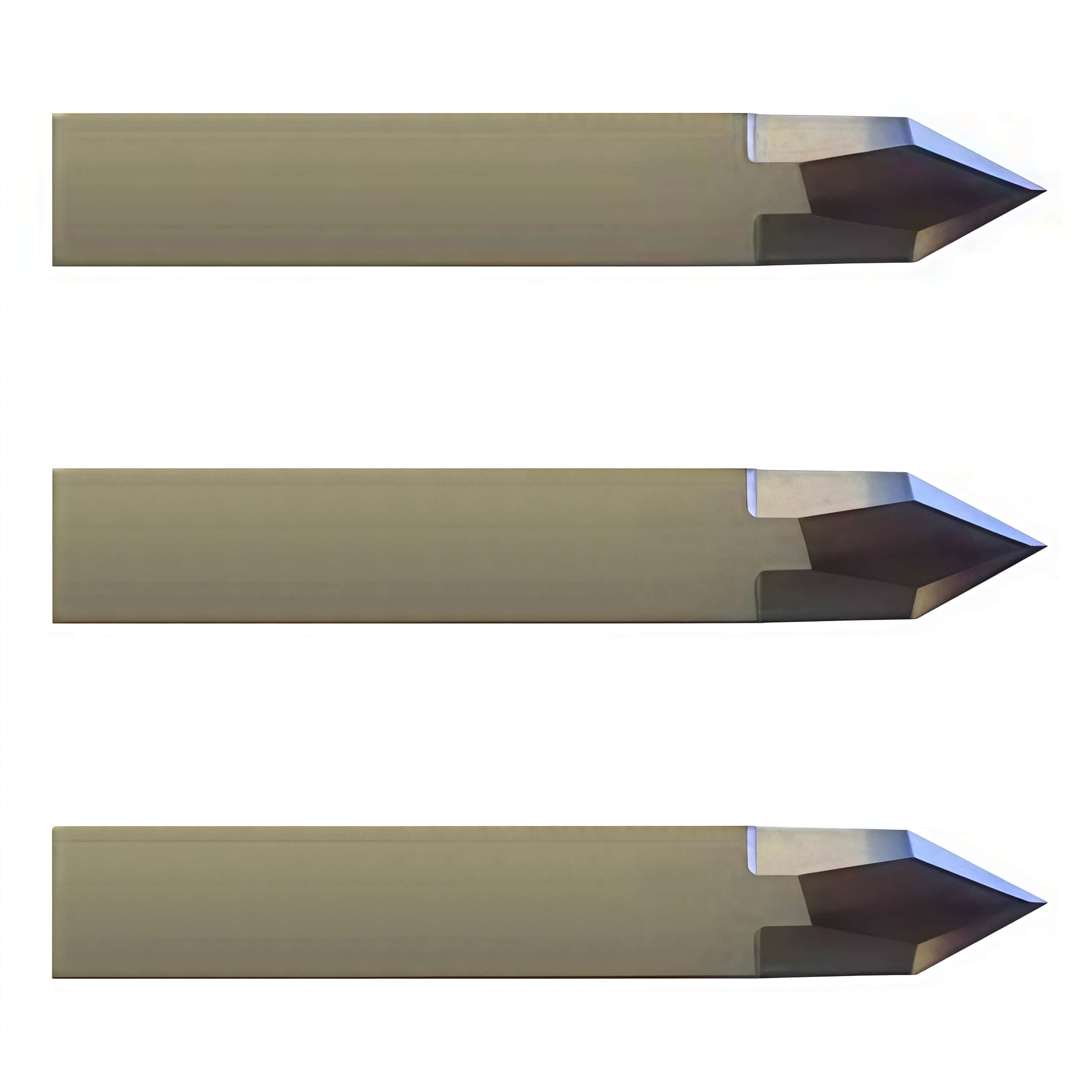

iEcho E14 Drag Knife Blades

The IECHO E14 tungsten carbide blade is a double-sided, flat-stock drag knife engineered for high-performance cutting on IECHO digital cutters and flatbed cutting systems. Featuring a dual-edge design, it allows operators to invert the blade to utilize the second sharp edge when the first edge wears down, making it highly efficient for continuous production. It is uniquely tailored for deep cutting through fibrous or less rigid materials where a minimal overcut is required.

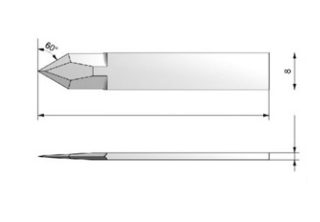

Technical Specifications

Blade Type: Flat-stock double-sided drag blade
Material: Premium solid tungsten carbide (Hard Metal / HM)
Cutting Angle: 45° / 90° dual angle
Blade Thickness: 1.50 mm
Blade Width: 8.00 mm
Total Height: 50.00 mm
Maximum Cutting Depth: 14.00 mm

Machine & Tool Compatibility

The E14 blade natively interfaces with standard 1.5 mm flat-stock tool holders across the IECHO BK, BK3, BK4, and TK series flatbed systems. It is most commonly deployed within the Universal Cutting Tool (UCT) drag knife assembly.

Thanks to standardized dimensions, the E14 serves as a drop-in replacement or a lower-cost cross-compatible solution for several other industrial CNC machines:

Zund: Z44 / Z14 (Part number 3910340)
Comagrav: E14

Common Material Applications

With a substantial 14.00 mm maximum cutting depth, the E14 blade excels at cutting thicker, porous, or flexible materials that jam thinner profiles:

Industrial Fabrics: Thick tarpaulin, canvas, heavy-duty truck covers, and multi-layered textiles.
Flooring & Insulation: Carpeting, heavy felt, underlayment, and woven flooring materials.
Packaging & Display: Thick corrugated cardboard, corrugated plastics (PP), and honeycomb board.
Gaskets & Plastics: Soft plastic sheets, rubber gaskets, and low-density foam sheets.
