iEcho E16LC Oscillating Cutting Knife Blades For Iecho Digital Cutter/ Flatbed Cutting Machine

iEcho E16LC oscillating cutting knife blade is a tungsten carbide oscillating blade for iEcho digital cutters and flatbed cutting machines, with a 30 mm blade height, 54° angle, and up to 7.4 mm cutting depth. Enquire now

Description

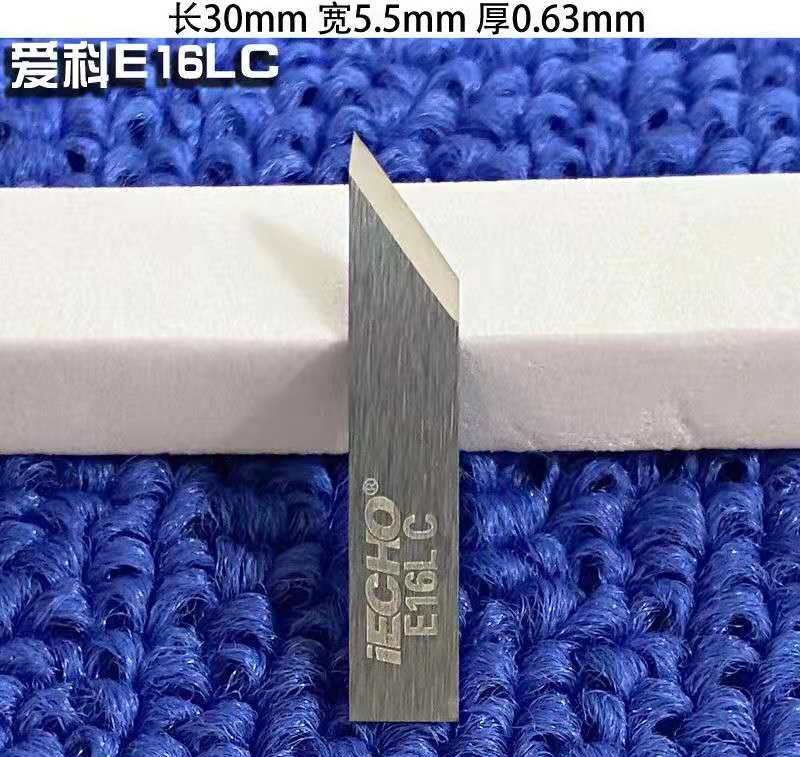

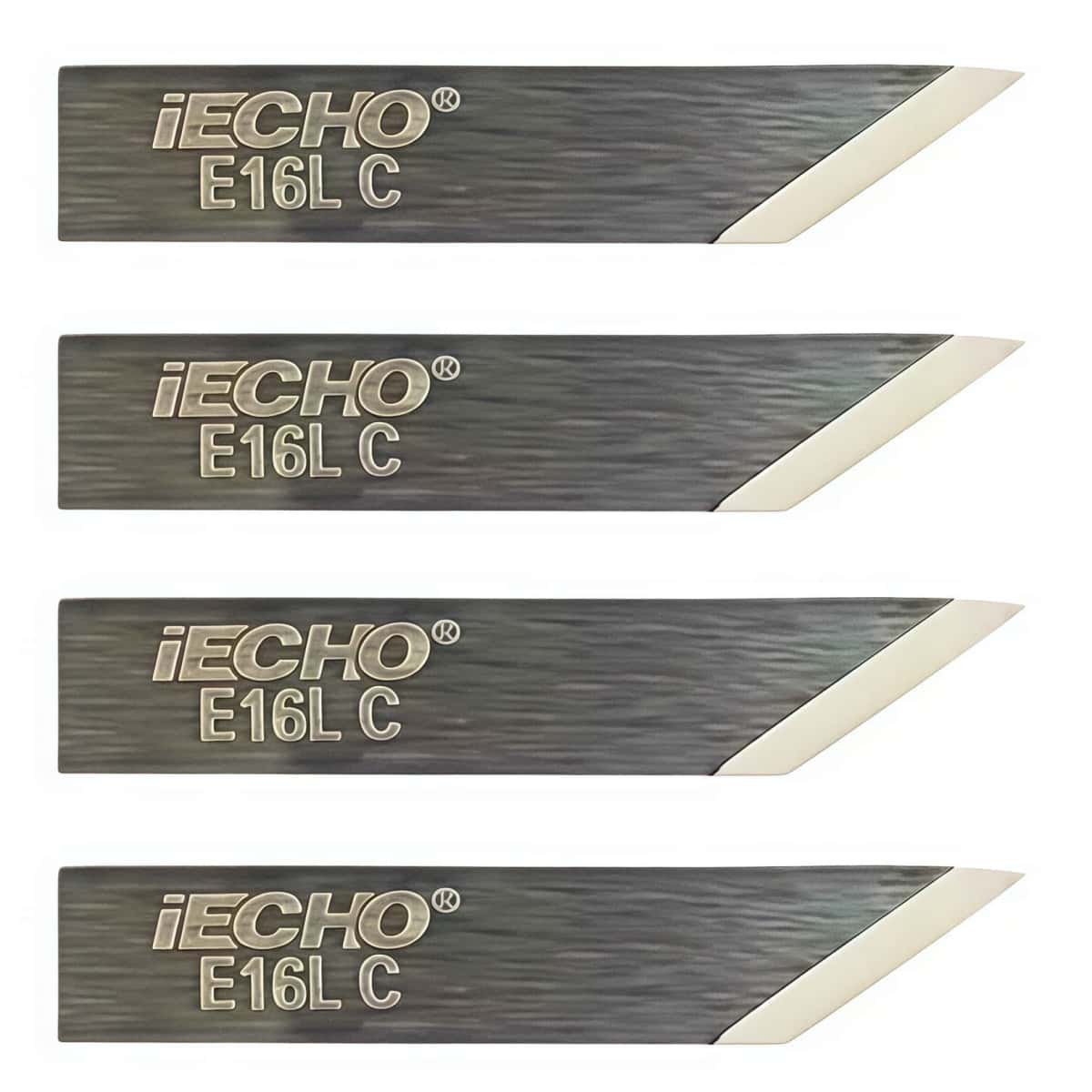

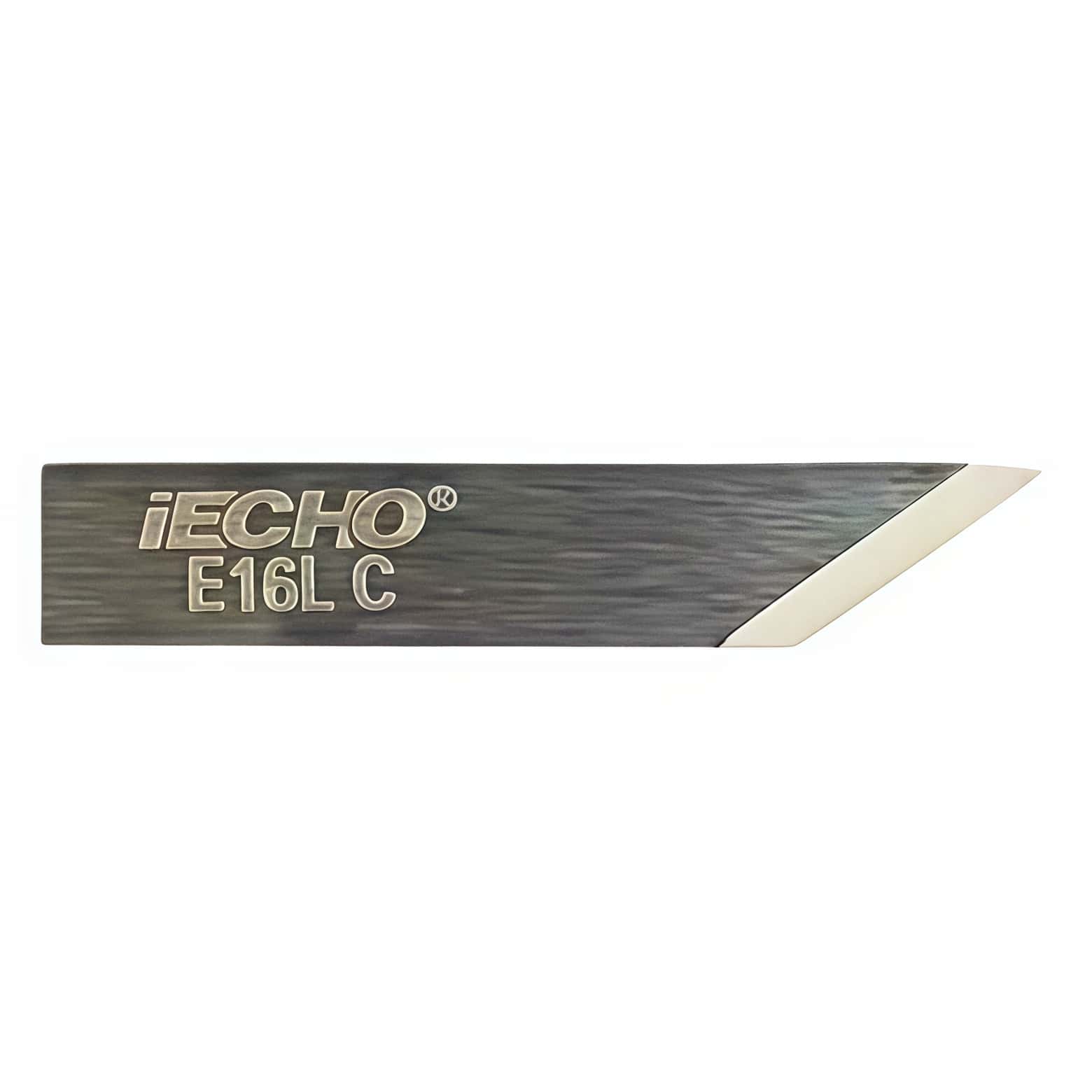

iEcho E16LC Oscillating Cutting Knife Blades

IECHO E16LC oscillating knife blade is a flat-stock, single-edge tungsten carbide blade specifically engineered for high-frequency vibrating tool modules on IECHO digital cutters and flatbed cutting systems. Optimized with a 54° angle and a thin 0.63 mm profile, the E16LC balances razor-sharp intricate detailing with the vertical sawing power required to process soft-to-medium composite and foam substrates without fraying or tearing.

Technical Specifications

Blade Type: Flat, single-edge oscillating blade
Material: Uncoated ultra-fine grain solid tungsten carbide (HM / Hard Metal)
Cutting Angle: 54°
Blade Thickness: 0.63 mm
Blade Width: 5.50 mm
Total Height: 30.00 mm
Maximum Cutting Depth: 7.40 mm
Mounting Style: 0.63 mm flat tool mount

Machine Tool Compatibility

The E16LC blade is engineered to drop into IECHO's primary reciprocating cutting tool modules. It is natively driven by:

Electric Oscillating Tool (EOT): Ideal for high-frequency, low-stroke vertical cutting.
Pneumatic Oscillating Tool (POT): Powered by compressed air for materials requiring high downward force.
Machine Series: Fully compatible with the IECHO BK, BK3, BK4, and TK series of automated digital flatbed cutters.

Target Material Applications

With its 7.40 mm maximum depth, the E16LC excels at cutting materials that are too thick or gummy for a traditional drag knife:

Foams & Signs: Thin foam board, expanded PVC foam sheets, and magnetic film layers.
Packaging: Corrugated cardboard, folding cartons, solid paperboard, and heavy cardstock.
Textiles & Graphics: Canvas, polyester fabrics, woven materials, and thick banner vinyl.
Films: Self-adhesive film, masking film, reflective vinyl, and polycarbonate layers.
