iEcho E64-4C Oscillating Knife Blades-Replace Compatible Supply Manufacturing

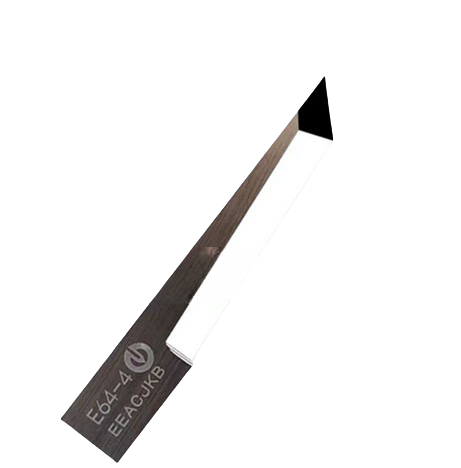

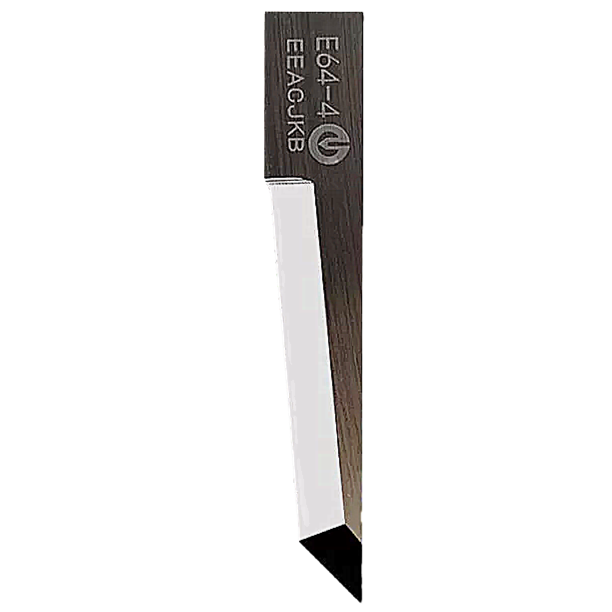

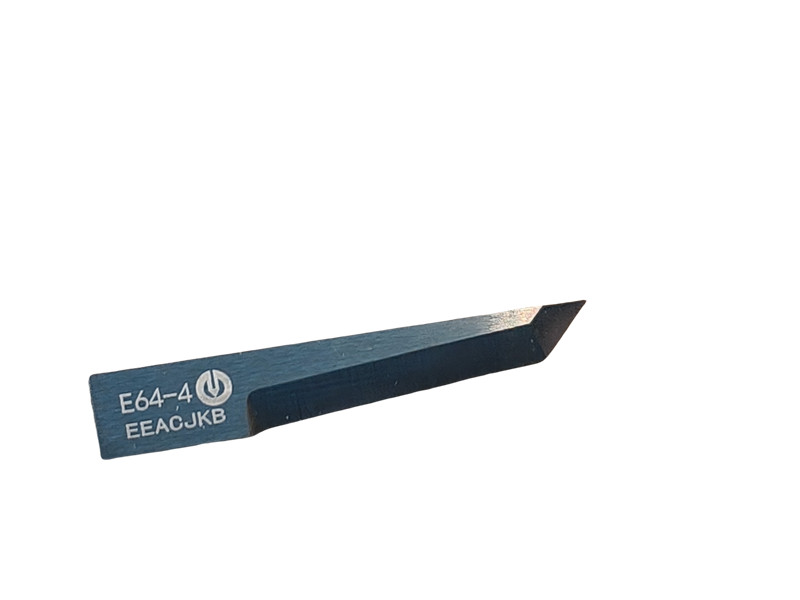

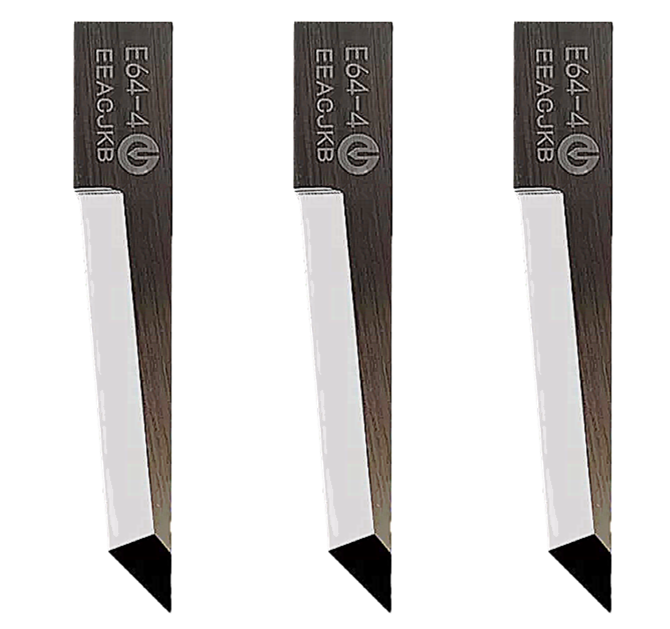

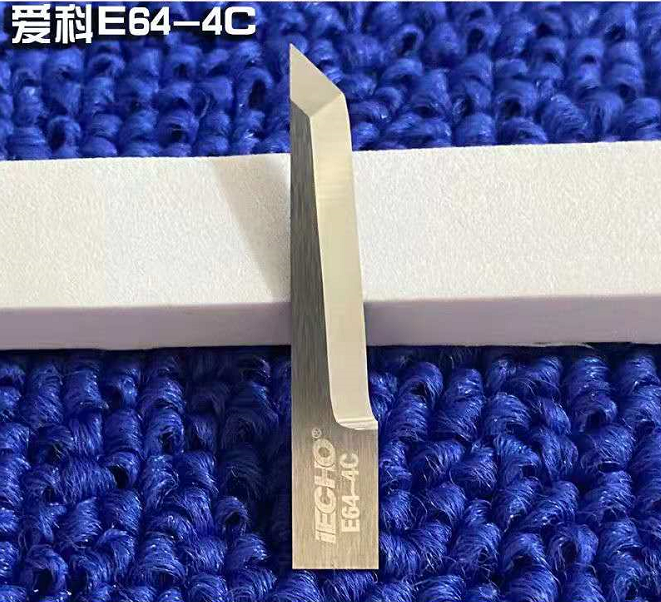

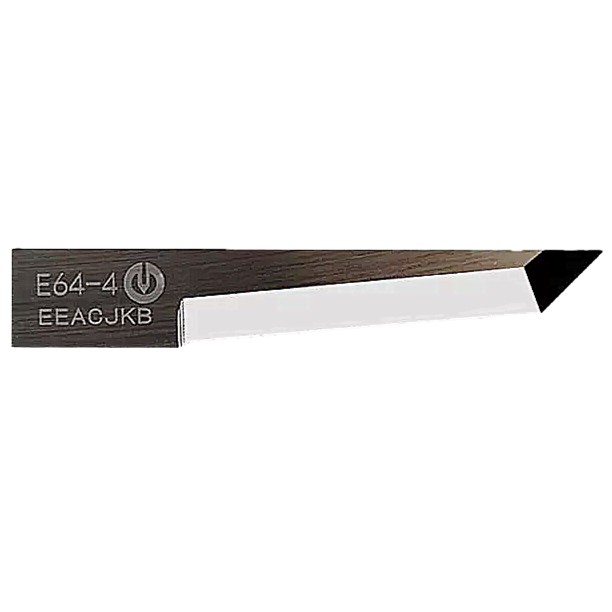

iEcho E64-4C oscillating knife blade is a flat, tungsten-steel replacement blade for iEcho digital cutters and flatbed cutting machines, with a 36 mm height, 6.0 mm width, 1.0 mm thickness, an 84.5°/46.8° angle, and a 24 mm max cutting depth. Enquire now

Description

iEcho E64-4C Oscillating Knife Blades

iEcho E64-4C tungsten steel oscillating knife blade is a highly popular, low-to-mid profile precision tool engineered specifically for high-speed automated slicing on iEcho digital flatbed cutters. Featuring a distinctive dual-angle edge profile, this blade excels at cutting a wide variety of tough industrial fabrics, multi-layered boards, and flexible composite fibers without snagging or fraying.

Knife height: 36mm
Thickness: 1.0mm
KNIFE WIDTH
6,00 mm
ANGLE
84,5°/46,8°
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
24,00 mm
KNIFE TYPE
Flat, Oscillating blade

MATERIALS
Carbon fibers, Corrugated cardboard, Felt, Glass fibers, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Rubber

Suitable for machine manufacturer:
iEcho E64-4
Cutworx Apex CWX/CWT E64-4

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
