Jingwei Jwei J347 Tungsten Carbide Knives Knife Blades For Jwei Flatbed Digital Cutter Tables

Jingwei Jwei J347 is a premium Tungsten Carbide oscillating knife blade designed specifically for high-speed, precision cutting on Jwei CAD/CAM flatbed digital cutter tables. Enquire now

Description

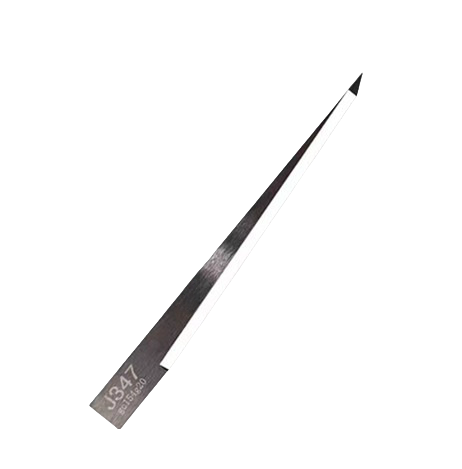

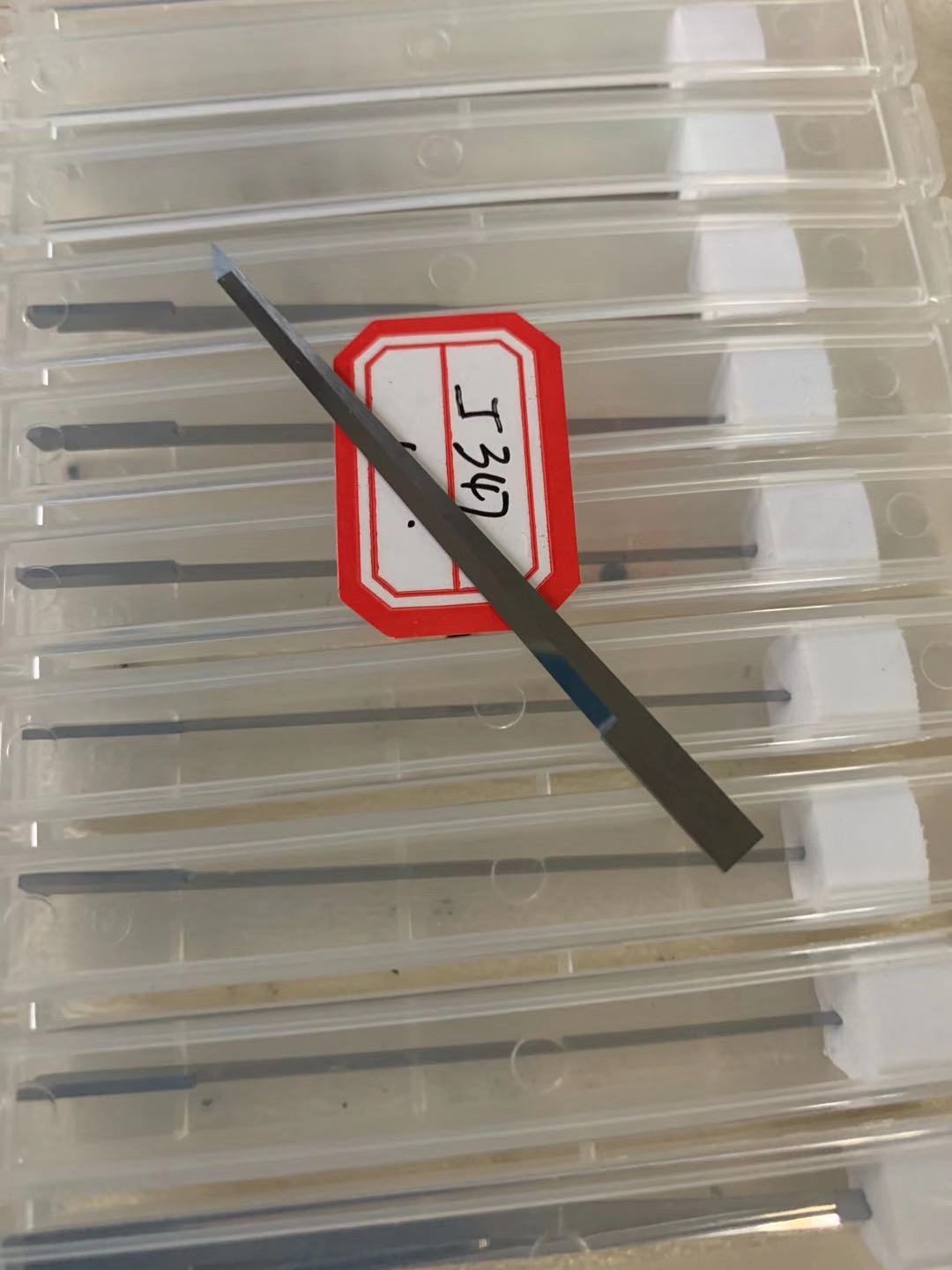

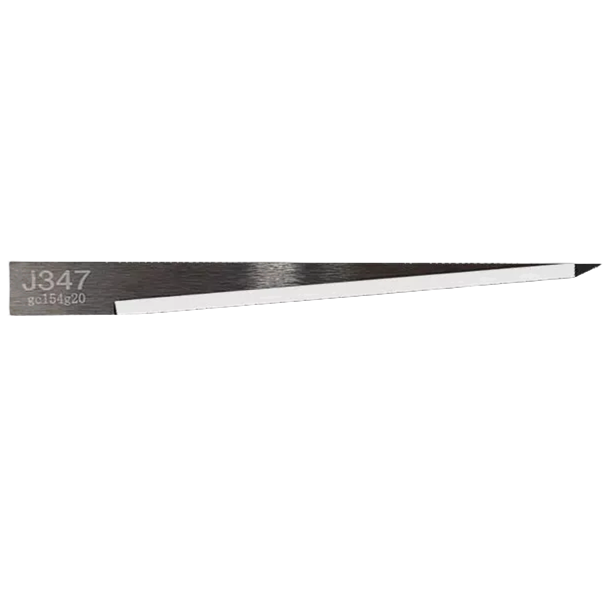

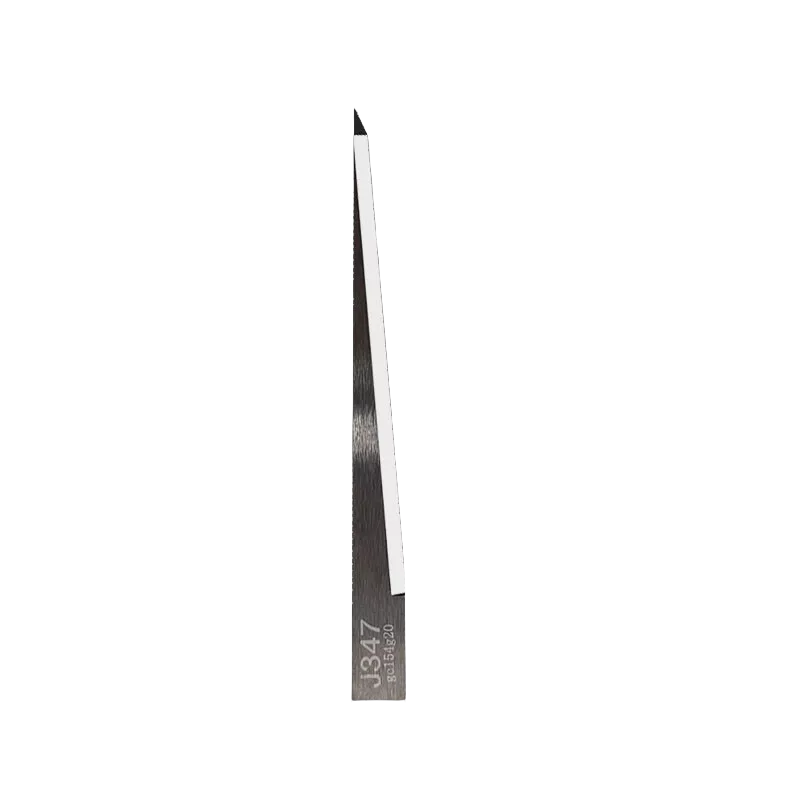

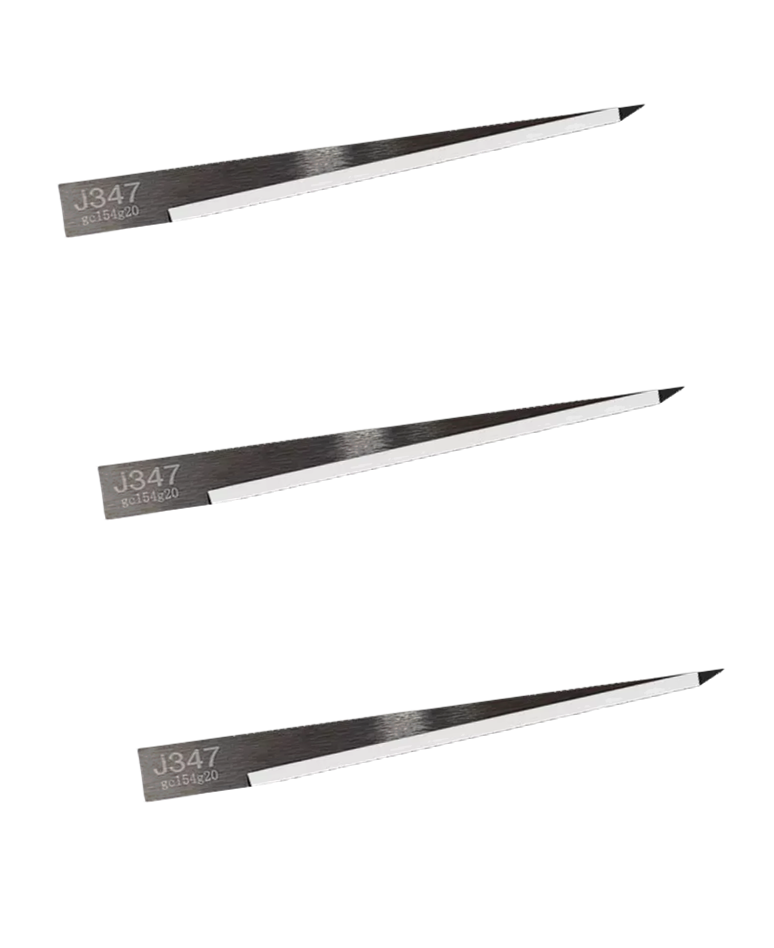

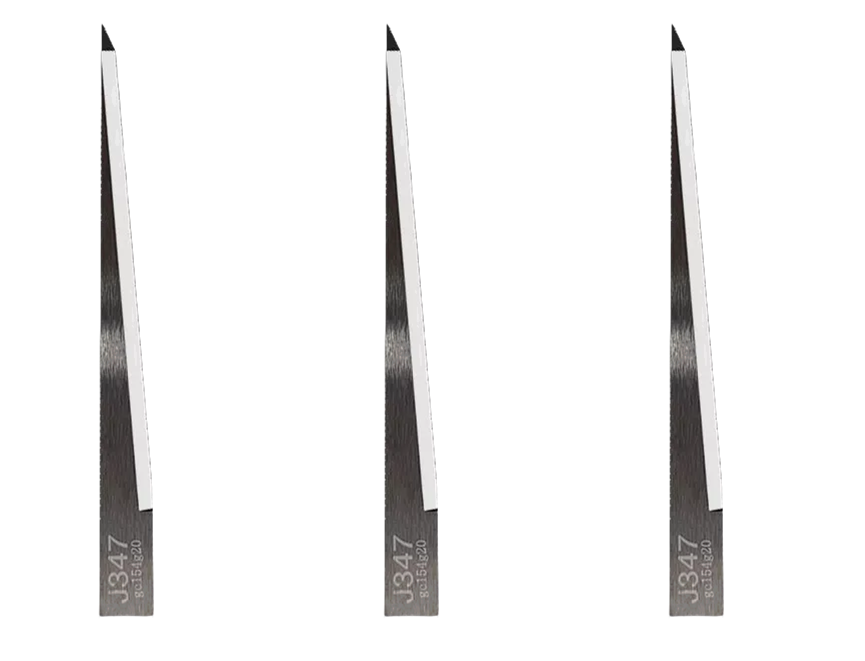

JingWei JWei J347 Tungsten Carbide Knives/Knife Blades

Jingwei Jwei J347 is a high-quality Tungsten Carbide oscillating knife blade crafted for precision, high-speed cutting on Jwei CAD/CAM flatbed digital cutter tables. Made from submicron solid tungsten steel, this high-performance component is engineered to maintain exceptional hardness and wear resistance even during continuous mechanical oscillation.

Technical Specifications & Dimensions:
- Model Number: J347 (Long Knife Blade Series)
- Knife Height (Total Length): 68.00 mm
- Knife Width: 6.35 mm
- Blade Thickness: 1.00 mm
- Cutting Edge Length (CEL): 53.00 mm
- Blade Profile Angle: Dual geometry (85° / 5°)
- Maximum Cutting Depth: Up to 53.00 mm depending on tool head configuration (optimal cutting thickness is ≤ 35 mm for dense materials).

Material Compatibility:
The J347's elongated edge design is ideal for deep penetration and vertical cutting in low-to-medium density materials, such as:
- Packaging & Display: Suitable for corrugated cardboard, honeycomb board, solid folding cartons, and heavy paperboard.
- Foam Processing: Effective on thick foam board, EVA foam, polyethylene foam packaging inserts, and soft composite materials.
- Industrial Graphics: Suitable for cutting magnetic foil, heavy vinyls, plastics, rubber sheeting, and fabric canvas.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .

Tel:+86-0769-88014625

Phone Number:+86-18823852826

Email:

info@china-oyea.com

1659590865@qq.com
Web: www.china-oyea.com

We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
