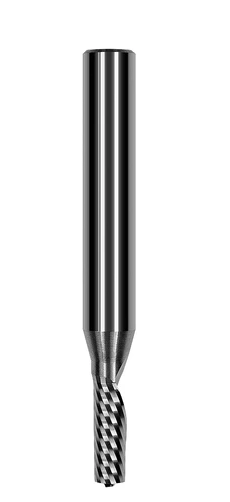

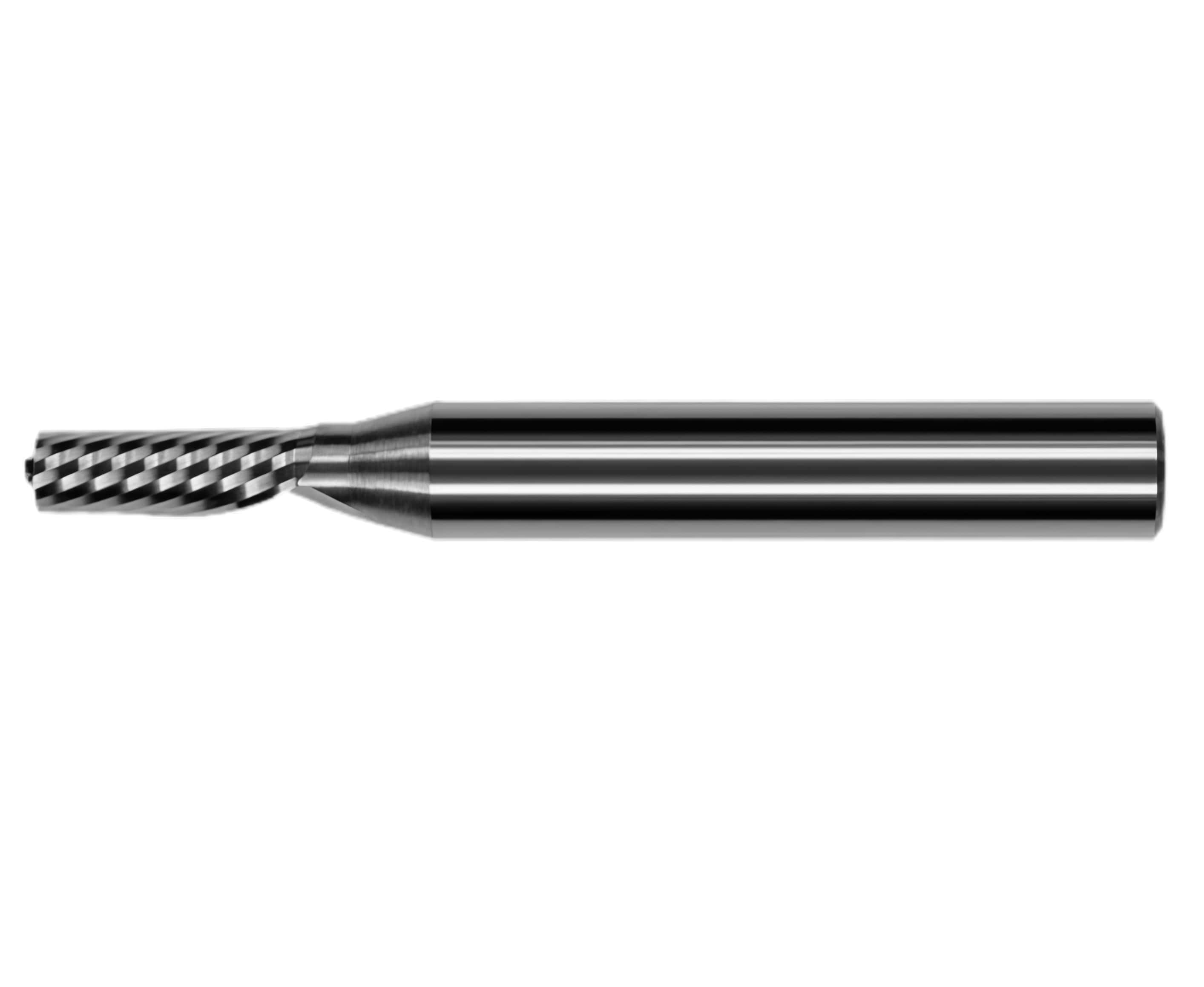

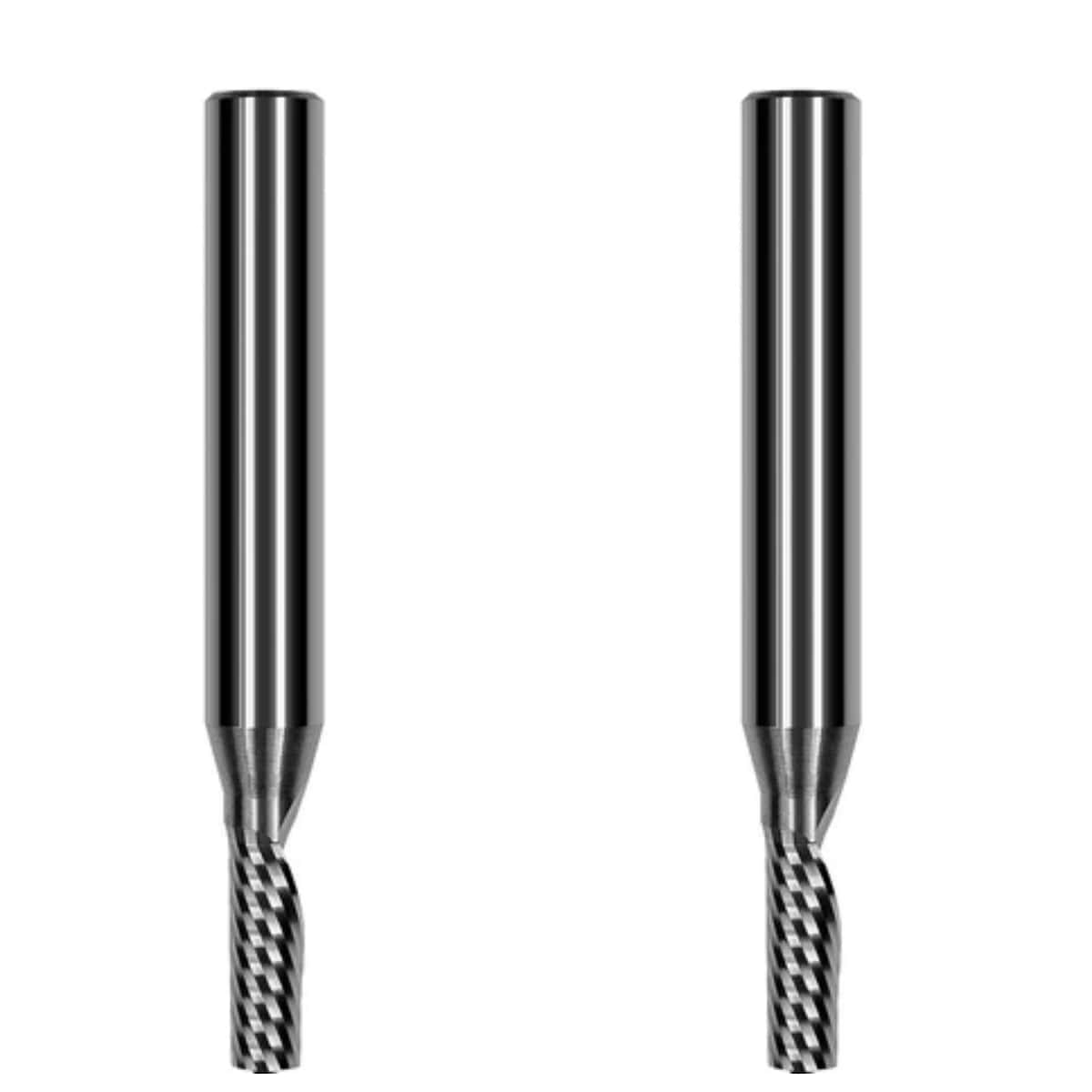

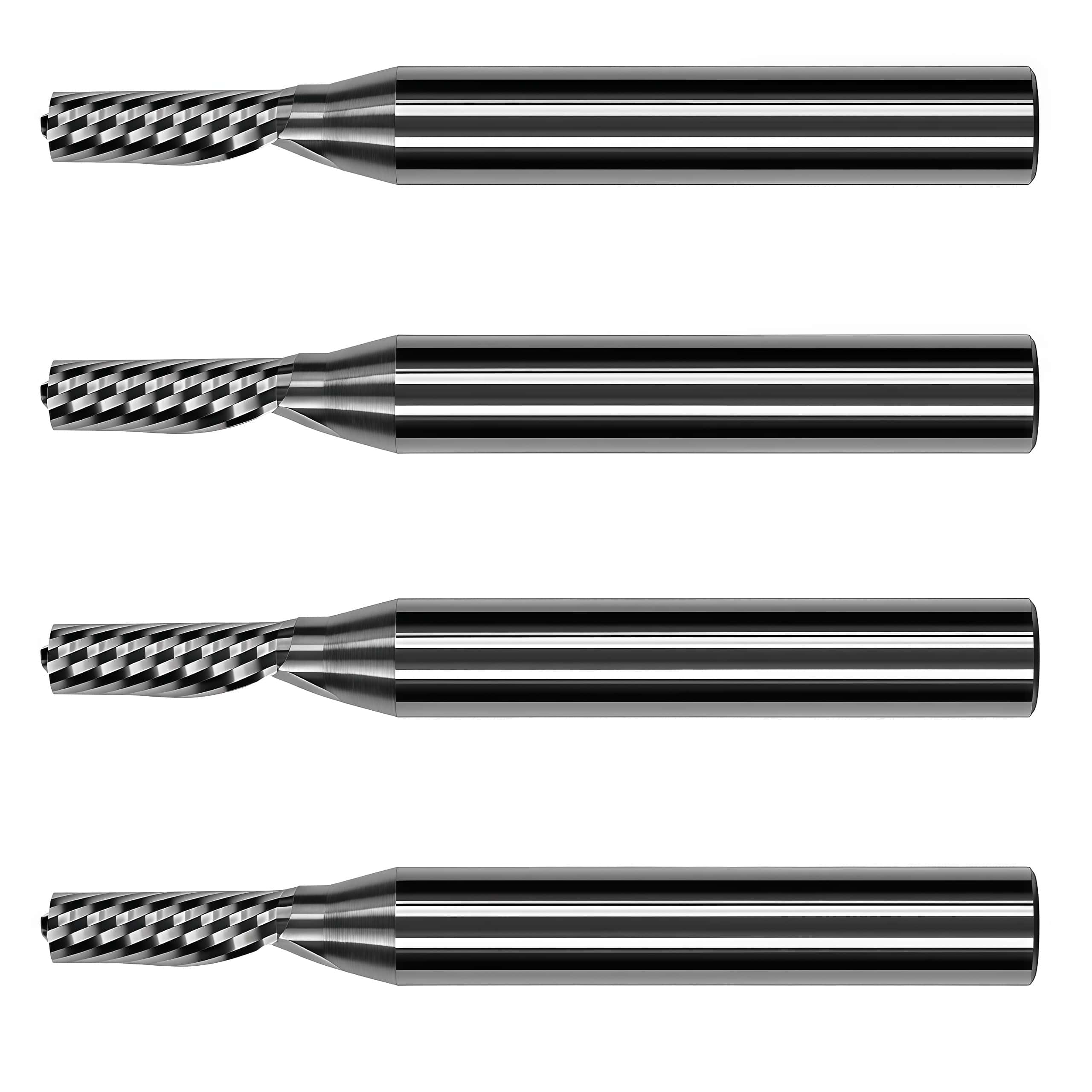

Summa 500-9856 Milling & Router Bit, D6/4 L50/12 MP 1Fl UC-Replacement Compatible

Description
These are Summa, general use, multi-purpose router bits for the Summa F Series Flatbed Cutters. Ideal for routing aluminum, composites, wood, and PVC. Sold as a pack of 3. For use with the Summa F Series High Frequency Routing System.

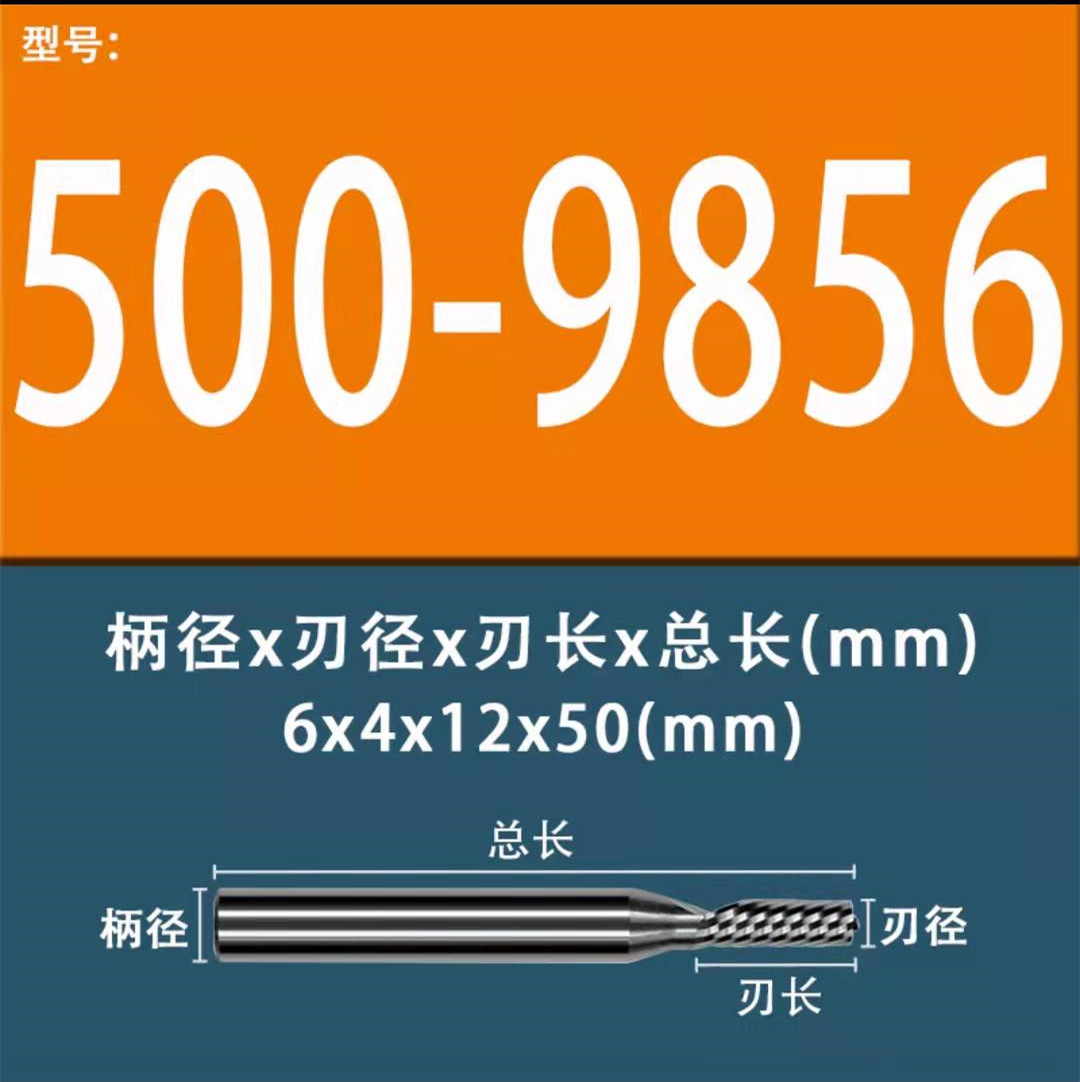

Specifications
Shank Diameter: 6 mm
Routing Diameter: 4 mm
Tool Length: 50 mm
Max. Routing Depth: 12 mm
Flutes: 1Flutes: 1 Flute, Up-Cut (UC)
Balancing: Balanced (BAL) for high-frequency spindles
Category: Multi-Purpose (MP)
Material: Ultra-fine Tungsten Solid Carbide


Compatibility
Summa F Series Flatbed Cutters
Summa F Series High Frequency Routing System

• Aluminum Composite Materials (ACM / Dibond): The 6 mm shank anchors the bit firmly to prevent chatter, while the 4 mm cutting tip cleanly routes out grooves and profiles.
• Hardwoods, Plywood, & MDF: Slices through dense woods without burning, providing tight radius corners thanks to the smaller 4 mm cutting tip.
• PVC & Solid Plastics: Ideal for processing acrylics, polycarbonates, and expanded foam sheets smoothly.

• The "BAL" Advantage: The bit is dynamically balanced (BAL). This engineering detail minimizes vibration when spun inside the Summa F Series High-Frequency Router module, producing cleaner edge finishes and extending the life of the spindle bearings.
• Stepped Geometry Resistance: Because the upper body is a thick 6 mm core, this bit handles much higher lateral force and feed speed than straight 4 mm bits (like the 500-9852). It gives you the narrow cuts of a 4 mm tool with the break-resistance of a 6 mm tool.

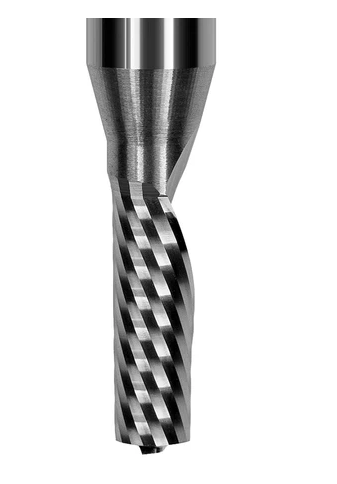

• Up-Cut Evacuation: Its single deep flute spiral scoops molten plastic and dust upward seamlessly, preventing debris from melting back down into the freshly cut track.
