Multicam 84-00193-BT-57215 Round Shank Knife Blades For Multicam Flatbed Cutters And Routers

MultiCam 84-00193-BT-57215 (BT-57215) is a premium solid tungsten carbide (VHM) single-edged oscillating knife blade. It features a flat point profile engineered to deliver stable, high-speed automated cutting through fibrous, loose, or soft media without snagging or pulling the material. Enquire now

Description

Multicam 84-00193-BT-57215 Round Shank Knife Blade For Multicam Flatbed Cutters And Routers

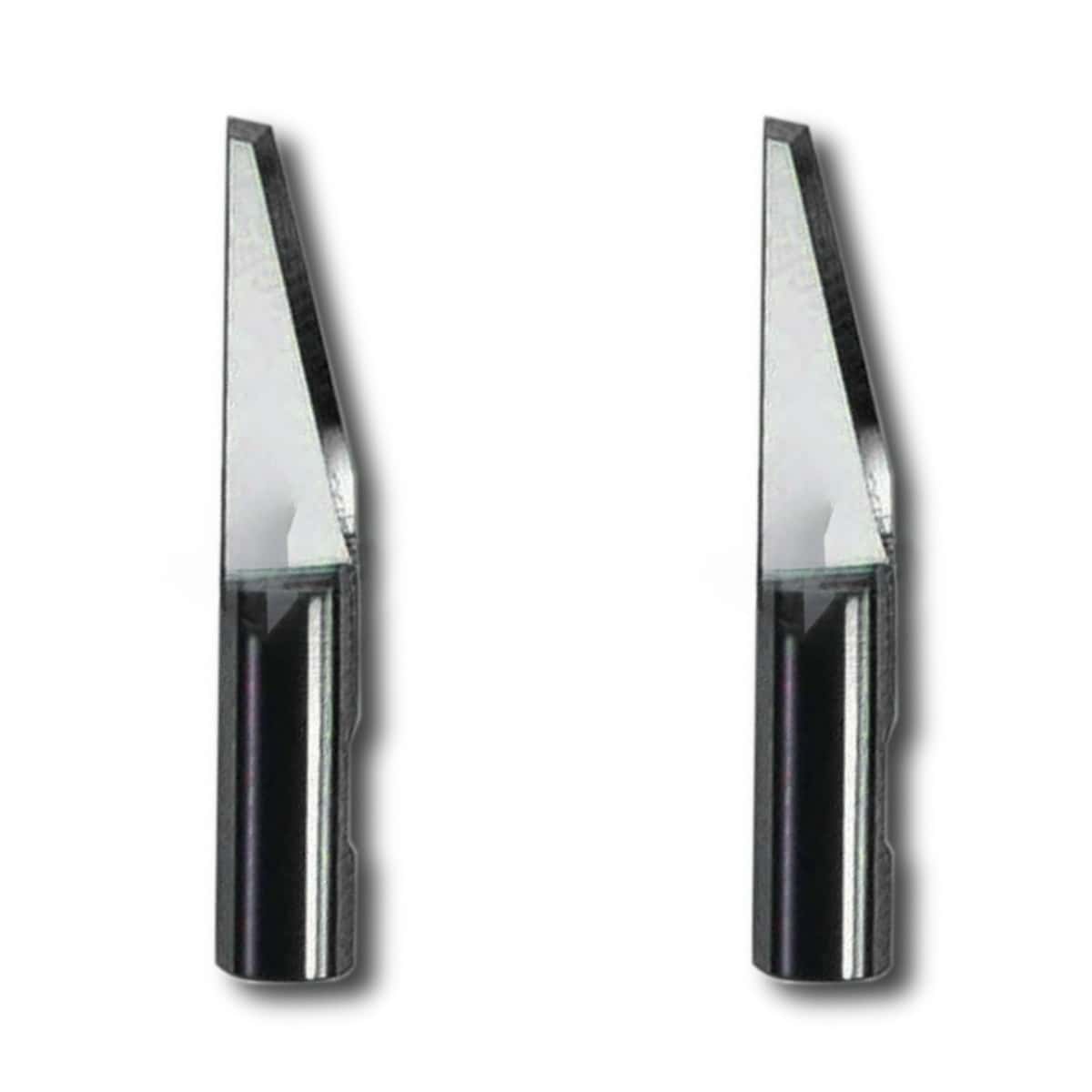

Multicam 84-00193-BT-57215 Round Shank Knife Blades

MultiCam 84-00193-BT-57215 (frequently shortened to just BT-57215) is a premium solid tungsten carbide (VHM) single-edged oscillating knife blade. It features a flat point profile engineered to deliver stable, high-speed automated cutting through fibrous, loose, or soft media without snagging or pulling the material.

Key Technical Specifications

Blade Profile: Single-edged, Flat Point (OFP).
Shank Style: 6.00 mm Round Shank featuring a flat Weldon section to lock securely into oscillating tool heads.
Cutting Edge Angle: 73° to 75° apex wedge angle.
Maximum Cutting Depth: 15.00 mm.
Overall Blade Height (OAL): 36.00 mm.

Performance & Material Applications

The flat tip profile increases tool rigidity and edge life when processing dense substrates or layered sheet goods. It is widely used on MultiCam flatbed cutters and CNC routers to finish:

Packaging & Insulation: Heavy corrugated cardboards, folding cartons, sandwich honeycomb board, and thick paperboard.
Foams & Plastics: Polyurethane foam insulation, soft foam boards, soft PVC sheets, magnetic foils, and heavy reflective films.
Industrial Fabrics: Composites (aramid and carbon fiber mats), canvas, felt, carpets, and dense rubber sealing gaskets.

equivalent to: AXYZ B1031l-15, MultiCam BT-57215

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
