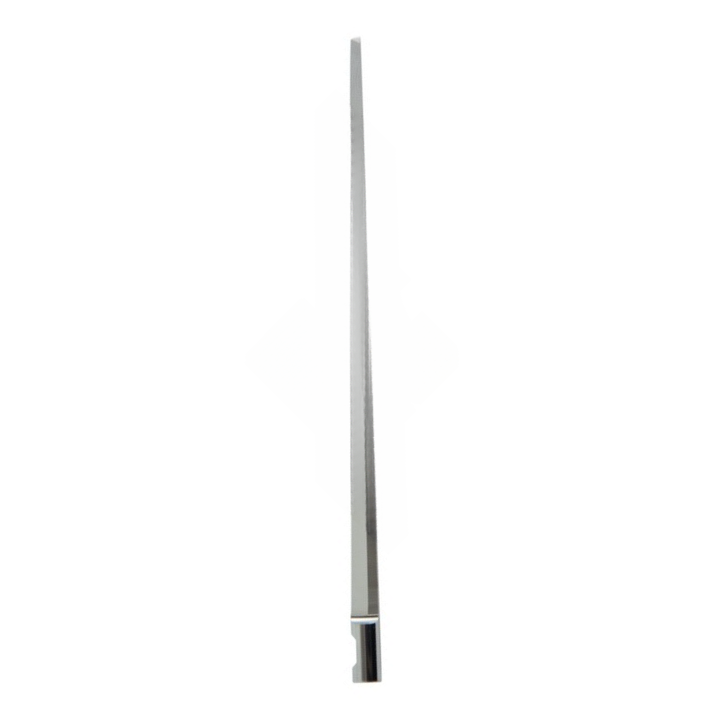

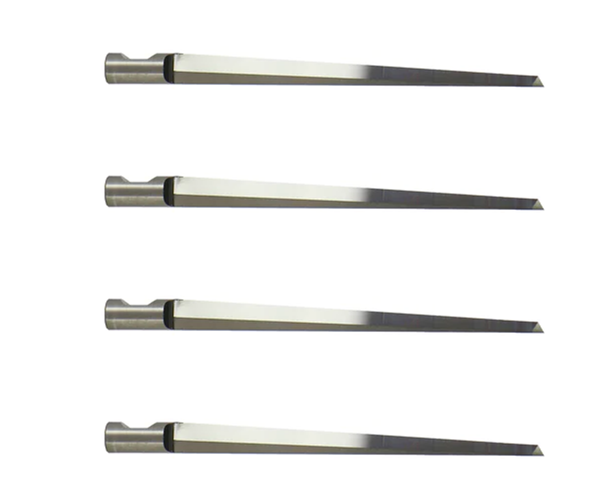

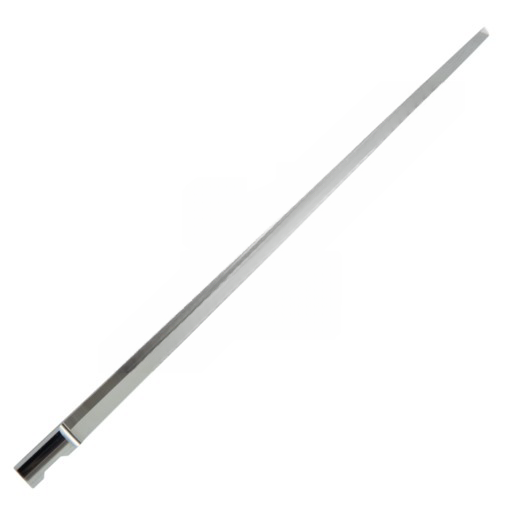

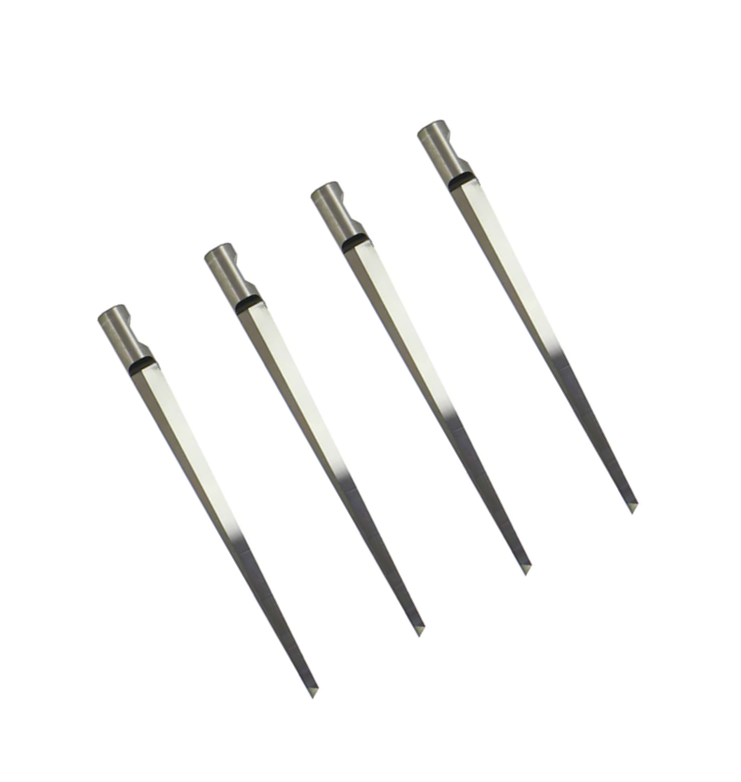

Multicam BT-572070 84-00193-BT-572070 Round Shank Knife Blade For Multicam Cnc Cutting Machines

MultiCam BT-572070 (84-00193-BT-572070) is a heavy-duty, deep-reach tungsten carbide round shank knife blade engineered for industrial vertical cutting on MultiCam CNC Cutting Systems. Enquire now

Description

Multicam BT-572070 84-00193-BT-572070 Round Shank Knife Blade For Multicam Cnc Cutting Machines

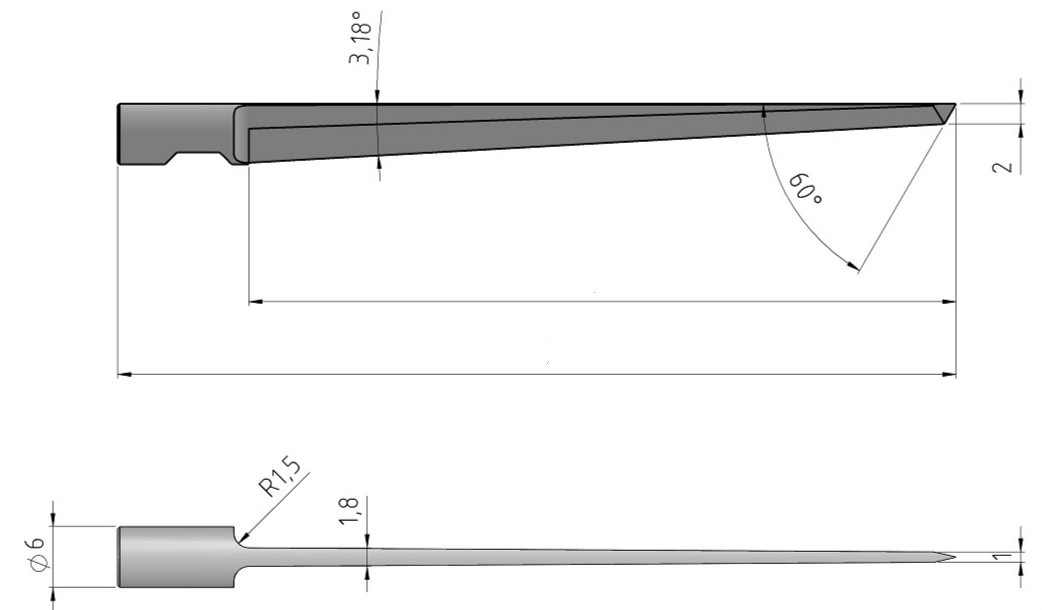

Diameter
6.00mm
Overall Length
83.0mm
Cutting Length
70.0mm
Cutting Angle
86.8°
Geometry
2 Cutting

quipment Cross-Compatibility

This profile is highly standardized across major automated flatbed finishing systems:

MultiCam Heads: Fits seamlessly into standard MultiCam OSCILLATE tool assemblies and heavy-duty KH6 knife tooling holders.
AXYZ Alternative: Functions as a direct cross-brand drop-in replacement for the AXYZ B1031L-70 blade reference.
Universal Tooling Holders: Compatible with any 6mm round shank digital cutting receiver block, such as those on Comagrav, Ecocam, or Aristo machines.

Targeted Material Applications

Due to its massive 70mm penetration depth, this blade is selected primarily for thick structural or porous media where thinner or shorter blades risk buckling:

Structural Packaging: Heavy-duty paper honeycomb panels, triple-wall corrugated cardboards, and thick foam core boards.
Foam Fabrication: Extra-thick polyolefin, polyurethane, and upholstery foam inserts for protective industrial casing.
Technical Textiles: Multiple layers of carbon fiber, aramid fabrics (Kevlar), industrial canvas, and synthetic filtration media

equivalent to: MultiCam 84-00193-BT-572070, AXYZ B1031l-70

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
