Colex T00495 Upcut Router Bit Production Manufacturing Supply Wholesale

Colex T00495 Upcut Router Bit is a professional-grade CNC cutting tool designed for use with the Colex Sharpcut Flatbed Cutter system. As an upcut spiral bit, it is engineered to pull chips and debris upward toward the router motor, which facilitates efficient chip removal and enables faster cutting… Enquire now

Description

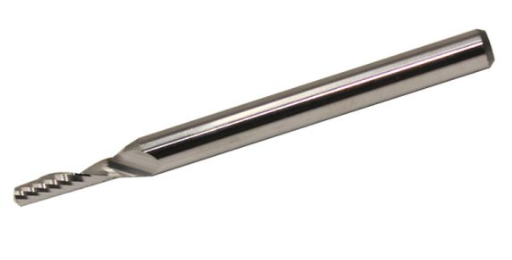

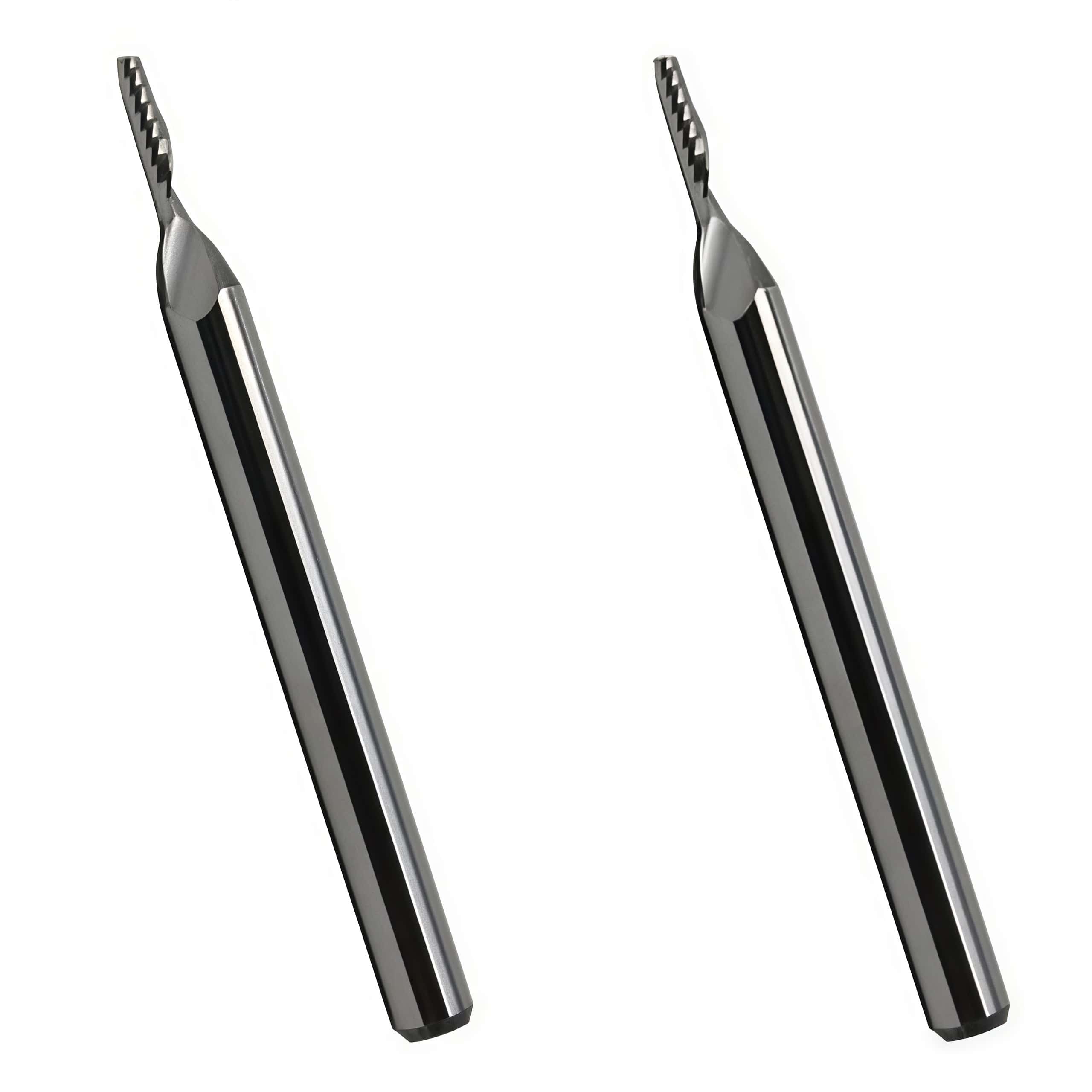

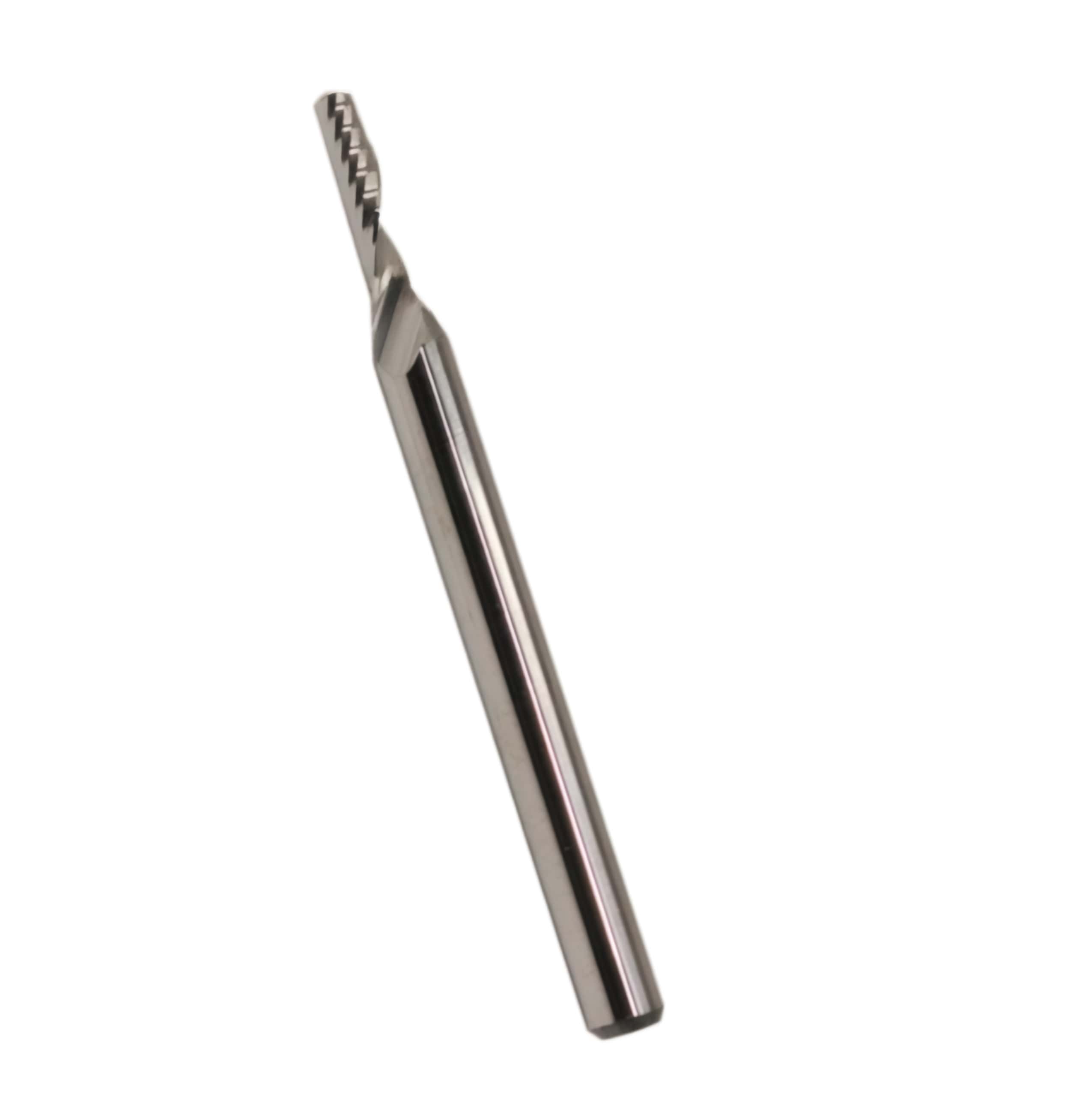

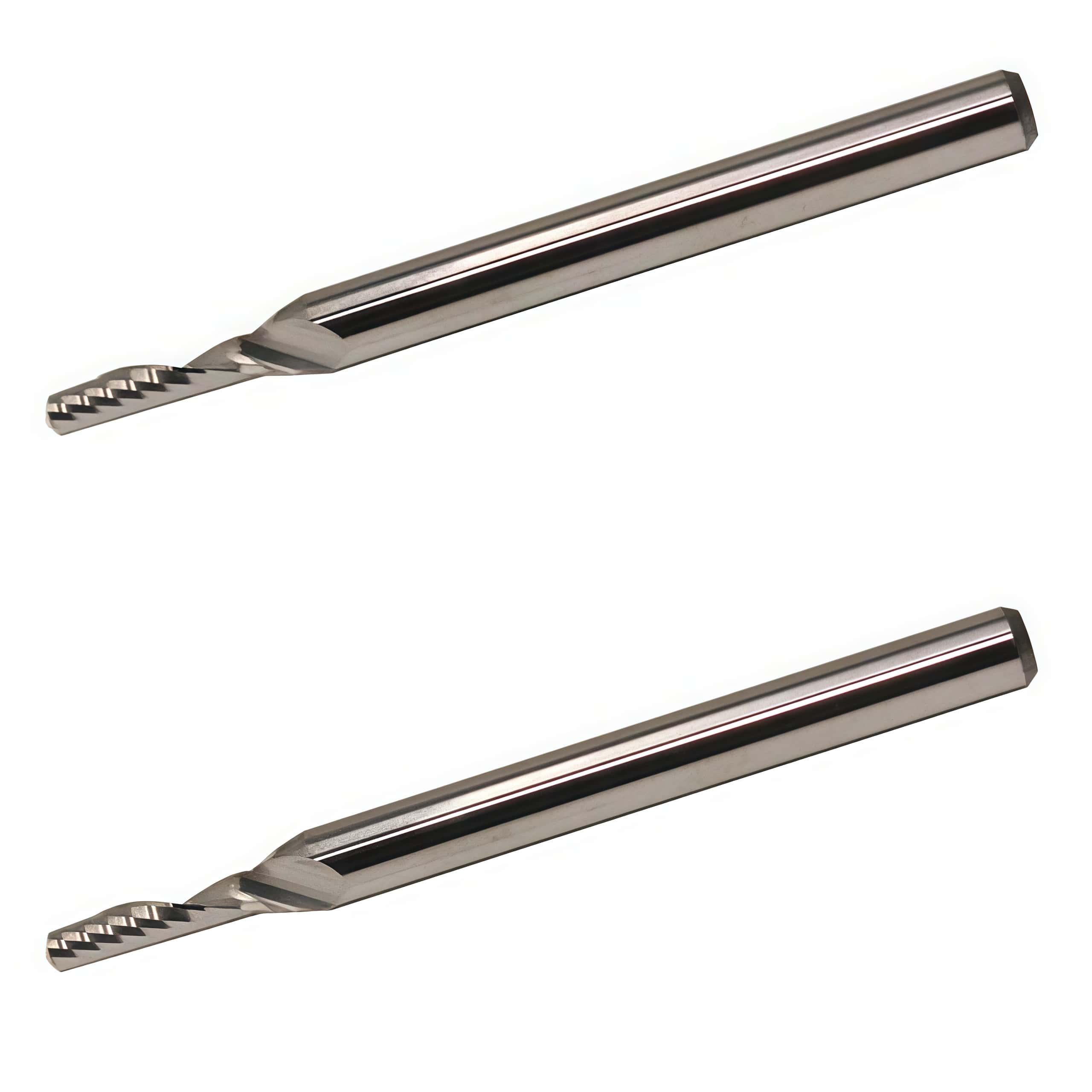

Colex T00495 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
2mm/ .079″ -approx 5/64″
Cut Length:
8mm/ 0.315″ -approx 5/16″
Shank Diameter:
1/8″

Key Applications

Material Compatibility: While Colex specialized bits for various materials, their standard upcut bits like the T00495 are frequently used for cutting hard and soft plastics, acrylics, and light woods.
Chip Evacuation: The upward spiral design is ideal for deep grooving and through-cuts where clearing debris from the channel is critical to prevent heat buildup and melting in plastics.
Edge Finish: Because it pulls material upward, it provides a very clean finish on the bottom of the material but may cause minor "burring" or "chipping" on the top surface compared to a downcut bit.

Usage & Safety Tips

When installing the T00495 into your CNC router's collet, ensure it is fully seated for stability. For the best grip, it is often recommended to push the bit all the way in and then pull it back out approximately 1/16" to 1/8" before tightening the nut to allow for proper collet compression.
