Colex T00500 Upcut Router Bit Production Manufacturing Supply Wholesale

Colex T00500 Upcut Router Bit is a universal CNC milling tool designed for versatile cutting applications. It is engineered to handle a range of materials, specifically soft and hard plastics as well as soft and hard woods Enquire now

Description

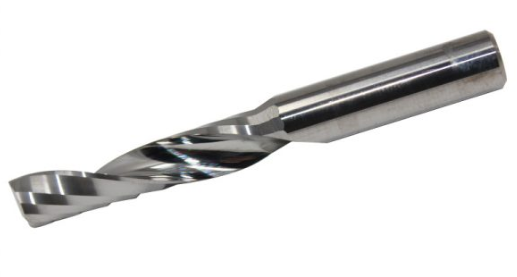

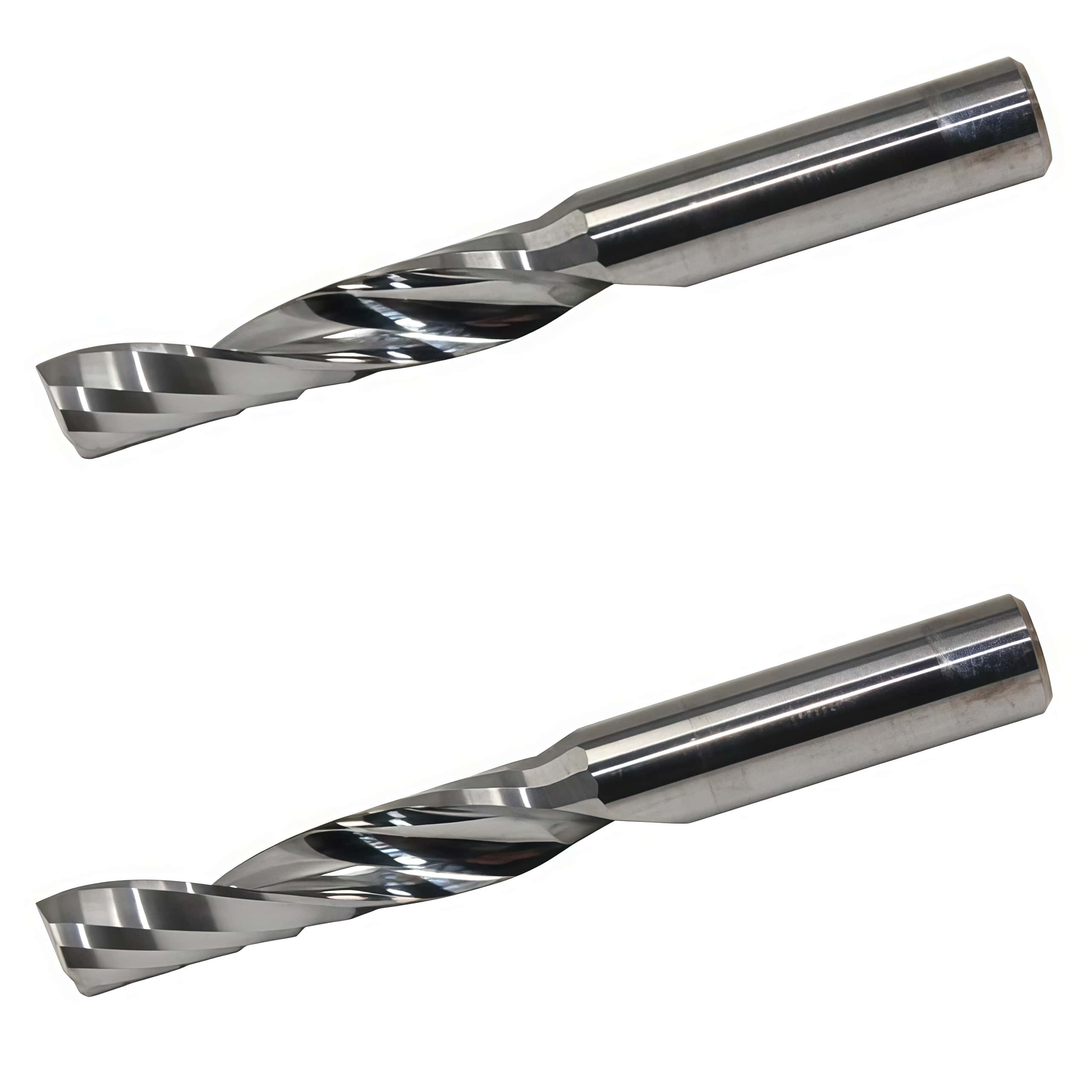

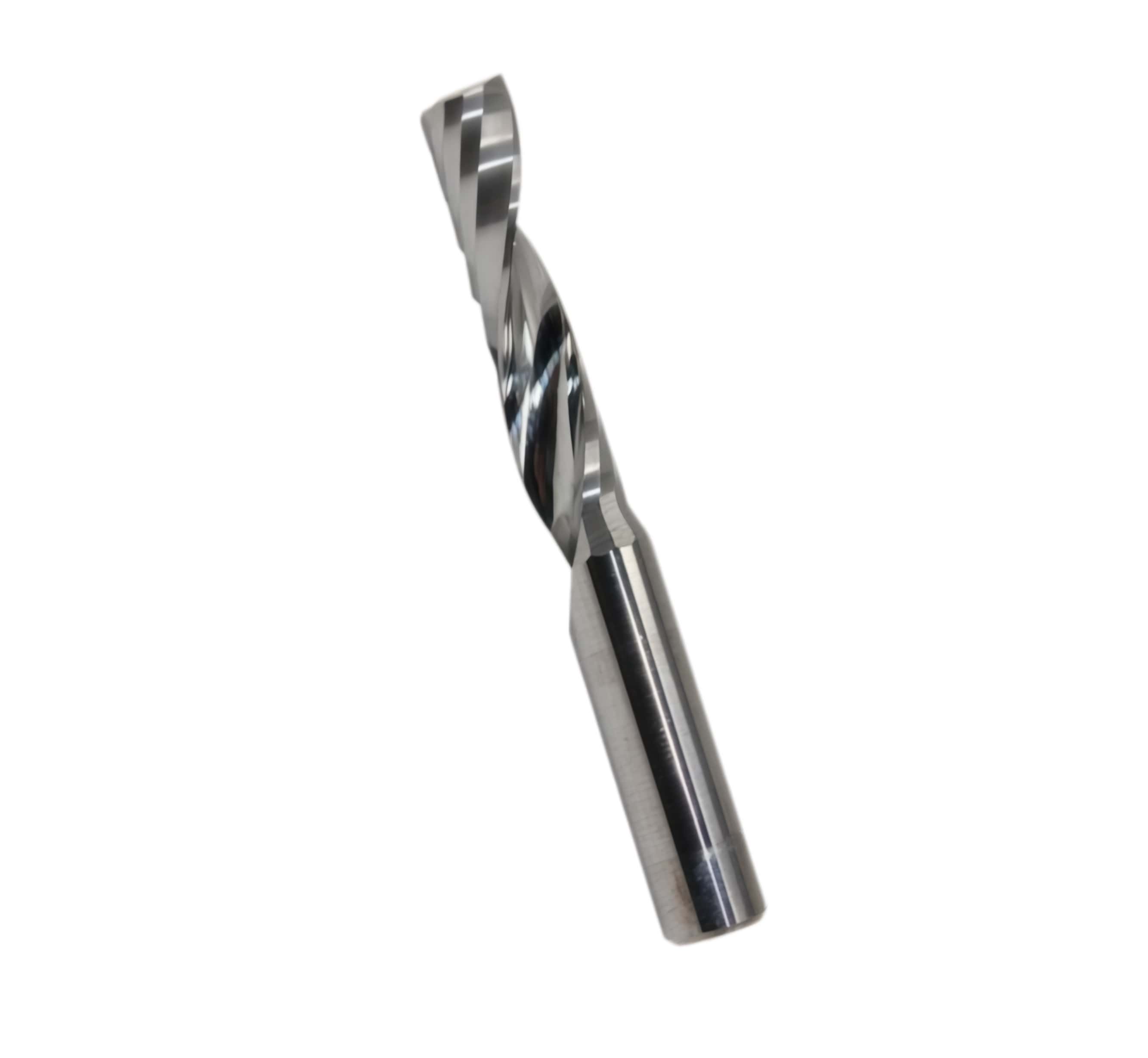

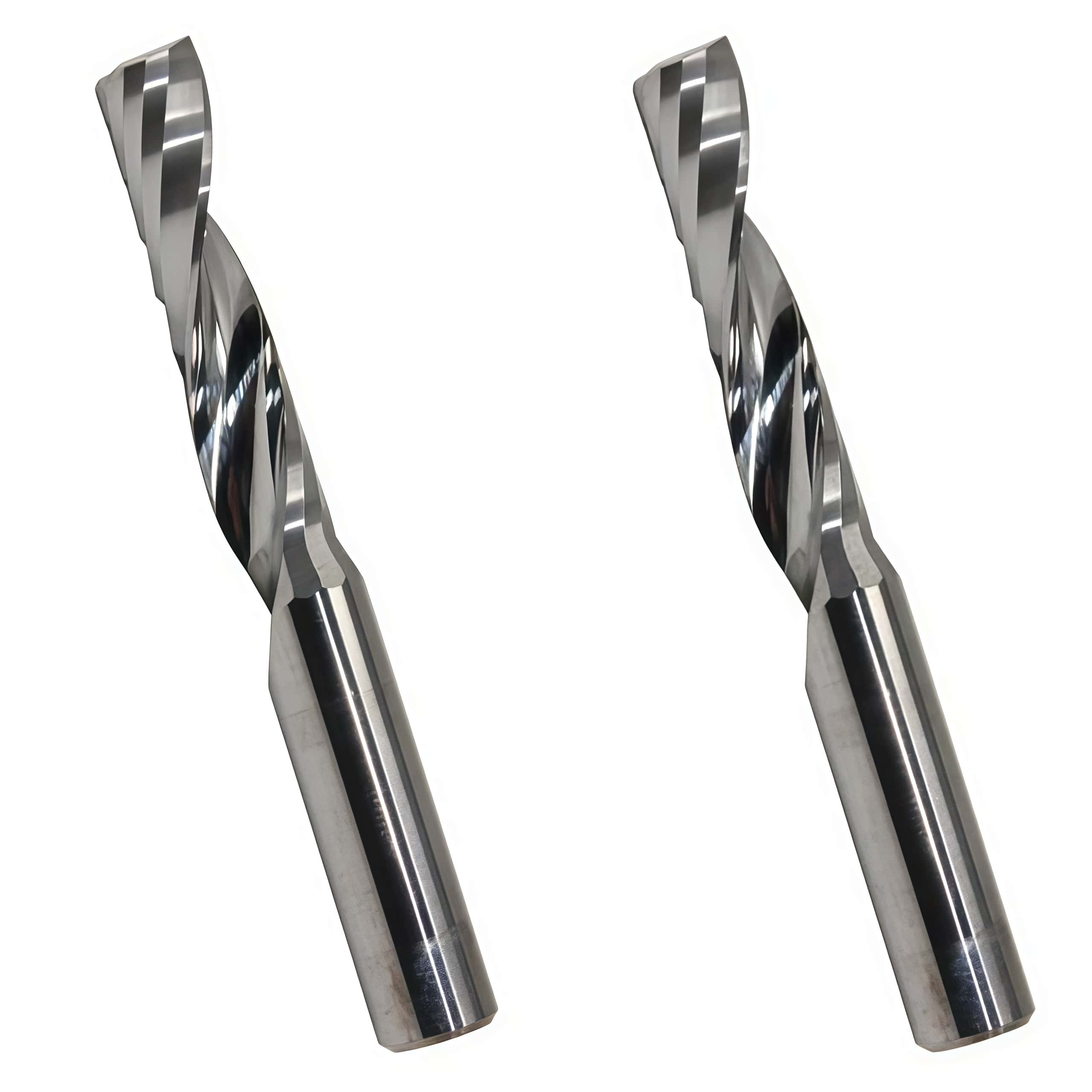

Colex T00500 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
6mm/ 0.236″ -approx 1/4″
Cut Length:
25mm/ 0.984″ -approx 1″
Shank Diameter:
6mm
Recommended Use:

Soft & Hard Plastic, Acrylic, Wood

Operational Features

As an upcut bit, the T00500 is particularly effective for:

Chip Evacuation: The spiral design pulls debris out of the cut, which is critical for deep cuts or slots where heat buildup can melt plastics.
High-Speed Cutting: Designed for use with high-speed nesting CNC applications like the Colex Sharpcut flatbed cutter.
Plunge Cutting: The drill-like geometry allows it to plunge directly into material more effectively than standard straight bits.

Note: Because upcut bits pull material upward, they may leave a slightly rougher finish on the top surface of the workpiece while maintaining a very clean bottom edge.
