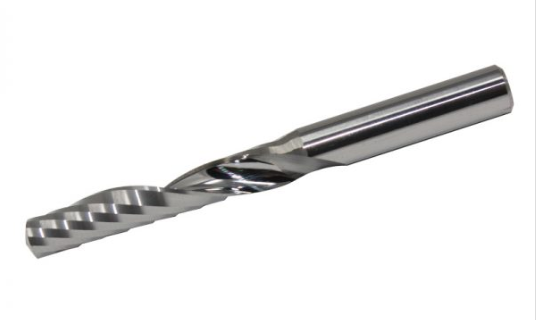

Colex T00503 Upcut Router Bit For Colex Sharpcut Flatbed Cutter

Colex T00503 Upcut Router Bit is a high-performance cutting tool designed for use with CNC routing systems, specifically the Colex Sharpcut Flatbed Cutter. As an upcut bit, it features spiral flutes that pull chips and debris upward and out of the cut, allowing for faster feed rates and cooler opera… Enquire now

Description

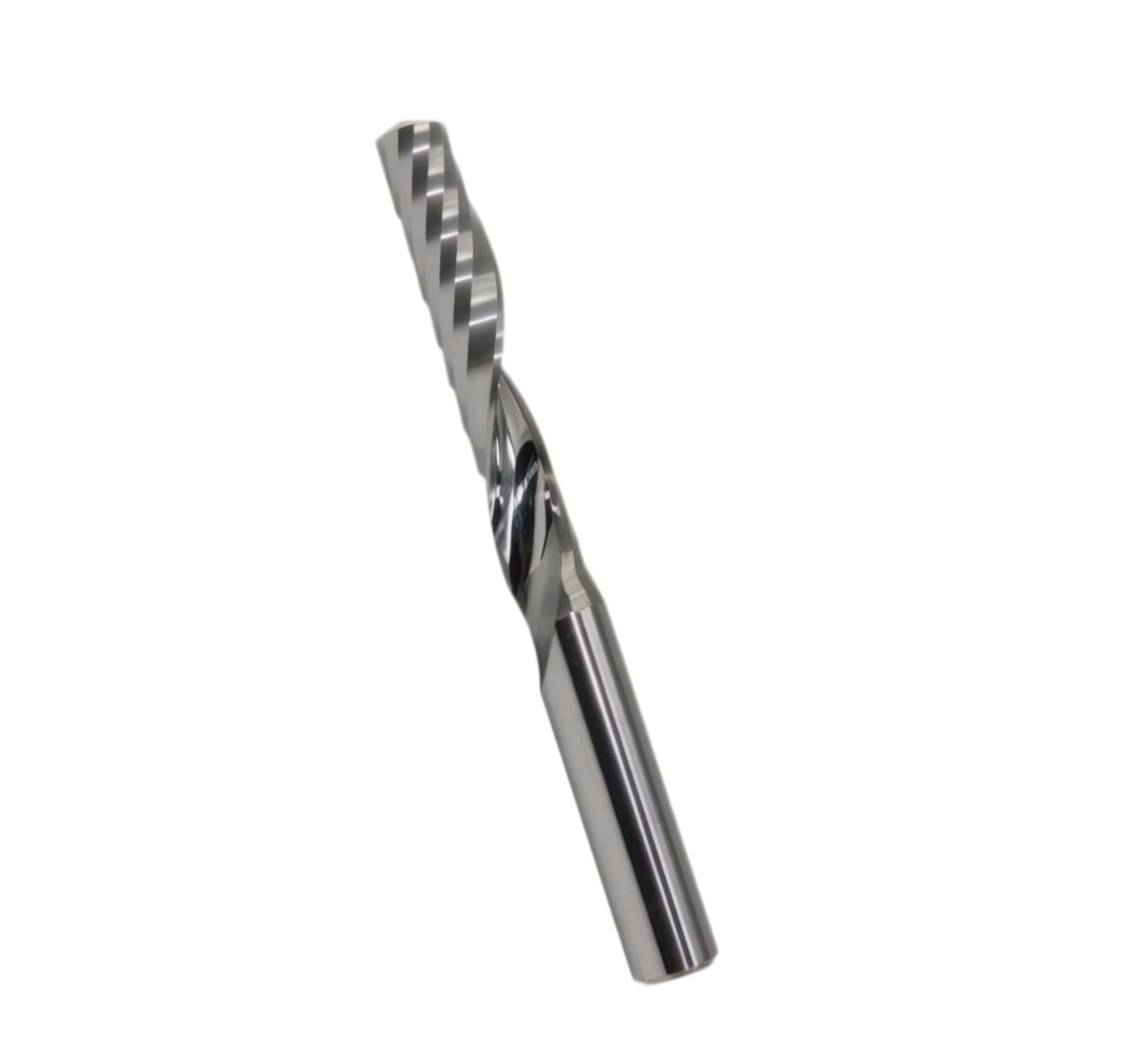

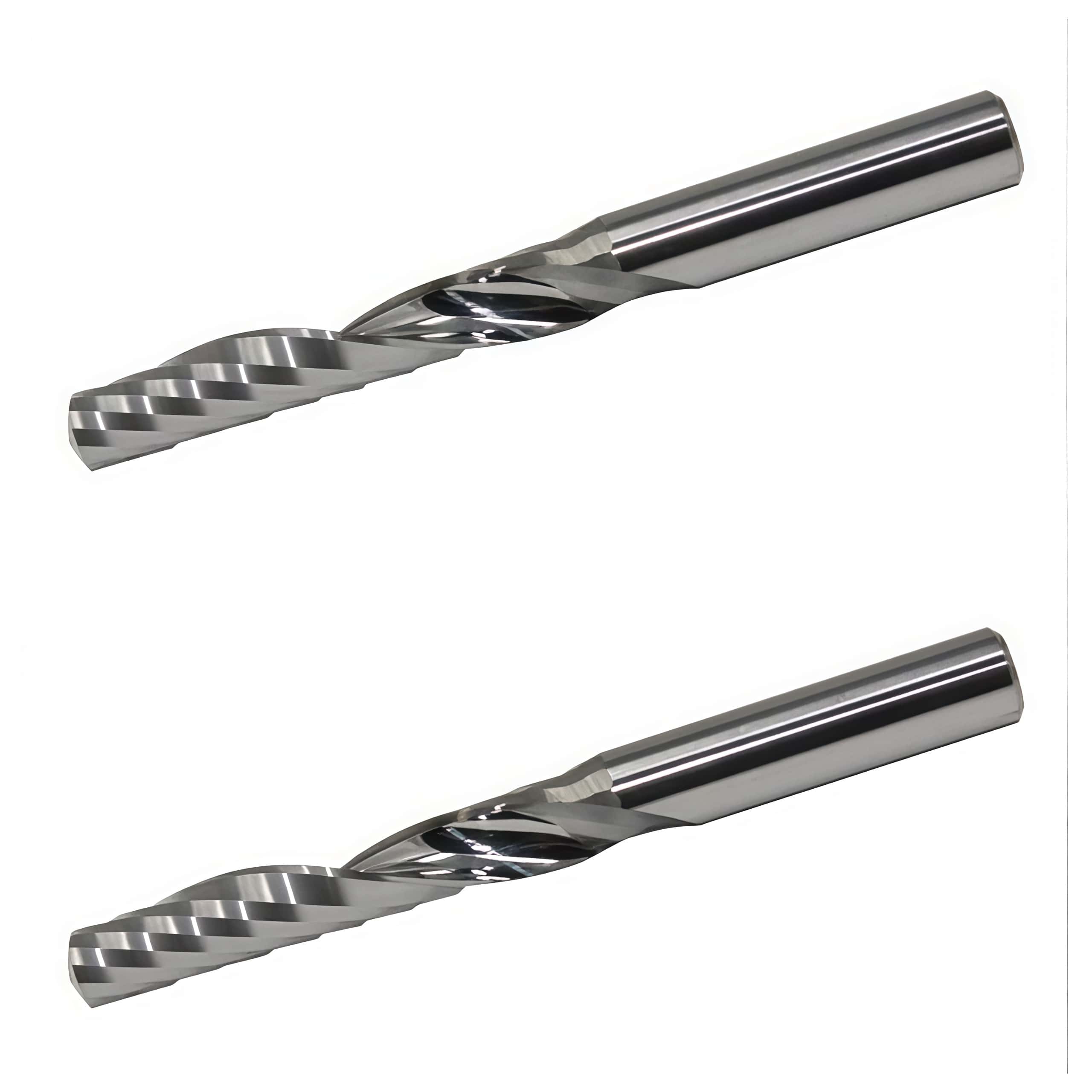

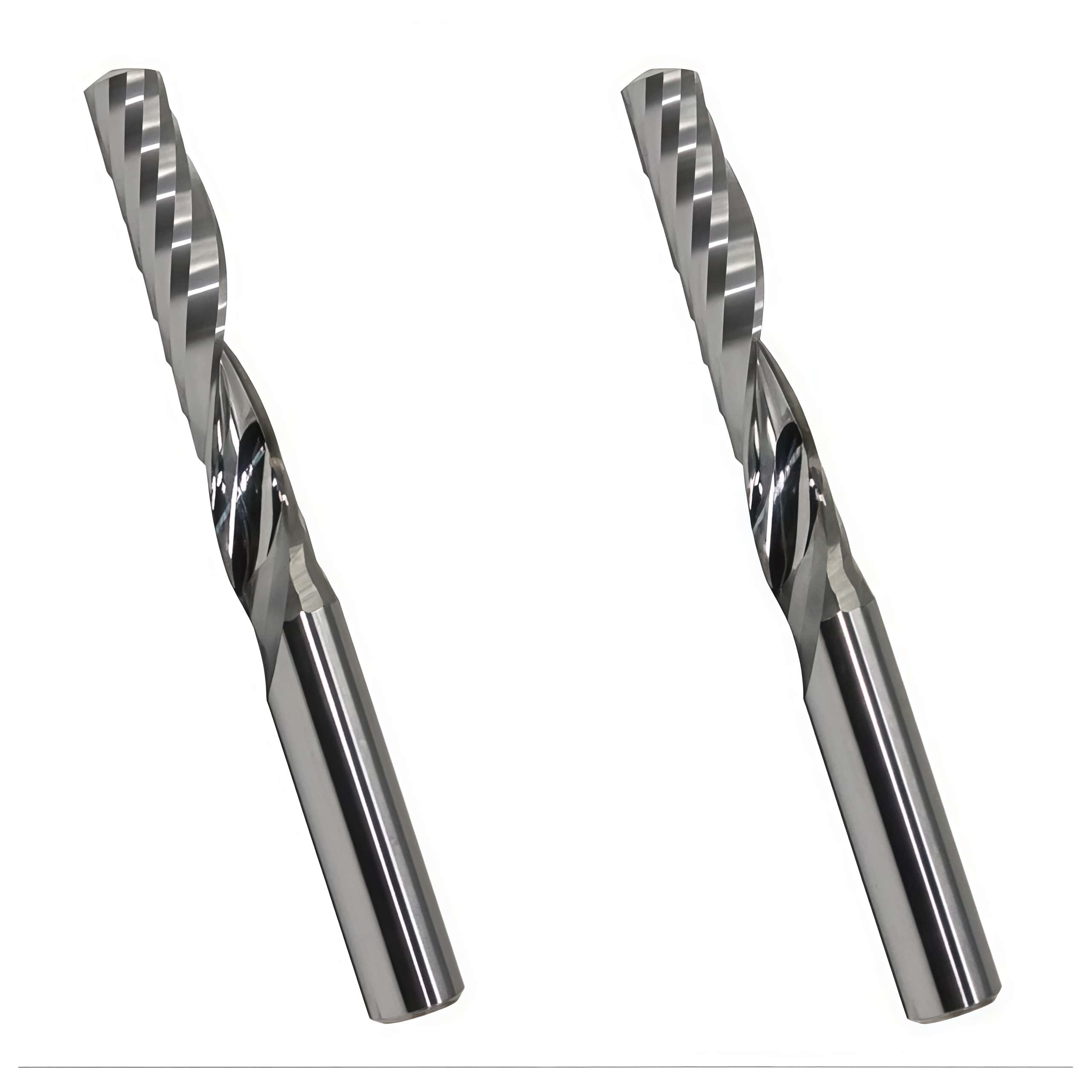

Colex T00503 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
6mm/ 0.236″ -approx 1/4″
Cut Length:
32mm/ 1.25″ – 1 1/4″
Shank Diameter:
6mm

Product Specifications

While specific material compatibility for the T00503 is often grouped with universal bits, upcut models in this series are typically utilized for:

Soft and Hard Plastics: Including acrylic and PVC.
Wood Products: Softwoods, hardwoods, and plywood.
Composite Boards: Materials like Gatorfoam or sign foam.
Aluminum & ACM: Certain coated upcut variants are specialized for aluminum composite materials (ACM/DiBond).

Key Benefits

Efficient Chip Removal: The upward spiral geometry prevents debris buildup in the groove, which reduces heat and the risk of material melting or bit breakage.
High-Speed Operation: Better chip clearance supports more aggressive feed rates compared to downcut or straight bits.
Plunge Cutting: The geometry makes it highly effective for plunging directly into the material for internal cutouts.
