Colex T00505 Upcut Router Bit For Colex Sharpcut Flatbed Cutter

Colex T00505 Upcut Router Bit is a high-performance tool designed for use with CNC cutting systems like the Colex Sharpcut flatbed cutter. As an upcut spiral bit, it is engineered to pull chips upward and away from the workpiece, which helps prevent clogging and heat buildup during high-speed routin… Enquire now

Description

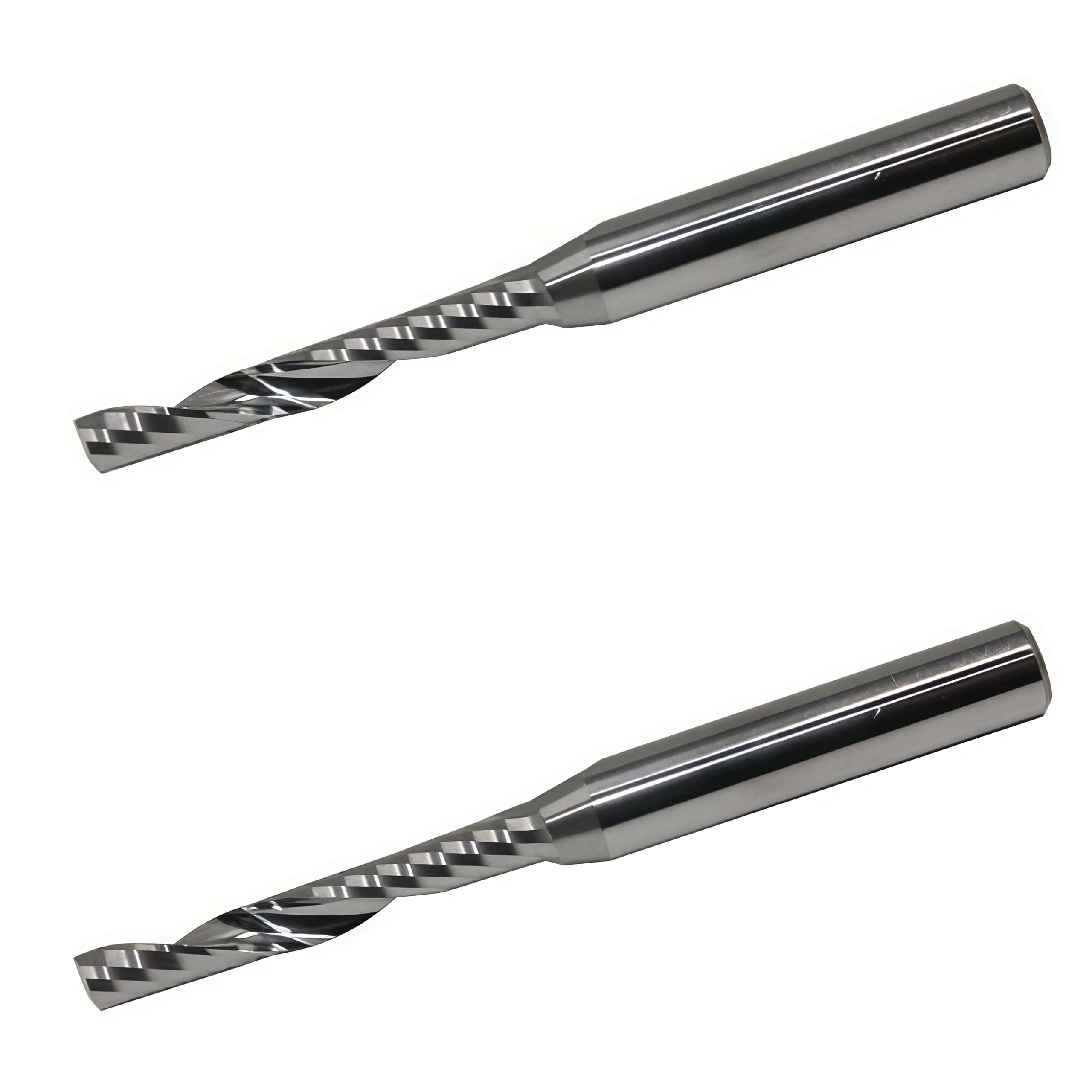

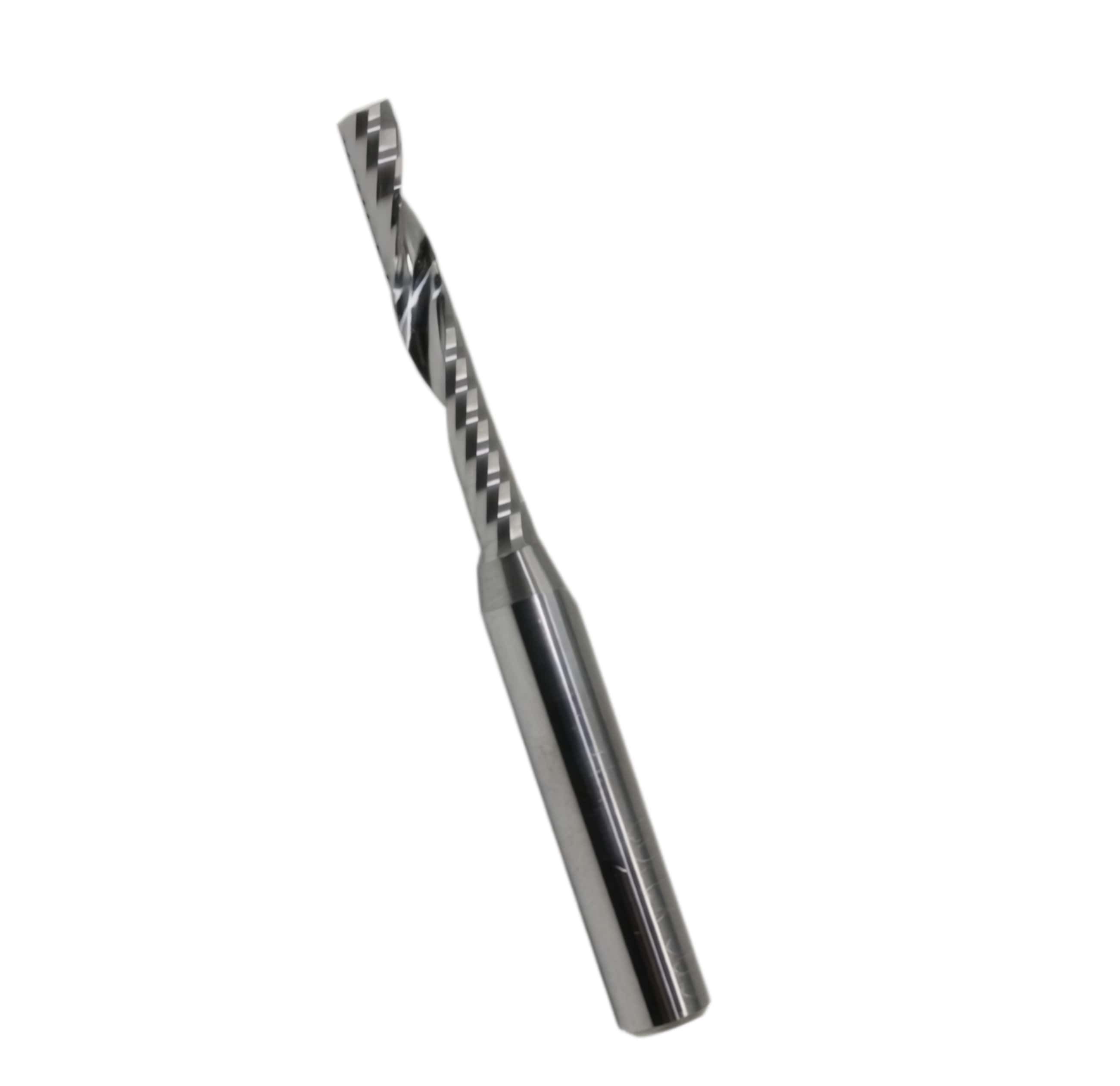

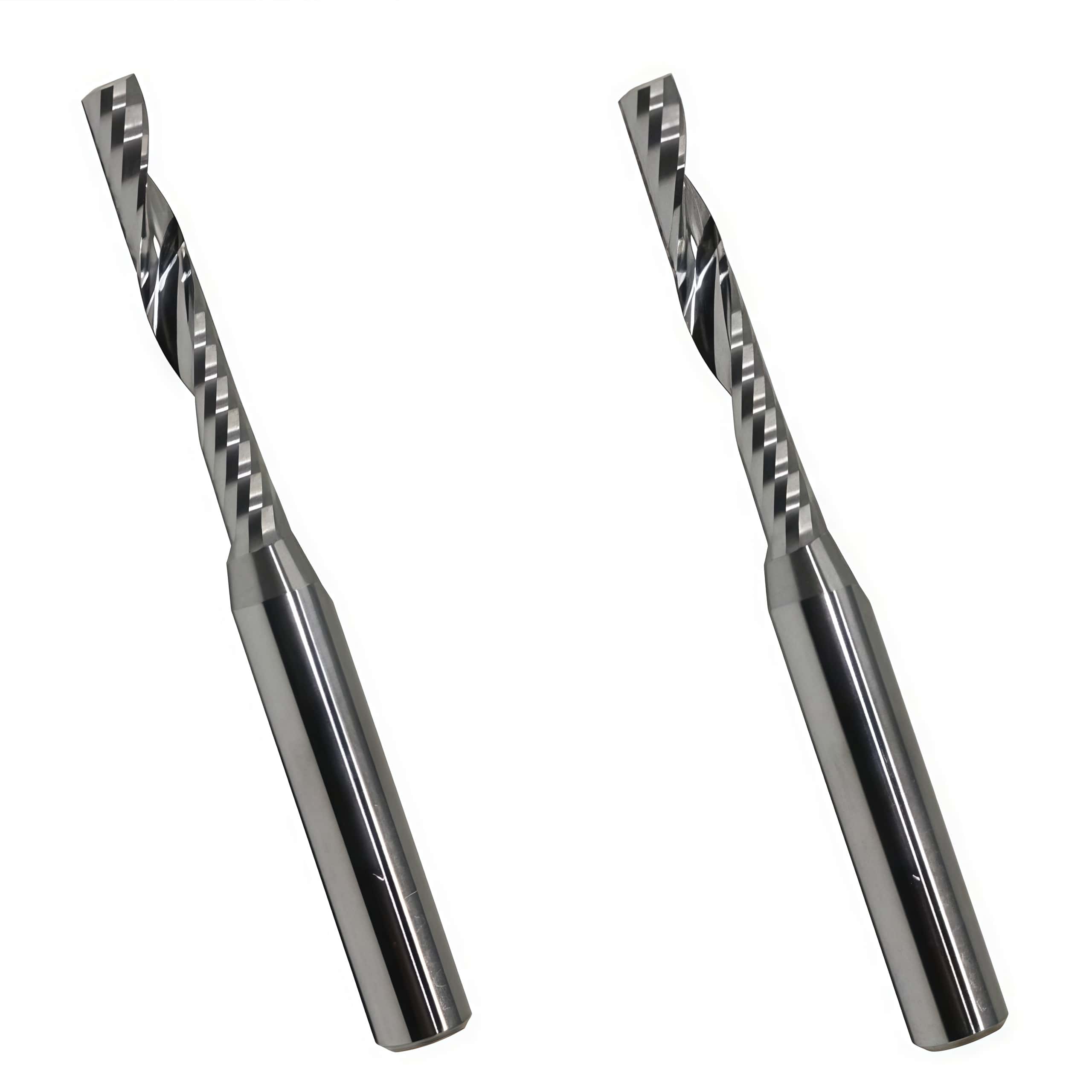

Colex T00505 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
4mm/ 0.157″ -approx 3/16″
Cut Length:
28mm/ 1.102″ – approx 1 1/8″
Shank Diameter:
6mm
Recommended Use:
Soft Plastic

Suitable for machine manufacturer: milling bit no.
Colex: T00505
Esko Kongsberg: G42443572, 42443572, BIT-MUS06-4022-50
Zund: 3910796, R158

Performance Characteristics

Chip Removal: The upcut geometry effectively clears debris from the cut path, making it ideal for deep plunges and grooving.
Finish Quality: While it clears chips efficiently, upcut bits may leave a slightly rougher top edge compared to downcut bits, as the cutting force pulls upward against the top surface of the material.
Compatibility: Designed for industrial CNC machines but can be used in standard routers with the correct collet size (typically 1/4" or 1/2" shanks).
