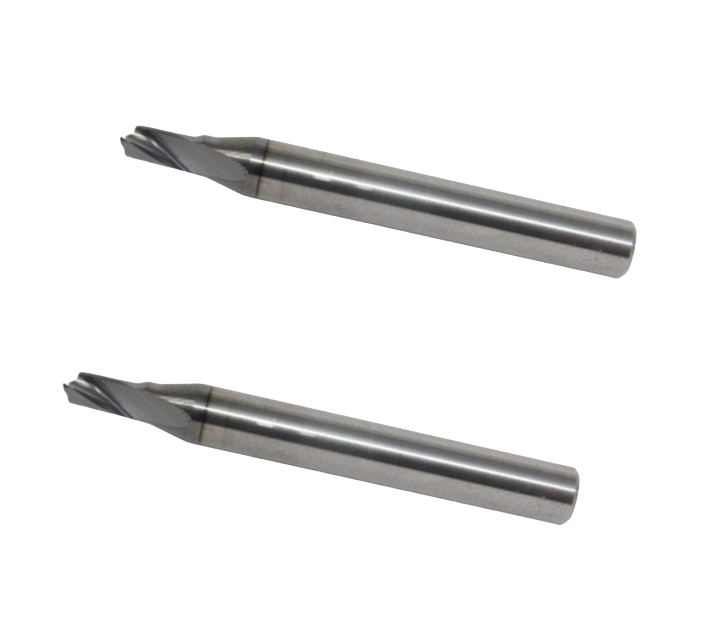

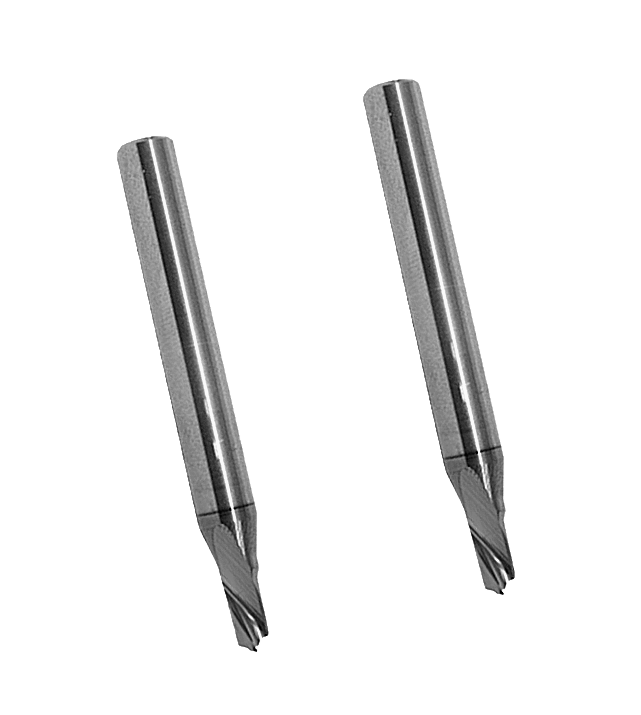

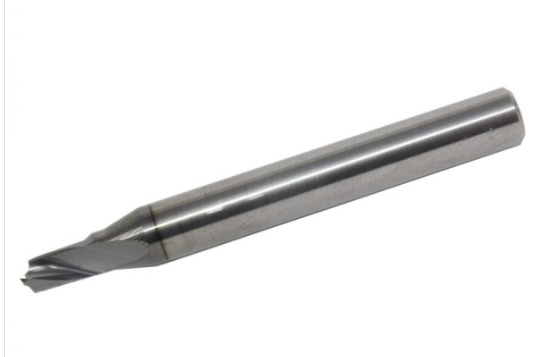

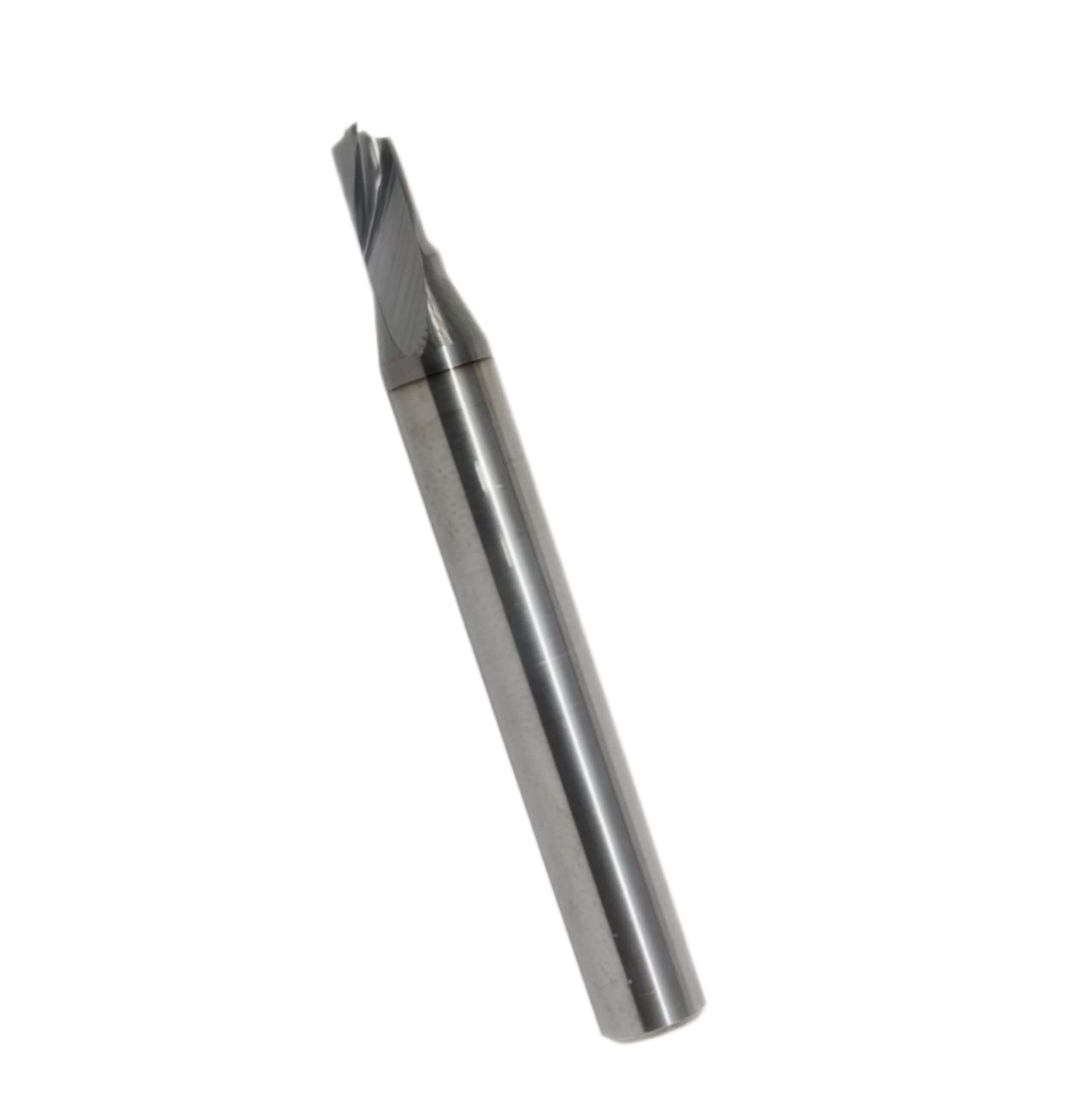

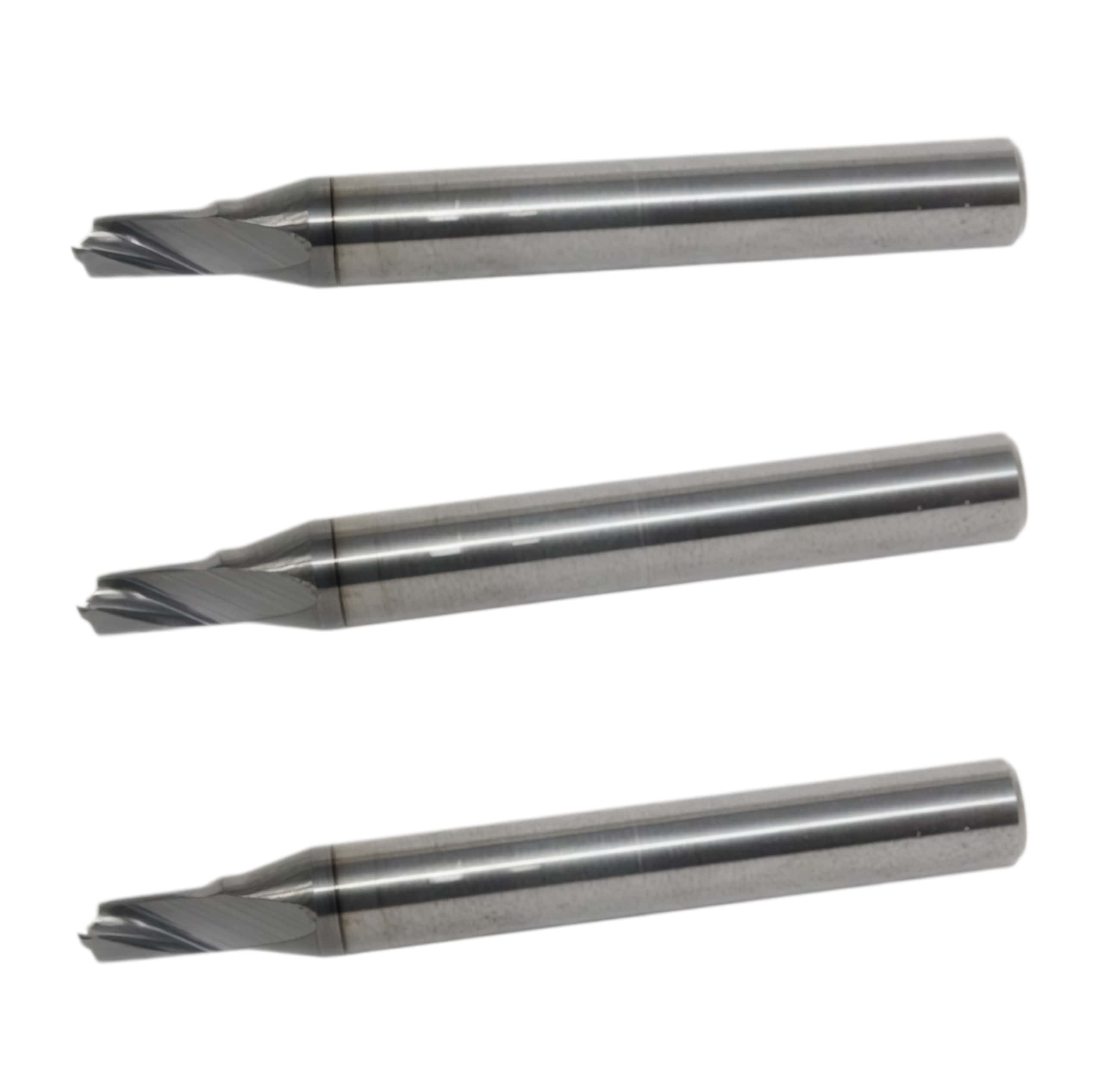

Colex T00530 Upcut DLC Coated Router Bit Compatible with Colex Routing Systems

Colex T00530 Upcut DLC Coated Router Bit is a high-performance CNC cutting tool specifically designed for precision work on non-ferrous metals and composite materials. It features a Diamond-Like Carbon (DLC) coating that significantly enhances tool life by reducing friction and heat buildup during b… Enquire now

Description

Colex T00530 Upcut DLC Coated Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
4mm/ 0.157″ -approx 3/16″
Cut Length:
6mm/ .236″ -approx 1/4″
Shank Diameter:
6mm
Recommended Use:
Aluminum

Performance Benefits

The use of DLC coating provides several advantages over standard or uncoated carbide bits:

Extended Durability: Offers up to 3 times longer life compared to standard bits, reducing machine downtime for tool changes.
Material Versatility: Optimized for difficult materials like Aluminum and ACM (Aluminum Composite Material, such as DiBond).
Heat Management: The low-friction surface helps dissipate heat, which is critical when routing metals to prevent material melting or tool failure.

Recommended Applications

This bit is a "Type A" industrial tool often used with flatbed cutters like the Colex Sharpcut. It is best suited for:

Dry or Wet Cutting: Capable of operating with or without liquid coolants.
Precision Finishing: The upcut design ensures a smooth bottom surface on the workpiece by clearing debris rapidly.
