Colex T00532 Upcut DLC Coatedl Router Bit Online Store

Colex T00532 Upcut Router Bit is a high-performance industrial cutting tool specifically designed for use with Colex Sharpcut flatbed cutters and other CNC routing systems. This specialty bit features a Diamond-Like Carbon (DLC) coating, which provides a low-friction, extremely hard surface to exten… Enquire now

Description

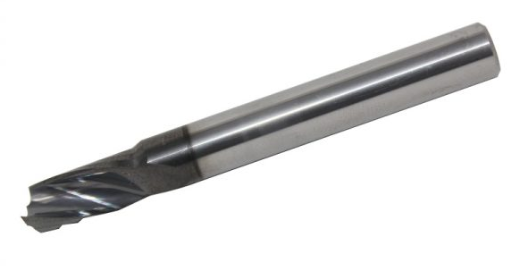

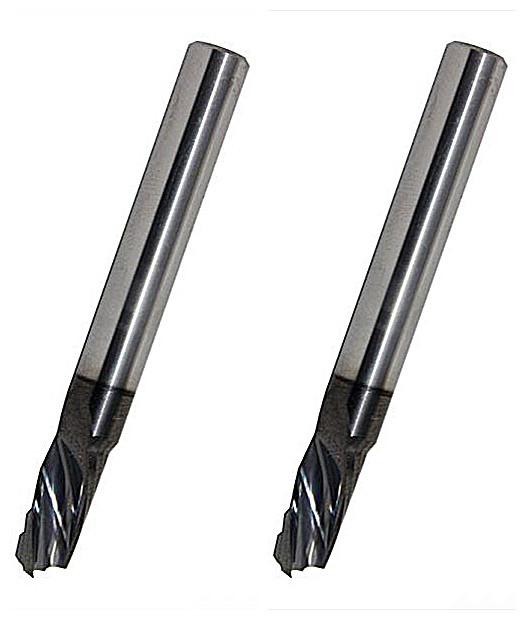

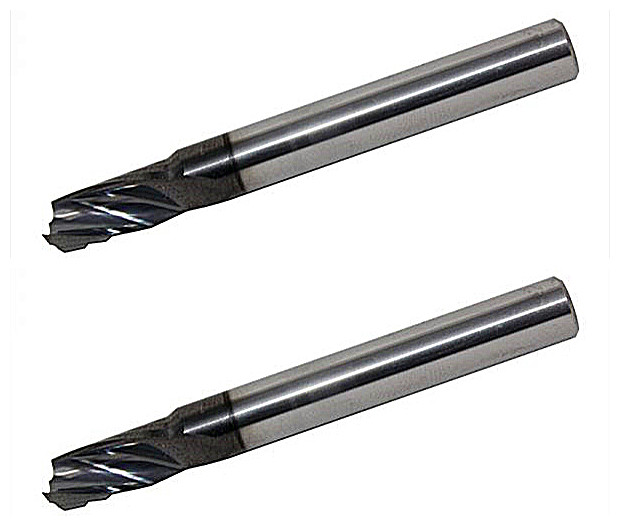

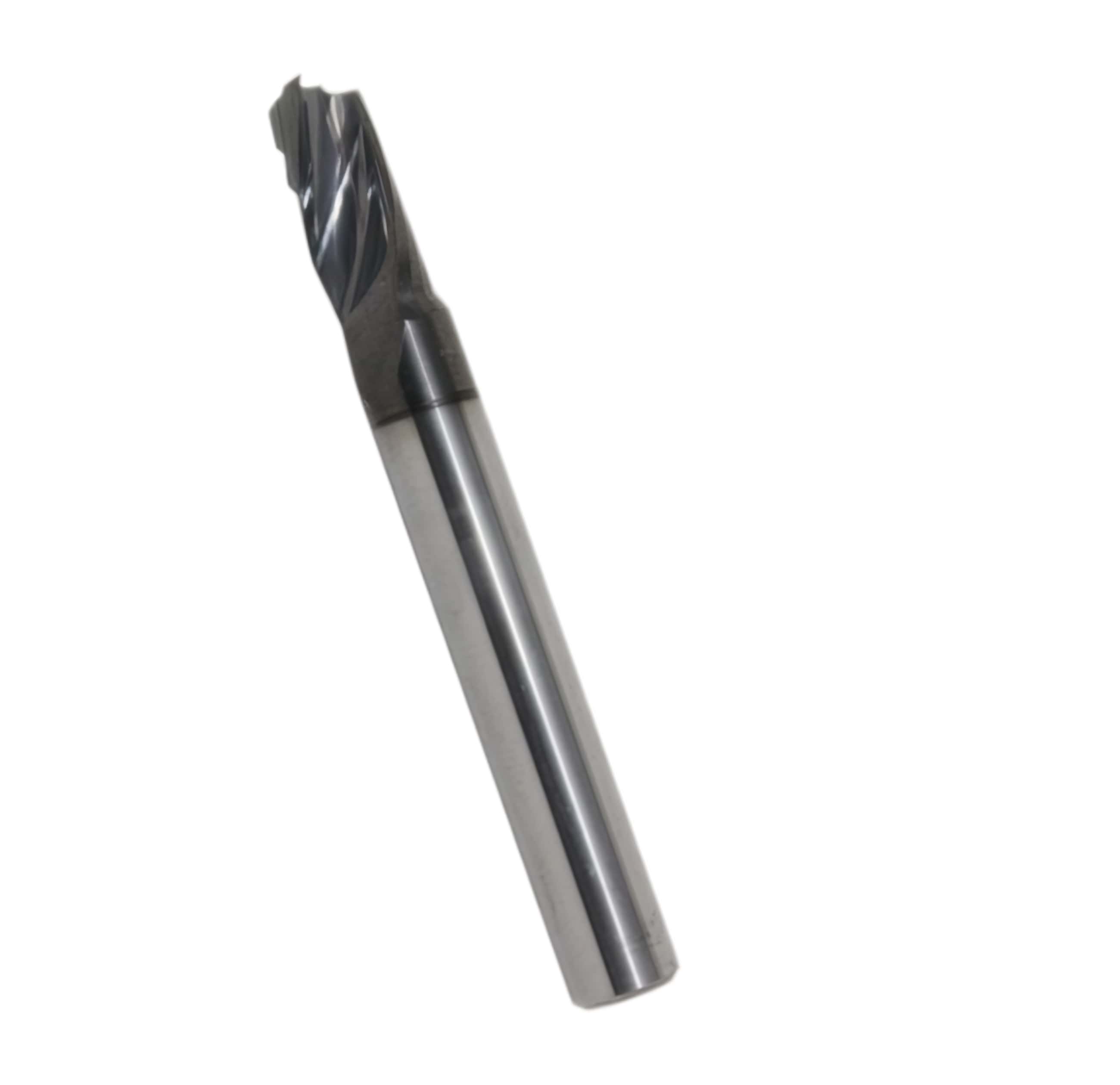

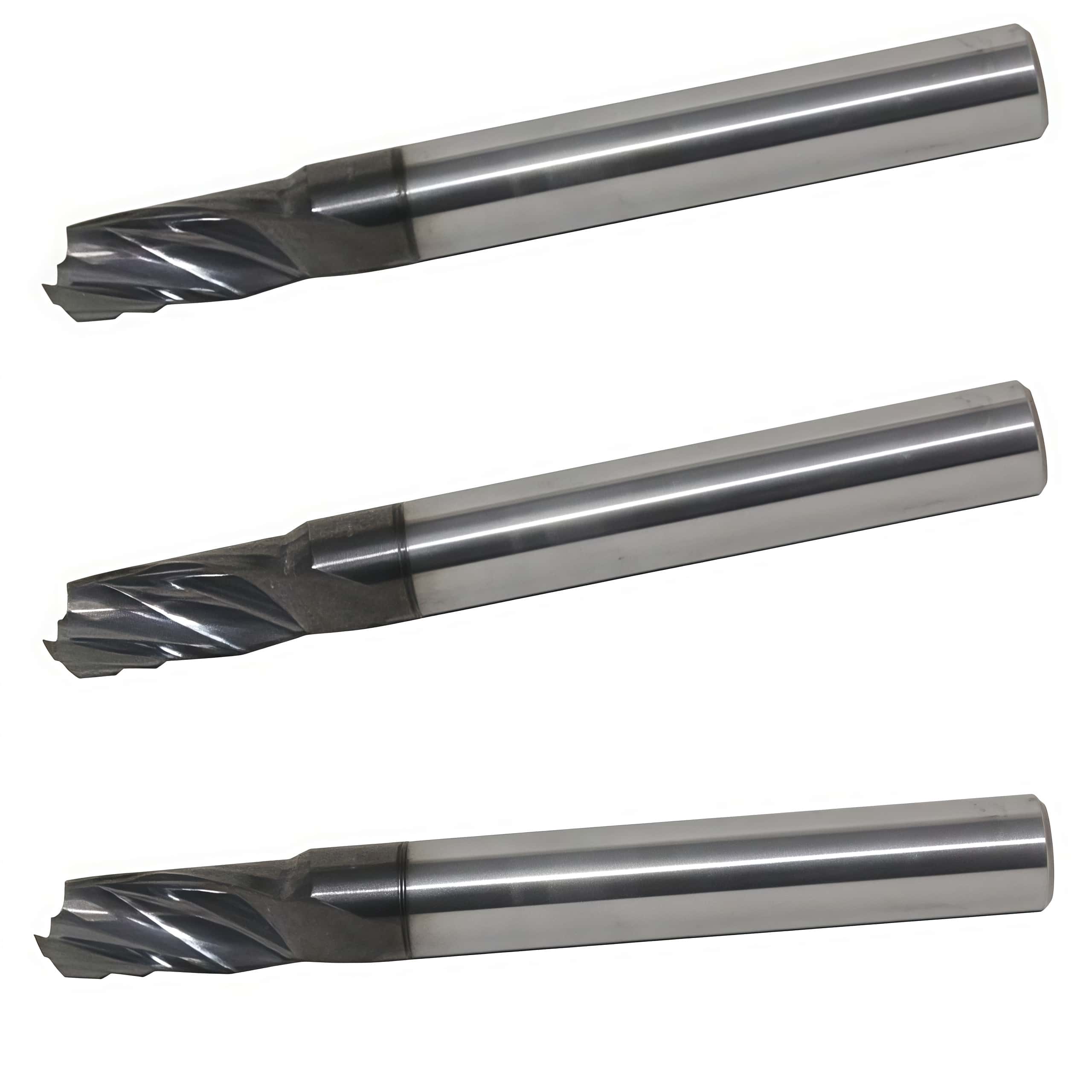

Colex T00532 Upcut DLC Coatedl Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
6mm/ 0.236″ -approx 1/4″
Cut Length:
12mm/ 0.472″ -approx 7/16″
Shank Diameter:
6mm

Key Specifications and Use Cases

The T00532 is part of Colex's specialized router bit lineup aimed at sign-making and industrial fabrication.

Design: It is an upcut bit, meaning the spiral flutes pull chips upward and away from the material, which is ideal for clearing debris during deep cuts but can sometimes cause slight "tear-out" on the top surface of some materials.
DLC Coating: The "Diamond-Like Carbon" coating reduces heat buildup and prevents material from sticking to the bit, which is particularly beneficial when dry cutting soft metals or plastics.
Primary Materials: Recommended for high-precision cutting of:
- Aluminum and ACM (Aluminum Composite Material like DiBond).
- Hard and soft plastics (Acrylic, PVC, Sintra).
- Wood, sign foam, and various composite materials.
