Colex T00535 Upcut Router Bit Replacement Compatible Price Online Store

Colex T00535 Upcut Router Bit is a high-performance CNC cutting tool specifically designed for use with the Colex Sharpcut Flatbed Cutter. This single-flute spiral bit is engineered for efficient chip removal by pulling debris upward and away from the material, making it ideal for deep cuts and slot… Enquire now

Description

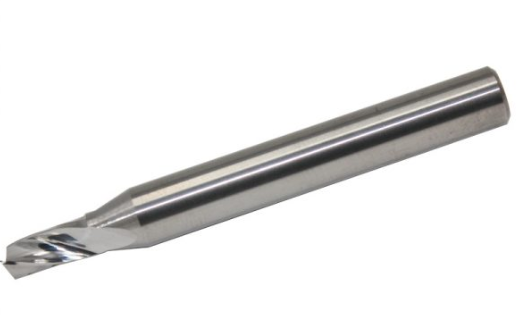

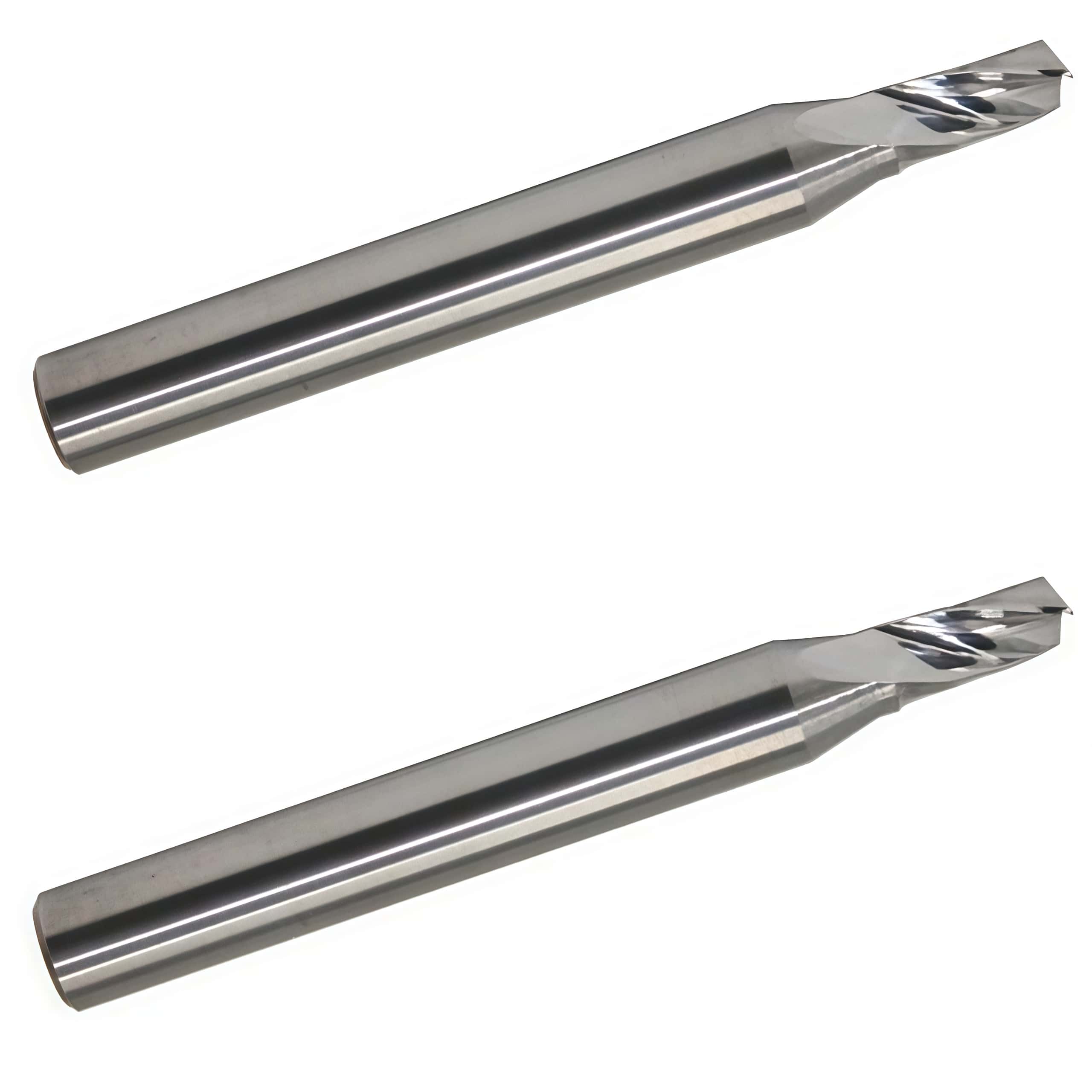

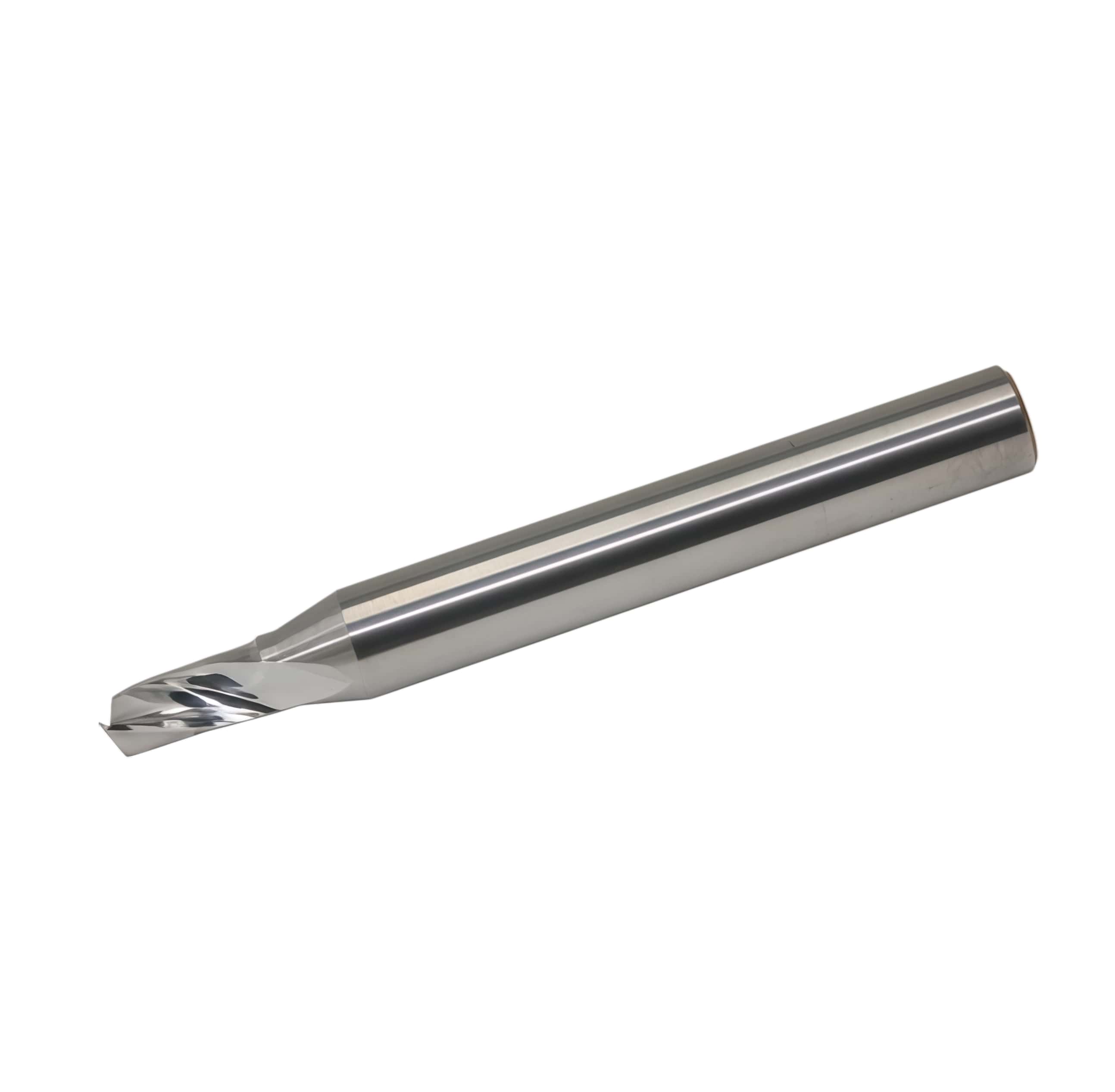

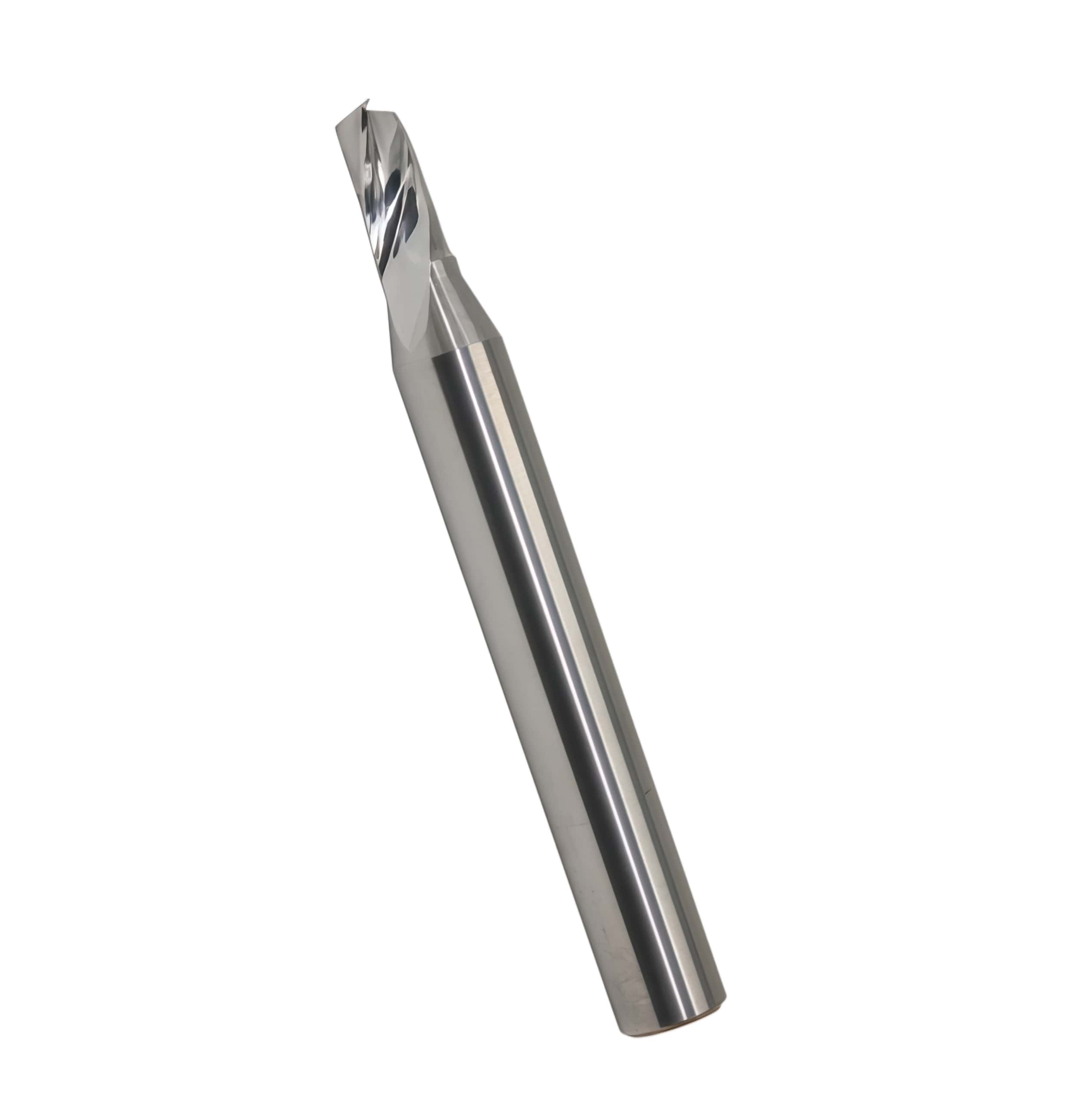

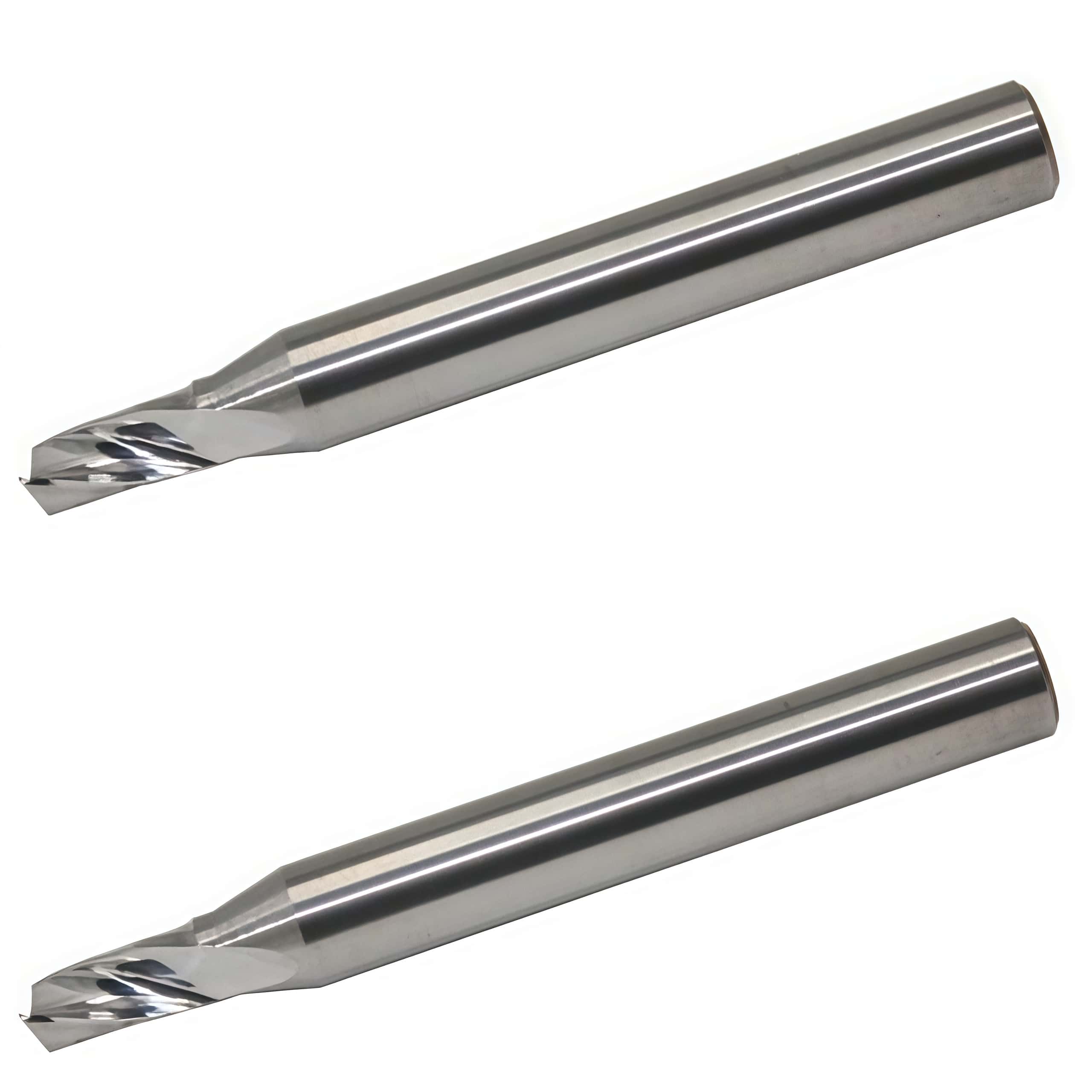

Colex T00535 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
4mm/ 0.157″ -approx 3/16″
Cut Length:
8mm/ 0.315″ -approx 5/16″
Shank Diameter:
6mm

Common Applications

While specific material compatibility for the T00535 is typically listed as "universal" within the Colex ecosystem, similar upcut bits in their catalog are recommended for:

Hard & Soft Plastics: Acrylic, PVC, and Polycarbonate.
Composite Materials: ACM (Aluminum Composite Material) and Di-Bond.
Wood Products: Softwood, hardwood, and sign foam.

Usage Tips

Chip Clearing: Because this is an upcut bit, it is best suited for "mortising" or cutting deep grooves where you need the tool to "auger" the chips out of the hole to prevent burning.
Edge Quality: Note that upcut bits can occasionally cause slight "fuzzing" or splintering on the top surface of some materials since the cutting force is pulling upward.
Installation: For the strongest hold in your CNC collet, push the bit all the way in and then pull it back out approximately 1/16" to 1/8" before tightening to allow for proper compression.
