Colex T00550 Upcut Router Bit Online Store For Sale Replacement Compatible

The Colex T00550 Upcut Router Bit is a specialized precision cutting tool designed for use with the Colex Sharpcut Flatbed Cutter. As an upcut spiral bit, it is engineered to pull chips and debris upward and away from the material, which is critical for maintaining a cool cut and preventing material… Enquire now

Description

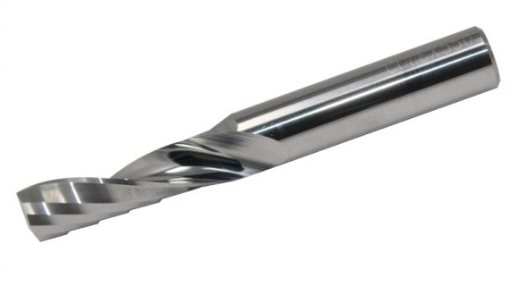

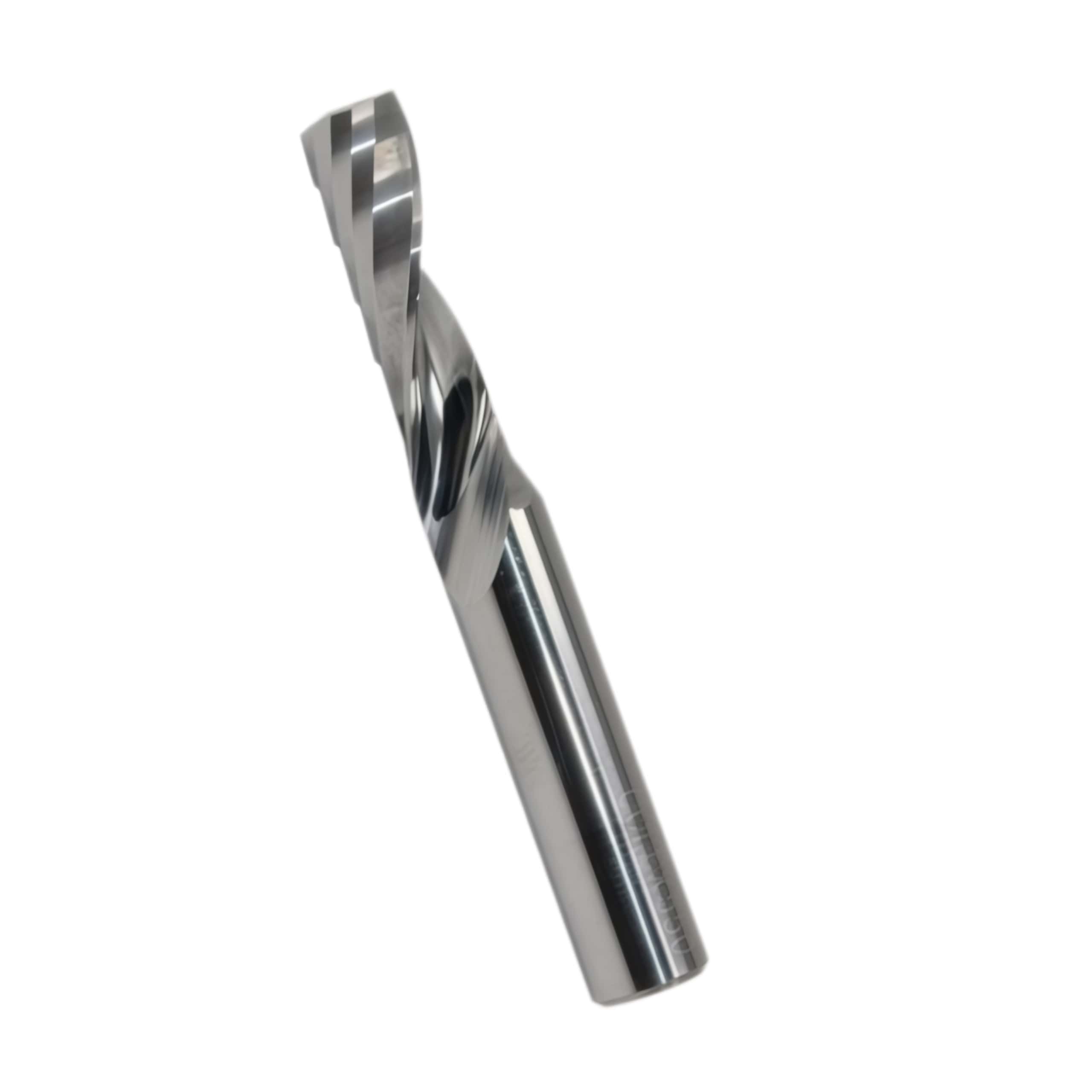

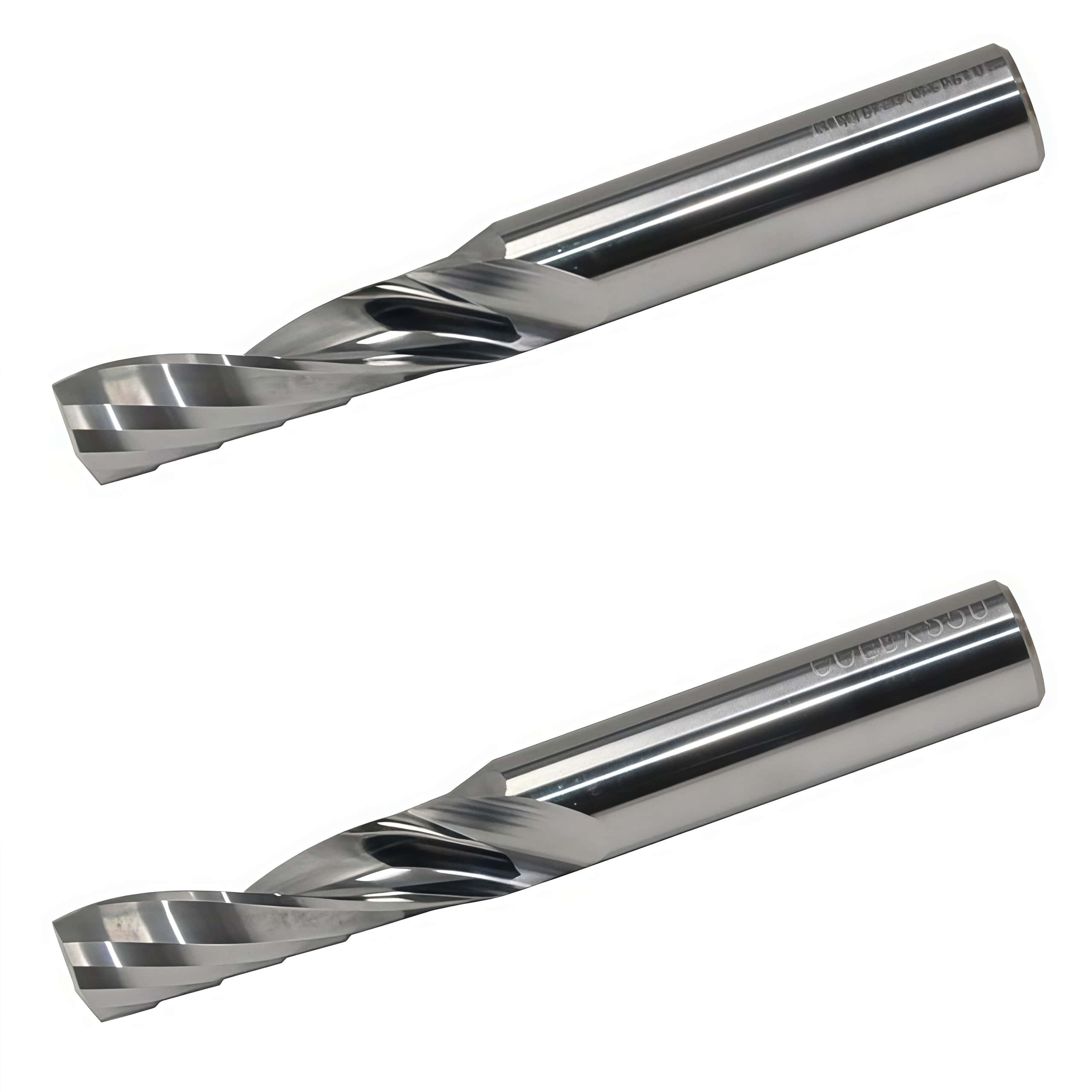

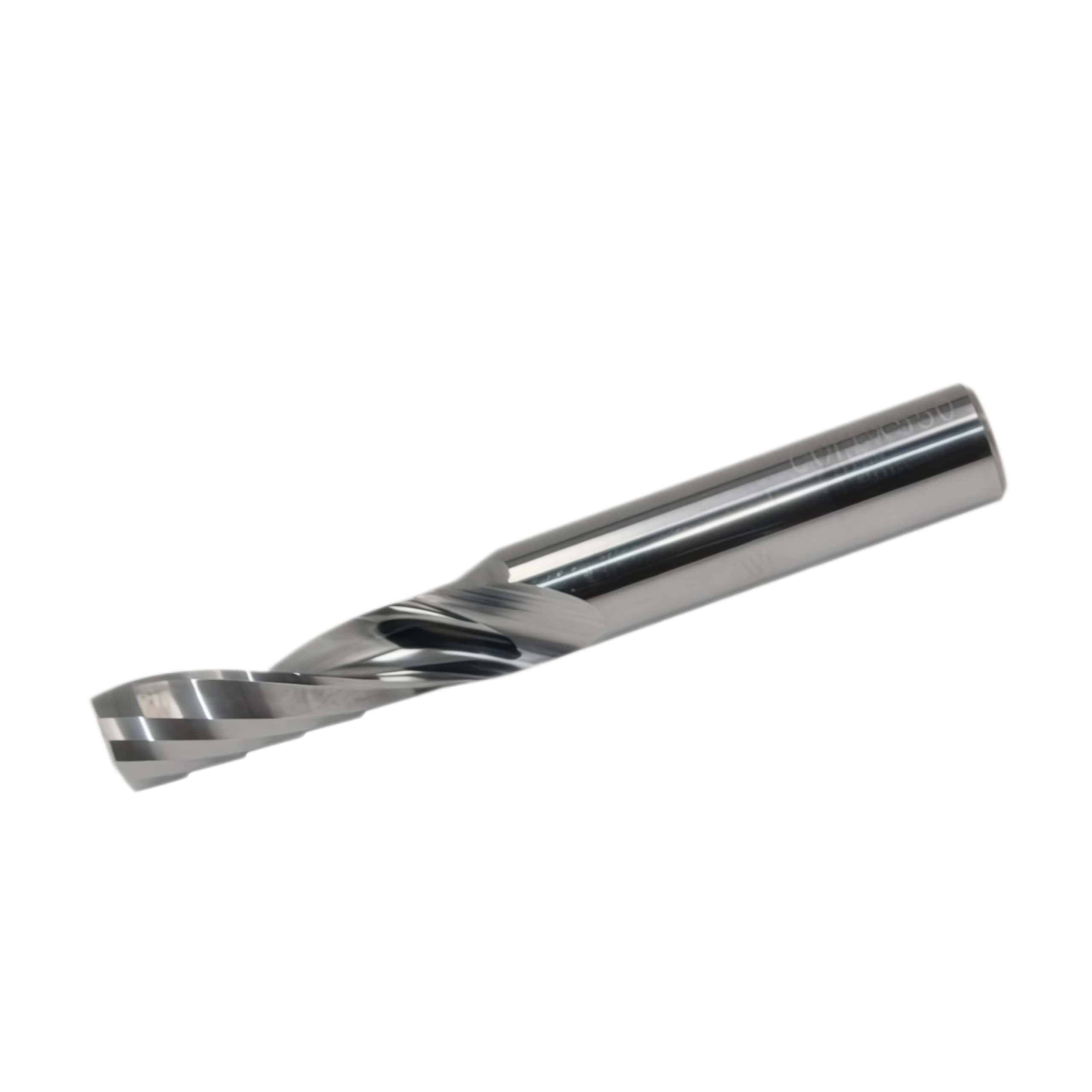

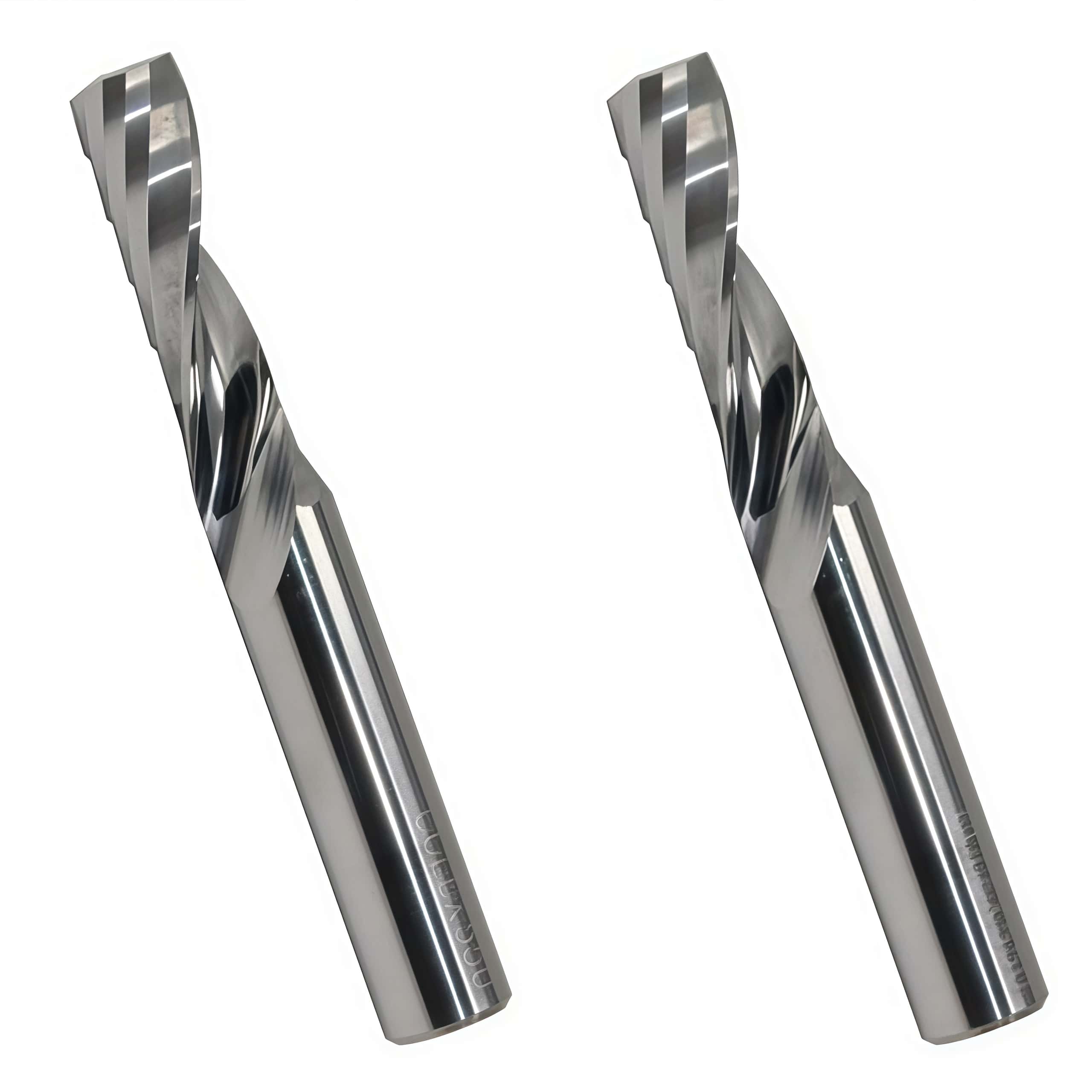

Colex T00550 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
8mm
Cut Length:
25mm/ 0.984″ -approx 1″
Shank Diameter:
8mm
Recommended Use:
Soft & Hard Plastic, Acrylic, Wood

Key Features and Usage

While specific technical data for the T00550 is often available through authorized retailers like Shenzhen Oyea Machinery Co., Ltd., it belongs to a family of high-performance bits used for diverse materials:

Chip Evacuation: The upcut spiral geometry is ideal for deep cuts, mortises, or pockets where debris removal is necessary to prevent burning or friction.
Material Compatibility: Typically used for materials like acrylic, ACM (Aluminum Composite Material), wood, and various plastics.
Plunge Cutting: Unlike straight bits, spiral bits like the T00550 are designed for easy plunging, similar to a drill bit.
Finish Quality: While excellent for evacuation, upcut bits may leave a slightly rougher top edge on some materials compared to downcut bits.

Technical Context

Shank Compatibility: Colex bits are designed to fit the specific collet sizes of their 1HP, 3HP, or 5HP router spindles.
Cutting Performance: Many Colex bits feature advanced coatings (like DLC or "Superior" coatings) to extend tool life by up to 3x when cutting abrasive materials like aluminum.
