iEcho E16-2 Cutter Oscillating Knife Blades For Iecho Digital Cutter/ Flatbed Cutting Machine

CHINA iEcho E16-2 cutter oscillating knife blade is a tungsten carbide oscillating blade for iEcho digital cutters and flatbed cutting machines, with the common spec set of 34.4 mm height, 6.0 mm width, 1.0 mm thickness, 45° angle, and 7.0 mm max cutting depth. Enquire now

Description

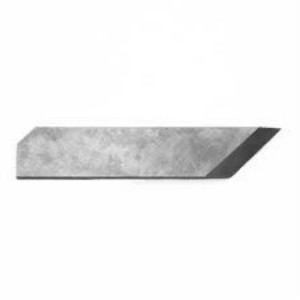

iEcho E16-2 Oscillating Knife Blade

iEcho E16-2 Cutter Oscillating Knife Blades

IECHO E16-2 oscillating knife blade is a rugged, flat-stock tungsten carbide blade explicitly engineered for high-frequency vertical vibration tools on IECHO digital cutters and flatbed cutting machines. Unlike static drag knives, this blade is optimized for motorized or pneumatic oscillating modules, allowing it to easily saw through dense, medium-hard, and tough composite materials with high stability and structural integrity.

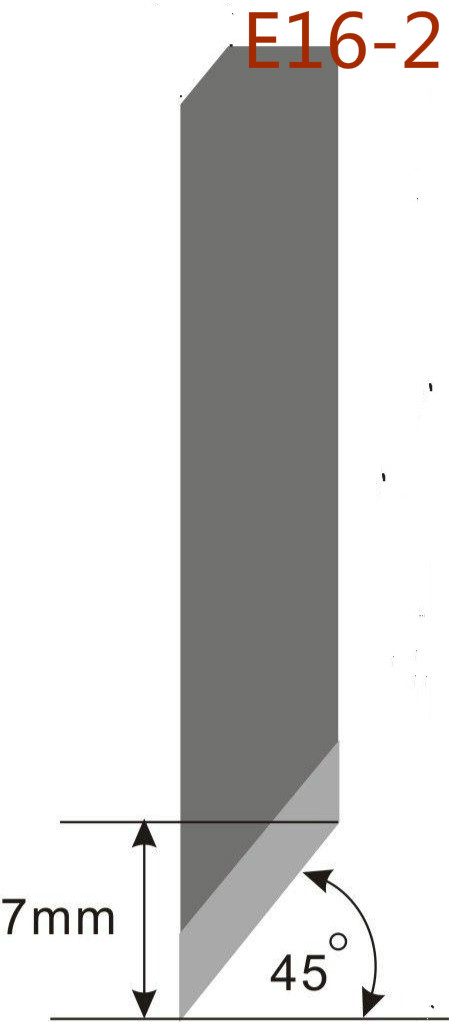

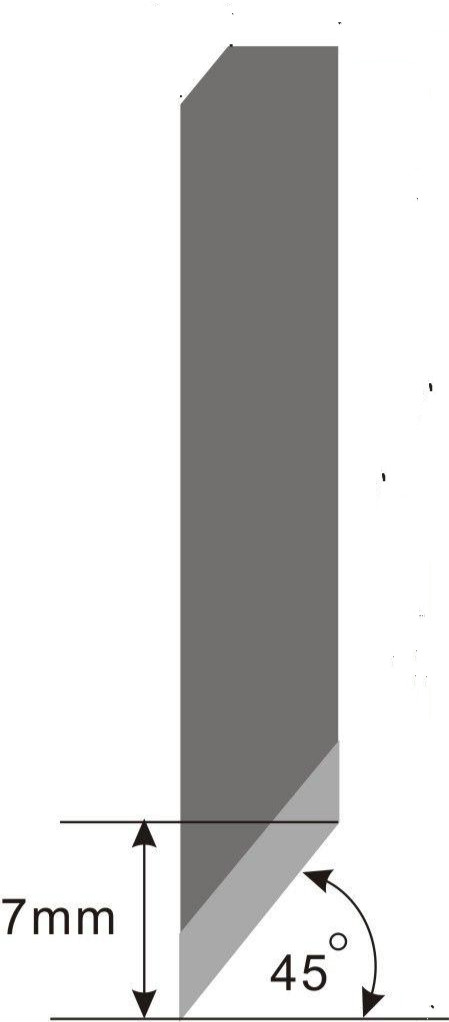

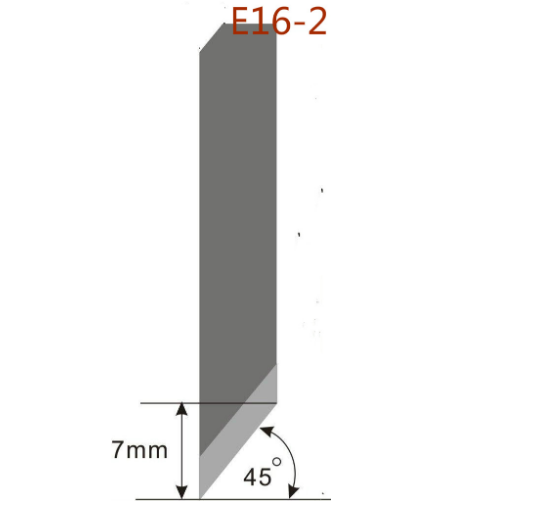

Technical Specifications

Blade Type: Flat, single-edge oscillating blade
Material: Uncoated ultra-fine grain solid tungsten carbide (tungsten steel)
Cutting Angle: 45°
Blade Thickness: 1.00 mm
Blade Width: 6.00 mm
Total Height: 34.40 mm
Maximum Cutting Depth: 7.00 mm
Mounting Style: 1.00 mm flat-stock tool mount

Machine Tool Compatibility

The E16-2 blade is optimized to fit IECHO's specialized high-speed processing heads. It interfaces flawlessly with:

Electric Oscillating Tool (EOT): Driven by an electric motor for high-frequency up-and-down strokes.
Pneumatic Oscillating Tool (POT): Powered by compressed air for greater stroke lengths and heavier vertical forces.
Machine Series: Natively used on the IECHO BK, BK3, BK4, and TK series flatbed CNC systems.

Target Material Applications

Thanks to its robust 1.00 mm thickness and flat-bottom structure, the E16-2 excels at processing medium-hard and abrasive components that would easily deflect or snap thinner 0.63 mm blades:

Composites: Carbon fiber prepreg sheets and fiberglass layers.
Rigid Graphics & Signs: ABS plastic boards, Chevron board (expanded PVC foam), and heavy magnetic sheeting.
Industrial Synthetics: Thick PVC banners, gasket materials, and semi-rigid rubber components.
