iEcho E54C Decagonal (10-Sided) Rotation Knife Blades For Iecho Cutting Machine

iEcho E54C decagonal 10-sided rotation knife blade is a rotary blade for iEcho cutting machines, commonly listed with a 41 mm height, 0.6 mm thickness, an 8 mm mounting hole, and a 12 mm max cutting depth Enquire now

Description

iEcho E54 Decagonal (10-Sided)Rotation Knife Blades

iEcho E54C Decagonal (10-Sided) Rotation Knife Blades

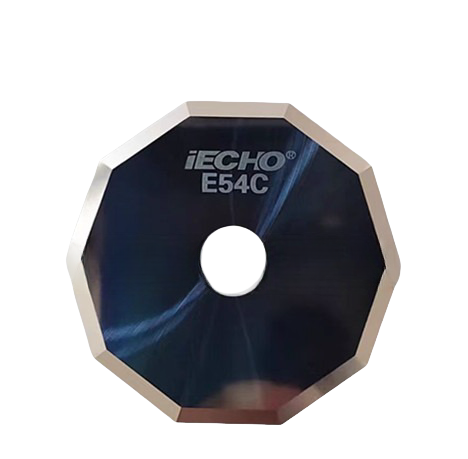

iEcho E54C Decagonal (10-Sided) Rotation Knife Blade (often referenced interchangeably as the E54) is a large, heavy-duty faceted rotary blade designed for iEcho Automated Digital Flatbed Cutters. Featuring a substantial 41.00 mm outer diameter, this blade is engineered to provide an extended 12.00 mm maximum cutting depth.

Its 10 distinct ground facets create a continuous, low-vibration chopping and shearing sequence as it rolls. This mechanical motion nips individual filaments, preventing tough, slippery, or multi-layered technical fabrics from shifting, bunching, or pulling out of line during high-speed gantry tracking.

Technical Specifications

The extended diameter and robust material profile of the E54C determine its operating clearance limits:

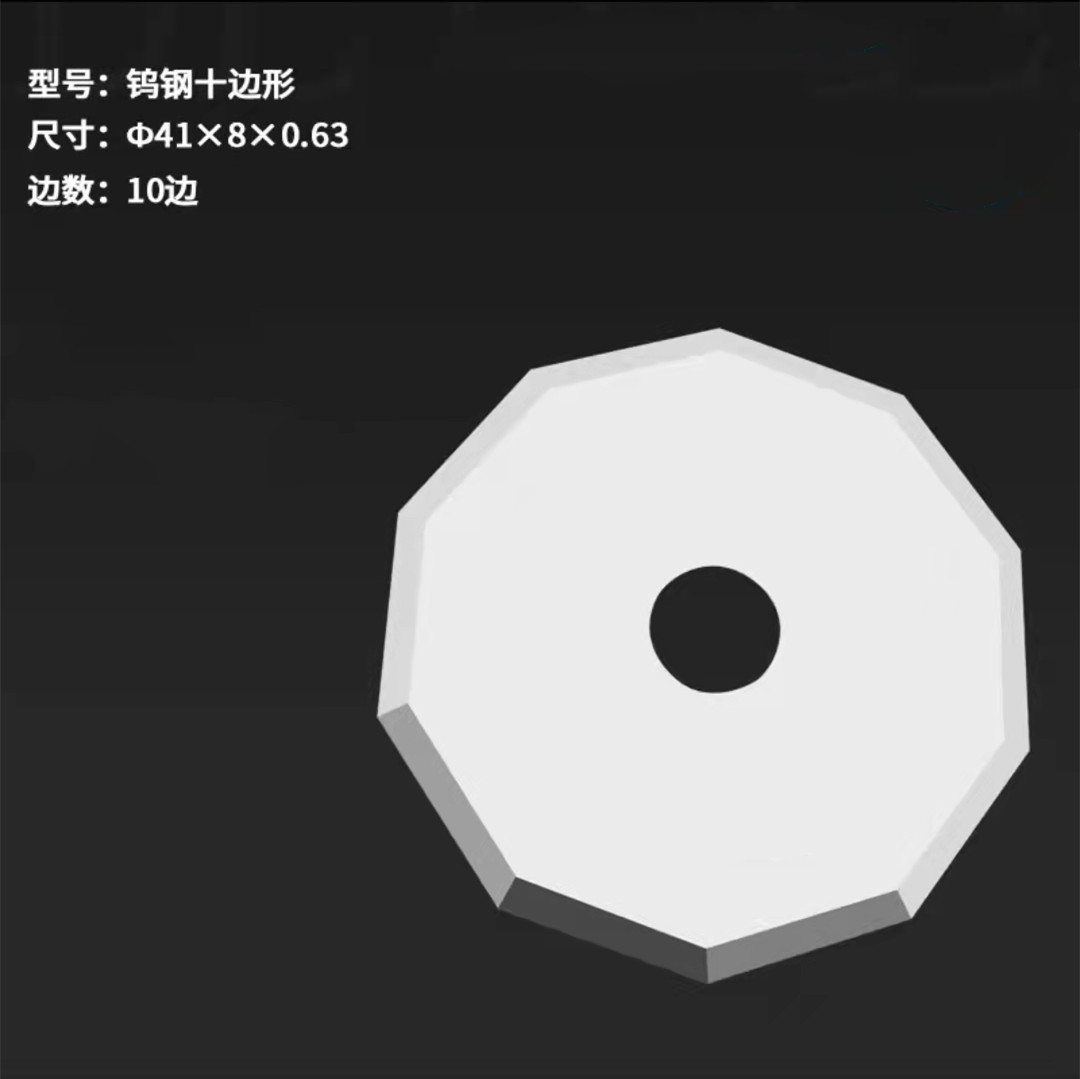

Blade Geometry: Decagonal (10-sided) faceted circular edge
Outer Diameter (Blade Height): 41.00 mm
Blade Thickness: 0.60 mm to 0.63 mm
Cutting Edge Angle: 36°
Maximum Cutting Depth: 12.00 mm
Mounting Configuration: Center bore hole Ø 8.00 mm
Material Composition: 100% Virgin Tungsten Carbide / Tungsten Steel

Tool Compatibility

The E54C's standard 8mm mounting bore fits directly onto the spindle drives of iEcho's specialized fabric and textile modules:

DRT (Driven Rotary Tool): A motorized tool head that spins the E54C actively, synchronizing its rotation speed with the machine's gantry movement. This eliminates friction drag on delicate or synthetic fibers.
PRT (Power/Pneumatic Rotary Tool): A high-torque module designed to force the large 41mm blade through exceptionally thick, dense, or multi-layered textiles without stalling the drive assembly.

Ideal Material Applications

Because the 10-sided edge cleanly shears fibers instead of plowing through them, the E54C is ideal for deeper cuts in loose, interwoven, or highly abrasive substrates:

Thick Non-Wovens: Heavy industrial carpets, sound-absorbing acoustic felts, and thick composite backing layers.
High-Strength Composites: Multi-layered carbon fiber plies, woven glass fiber sheets, and protective Aramid (Kevlar) fabrics.
Industrial Synthetics: Heavy-gauge nylon, polyester mesh, canvas, thick tarpaulins, and banner vinyl.
Heavy Packaging Paper: Thick construction paperboards, honeycomb cores, and cardboard variants.

Production Cross-Reference & Upgrades

The E54C form factor is highly standardized across the digital finishing industry. It acts as a universal drop-in replacement for premium tool lines across alternative brand registries, matching the cross-reference metrics of heavy-duty decagonal blades used on systems like Zund, Atom, and MultiCam.

Depending on your production environment, you will generally run into two material tiers:

Standard Tungsten Steel (Hard Metal): Provides reliable durability and long edge retention for general print, banner, and garment manufacturing.
DLC (Diamond-Like Carbon) Coated Variations: Features an ultra-smooth, dark coating that dramatically lowers friction-induced heat. DLC coatings prevent synthetic textiles from melting onto the blade edge and protect the blade against premature dulling when slicing highly abrasive glass or carbon filaments.
