iEcho E56-2 Rotation Ceramics Knife Blades For Iecho Cutting Machine Digital Cutter Machine

iEcho E56-2 rotation ceramics knife blade is a ceramic rotary blade for iEcho digital cutters and flatbed CNC machines, typically listed with a 0.63 mm thickness and up to 4 mm cutting depth. Enquire now

Description

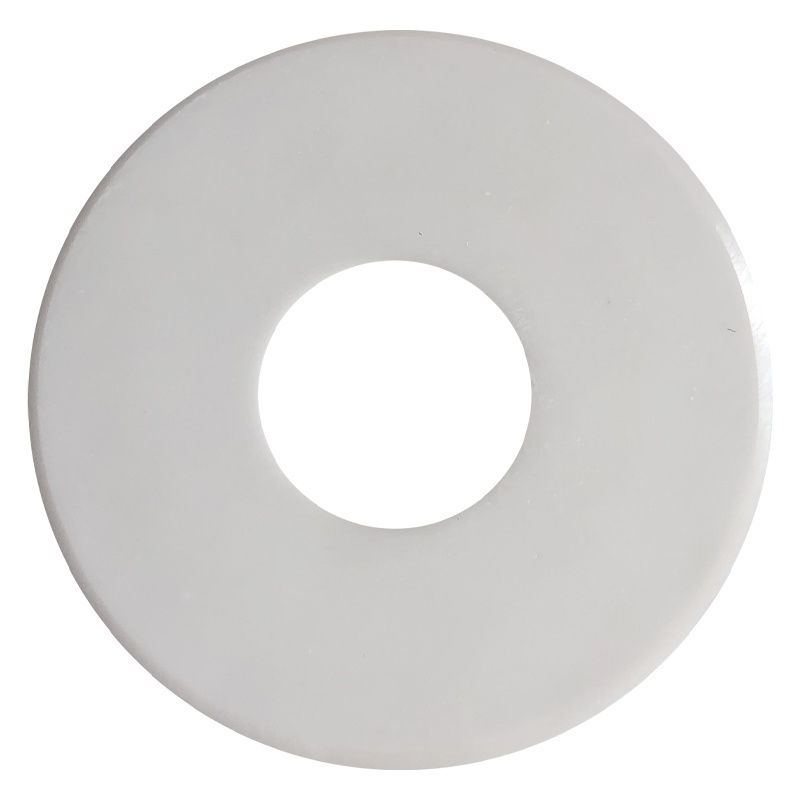

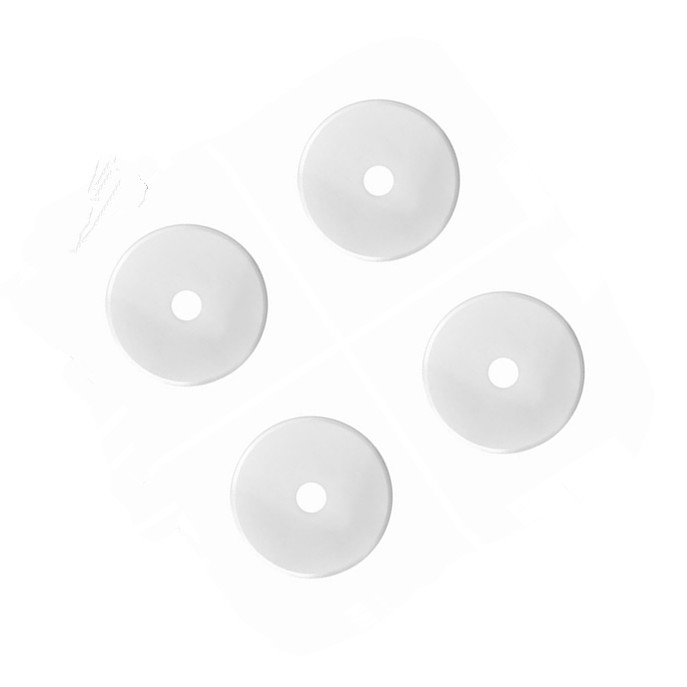

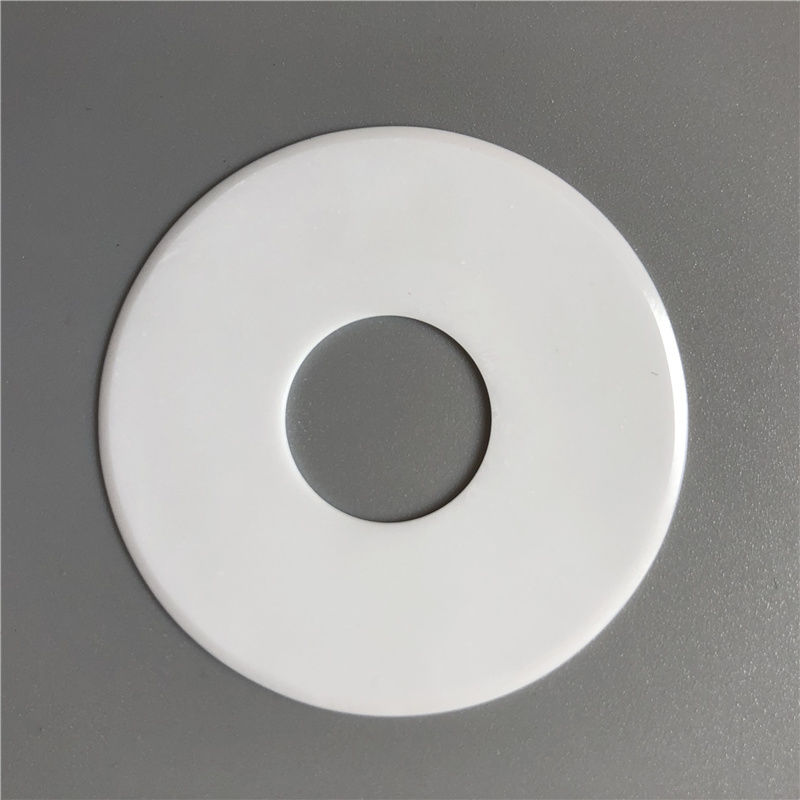

iEcho E56-2 Rotation Ceramics Knife Blades

iEcho E56-2 Rotation Ceramics Knife Blade is an advanced, ultra-high-performance circular rotary blade engineered specifically for iEcho Automated Digital Flatbed Cutting Systems. Unlike traditional tungsten carbide or tungsten steel tooling, the E56-2 is manufactured from high-tech industrial zirconia ceramics (Zirconium Dioxide).

This material composition solves a critical textile industry challenge: it virtually eliminates friction-induced heat buildup during high-speed rolling shear operations, preventing low-melt synthetic fibers and polymers from melting and fusing to the blade edge.

Technical Specifications

The E56-2 maintains the exact structural footprint of the standard steel E56 blade, allowing it to swap seamlessly into identical setups:

Blade Geometry: Perfectly circular continuous round edge
Blade Composition: Advanced Industrial Ceramics (Zirconia)
Outer Diameter (Blade Height): 25.00 mm
Blade Thickness: 0.63 mm
Maximum Cutting Depth: 4.00 mm
Mounting Configuration: Center bore hole Ø 8.00 mm

Tool Module Compatibility

The 8mm center hole centers precisely onto the high-speed spindle axles of iEcho's rotary modules:

PRT (Power/Pneumatic Rotary Tool): Compressed-air driven, high-torque module spinning the blade at speeds up to 11,000 RPM. The ceramic material provides critical heat stabilization at these extreme rotational velocities.
DRT (Driven Rotary Tool): A motorized spindle head that active-spins the E56-2 in coordination with the machine's gantry travel speeds, ensuring drag-free tracking on highly delicate plies.

Ideal Material Applications

The E56-2 excels at high-volume slicing through synthetic textiles, advanced composite sheets, and flexible fiber roll goods that dull metal blades or suffer from heat damage:

Pure Synthetics: Polyester fabrics, nylon cloth, mesh substrates, and technical sportswear fabrics.
Abrasive Composites: Raw carbon fiber fabrics, woven fiberglass mats, and defensive aramid (Kevlar) layers.
Industrial Roll Goods: Thick non-woven fabrics, synthetic acoustic felts, filter textiles, and banner vinyl.

Strategic Operating Advantages

Zero Thermal Gummy Accumulation: Steel blades heat up under friction, causing synthetic fibers to melt onto the knife edge. This ruins the cut quality and stalls production. The E56-2 stays cool, providing clean edges all day.
Chemically Inert Surface: Ceramic blades do not rust or oxidize when processing wet-laid materials, specialized technical textile coatings, or materials embedded with chemical flame retardants.
Extreme Wear Resistance: On pure fabrics and technical meshes, the extreme hardness of zirconia allows the E56-2 to outlast standard tungsten steel blades by up to 5x to 10x before needing a replacement.

Crucial Operational Warning

While exceptionally hard and wear-resistant, zirconia ceramics are inherently brittle and sensitive to impact shock.

Never use the E56-2 on rigid substrates containing metal mesh, heavy staples, or hard mineral inclusions.
Ensure your flatbed cutter's underlayment felt or plastic cutting matrix is clean, leveled, and free of debris to prevent the blade from chipping or shattering during a downward plunge.
