iEcho E57C Rotation Tungsten Steel Knife Blades For Iecho Cutting Machine Digital Cutter Machine

iEcho E57C rotation tungsten steel knife blade is a rotary blade for iEcho digital cutters and flatbed cutting machines, typically listed with a 28 mm height, 0.63 mm thickness, a 5.5 mm max cutting depth, and an 8 mm mounting hole. Enquire now

Description

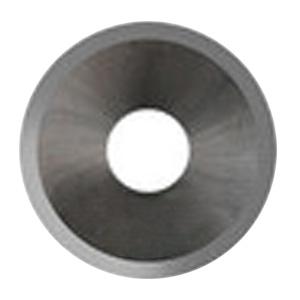

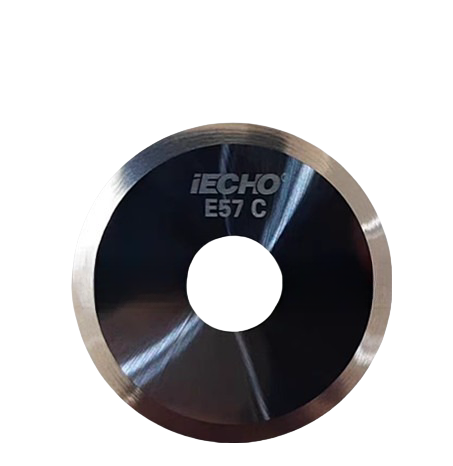

iEcho E57C Rotation Tungsten Steel Knife Blades

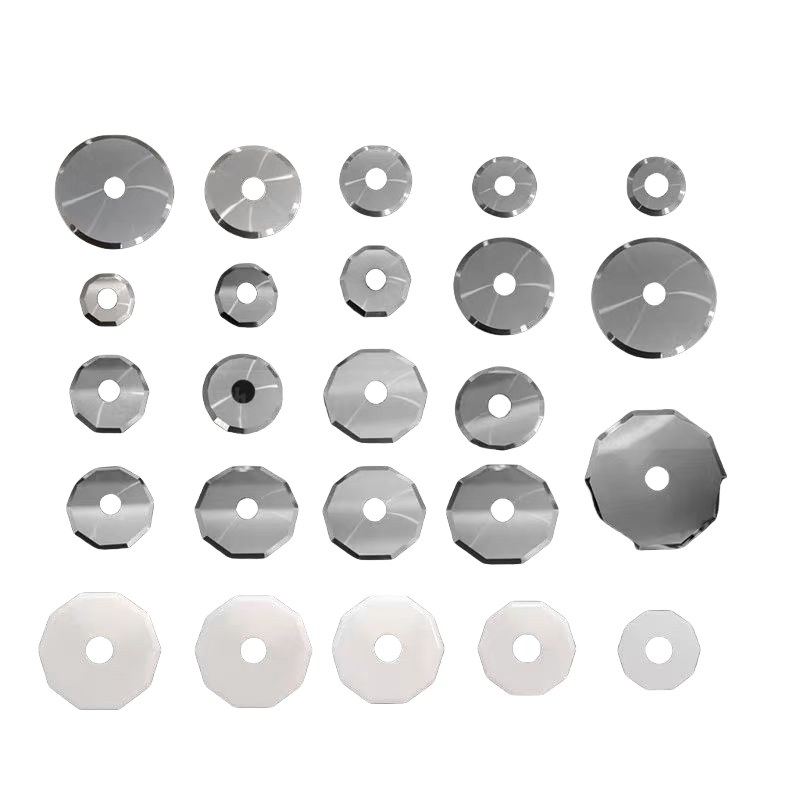

iEcho E57C Rotation Tungsten Steel Knife Blade (frequently designated as the E57) is a mid-sized, high-strength circular rotary blade engineered for iEcho Automated Digital Flatbed Cutters. Unlike multi-faceted decagonal options, the E57C features a perfectly continuous round edge. It relies on a high-speed, rolling shear mechanic to deliver smooth tracking across a wide array of woven, fibrous, and technical synthetic roll goods without snagging or plucking the individual material threads.

Technical Specifications

The exact dimensional footprint of the E57C dictates its vertical clearance limits and spindle assembly setup:

Blade Geometry: Perfectly circular continuous round edge

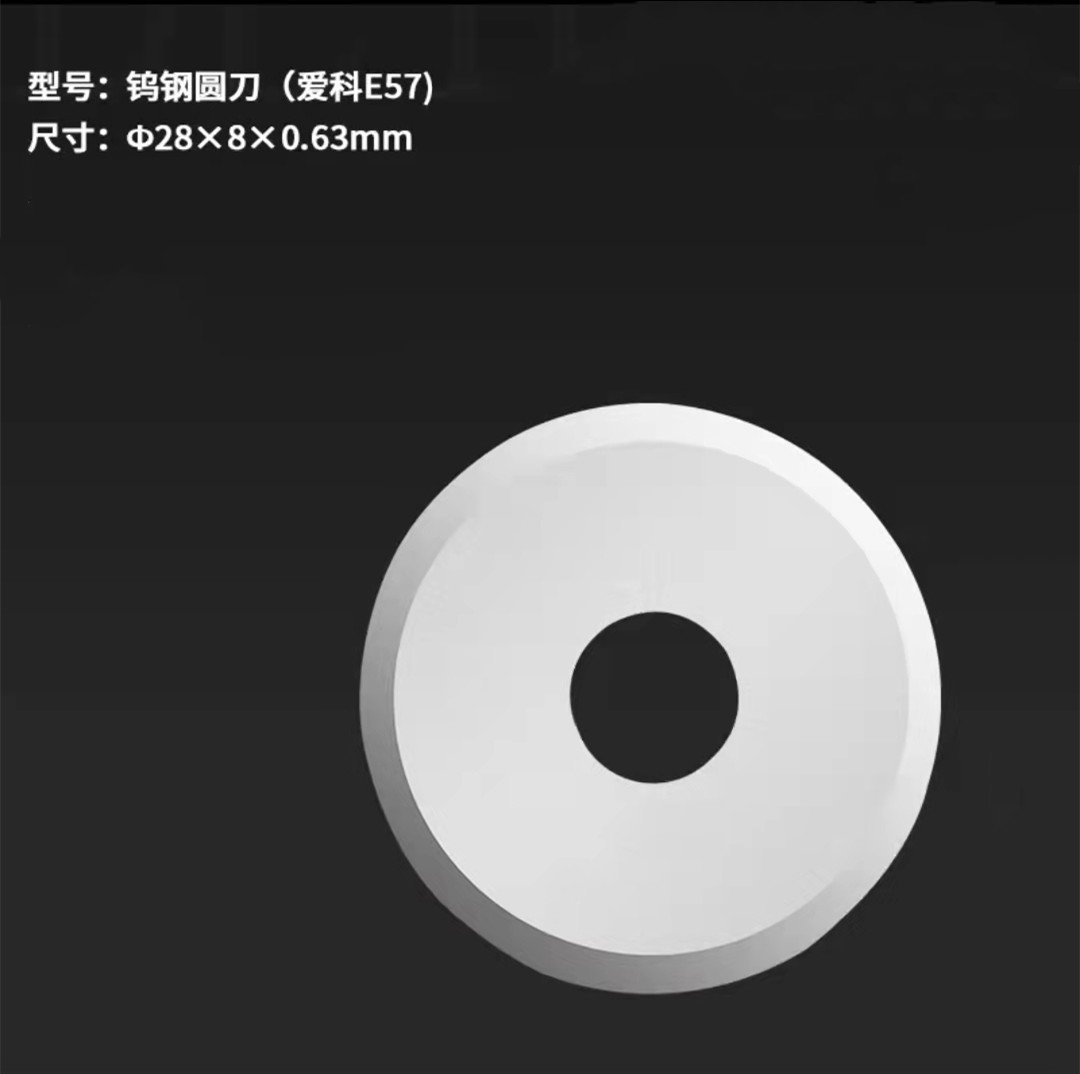

Outer Diameter (Blade Height): 28.00 mm
Blade Thickness: 0.63 mm
Maximum Cutting Depth: 5.50 mm
Mounting Configuration: Center bore hole Ø 8.00 mm
Material Composition: 100% Virgin Tungsten Carbide / Tungsten Steel

Tool Module Compatibility

The standard 8mm mounting bore centers exactly onto the drive axles of iEcho’s rotation-specific tool modules:

DRT (Driven Rotary Tool): A motorized spindle head that spins the E57C actively. By matching the blade's rotational RPM to the machine's gantry travel velocity, the DRT eliminates horizontal drag forces, preventing lightweight or single-layer fabrics from wrinkling.
PRT (Power/Pneumatic Rotary Tool): A high-torque tool module designed to force the 28mm round blade through exceptionally dense or highly resistive multi-layered woven structures without stalling out the drive spindle.

Ideal Material Applications

Because a smooth circular edge provides a uniform cutting pressure, the E57C is highly suited for handling advanced plies and high-performance textiles:

Advanced Composites: Raw carbon fiber sheets, woven fiberglass mats, and defensive aramid (Kevlar) fabrics.
Industrial Weaves & Felts: Dense nylon fabric, multi-layer polyester mesh, industrial canvas, heavy tarpaulins, and thick acoustic felts.
Flexible Non-Woven Stocks: Filter media, technical geotextiles, and synthetic garment interlinings.
