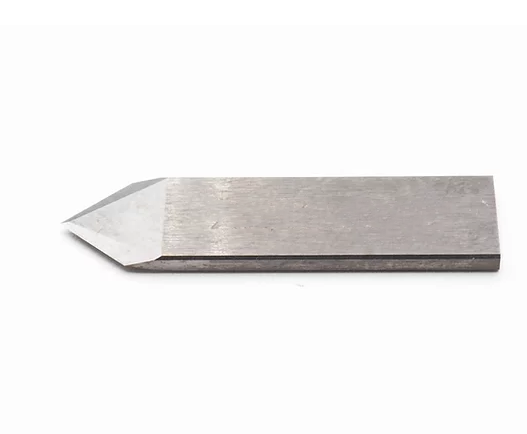

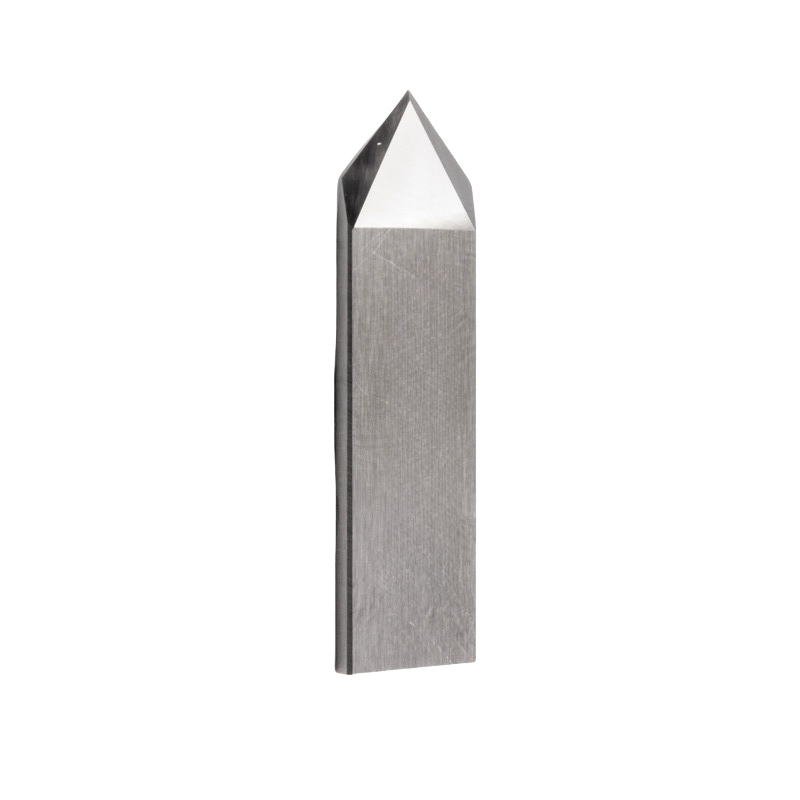

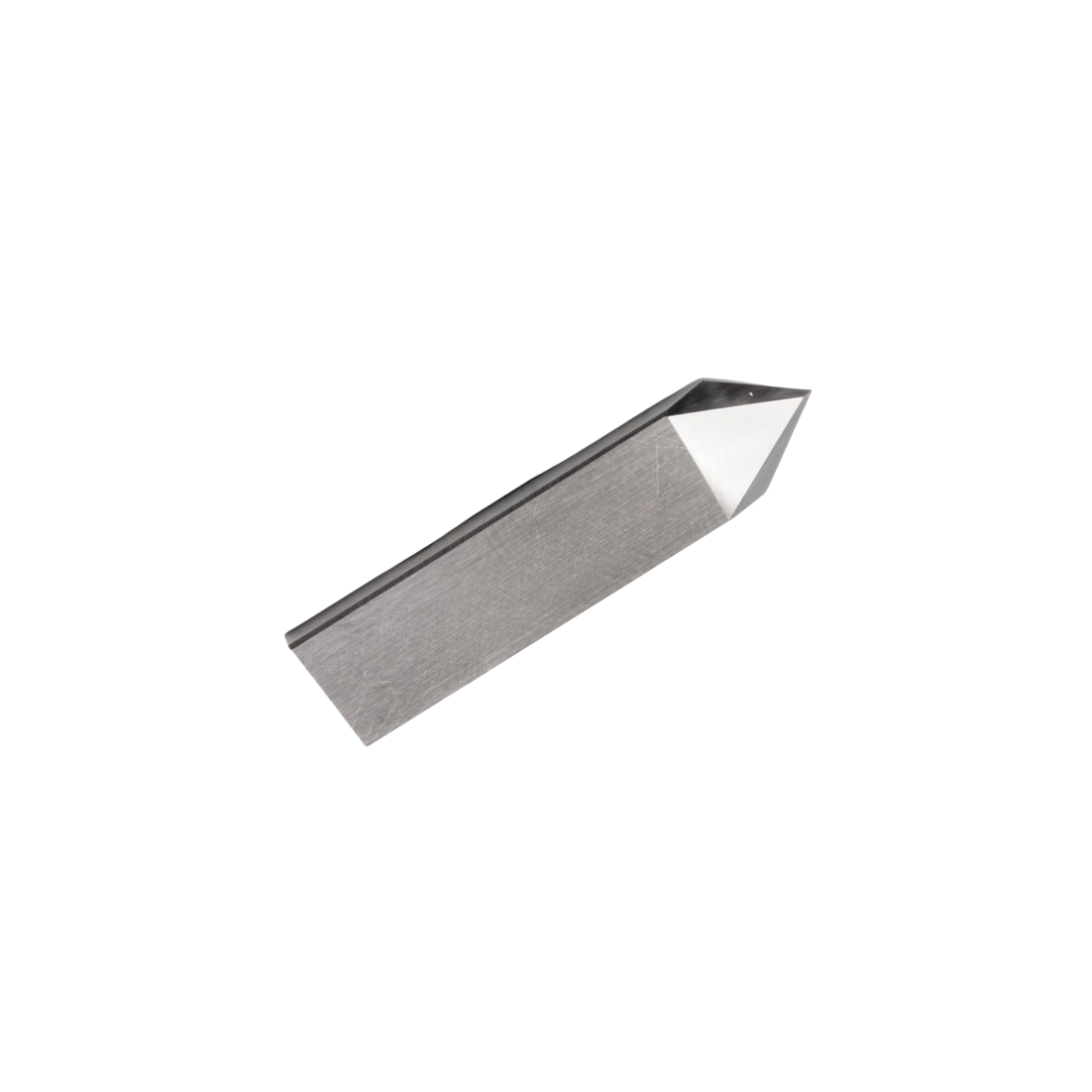

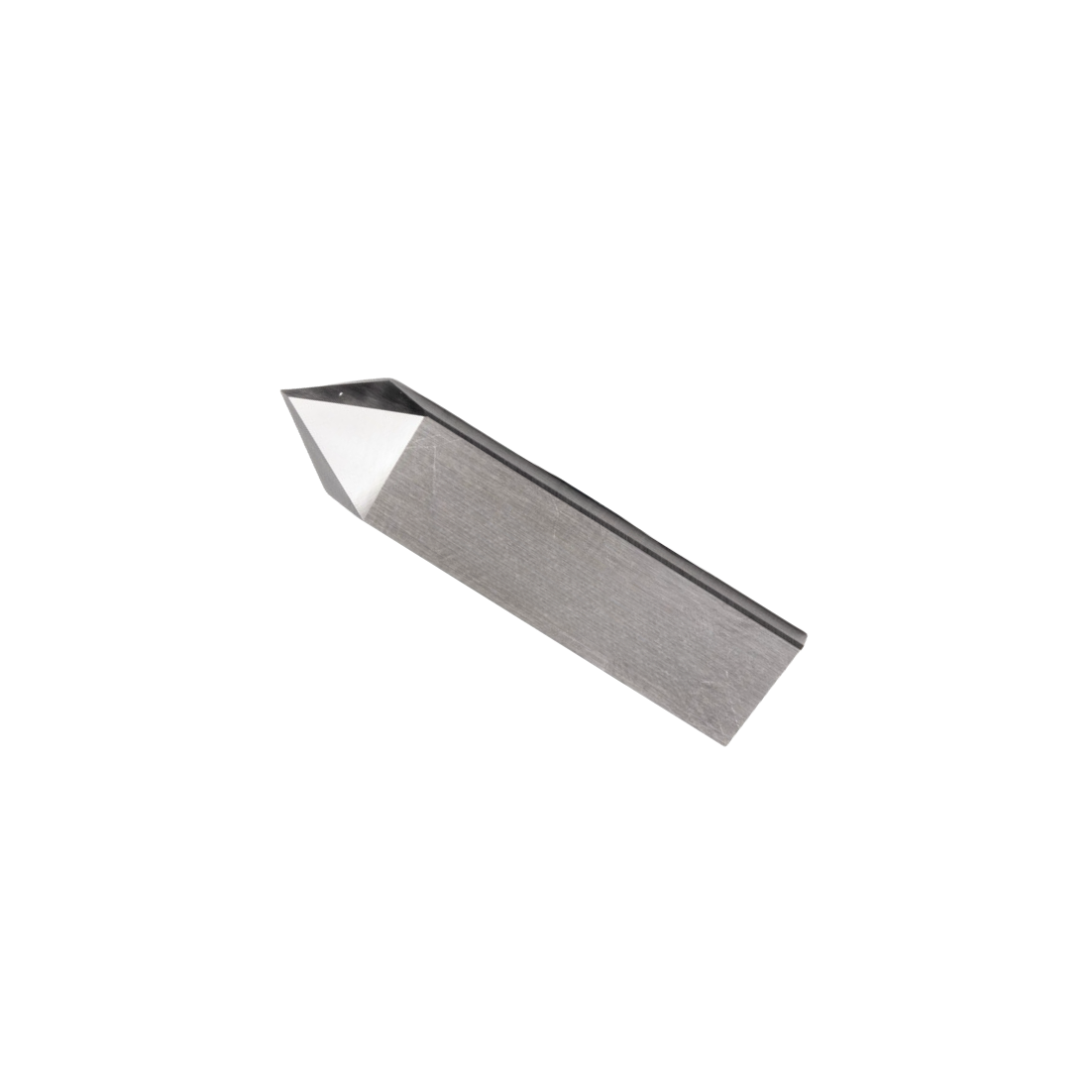

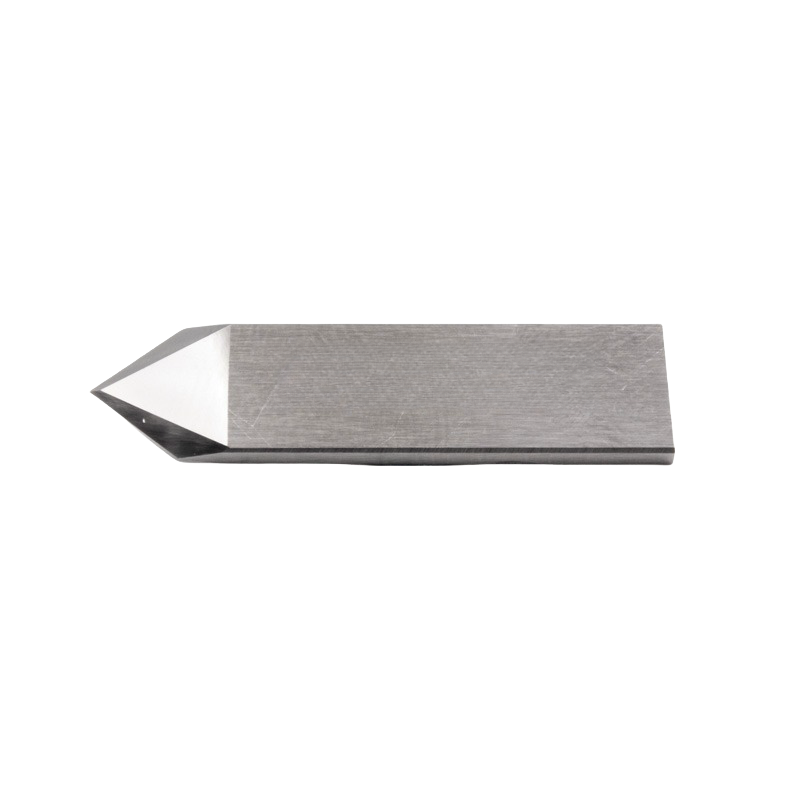

Aristo 910.301-S Solid Carbide Knife Blades For Aristo Cutting Systems

Aristo 910.301-S Solid Carbide Knife Blade is a heavy-duty, dual-edge cutter designed specifically for flatbed digital cutting systems. It offers a robust build to handle tough, semi-rigid, and flexible materials with precision Enquire now

Description

Aristo 910.301-S Solid Carbide Knife Blades For Aristo Cutting Systems

Aristo solid carbide blades,Aristo carbide blades,Aristo blades 910.301-S,Aristo 910.301-S,ARISTO Blade

The Aristo 910.301-S is a professional-grade solid carbide knife blade designed specifically for use in automated CNC cutting systems. These blades are high-performance tools engineered for "drag cutting" or oscillating applications where durability and precision are critical.

Part Nr. 910.301-S
type WIDIA, dual edge,
50 degr.cut angle, 20 degr. wedge

Tool Holder Compatibility

This blade is compatible with standard Aristo MultiHead configurations and fits seamlessly into two primary tool holders:

Drag Knife Holder (Nr. 4520): Used for high-speed, stable mechanical drag tracing.
Oscillating Knife Holder (Nr. 4550): Used for dynamic, reciprocating automated cutting

Recommended Processing Materials

Due to its robust (1.50mm) build and sharp dual edge, it is ideal for cutting:

Packaging & Signage: Folding cartons, corrugated plastics, and sandwich boards.
Plastics & Synthetics: Thick PVC banners, polycarbonate sheeting, and hard foam.
Graphics & Foils: Self-adhesive or reflective vinyls, and heavy magnetic foils.
Fabrics & Industrial Textiles: Canvas, tarpaulin, and heavy polyester fabrics.

Technical Specifications
Composition: Made from high-grade Tungsten Carbide (Hard Metal), which offers extreme resistance to wear and abrasion compared to standard steel.
Blade Geometry: A stable, double-edged drag blade with a 50° cut angle and 20° wedge.
Dimensions: It features a thickness of 1.50 mm and a cut length of approximately 6.9 mm.
Compatibility: Designed for Aristo automated cutting machines using Knife Holder 4520 (for drag cutting) or Knife Holder 4550 (for oscillating/vibrating knife units).

Applications
These blades are optimized for cutting a wide range of industrial materials, including:
Rigid/Dense Materials: Corrugated plastics, folding cartons, and hardfoam.
Flexible Materials: PVC banners, canvas, polyester fabric, and tarpaulin.
Specialty Films: Self-adhesive vinyls, reflective vinyls, and magnetic foils.
