Blackman & White BW50 Decagonal (10-Sided) Rotation Knife Blades Replacement Compatible

The Blackman & White BW50 Decagonal (10-Sided) Rotation Knife Blade serves as a versatile replacement, designed to be compatible with a range of cutting machines. It is suitable for models from manufacturers such as Esko BLD-RC110 G42444844, Zund Z50 3910335, Gerber MCT R50, Summa 500-0860 and 500-9… Enquire now

Description

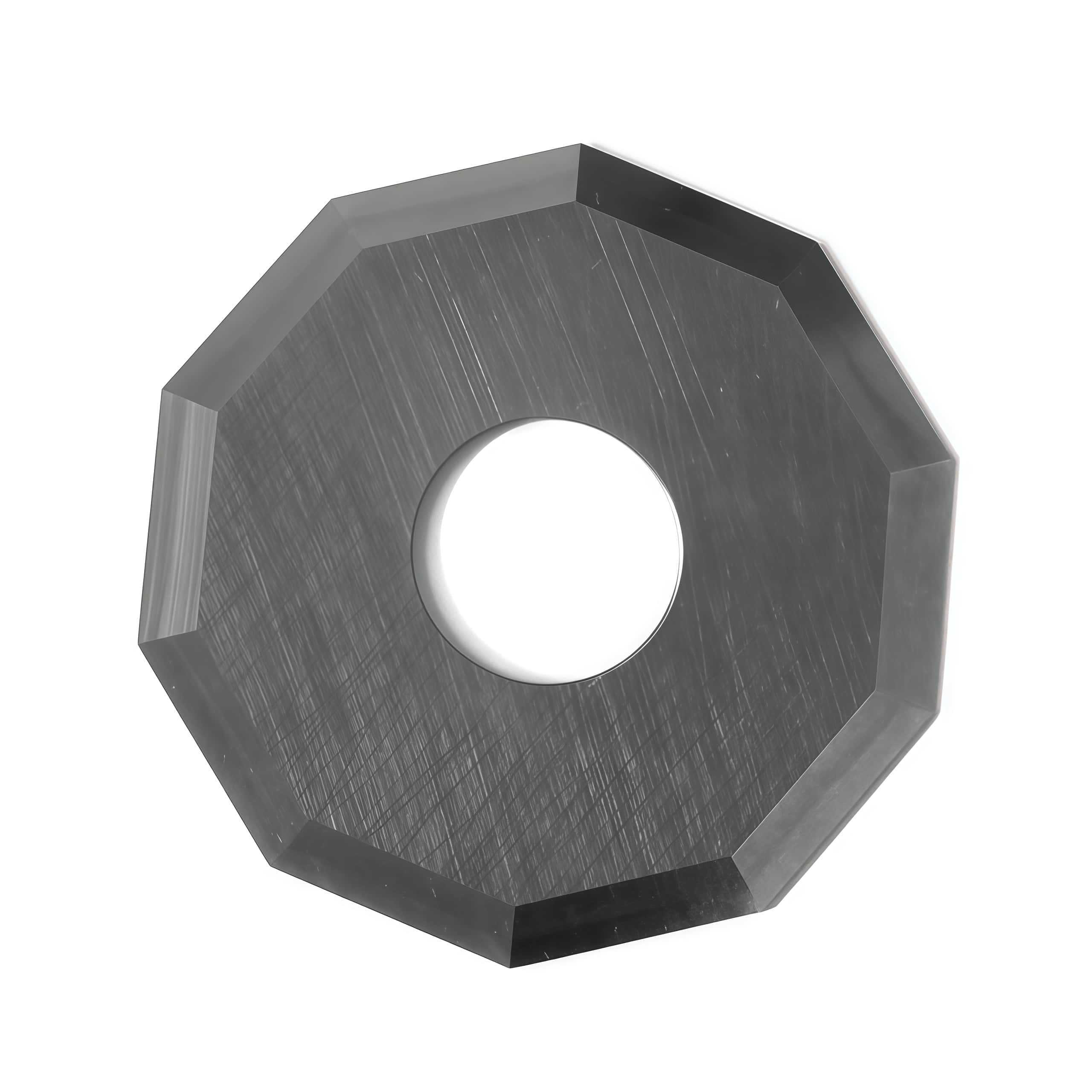

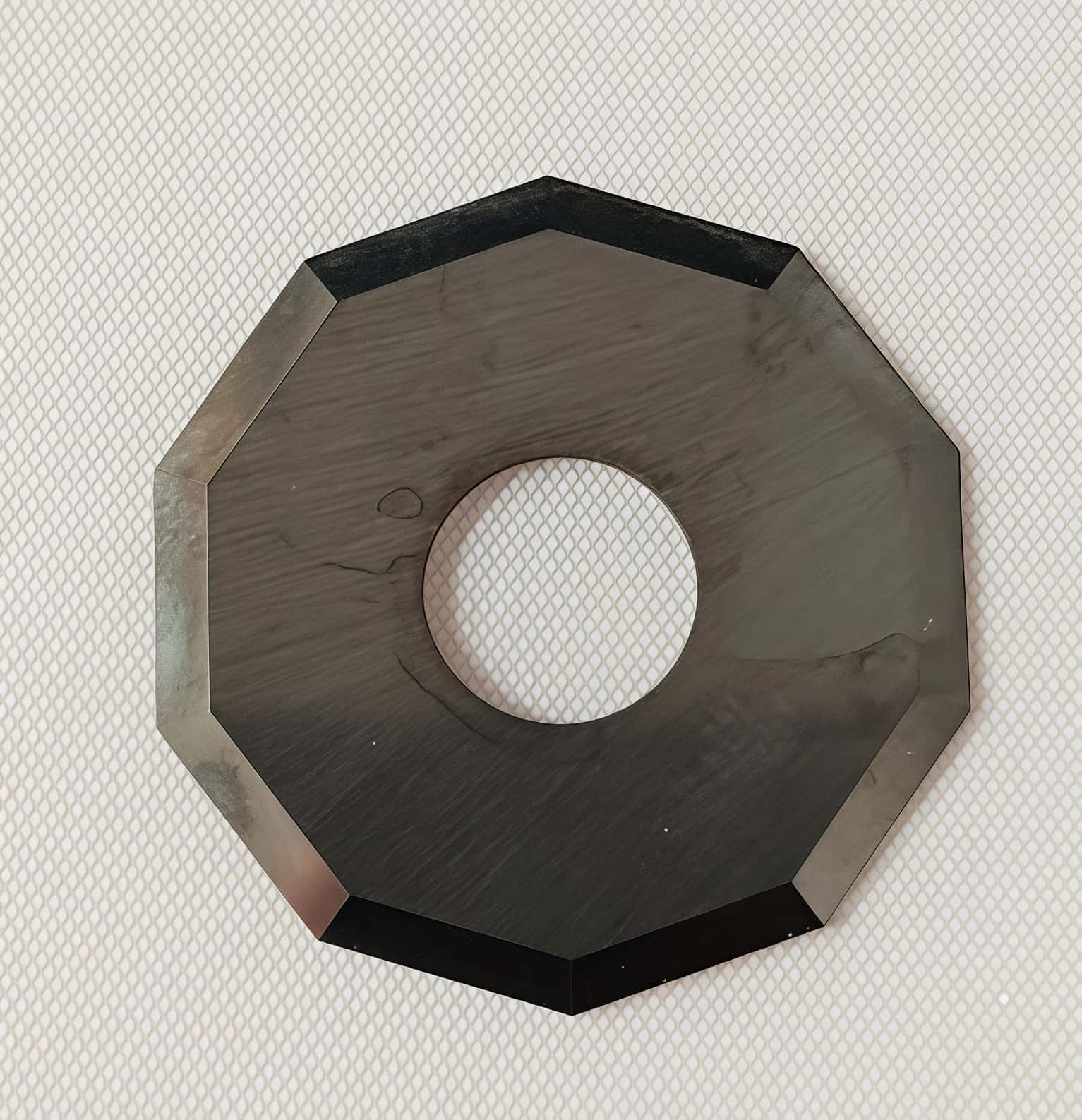

Blackman & White BW50 Decagonal (10-Sided) Rotation Knife Blades Replacement Compatible

Blackman & White BW50,Blackman & White BW50 Knife,Blackman & White BW50 Blade,Blackman & White Rotation Knife Blade,Blackman & White Rotation Knife,Blackman & White Rotation Blade,Blackman & White Blade

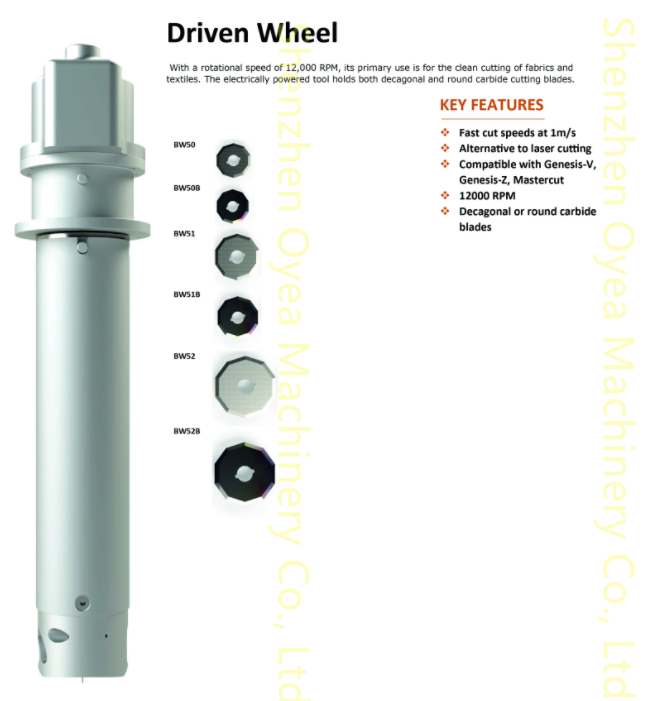

Blackman & White BW50 Decagonal (10-sided) Rotary Cutting Blade It is a high-efficiency cutting consumable designed specifically for Blackman & White automated CNC cutting machines' Electric Rotary Wheel Tool (with speeds up to 12,000 RPM). Its unique decagonal polygonal design enables it to cleanly and quickly cut flexible fibers through high-speed rolling shearing, significantly reducing material drag.

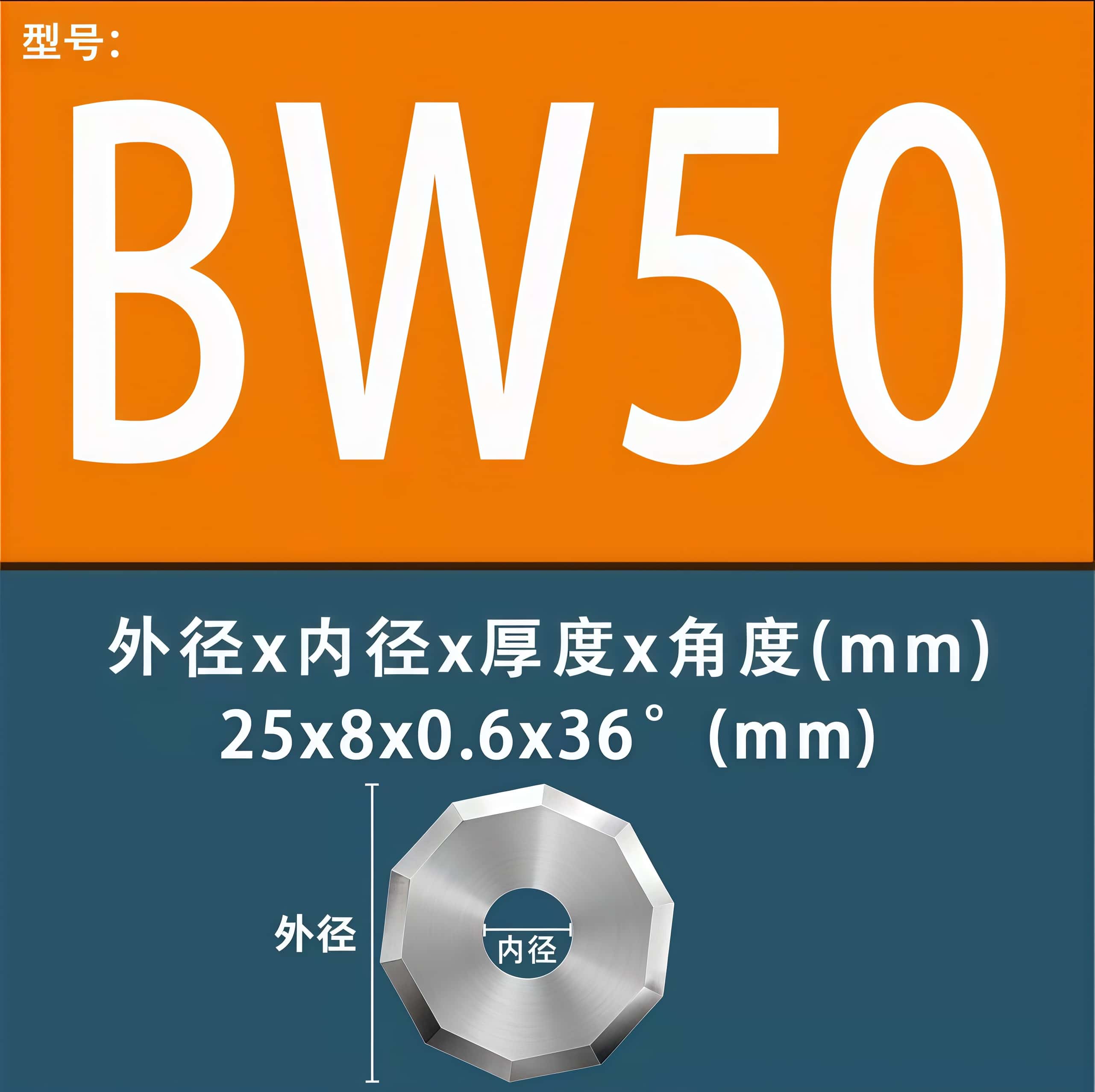

Core Technical Parameters

Geometry : Decagonal (10-sided decagonal) , providing stronger continuous tangential point pressure to avoid wire leakage.
Outer diameter : 25 mm (or common standard height 25 mm).
Center aperture : 8 mm (Mounting Hole Ø 8 mm).
Blade thickness : 0.60 mm .
Cutting angle : 36° .
Maximum cutting depth : 3.5 mm - 5 mm .
Material composition : High-purity solid cemented carbide/tungsten carbide . Some high-end versions offer DLC (diamond-like carbon) or TiN (titanium nitride) coatings to extend wear life by several times.

Suitable for cutting materials

The BW50 decanter blade is specifically optimized for high-speed, burr-free cutting of the following textiles and composites :

Synthetic and natural fabrics : polyester fabrics, nylon fabrics, and general textile and apparel fabrics.
High-strength composite materials : carbon fiber, glass fiber, aramid fiber (Kevlar), and prepreg or composite felt.
Industrial technical textiles : non-woven fabrics, felts, lightweight filter materials.

Cross-brand compatibility notes

Based on the industry-standard design of 25mm outer diameter, 8mm bore diameter, and 0.6mm thickness, the BW50 rotary cutting tool is generally interchangeable with rotary cutting tools from the following brands in the third-party consumables market:

Suitable for machine manufacturer:Esko BLD-RC110 G42444844,Zund Z50 3910335,Gerber MCT R50,Summa 500-0860 500-9860,Kuris 83906,Colex T00360,iEcho E50,Blackman & White Blades BW50,Comagrav CD25,Multicam 003612-MC50,Bullmer B50,Gunnar GR926

If you have more questions to know ,please contact us .
