Blackman & White BW27 Carbide Flatbed Knife Blades Shop Overview

Blackman & White BW27 is a tungsten carbide oscillating knife blade, and reseller listings place it in the Blackman & White flatbed knife family rather than the drag-knife family. It is described as a blade for up to 10 mm material thickness, Enquire now

Description

Blackman & White BW27 Carbide Flatbed Knife Blades Shop

Blackman & White Blades,Blackman & White BW27,Blackman & White BW27 Knife,Blackman & White BW27 Blade,Blackman & White Blade

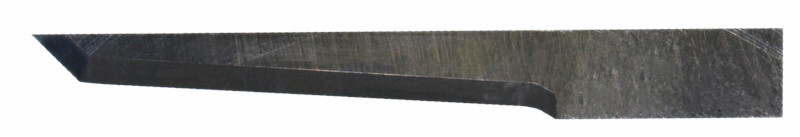

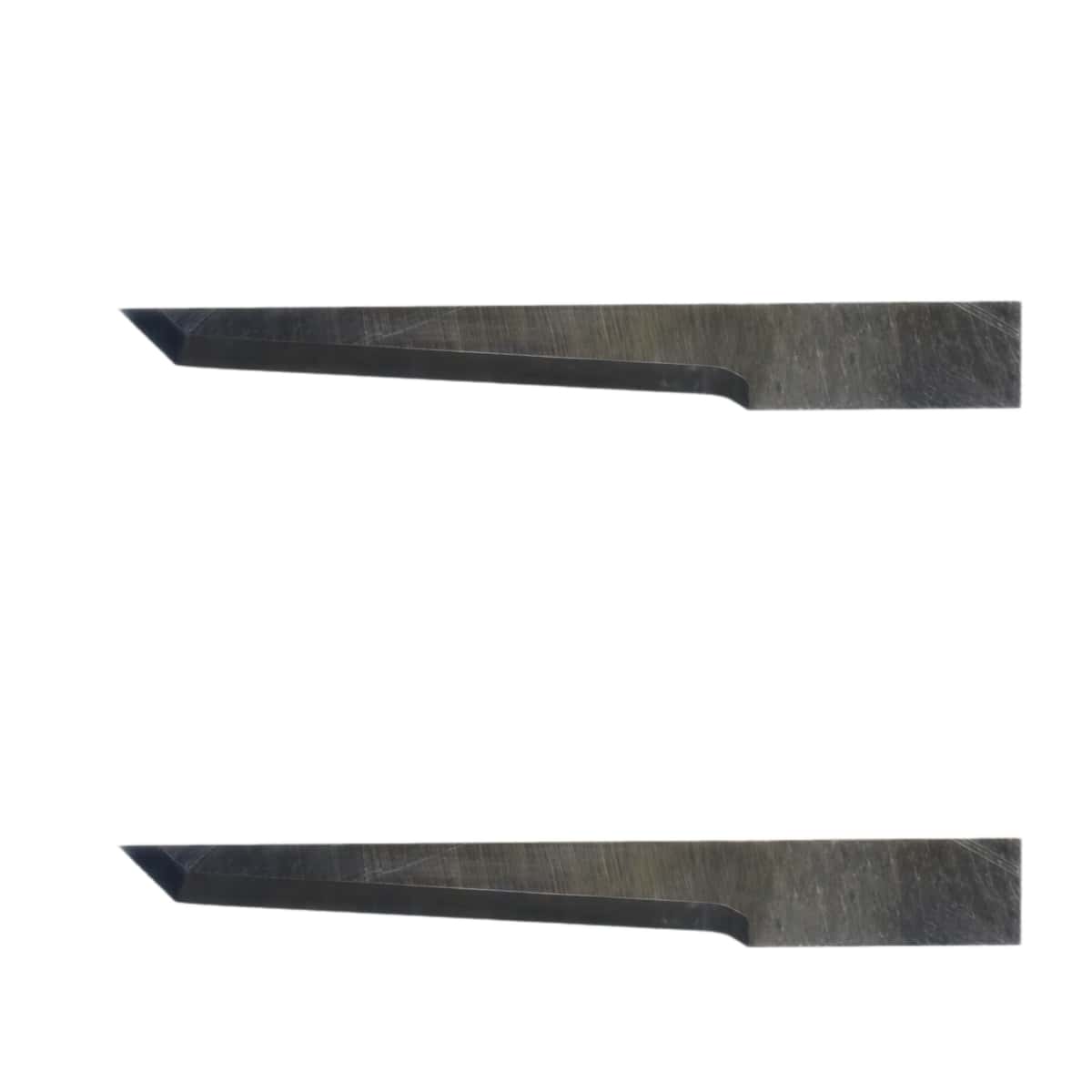

Blackman & White BW27 Tungsten Carbide Flat Slicing Blade is a multi-functional heavy-duty precision blade designed specifically for high-performance digital cutting machines (such as Genesis-V, Mastercut, etc.). It is primarily used for processing medium-thickness, high-density, or highly abrasive industrial and packaging materials.

Max Material Thickness：
10mm
Cutting Method：
Oscillating cut

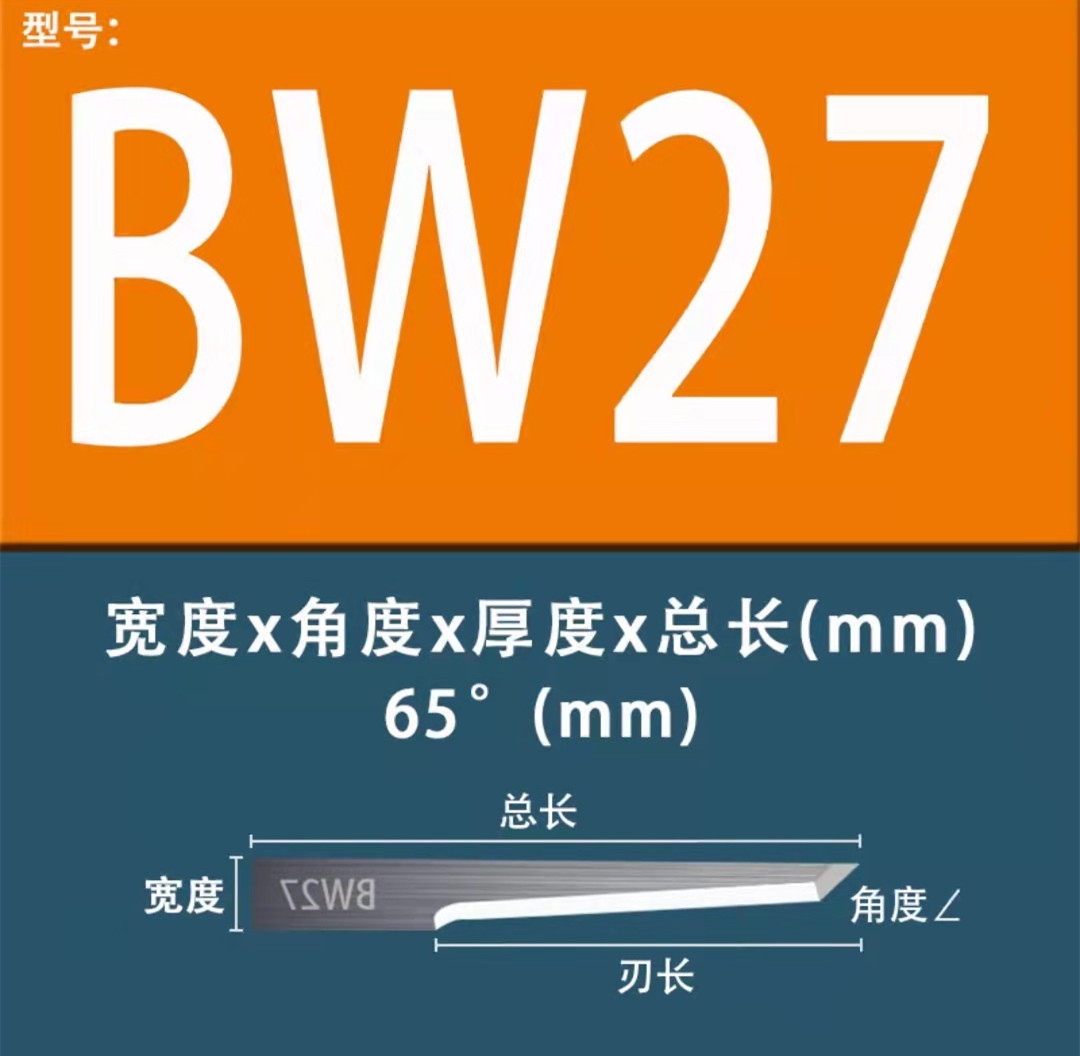

Cut Angle：
65° + 83°
Material Type：
corrugated cardboard, rubber, tissue, textiles, polyester fabric, hollow chamber pane

Tooling Compatibility

The BW27 blade boasts excellent tool module versatility, supporting the following three main tool head drivers:

Static Drag Blade Tool : Suitable for quick cutting of straight lines and large geometric shapes.

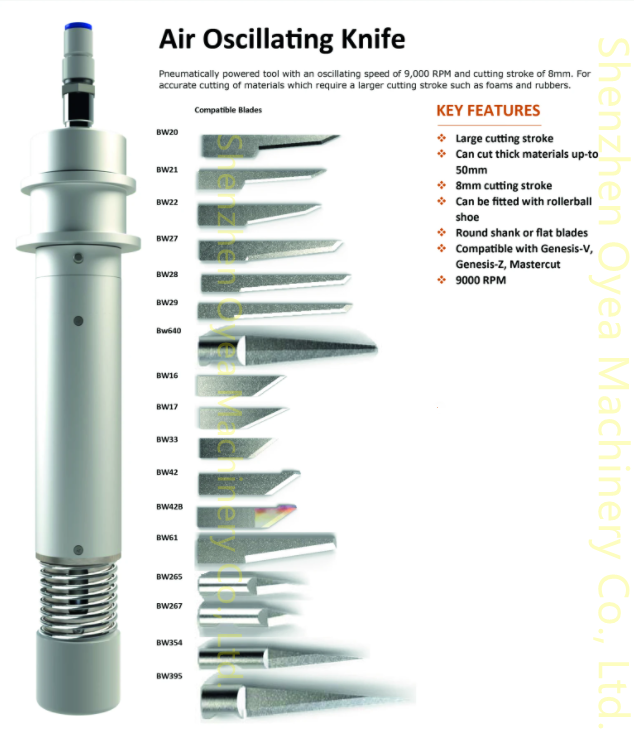

Powered Pneumatic Oscillating Tool : Utilizes high-frequency pneumatic reciprocating vibration to easily cut through high-density, hard materials.
Powered Electric Oscillating Tool : Provides a constant electronically controlled vibration frequency, ensuring the quality of machining delicate and complex contours.

Recommended materials

Thanks to the high hardness of cemented carbide and a depth of cut of 10mm, this insert is ideal for machining the following materials:

Corrugated cardboard : High-frequency vibration ensures smooth cuts without collapsing or roughness.
Industrial rubber : can resist the lateral frictional resistance of highly elastic materials.
Natural/Synthetic Leather : Maintains sharpness and durability in the complex layout and cutting of thick leather.
Gaskets : can be used for punching and cutting high-precision industrial seals

Shenzhen Oyea Machinery Co., Ltd. is dedicated to promoting international sales by ensuring reliable product accessibility across key regions, including Europe, the Americas, the Middle East, and Asia. The company prioritizes efficient shipping logistics and proactive customer service to meet the diverse needs of its global clientele. Their products have successfully reached a wide range of countries, such as Germany, France, the United Kingdom, Poland, the United States, Russia, Vietnam, Thailand, Indonesia, Singapore, the Netherlands, Switzerland, South Korea, Japan, Turkey, the Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, the Czech Republic, and other locations worldwide. This extensive distribution network underscores their commitment to maintaining a strong foothold in international markets.

If you have more questions to know ,please contact us .

Tel:+86-0769-88014625

Phone Number:+86-18823852826

Email: info@china-oyea.com

1659590865@qq.com

Web: www.china-oyea.com

We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
