30 degree GCC Cutting Plotter Vinyl Cutter Blade Knife Blades

The 30-degree GCC vinyl cutter blade is a specialized tool designed for high-precision tasks on thin or delicate materials. Identified by its yellow cap in standard sets, it is the shallowest angle available, making it ideal for tasks where minimal blade exposure and low drag force are required. Enquire now

Description

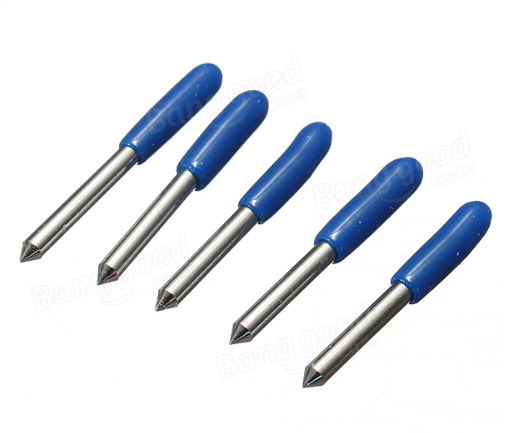

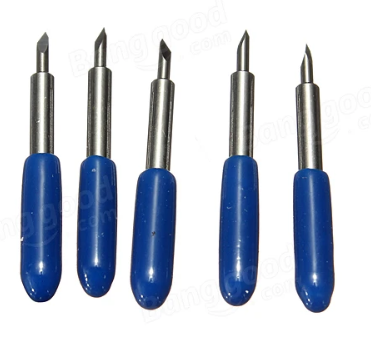

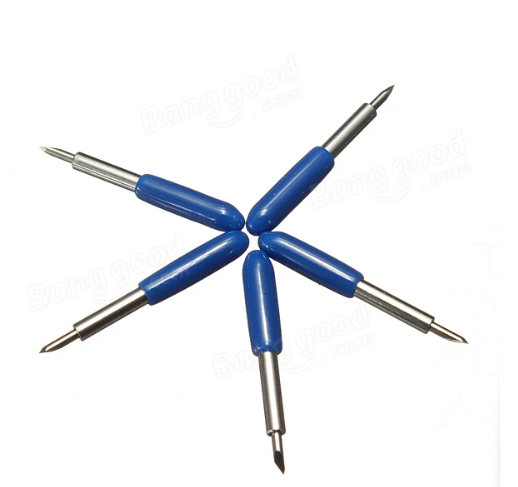

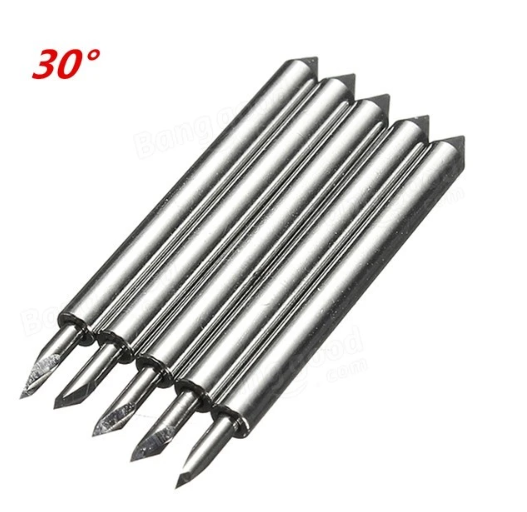

30 degree GCC Cutting Plotter Vinyl Cutter Blade Knife Blades

GCC Cutting Blades,GCC Knife Blades,GCC Plotter Blades,GCC Vinyl Cutter Blade

Features:
Made from tungsten carbide.
30 degrees Roland Cutting Blades.
5 blades in 1 boxes.
Offset value 0.25mm.
Suitable for all Seiko Plotter to use , for cutting thicker materials.
Specification :
Size (Cutting Blades) : 23mm * 2mm ( L * D)
Meterial : Tungsten carbide

Key Specifications & Features

Optimal Material: Best suited for very thin films ranging from 1–2 mil in thickness.
Applications: Commonly used for window tint, polyester film, rice paper, and tracing small letters or intricate details.
Material Construction: Typically made from high-quality tungsten steel or cemented carbide for durability and wear resistance.
Standard Dimensions: Most compatible blades for GCC plotters measure 23-24 mm in length and 2 mm in diameter.
Knifepoint Offset: Usually requires a setting of 0.25 mm on the plotter.
