Esko Kongsberg Bld-Sr6223 C2 Digital Cutting Tables Round Shank Coating Oscillating Knife Blades

Esko Kongsberg BLD-SR6223 (Esko Part # G42437293) is an industrial-grade, single-edge round shank knife blade designed for high-precision cutting on Kongsberg digital flatbed cutting systems. Enquire now

Description

Esko Kongsberg Bld-Sr6223 C2 Digital Cutting Tables Round Shank Oscillating Knife Blades–Produced Manufactured In China Blade G42475772

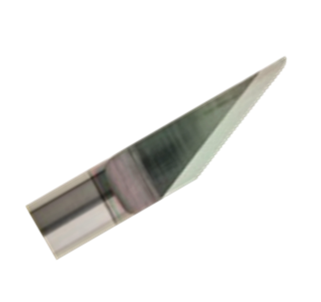

Esko Kongsberg Bld-Sr6223 C2 Coated Tungsten Carbide Round Shank Knifes

Esko Kongsberg BLD-SR6223 C2 is a high-performance, single-edge round shank (6mm) oscillating knife blade designed for Kongsberg digital cutting tables.

It is engineered primarily for long-stroke and vibracut knife tools to process heavy-duty materials like corrugated board, foamed PVC, and vinyl.

Key Specifications

According to official technical data from Kongsberg Precision Cutting Systems, the BLD-SR6223 C2 features the following specifications:

Shank Type: 6mm round (cylindrical) shank.
Maximum Cutting Thickness: 12mm (approx. 1/2 inch).
Material: Solid tungsten carbide (HM - Hard Metal).
Blade Coating: C2 (DLC) Coating, which provides a super-hard surface that reduces friction by up to 60% compared to standard blades, leading to longer life and smoother cuts.

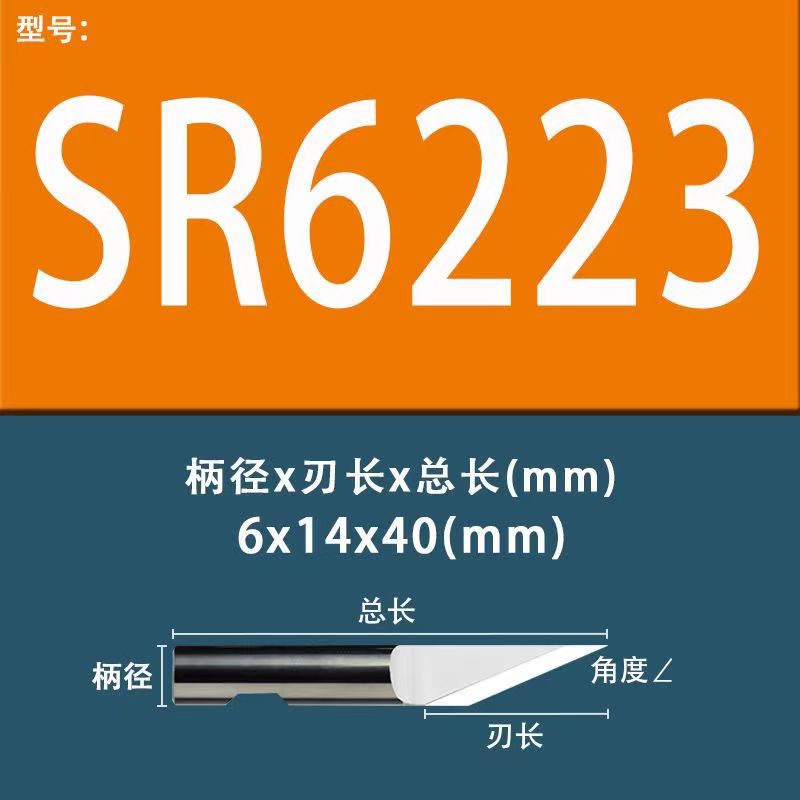

Blade Length: Typically 12mm.
Total Length: Approximately 40mm (4 cm)

Recommended Applications

The BLD-SR6223 C2 is optimized for high-speed cutting of soft and medium-hard materials, including:

Corrugated Board: Microflute, single wall, double wall, and triple wall.
Plastic & Foam: Corrugated plastic (<5mm), soft foam board (PUR) (<5mm), and foamed PVC/PS.
Specialty Materials: Honeycomb/fluted core board (5mm), vinyl banners, and carpet materials with rubber backing (<10mm).

Compatible Tools

This blade is designed for use with specific Kongsberg oscillating knife tools, including:

MP HF (Multi-Purpose High Frequency) Knife Tool.
High Frequency VibraCut.
Long Stroke Knife Tool.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
