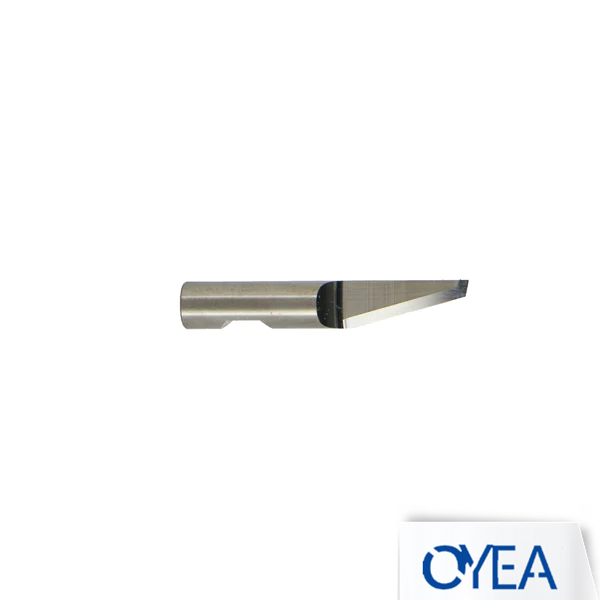

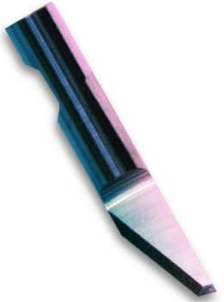

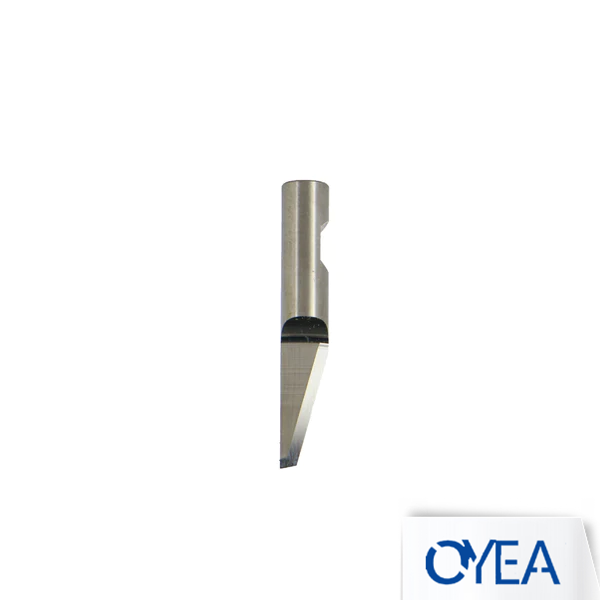

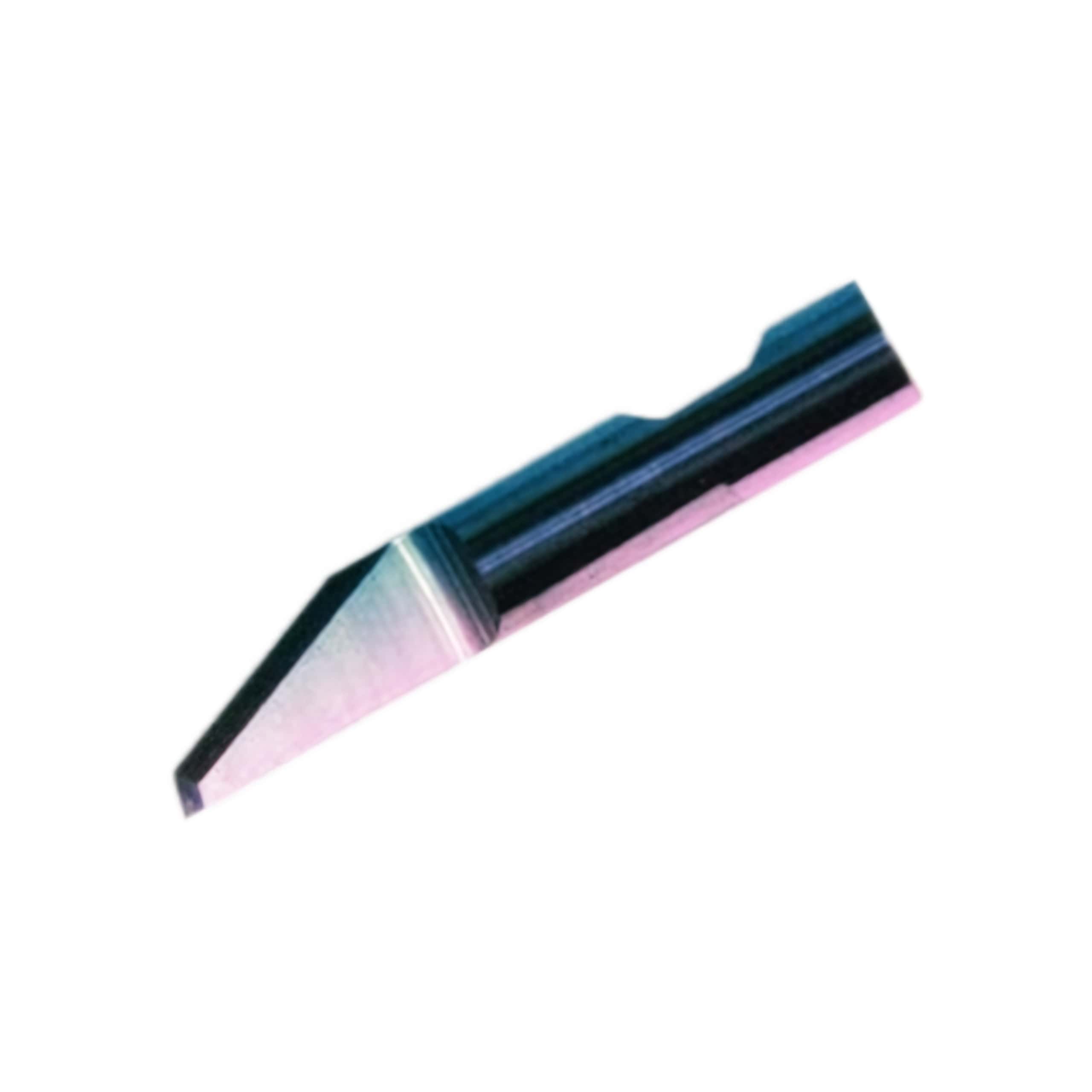

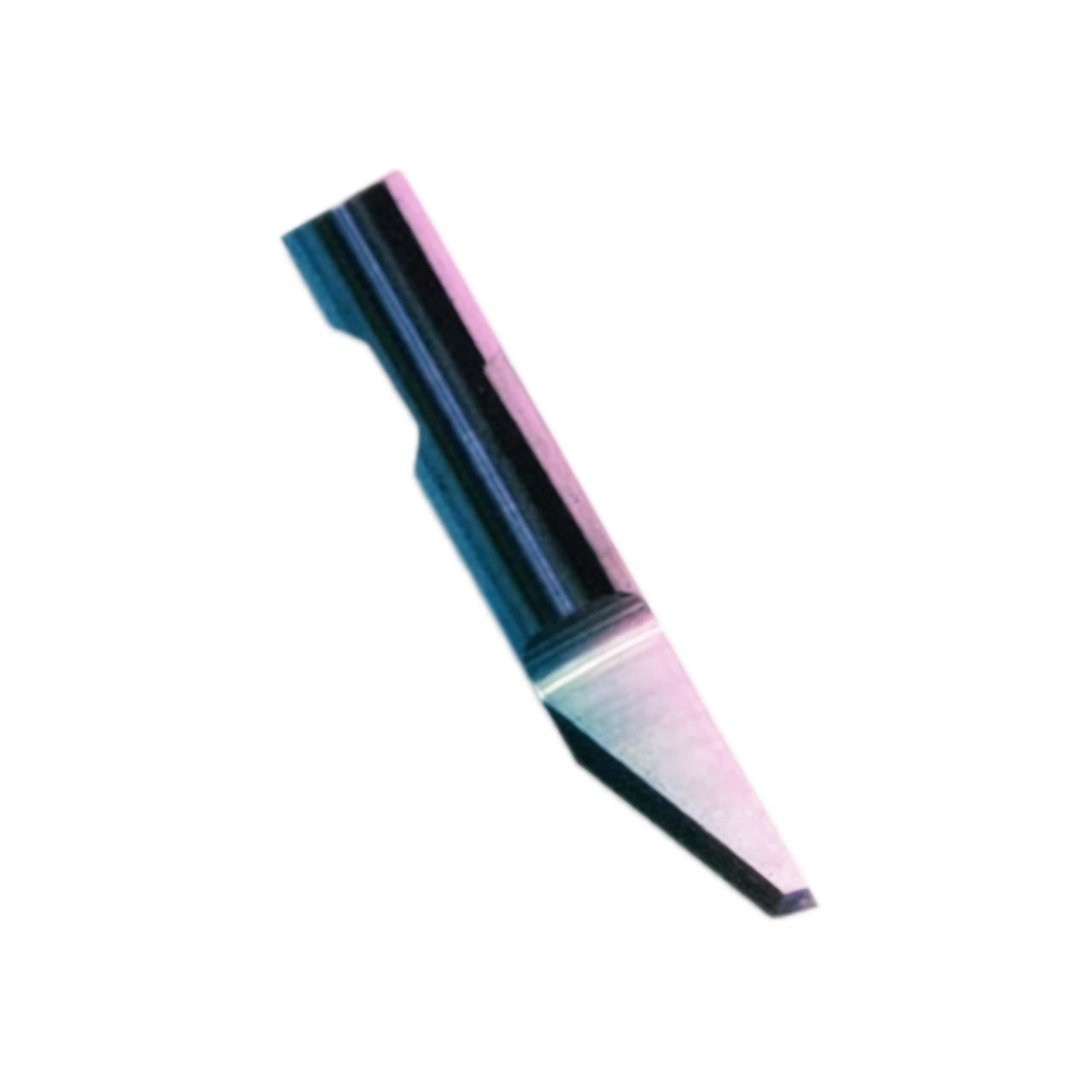

Axyz Bt-57210 B1031l-10 Kf1-10 Single Edge Flat-Point Cylindrical Oscillating Knife Blades

AXYZ B1031L-10 (cross-referenced under part numbers BT-57210 and KF1-10) is an industrial-grade, solid tungsten carbide single-edge, flat-point cylindrical oscillating knife blade. Enquire now

Description

Axyz Bt-57210 B1031l-10 Kf1-10 Single Edge Flat-Point Cylindrical Oscillating Knife Blades

equivalent to: AXYZ B1031l-10, AXYZ BT-57210 / B1031L-10 / KF1-10 is a single-edge, flat-point cylindrical oscillating knife blade made from solid micrograin tungsten carbide. It is engineered for low-frequency and high-frequency powered reciprocating knife units on CNC digital cutters.

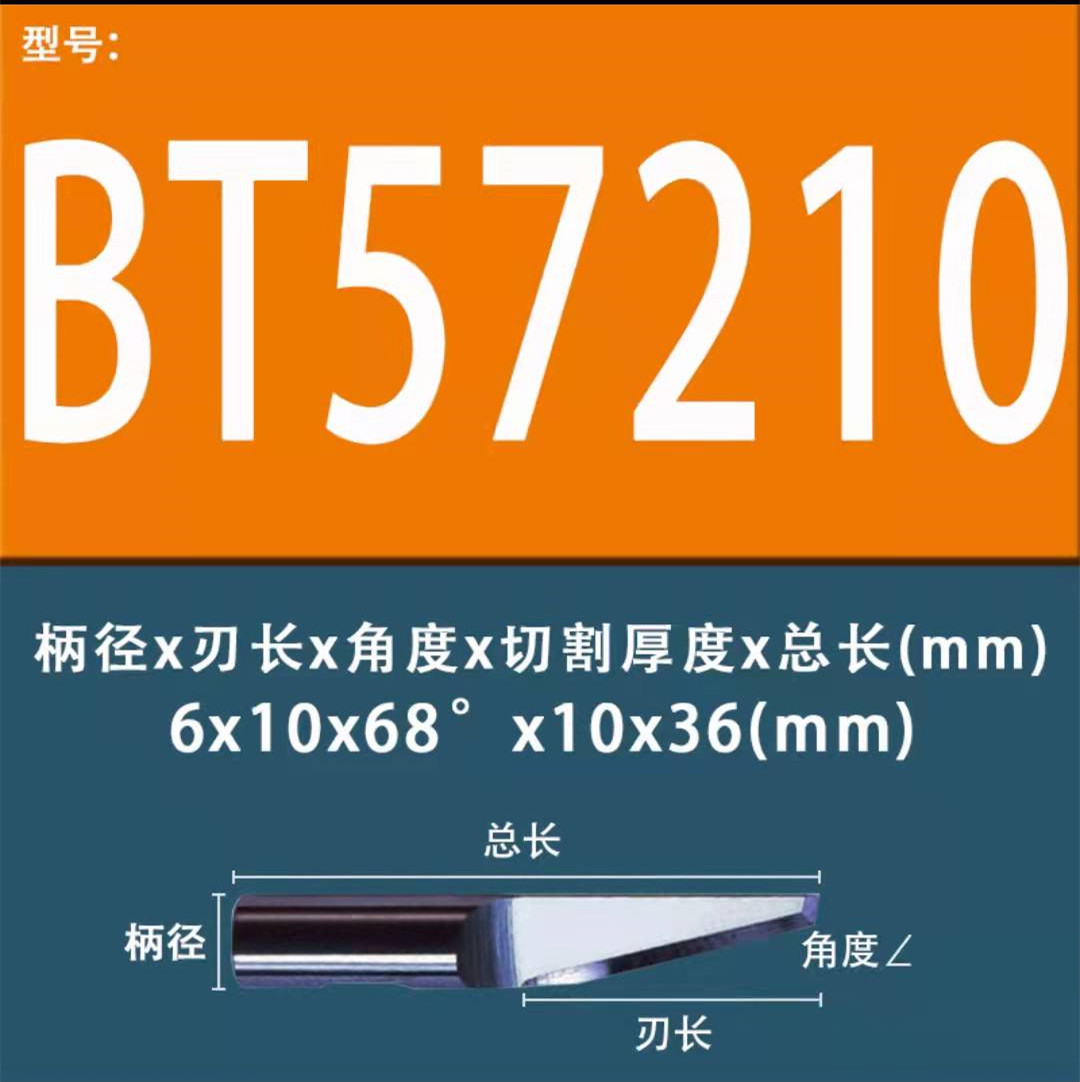

Specification	Parameter

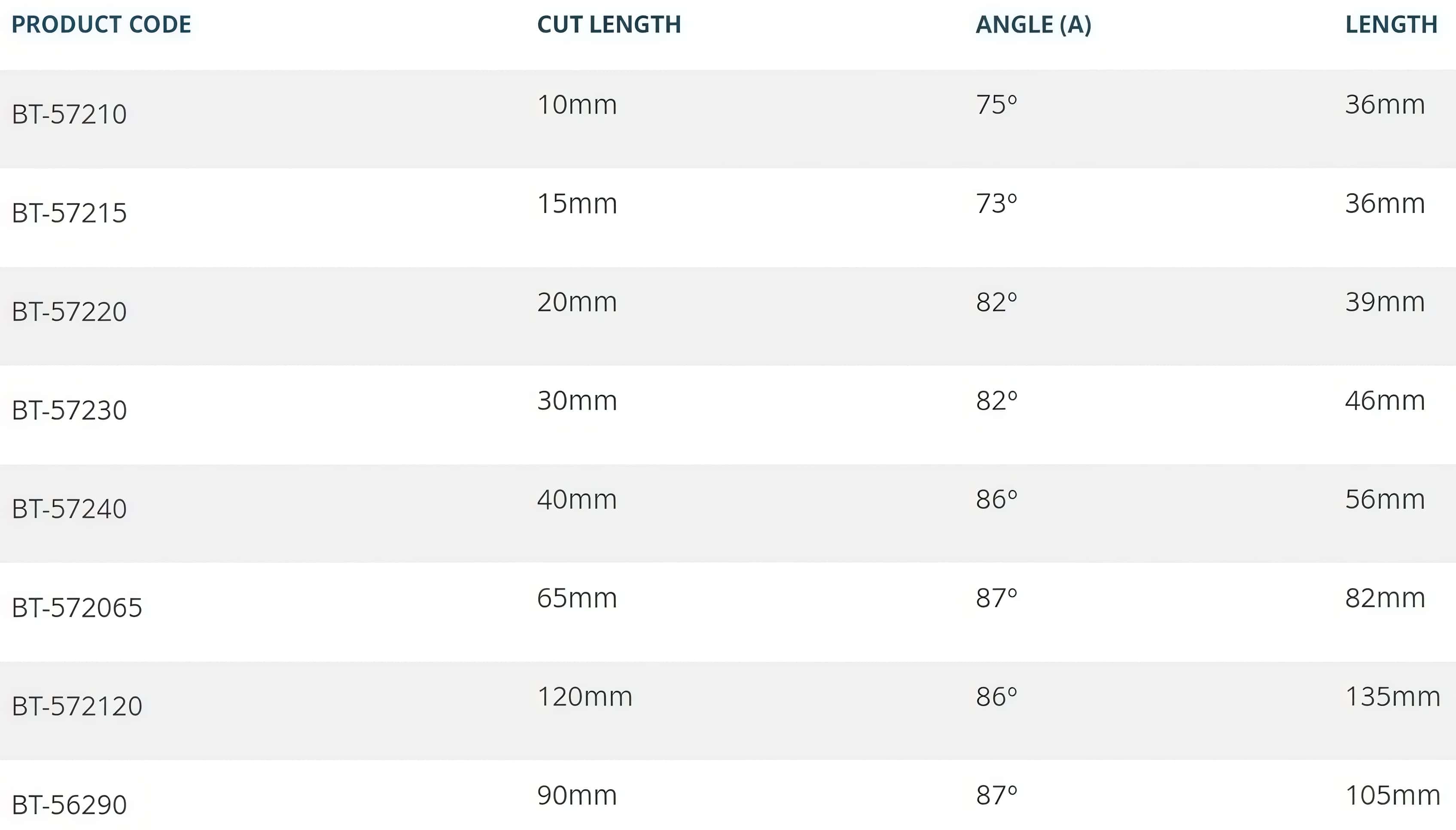

Model References	BT-57210, B1031L-10, KF1-10
Material Construction	Solid Micrograin Tungsten Carbide (VHM)
Shank Type	6.0 mm Cylindrical Shank with Locating Flat
Edge Geometry	Single-Edge / Flat-Point Cutting Tip
Max Cutting Depth	10 mm (~0.39 in)

Key Features & Applications

Flat-Point Tip Design: The flat-point tip profile provides superior plunge cutting capability into dense materials without tearing or drifting, while reducing tip chipping compared to needle-sharp profiles.
Single-Edge Construction: Offers a stiffer blade body back, preventing blade deflection during tight radius turns in tough substrates.
Primary Substrates: Heavy corrugated board, folding carton, solid gasket materials (rubber, silicone, neoprene), dense foams up to 10 mm, and acoustic PET felt panels.

Tool Unit Compatibility

Fits AXYZ Electric and Pneumatic Oscillating Knife (EOT/POT) modules, AXYZ High-Frequency Oscillating Knife (HFOK) systems, as well as 6 mm tool-holder collets on Esko Kongsberg digital finishing tables

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
