Axyz Bt-57240 B1031l-40 Kf1-40 Carbide Vibrating Flat Point Knife Blades

AXYZ BT-57240, B1031L-40, and KF1-40 single-edge, flat-point solid tungsten carbide oscillating knife blade designed for CNC routers and digital flatbed cutting systems. Enquire now

Description

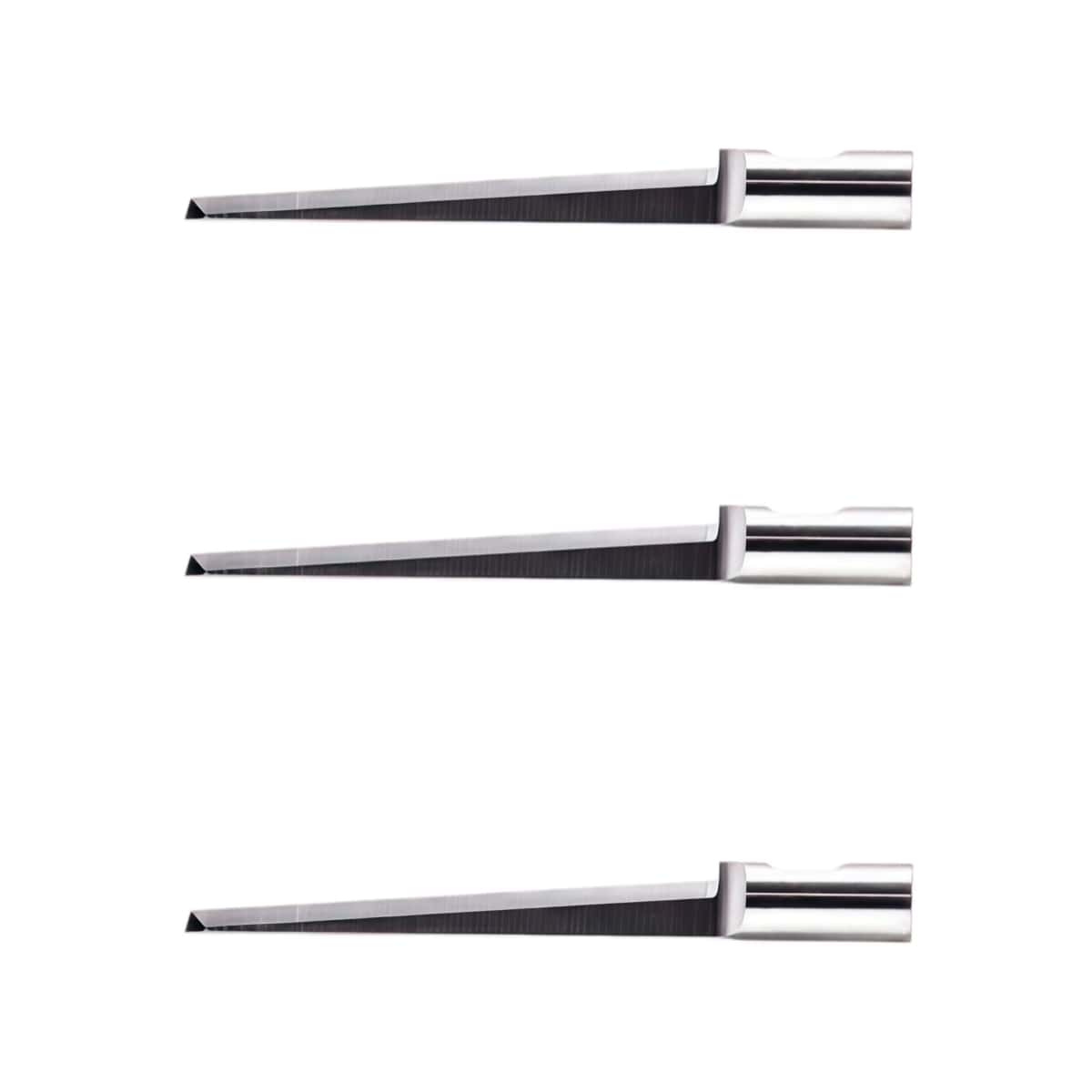

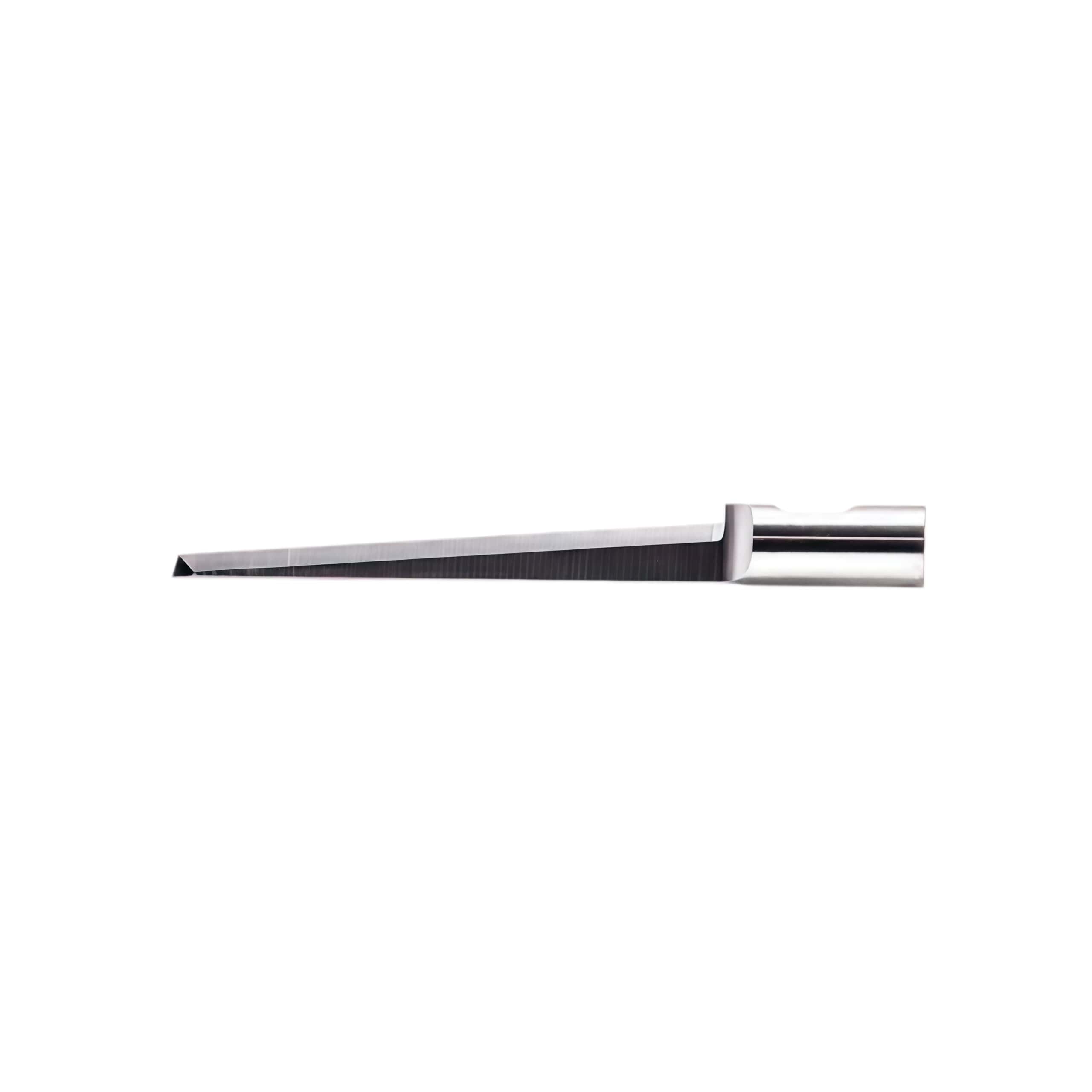

Axyz Bt-57240 B1031l-40 Kf1-40 Carbide Vibrating Flat Point Knife Blades

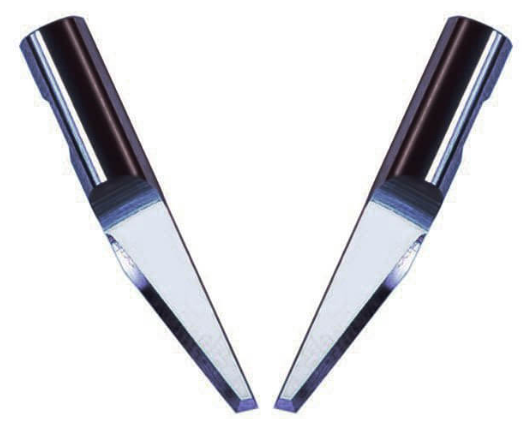

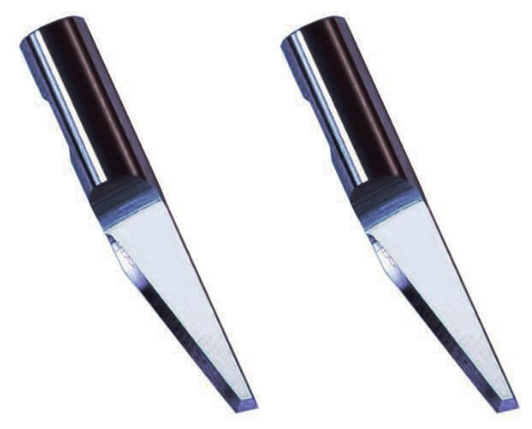

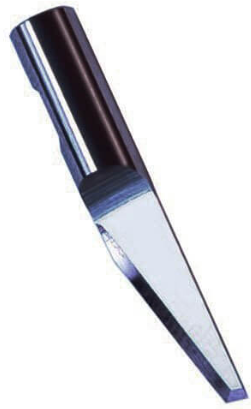

Axyz BT-57240(B1031L-40 or KF1-40 ) is a 40mm solid carbide single-edged flat-head vibrating insert designed for industrial flatbed cutters and CNC engraving machines .

This blade is made of high-hardness tungsten carbide and was developed specifically for use with the AXYZ Oscillating Knife Tool for deep, high-precision vertical cutting of thick or medium-hard flexible materials

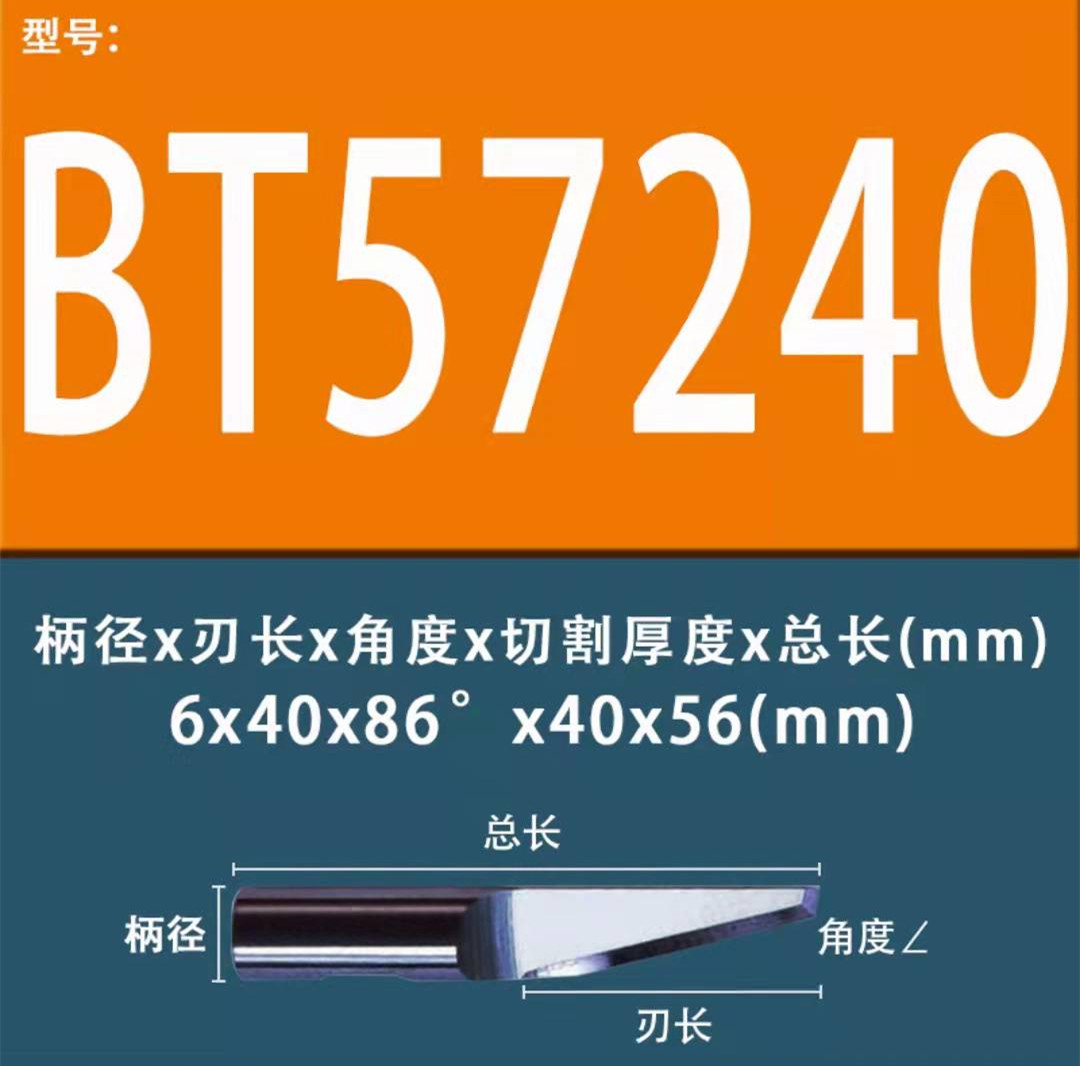

Diameter of the holder: 6 mm
Knife hight: 56mm
Max. cutting depth: 40mm
Knife type: Oscillating
Angle: 86°

equivalent to: MultiCam 003612-MC140396 84-00193-40, AXYZ B1031L-40

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

Axyz BT-57210 BT-57215 BT-57220 BT-57230 BT-57235 BT-57240 BT-572065 Bt-572070 BT-572110 BT-572120 Single Edge Flat Point Carbide Knife Blade General Overview

The Axyz BT-572xx series (often designated with part numbers like BT-57210 through BT-572120) consists of high-performance, solid tungsten carbide knife blades specifically designed for heavy-duty industrial CNC knife tools, primarily the Axyz Oscillating Knife Tool (OKT) and Tangential Knife Tool (TKT) systems.

These part numbers refer to specific cutting length capacities—ranging from standard shallow cuts (10 mm) up to extra-deep material processing (120 mm)—utilizing a single-edge, flat-point geometry.

Part Number	Cut Depth	Shank Diameter	Geometry / Edge Type	Primary Applications
BT-57210	10 mm	6 mm	Single Edge, Flat Point	Thin gaskets, cardstock, thin felt
BT-57215	15 mm	6 mm	Single Edge, Flat Point	Corrugated plastic, rubber, dense foam
BT-57220	20 mm	6 mm	Single Edge, Flat Point	Medium-density foam board, acoustic panels
BT-57230	30 mm	6 mm	Single Edge, Flat Point	Thick rubber gaskets, closed-cell foam
BT-57235	35 mm	6 mm	Single Edge, Flat Point	Packaging foams, thick corrugated board
BT-57240	40 mm	6 mm	Single Edge, Flat Point	High-density foam insulation, fiberglass mat
BT-572065 (BT-57265)	65 mm	6 mm	Single Edge, Flat Point	Deep foam inserts, thick sound insulation
BT-572070 (BT-57270)	70 mm	6 mm	Single Edge, Flat Point	Multi-layer insulation, deep foam packaging
BT-572110	110 mm	6 mm	Single Edge, Flat Point	Extra-deep foam carving, heavy structural foam
BT-572120	120 mm	6 mm	Single Edge, Flat Point	Maximum-depth foam cutting, large acoustic blocks

Industry Applications
Packaging & Display (Short-Run & Prototyping): Enables immediate clean cuts of corrugated box materials and heavy-duty shipping containers without crushing the internal fluting.
Signage & Graphics: Excels at cutting thick foam-core posters and rigid display boards with zero perimeter chipping or heat-induced edge melting.
Gaskets & Aerospace Composites: Cuts rubber compounds, synthetic composites, and carbon fiber laminates cleanly, preventing material deformation during production.
pholstery & Protective Foam Conversion: Seamlessly slices through extra-thick sheets of packaging foam and cushioning materials with perfectly vertical cut-faces.
