Axyz Bt-572110 B1031l-110 Kf1-110 Tungsten Steel Cnc Oscillating/Vibrating Knife Blades

AXYZ BT-572110 / B1031L-110 / KF1-110 heavy-duty tungsten steel oscillating/vibrating knife blades designed for AXYZ Trident,MultiCam,Kongsberg CNC cutting tables and compatible digital cutters Enquire now

Description

Axyz Bt-572110 B1031l-110 Kf1-110 Tungsten Steel Cnc Oscillating/Vibrating Knife Blades

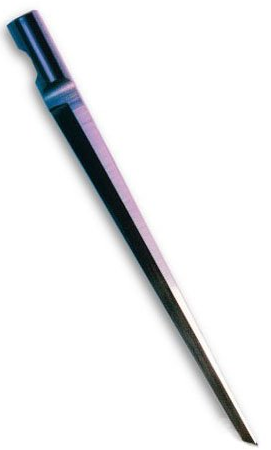

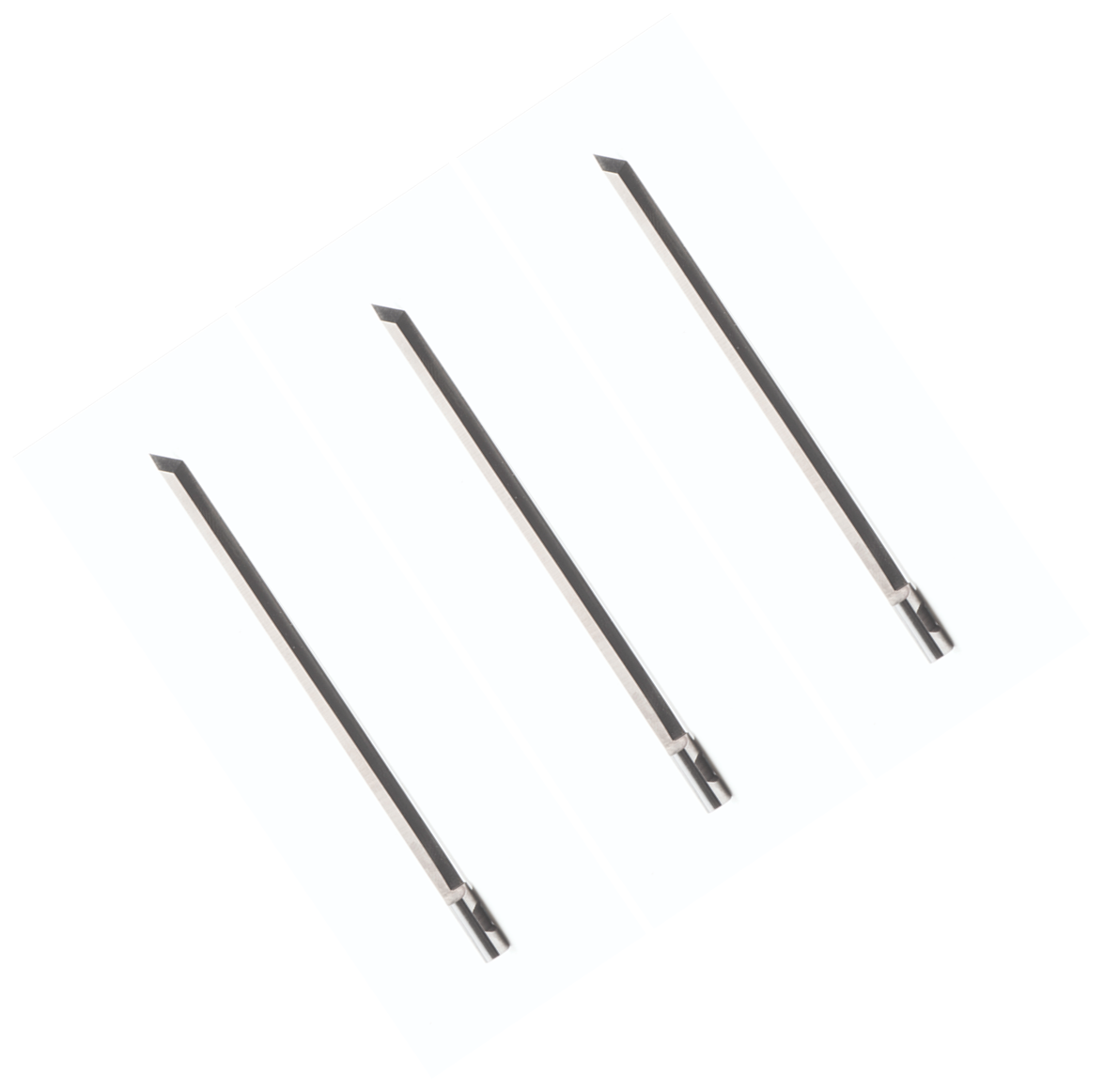

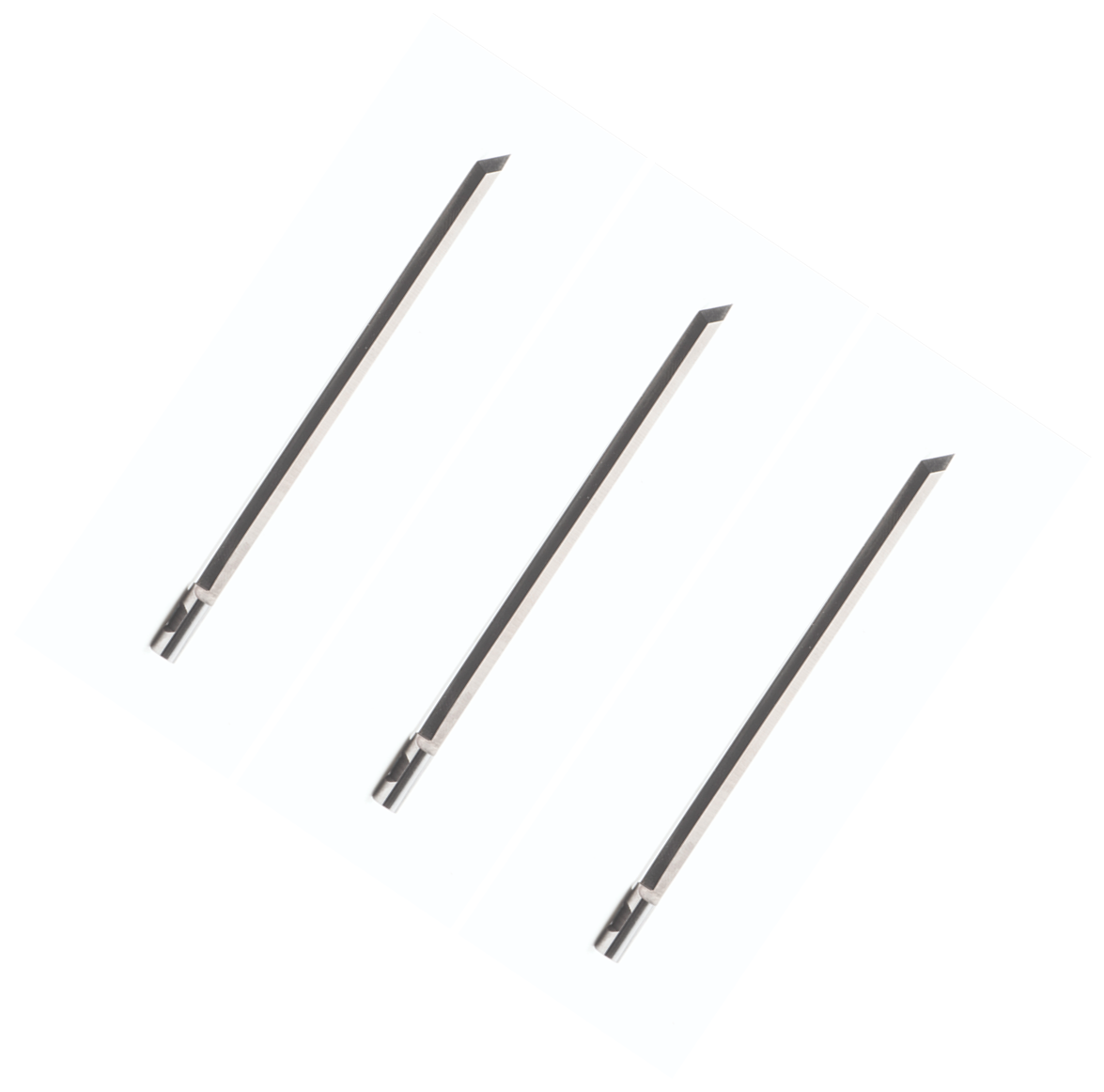

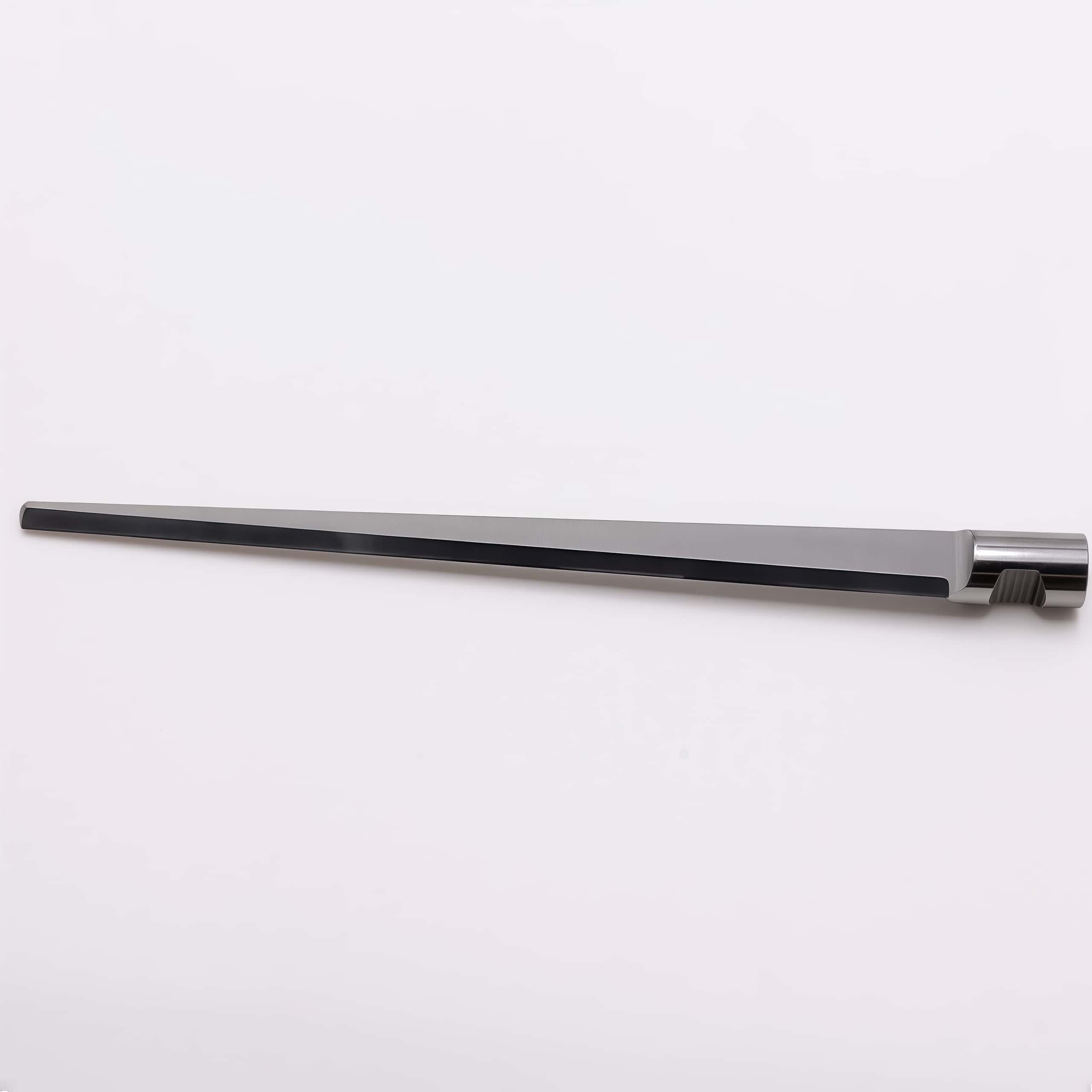

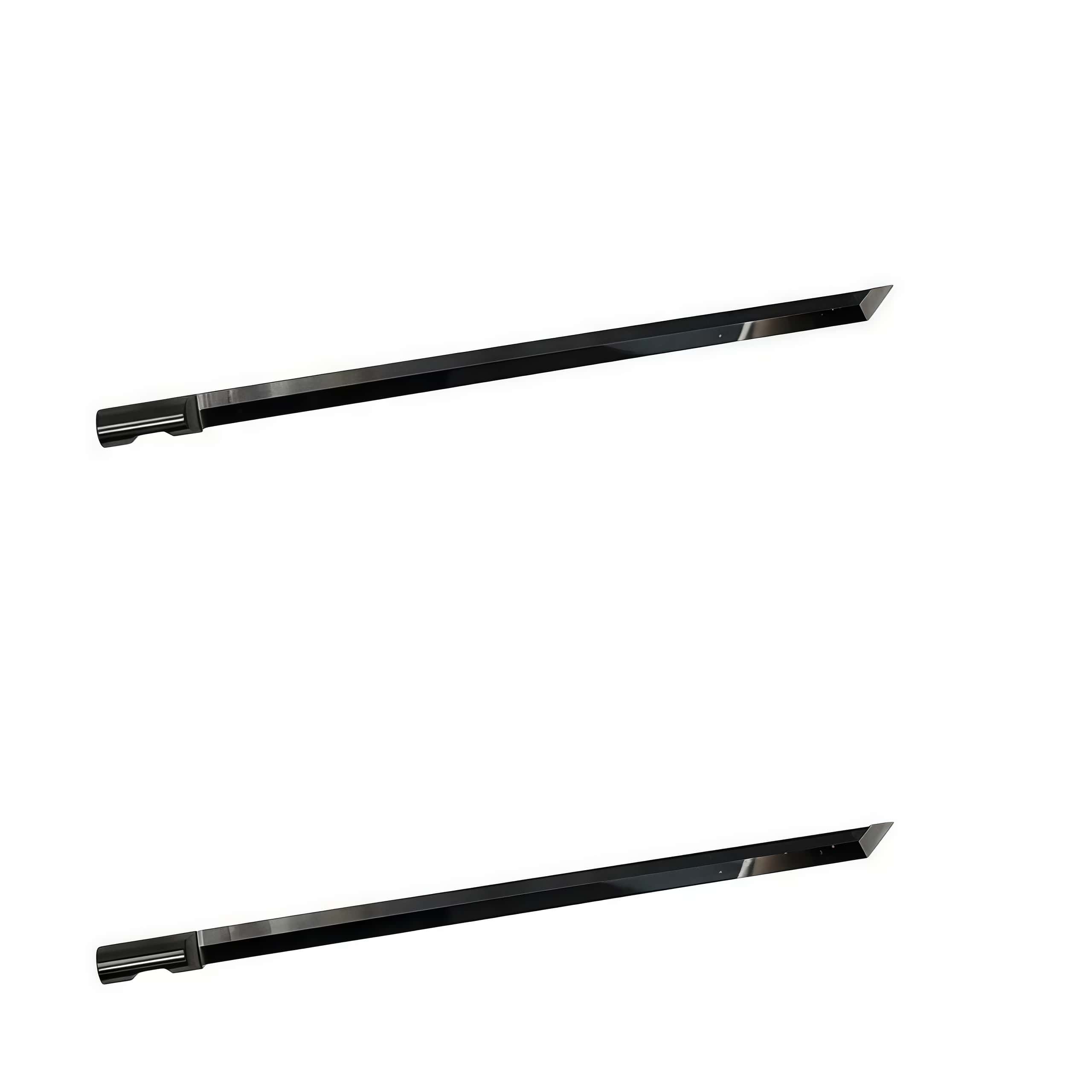

AXYZ BT-572110 / B1031L-110 / KF1-110 is a premium, solid tungsten carbide (tungsten steel) single-edge flat-point oscillating knife blade. This specific blade is engineered for high-performance industrial CNC digital cutting systems using a 6mm round shank configuration. It is most notably utilized on AXYZ CNC tools and MultiCam systems to deliver smooth, deep, and intricate cuts through thick, challenging substrates.

Technical Specifications

Part Numbers: BT-572110 (AXYZ OEM equivalent), B1031L-110, KF1-110, MultiCam 84-00193-110.
Material Composition: Solid tungsten carbide / tungsten steel for maximum edge retention and wear resistance.
Shank Diameter: 6.00 mm.
Cutting Depth: 110.00 mm (approx. 4.33 inches).
Overall Length: 126.00 mm.
Tip Geometry: Single cutting edge, flat point tip, 90° cutting angle.

Primary Applications & Materials

Due to its extended 110mm cutting profile, this blade excels at cutting thick materials where standard shorter blades would fail or bend. It is commonly deployed for:

Insulation & Acoustics: Deep acoustic panels, glass fiber insulation, and dense soundproofing materials.
Packaging Foams: Medium to high-density packaging foam, foam core, and Gatorfoam.
Industrial Textiles: Multi-layer heavy fabrics, thick rubber gaskets, heavy carpet, and dense fiberboard.

equivalent to: MultiCam 84-00193-110, AXYZ B1031L-110

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
