Axyz Bt-561215 B1051l-15 Tungsten Carbide (Tungsten Steel) Cnc Oscillating Knife Blades

AXYZ BT-561215 (B1051L-15) is a precision tungsten carbide (tungsten steel) blade engineered specifically for AXYZ CNC digital flatbed cutters equipped with oscillating knife attachments. Enquire now

Description

Axyz Bt-561215 B1051l-15 Tungsten Carbide (Tungsten Steel) Cnc Oscillating Knife Blades

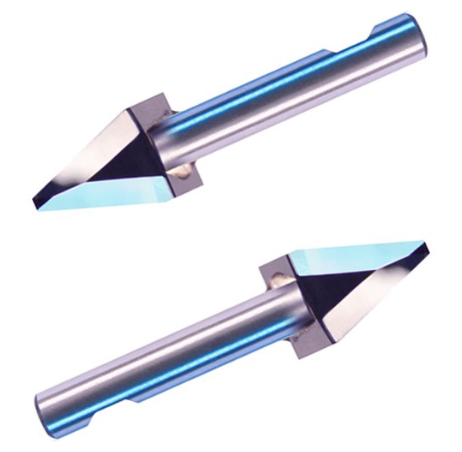

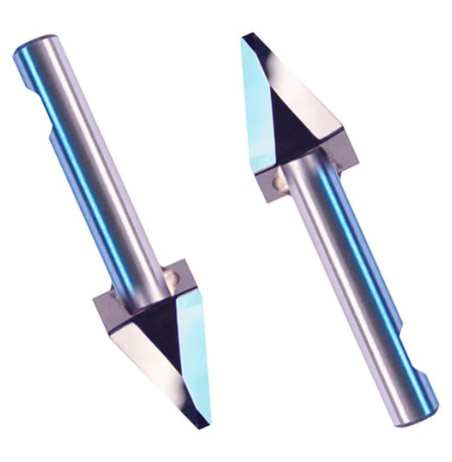

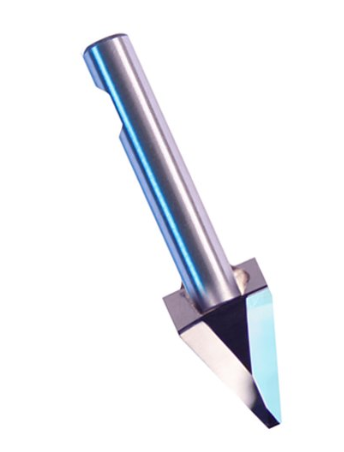

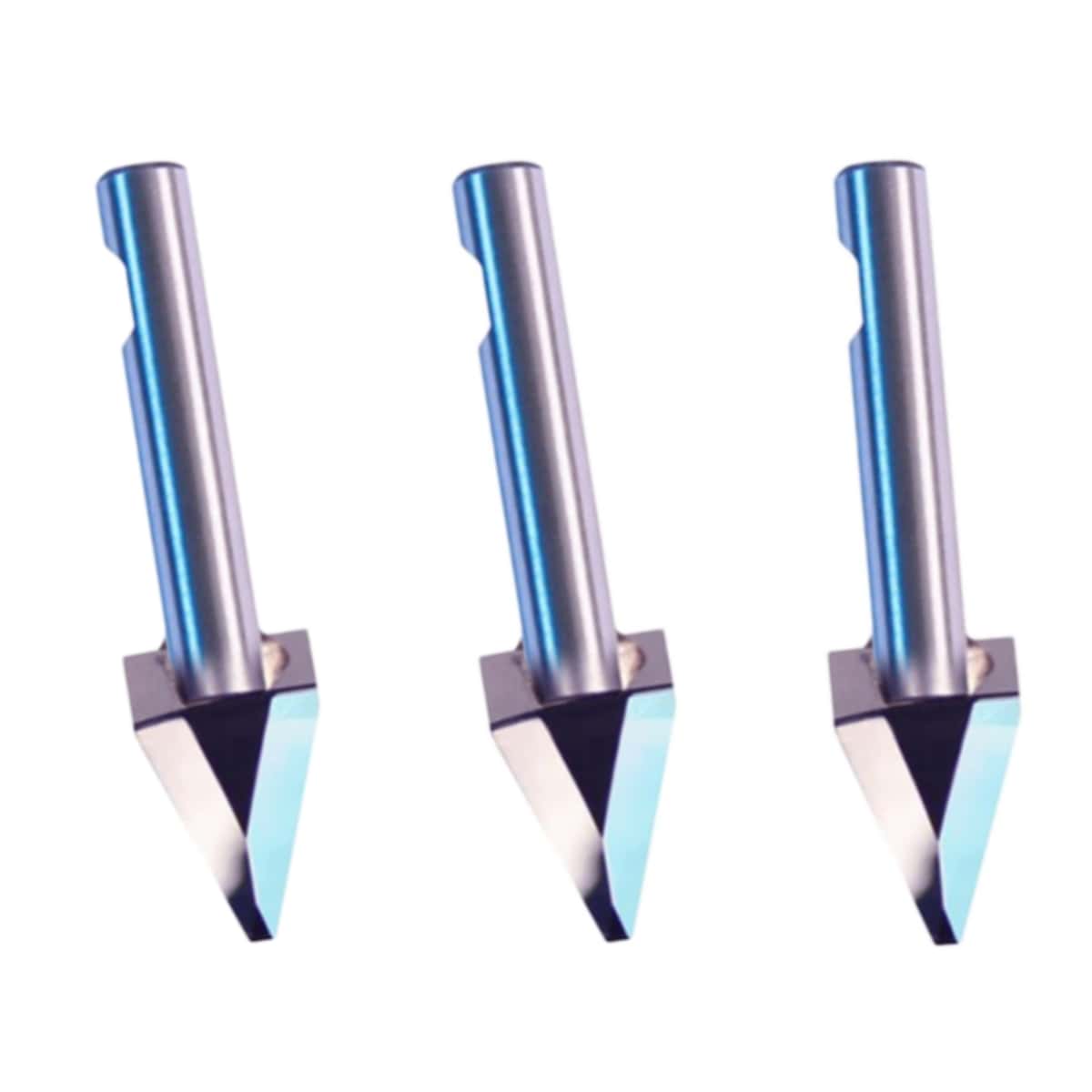

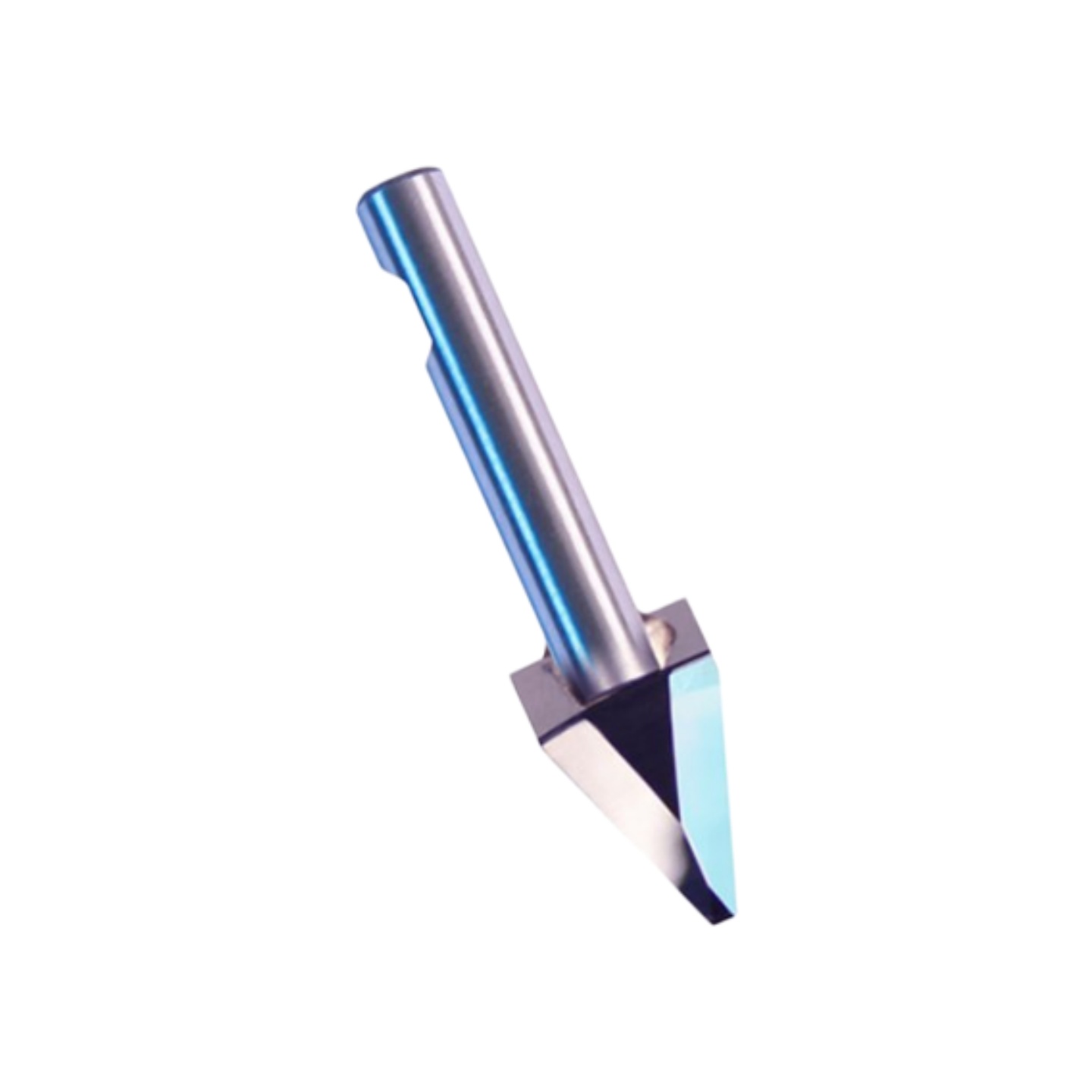

AXYZ BT-561215 / B1051L-15 is a high-precision, double-sided solid tungsten carbide (tungsten steel) oscillating knife blade. Engineered with a 6mm round shank, it is specifically designed for AXYZ and MultiCam digital flatbed cutting systems to execute intricate, high-speed contour cuts.

Technical Specifications

Part Numbers: BT-561215 (OEM factory equivalent), B1051L-15.
Material: Premium solid tungsten carbide for extreme wear resistance and prolonged sharpness.
Blade Style: Double-sided cutting edge (2-sided).
Tip Geometry: 69° blade angle with a 1.5mm flat point tip.
Shank Diameter: 6.00 mm.
Cutting Depth: 15.00 mm (approx. 0.59 inches).
Overall Length: 50.00 mm.

Performance Profile & Applications

The double-sided edge and short 15mm profile minimize blade deflection and drag. This allows the CNC head to make tight radial turns and complex geometric cuts without tearing the material.

Target Materials: Corrugated plastics, heavy folding carton, magnetic foil, industrial rubber, neoprene gaskets, and technical textiles (such as canvas or carbon fiber).
Machine Compatibility: Fits AXYZ Oscillating Knife Tool (OKT) heads and compatible 6mm round-shank tangential/vibrating knife systems.
