Summa 500-9834 500-0834 F Series - POT Pneumatic Oscillating Cutter Tool Knives Blades

Description

Summa Round Shank Knife Blades 500-9834 500-0834

Summa 500-9834,Summa 500-0834,Summa Round Shank Knife Blades,Summa Blades 500-9834,Summa Blades 500-0834,SUMMA blade

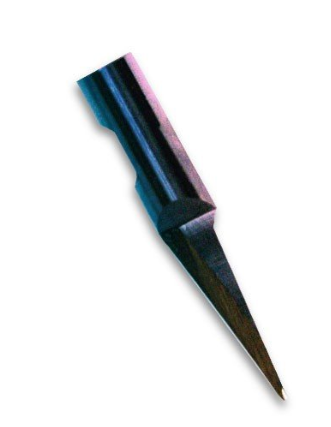

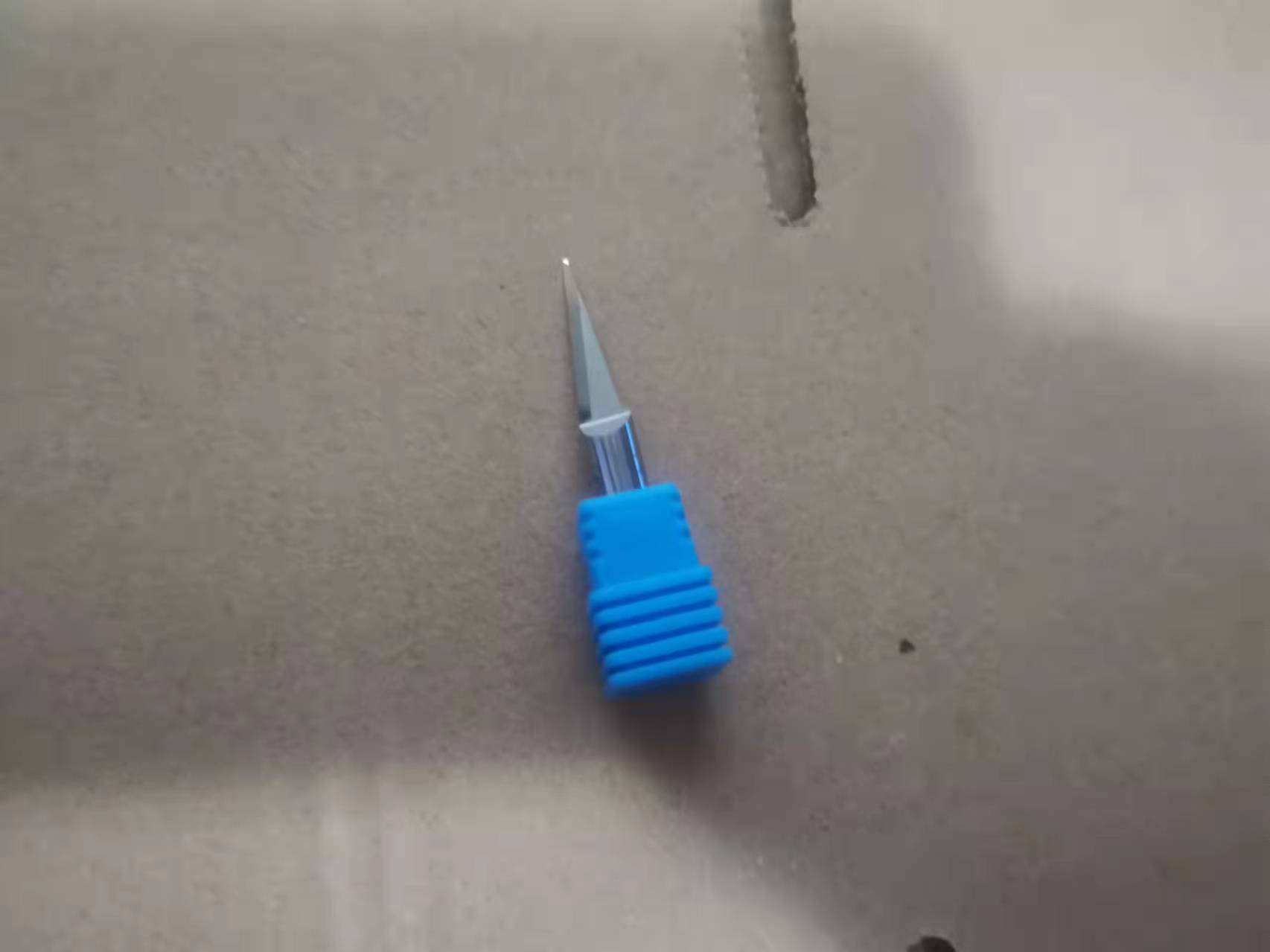

Summa 500-9834 (factory designation 500-0834) is a specialized, pointed tungsten carbide knife blade engineered for the Pneumatic Oscillating Tool (POT) on Summa F Series flatbed cutting tables. Unlike standard flat-point blades, this knife features a sharp, distinct pointed tip and a medium 1.0 mm thickness. It is specifically built to track tighter curves and resolve intricate shapes that are impossible to cut cleanly with standard 0.63 mm or heavy-duty 1.5 mm flat-point tools.

Core Blade Technical Specifications

Official technical data outlines the exact geometry and mounting constraints of this specific blade profile:

Blade Profile: Pointed Tip, single-edge detailing oscillating blade.

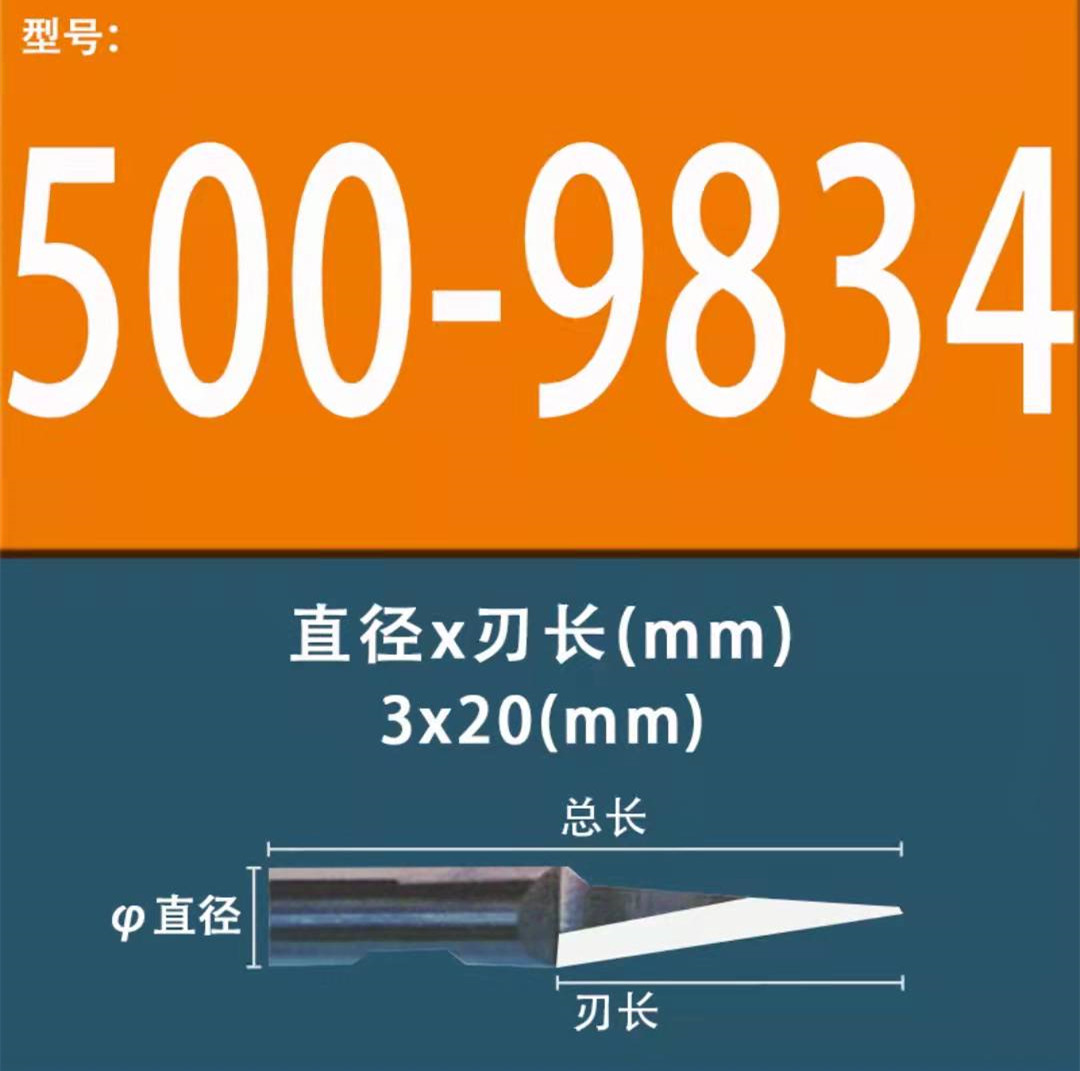

Cutting Length (L): 20 mm.

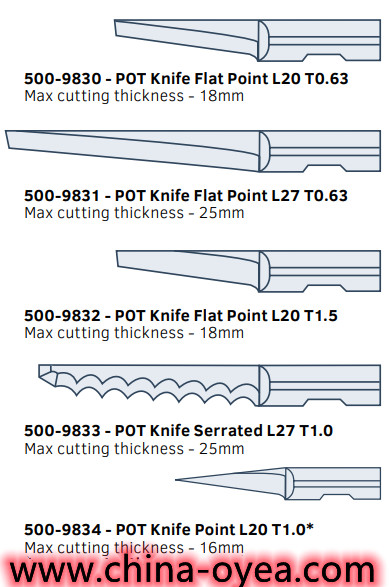

Blade Thickness (T): 1.00 mm (provides a rigid balance between standard 0.63 mm and heavy-duty 1.5 mm options).

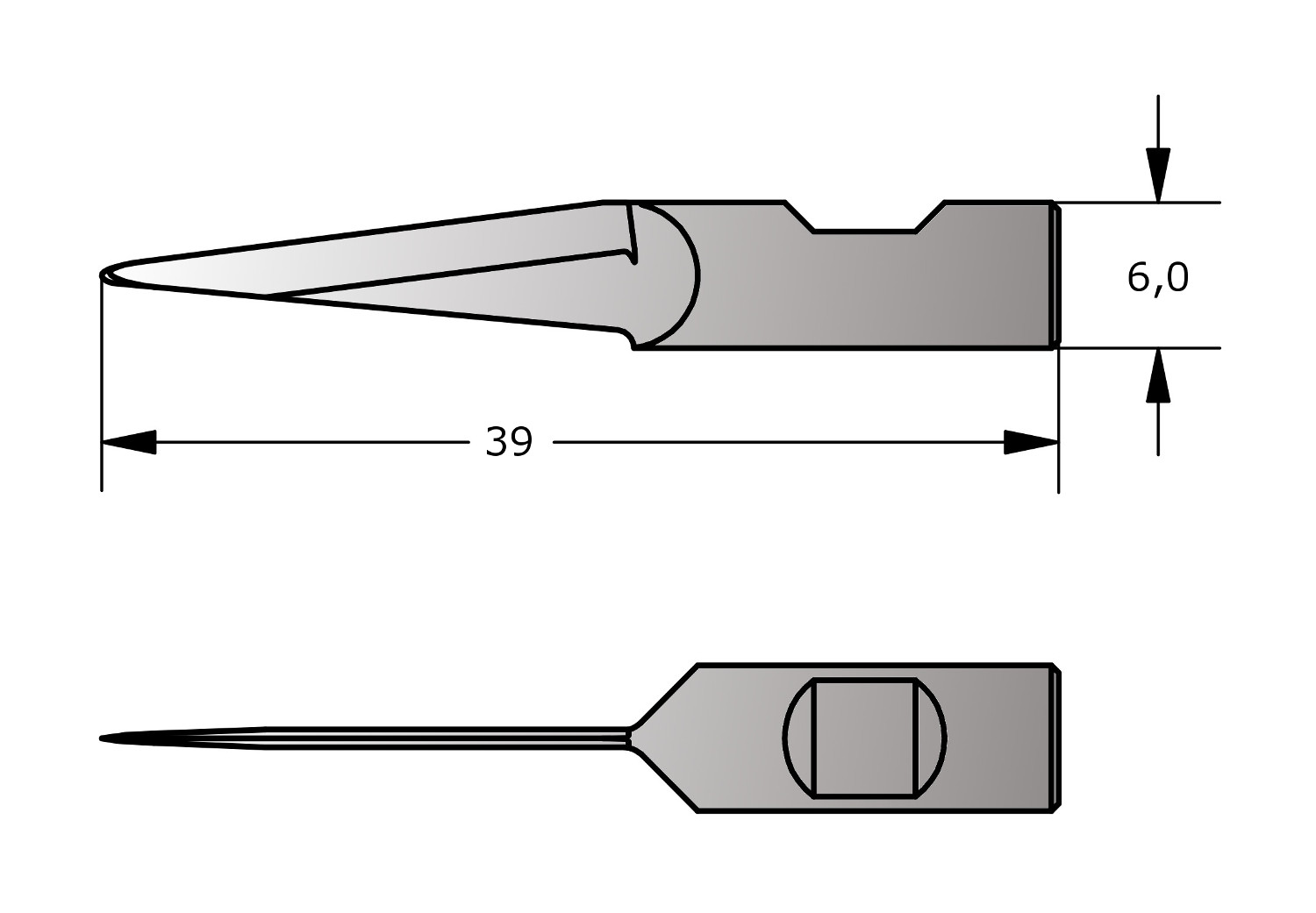

Mounting Style: Ø 6 mm round Weldon shank.
Maximum Cutting Depth: Safely processes substrates up to 16 mm (0.64") thick.

Critical Operating Warning: Deep Mat Penetration

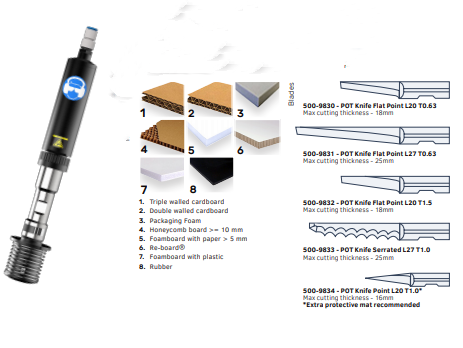

Protective Mat Required: Due to its pointed geometry and the 8 mm vertical stroke of the pneumatic tool, this blade penetrates deeply into the cutting surface at the bottom of its cycle. Summa explicitly states that you must use an extra protection mat over your standard conveyor belt to prevent permanent gouges or severe damage to the under-bed system.

Target Substrates & Applications

Complex Detail Cutting: Best for intricate geometric shapes and tight, small-radius curves in heavy substrates.

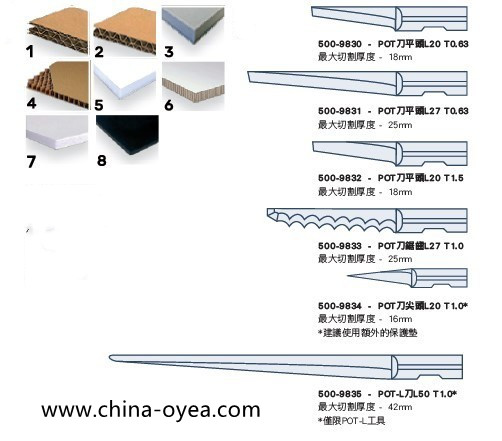

Primary Materials: Thick industrial rubber sheets, dense packaging foams, Re-board, triple-wall corrugated cardboard, and plastic-lined foam boards.
Aluminum Composite Panels (ACP): This blade can process thin ACP layers, but operators should note that the oscillation creates a ribbed/chattered edge finish that may require secondary deburring.

Equivalent to: Summa 500-9834, Summa 500-0834, Multicam 003612-MC140394, Multicam 84-00193-BT-57269
