1. Dimension Breakdown

The geometric specifications provided reveal its exact dimensions and how it mounts to the cutter:

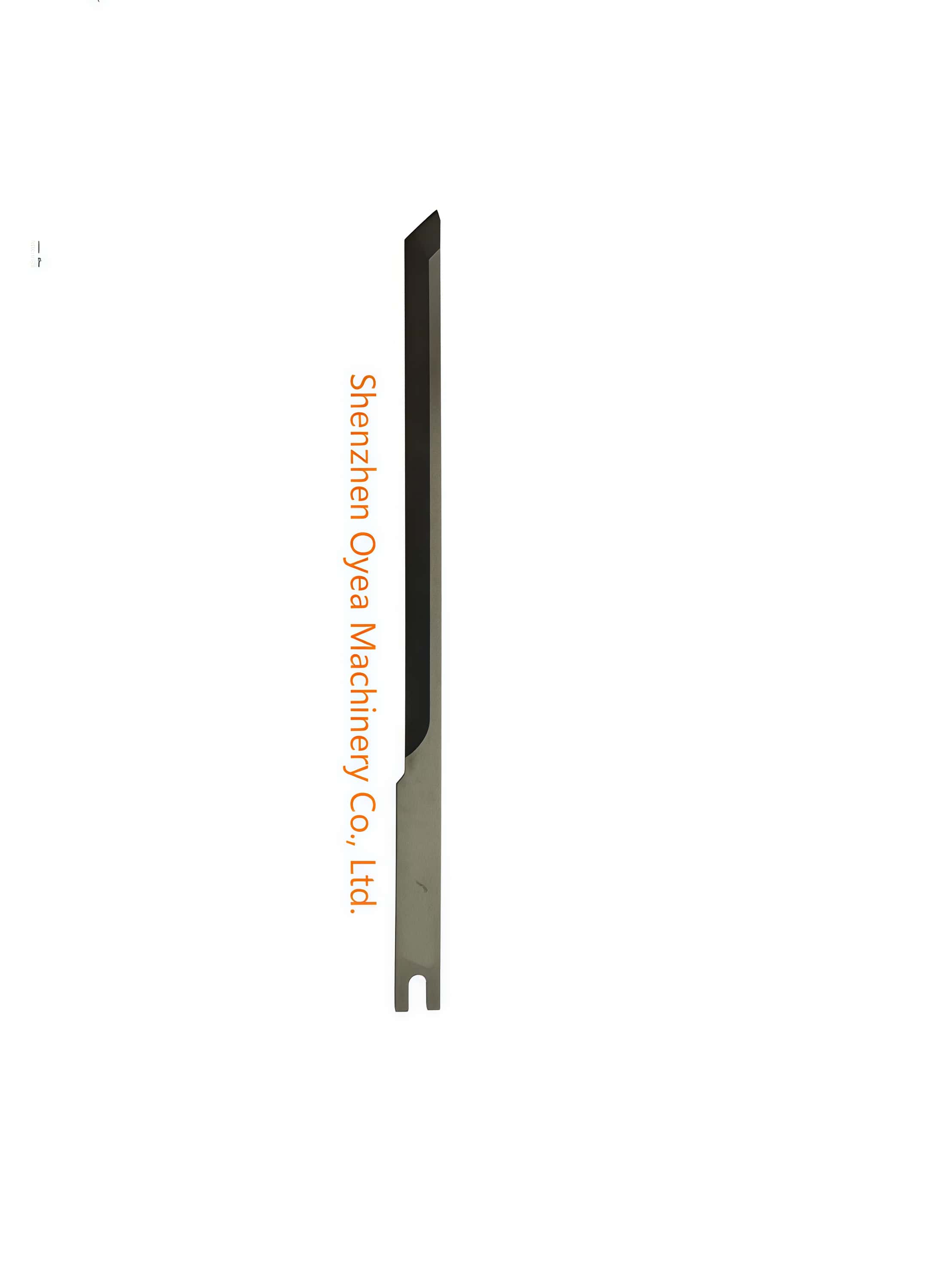

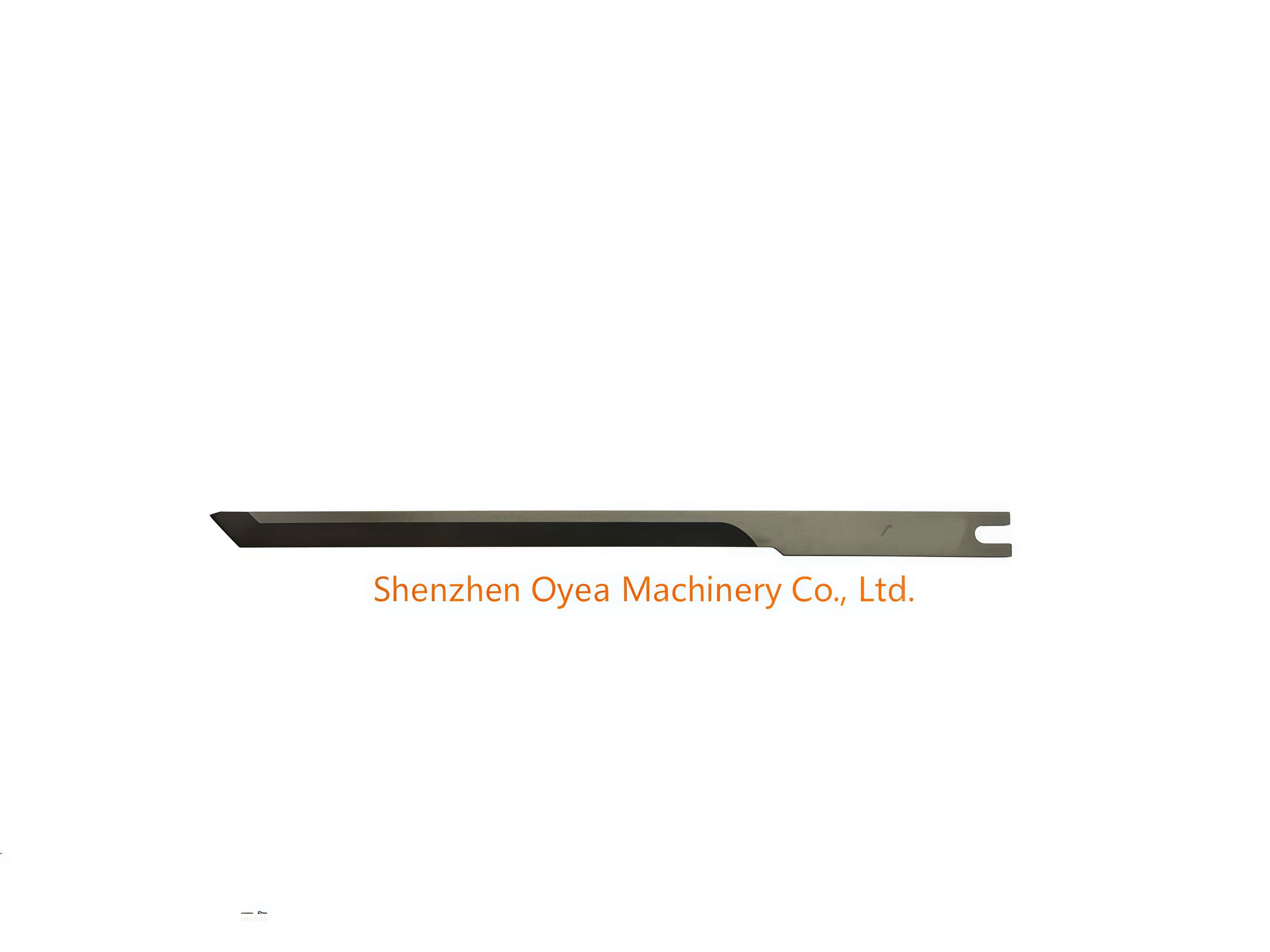

• Length: 233 mm (Total length of the blade tool)

• Thickness: 2.5 mm (The spine thickness provides rigid anti-flex performance under dense fabric loads)

• Width (Tapered profile): 8 mm / 10.5 mm (Features a variable width profile, typically widening at the mounting shank for stability and narrowing along the cutting body to reduce friction)



2. Technical Characteristics

• Material: HSS (High-Speed Steel). Unlike ultra-brittle solid tungsten carbide, high-grade HSS is the industry preference for deep multi-ply textile. It offers exceptional toughness, impact resistance, and edge retention , allowing it to withstand high-frequency vertical oscillations without cracking or snapping when encountering dense multi-layer fabrics or canvas tough cutting backings.

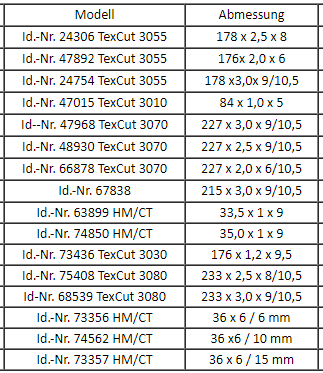

• Part Number References: Kuris OEM #75408



3. Primary Applications

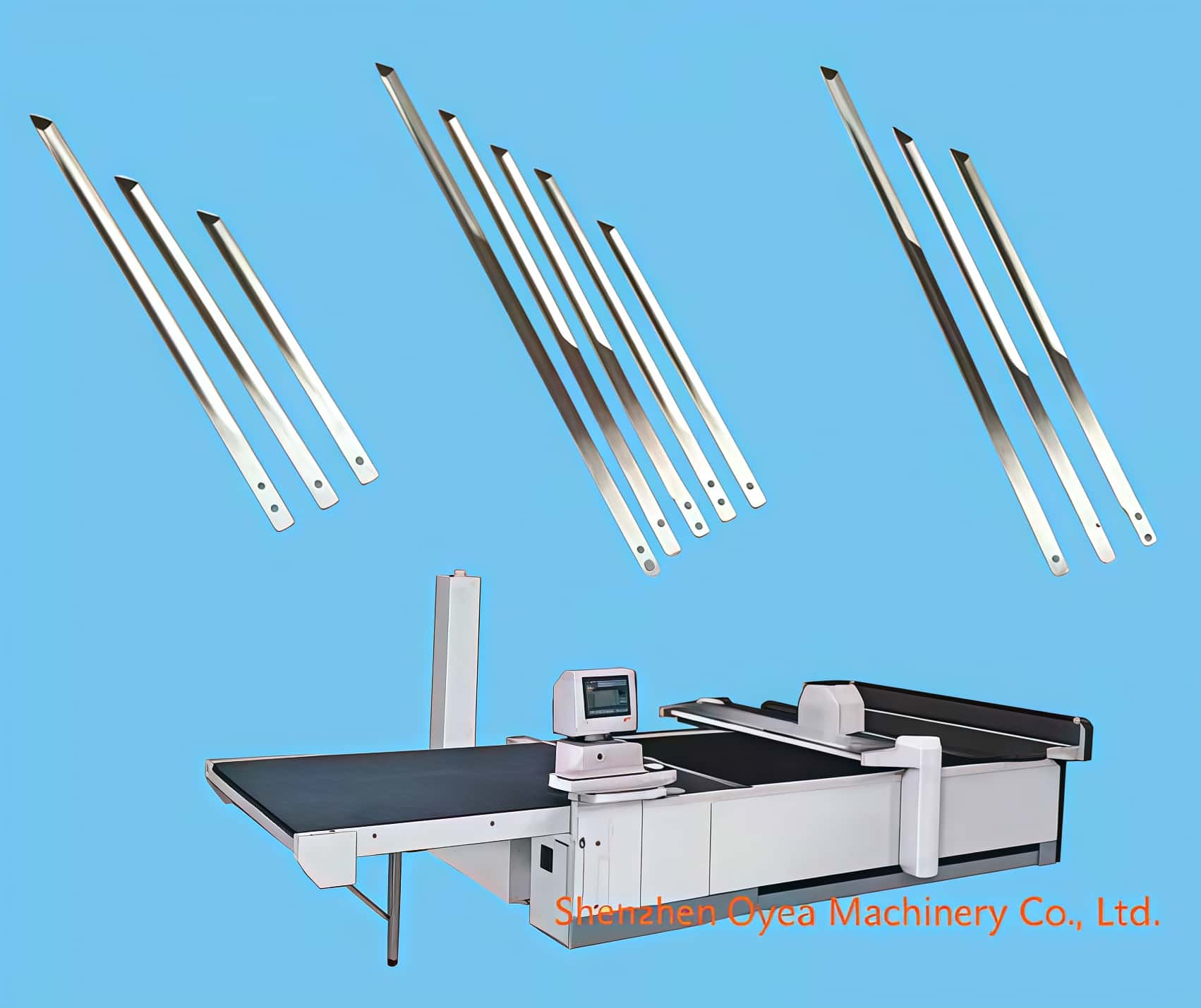

The C3080 is an industrial-capacity cutter, meaning this 233mm blade is meant to plunge deep into high-ply fabric layouts. It is commonly used for automated cutting in:

• Automotive Upholstery: Cutting heavy-duty seat covers, car mats, synthetic leather, and carbon fiber materials.

• Apparel Mass Production: Processing vast stacks of denim, woven cotton, woolens, and heavy synthetics.

• Technical Textiles: Slicing through thick canvas, protective gear fabrics, fiberglass weaves, and parachute/sail nylon.

• Home Furnishings: Cutting large volumes of mattress ticking, heavy curtains, and sofa upholstery panels.



4. Operational Maintenance Tips

Because HSS blades are highly susceptible to heat friction when moving rapidly through compressed layers of synthetic fabric, consider the following during operation:

• Fusing Prevention: If cutting synthetic fibers (like polyester or nylon), ensure the machine's cooling air or lubrication spray is functioning properly to prevent the blade's heat from melting and fusing the fabric edges together.

• Sharpening Cycles: Automated high-ply cutting machines generally utilize built-in sharpening stones. Ensure your machine's automated grinding/honing stone cycle is properly calibrated for HSS to maintain the optimal 2.5mm taper edge profile without prematurely grinding away the blade steel.
