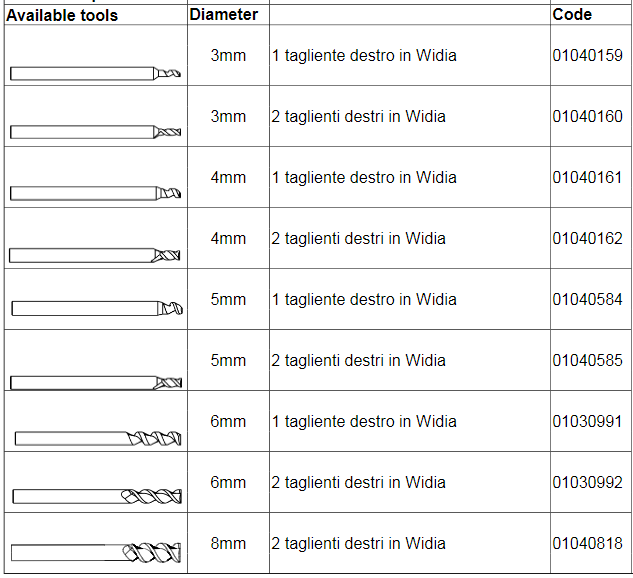

1. Basic Contour Milling Cutters Series

This series is typically used in conjunction with a pneumatic spindle (01030845) for cutting standard sheet metal.

· 010401593 mm diameter , single-edged (1 right-hand carbide cutting edge/Widia)

· 010401604(Original factory standard code ): 3mm 01040160 diameter , double-edged (2 right-hand carbide cutting edges)

· 010401614(Original factory standard code ): 4mm 01040161 diameter , single blade

· 010401625(Original factory standard code ): 4mm 01040162 diameter , double-edged

· 010405845(Original factory standard code ): 5mm 01040584 diameter , single blade

· 010405856(Original factory standard code ): 5mm 01040585 diameter , double-edged

· 010309916(Original factory standard code ): 6mm 01030991 diameter , single blade

· 010309928(Original factory standard code ): 6mm 01030992 diameter , double-edged

· 010408188mm diameter , double-edged

2. Matching tool chuck spindle (Milling Chuck)

· 01030845(Repeatedly appearing in the list): ATOM OriginalPneumatic Milling Chuck It is used to fix the above-mentioned 3mm to 8mm end mills, and this model does not have a chip dust collection function.

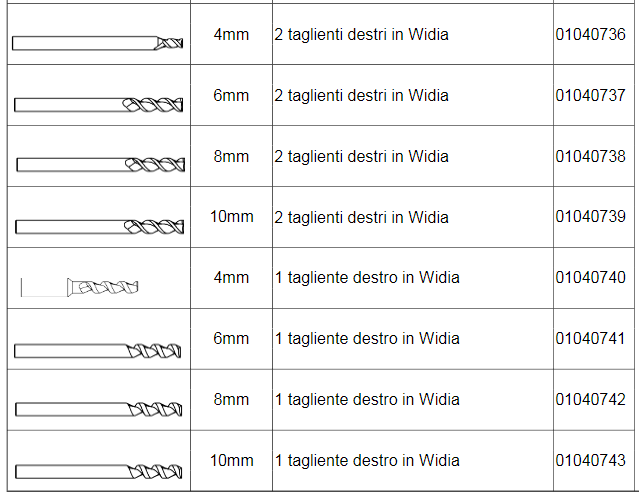

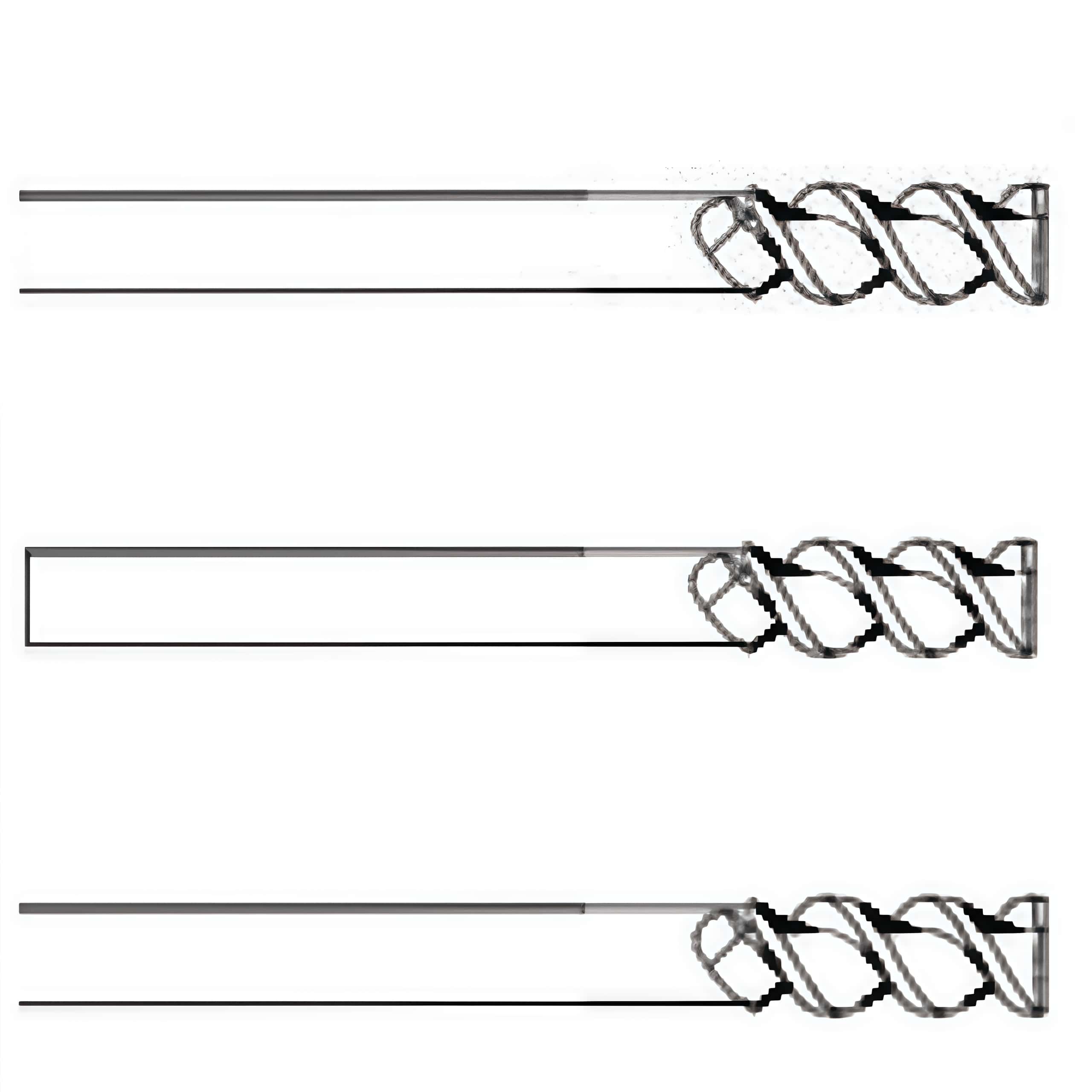

3. Advanced Large Diameter End Mills Series

This series is suitable for machining materials that require higher rigidity and deeper cutting depth:

· 010407366(Original factory standard code ): 4mm 01040736 diameter , double-edged

· 010407378(Original factory standard code ): 6mm 01040737 diameter , double-edged

· 0104073810(Original factory standard code ): 8mm 01040738 diameter , double-edged

· 010407394(Original factory standard code ): 10mm 01040739 diameter , double-edged

· 010407406(Original factory standard code ): 4mm 01040740 diameter , single blade

· 010407418(Original factory standard code ): 6mm 01040741 diameter , single blade

· 0104074210(Original factory standard code ): 8mm 01040742 diameter , single blade

· 0104074310mm diameter , single-edged

Procurement/Usage Recommendations :

1. Single-edged (1-edged) vs. double-edged (2-edged) : If you need to process acrylic, soft plastic or fusible materials , it is recommended to use a single-edged knife (such as 01040159) first , because it has a larger chip removal space and is less likely to stick to the knife; if you are processing rigid composite boards, high-density foam or cardboard , using a double-edged knife (such as 01040160) can get a smoother cut edge and higher processing efficiency.

2. Meaning of the last digits : The extra digits at the end of the code you provide (such as 01040160 4 , 01040162 5 ) are usually system identification codes customized by specific consumable suppliers or distributors to mark the diameter of the tool holder , total length (L), or the quantity of the package.
