Atom 0103a999 Flashcut Hv1600 C/S Oscillating Cutting Knife Blades For Sale Shop
Atom 0103A999 Flashcut HV1600 C/S oscillating cutting knife blade is a tungsten carbide industrial tool designed for Atom digital CNC cutting tables, featuring an 11° to 15° double-edged bevel for cutting up to 6mm thick materials. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Atom 0103a999 Flashcut Hv1600 C/S Oscillating Cutting Knife Blades For Sale Shop

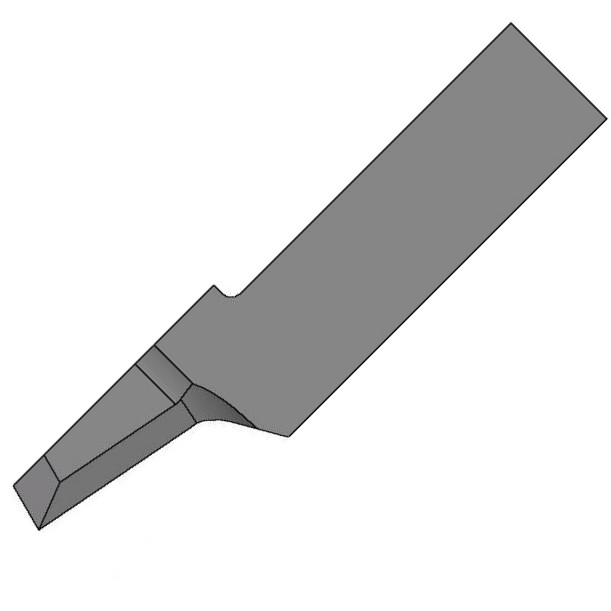

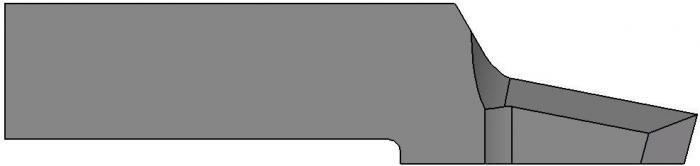

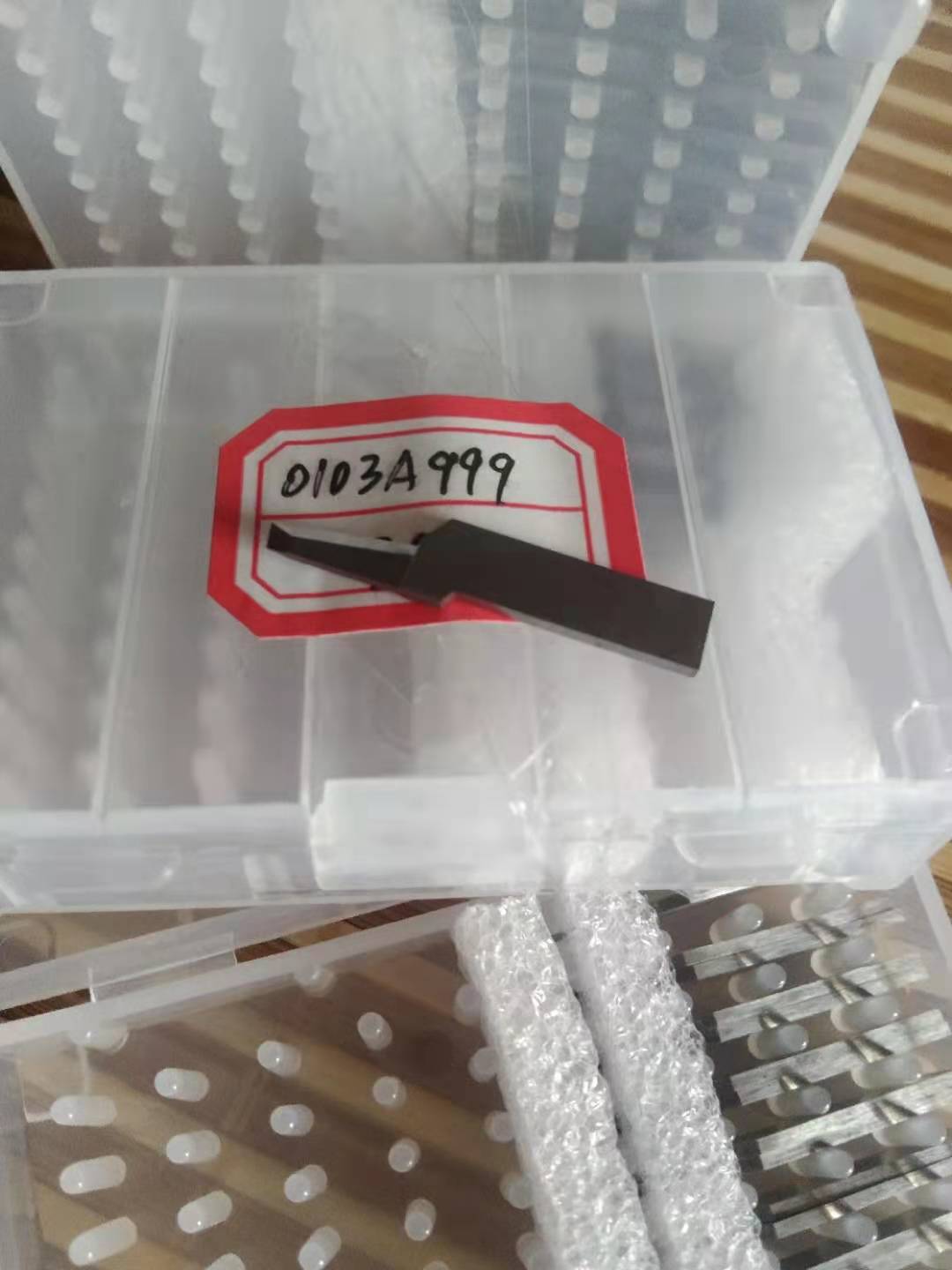

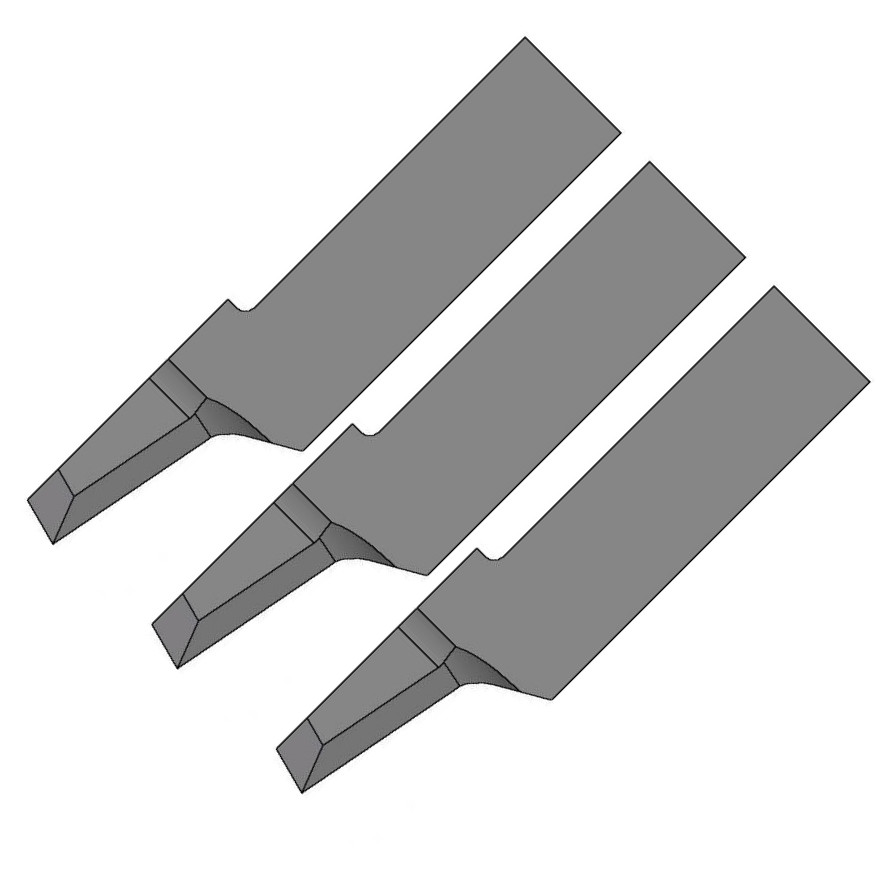

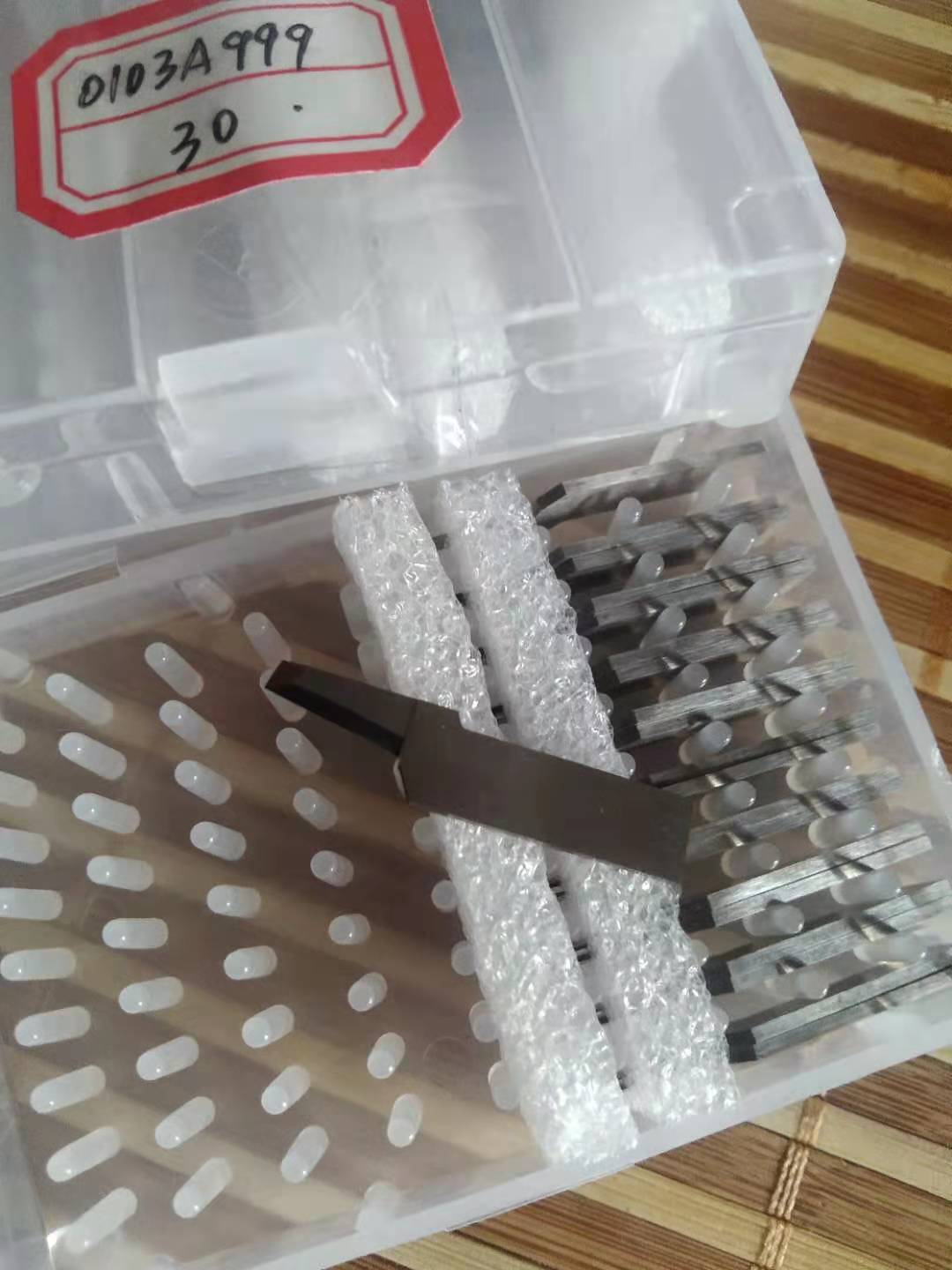

The Atom 0103A999 is a precision oscillating knife blade designed for use with Atom Flashcut HV1600 series CNC digital cutting machines. It is primarily engineered for high-speed cutting of dense and semi-rigid materials.

Technical Specifications
Material: High-grade tungsten carbide for extended wear resistance and durability.
Cutting Angle: 11°–15°, optimized for smooth material penetration and high-speed operation.
Cutting Depth: Maximum cutting depth of approximately 6 mm.
Radius: 2.5 mm design, allowing for the precise handling of complex curves and intricate patterns.
Mounting: Standard flat-stock mounting (typically 0.63 mm thickness) common to the HV1600 series.

Common Applications
This specific blade is frequently used in industries such as footwear and leather goods manufacturing. It is particularly effective for cutting:
Texon and other cellulose-based fiberboards up to 3 mm.
Sole leather up to 6 mm thick.
Dense fiber boards and specialized synthetic materials

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
          1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
