Ronchini Rm-01045485 Flatbed Cnc Cutting Systems Knife Blades

Ronchini RM-01045485 flatbed CNC knife blade is a highly specialized, industrial tungsten carbide flat oscillating blade designed specifically for pneumatic tangential cutting tools mounted on automated flatbed digital cutting tables Enquire now

Description

Ronchini Rm-01045485 Flatbed Cnc Cutting Systems Knife Blades

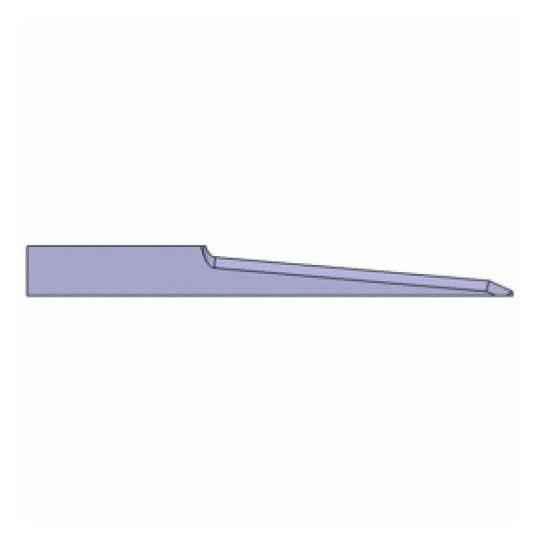

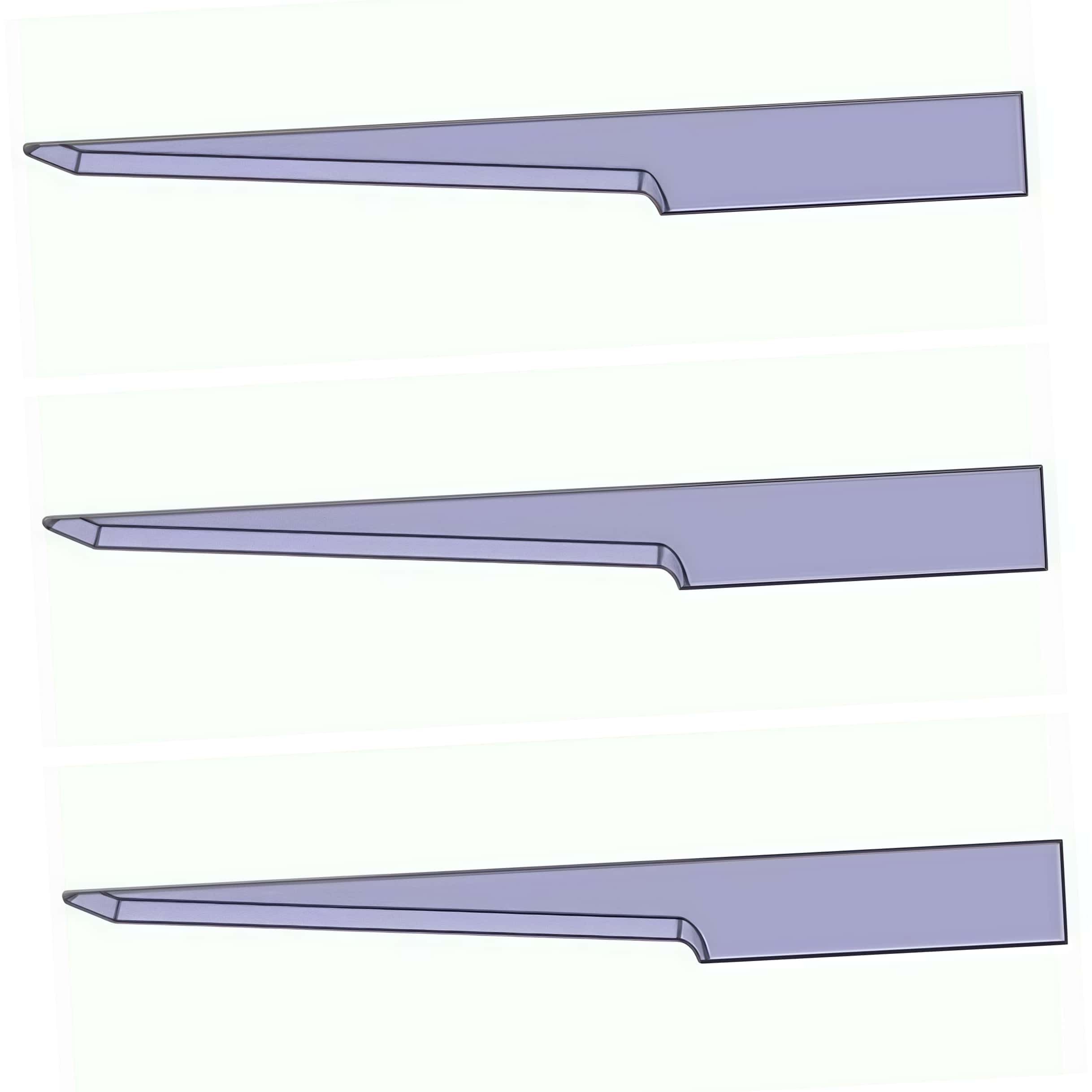

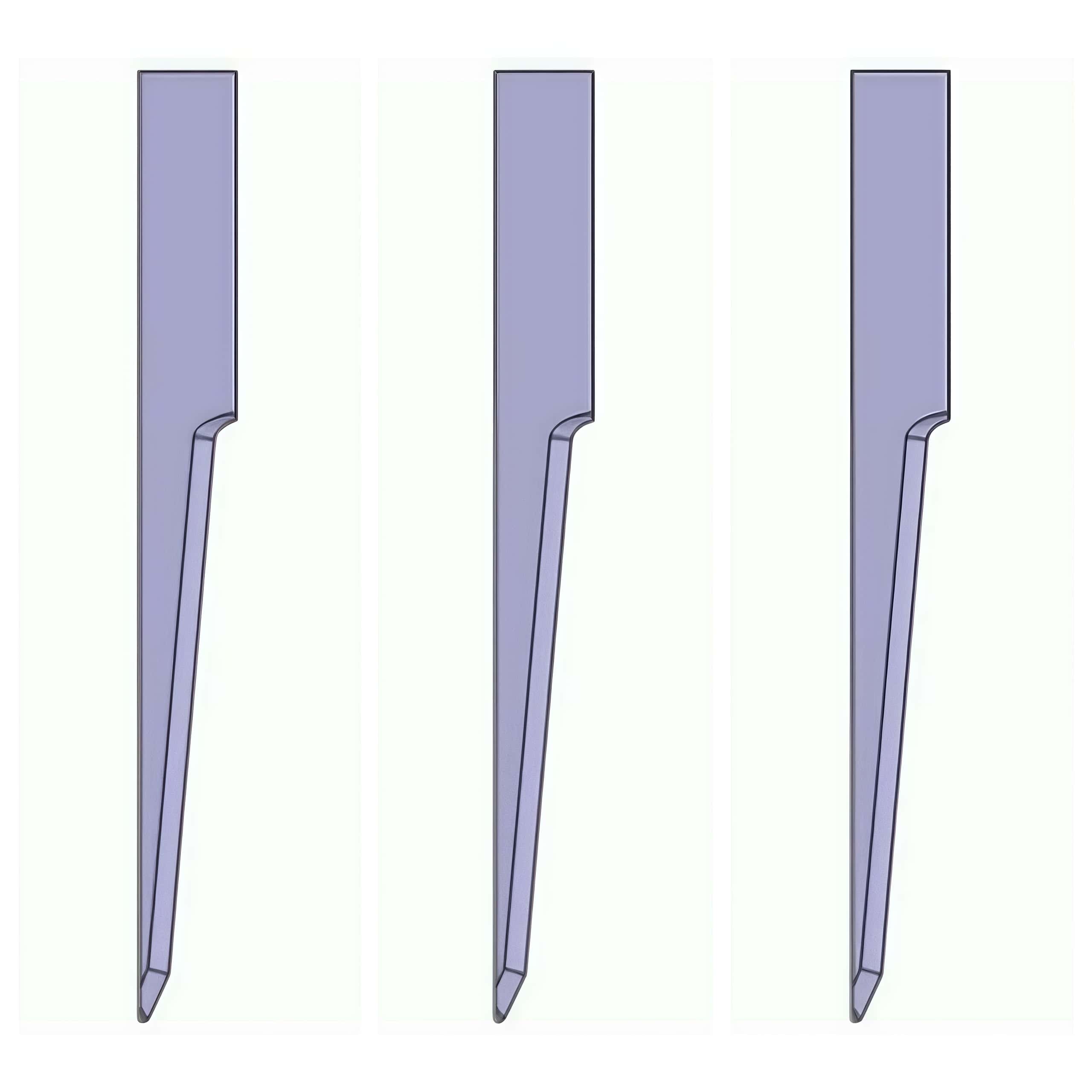

Ronchini RM-01045485 is a flat oscillating tungsten carbide knife blade compatible with automated flatbed digital cutting systems (also cross-compatible with Atom Flashcut systems under part number 01045485).

Technical Specifications

Part Number: RM-01045485 (Atom 01045485 / HV1600)

Material: Tungsten Carbide (Hardness HV1600)

Blade Type: Flat oscillating knife

Cutting Angle: 5° – 25° – 10° multi-angle geometry

Dimensions: 53.0 mm height x 5.6 mm / 6.0 mm width x 0.64 mm thickness

Maximum Cutting Depth: Up to 32.0 mm

Applications & Recommended Materials

Primary Uses: Gasket, sealing, and foam manufacturing sectors

Materials: Soft rubber, foamed rubber, dense elastic media, and foam

Cutting Feature: Friction-reducing multi-angle design allows tight radius cuts down to 2.5 mm in thick elastic sheets.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
