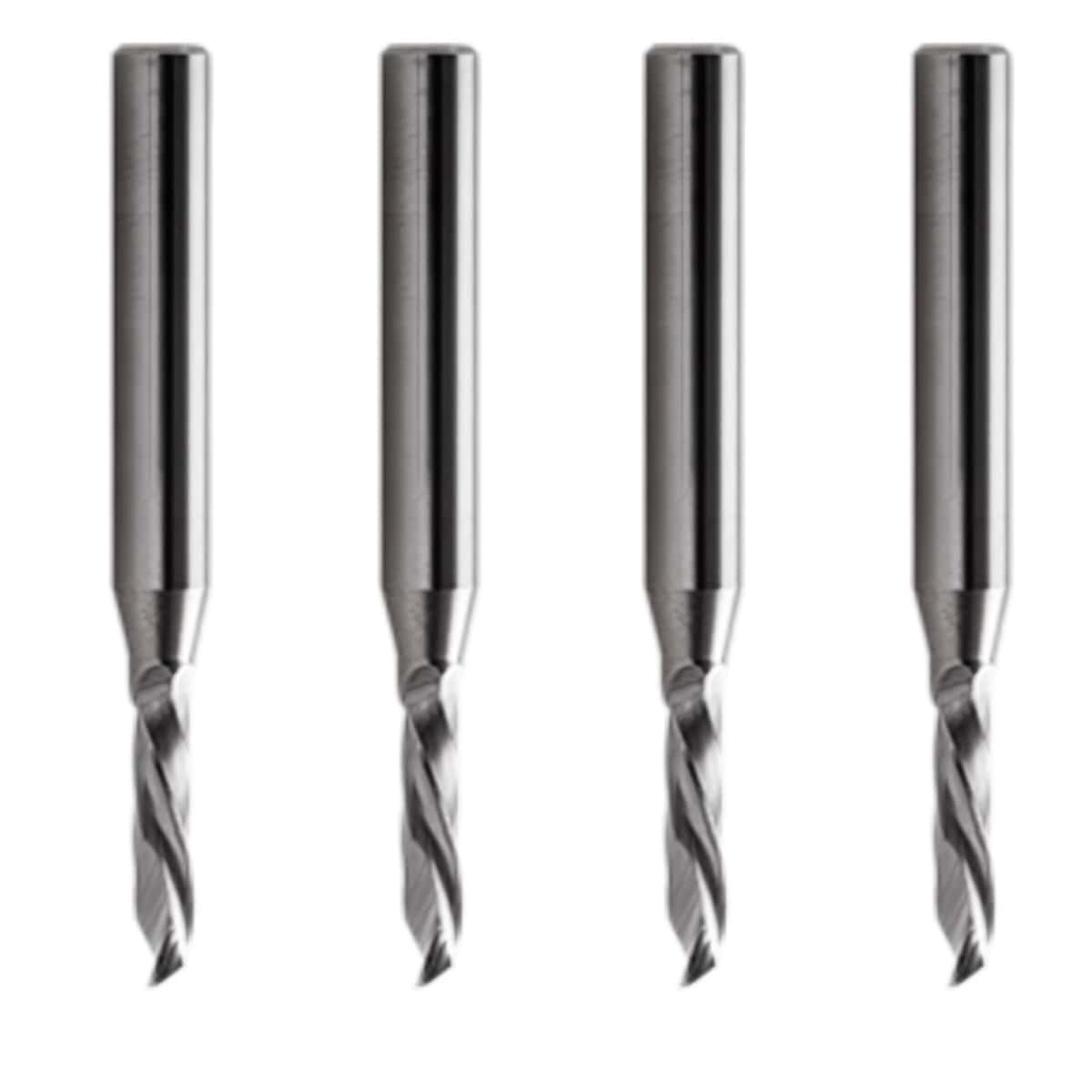

Esko Kongsberg Bit-Mcs06-4015-50 G42471763 Router Bit For Kongsberg Cutting Tables

Esko Kongsberg BIT-MCS06-4015-50 (G42471763) is a high-precision, solid tungsten carbide milling tool engineered for automated cutting tables. It is designed explicitly for the high-power, water-cooled MultiCUT-HP and High-Power Milling units featured on Kongsberg X and Kongsberg C flatbed cutting t… Enquire now

Description

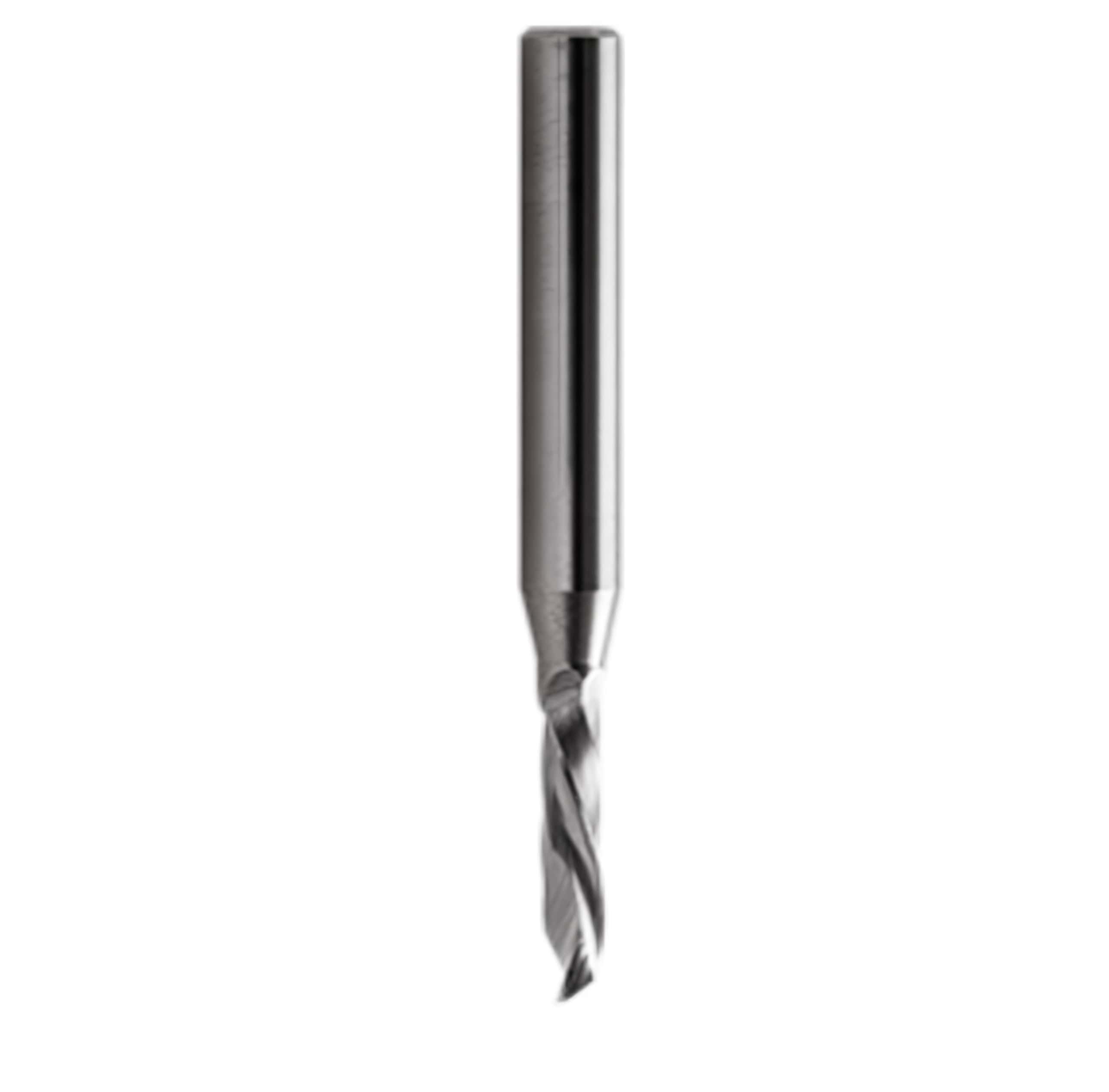

Esko Kongsberg Bit-Mcs06-4015-50 G42471763 Router Bit Designed For Kongsberg Cutting Tables

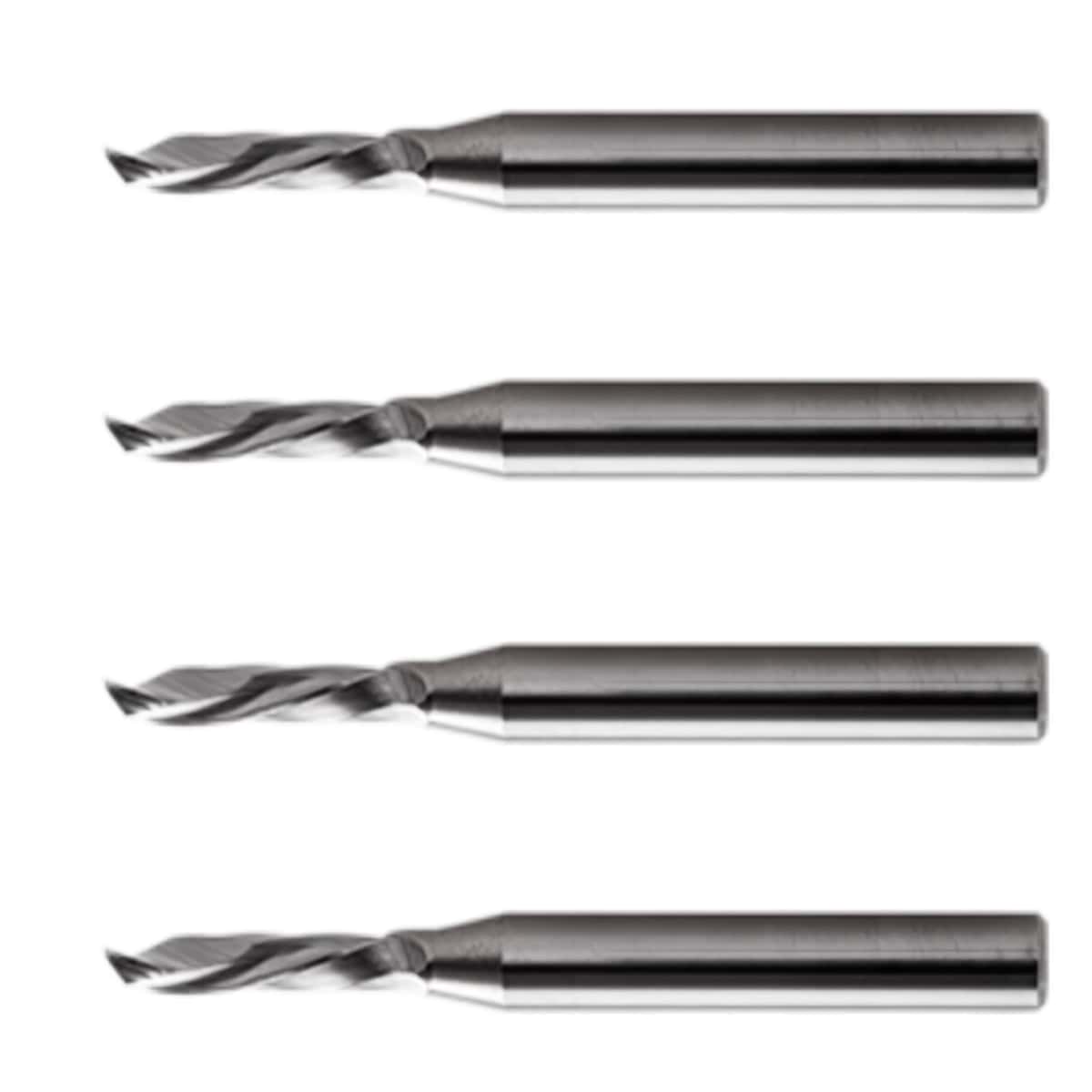

Esko Kongsberg Bit-Mcs06-4015-50 G42471763 Router Bit For Kongsberg Cutting Tables

Technical Specifications

The part number uses Kongsberg's standard nomenclature, which breaks down into these factory specifications:

Shank Diameter: 6.0 mm (industry standard for Kongsberg tooling head collets).
Cutting Edge Diameter: 4.0 mm.
Milling Cutting Depth: 15.0 mm.
Overall Tool Length: 50.0 mm.
Flute Geometry: Single flute design optimized for chip evacuation.

Performance Characteristics

+---------------------+-------------------------------------------------------+

| Feature             | Application Benefit                                   |
+---------------------+-------------------------------------------------------+

| Single-Flute Format | Prevents plastic/metal weld-back by clearing chips    |
|                     | rapidly from the cut path.                            |
+---------------------+-------------------------------------------------------+

| Tungsten Carbide    | Delivers extreme wear resistance, rigid accuracy,     |
|                     | and clean, smooth edge finishes.       |
+---------------------+-------------------------------------------------------+

| Balanced Design     | Rated for spindle rotation speeds up to 60,000 RPM,   |
|                     | minimizing machine bearing vibration.  |
+---------------------+-------------------------------------------------------+

Application & Materials

This specific "MCS" (Milling Cutter Soft-metal/Composite) configuration is tailored to route materials that demand a balance of high chip load capabilities and rigid tool geometry.

Primary Materials: Aluminum Composite Materials (ACM / Dibond), soft aluminum alloys, and dense plastics.
Secondary Materials: Solid PVC, acrylics, foam boards (Gatorfoam), and medium-density fiberboard (MDF).

Operation and Compatibility
Replacements can be sourced via specialized flatbed distributors like Shenzhen Oyea Machinery Co., Ltd Production Center software, ensure you map the correct tool code G42471763 to unlock optimized feed rates, spindle RPM parameters, and pass depths tailored for this 4mm bit profile.
