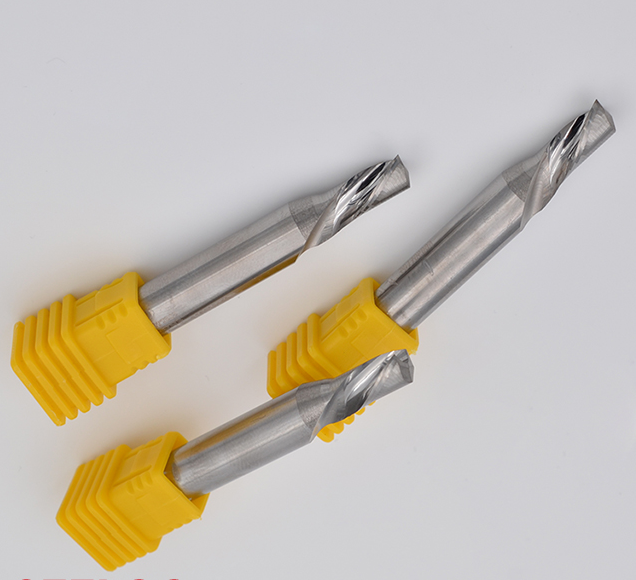

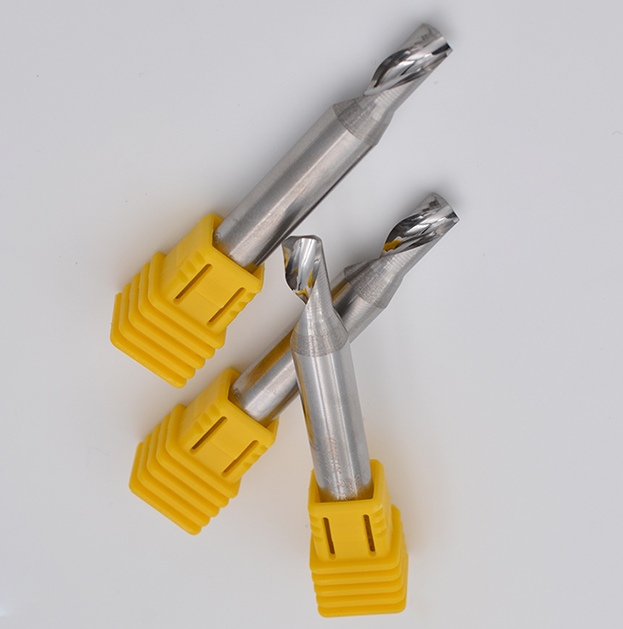

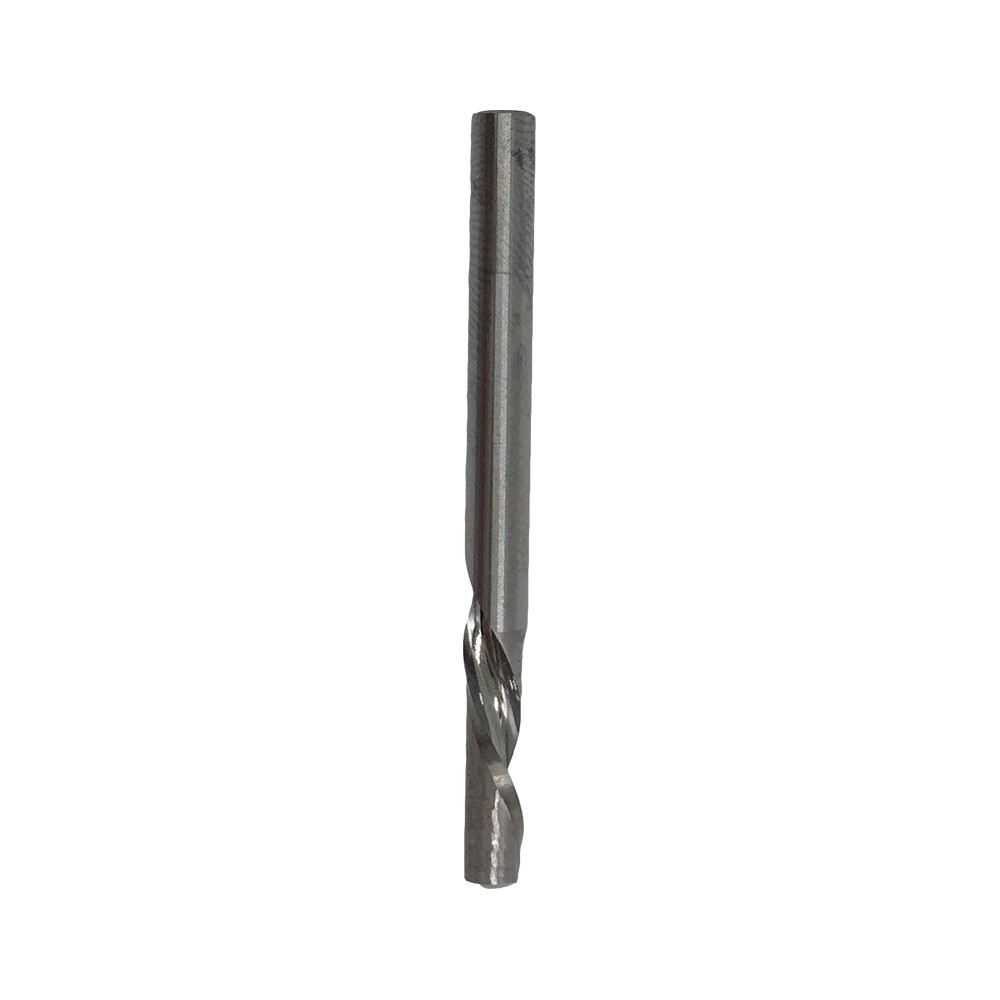

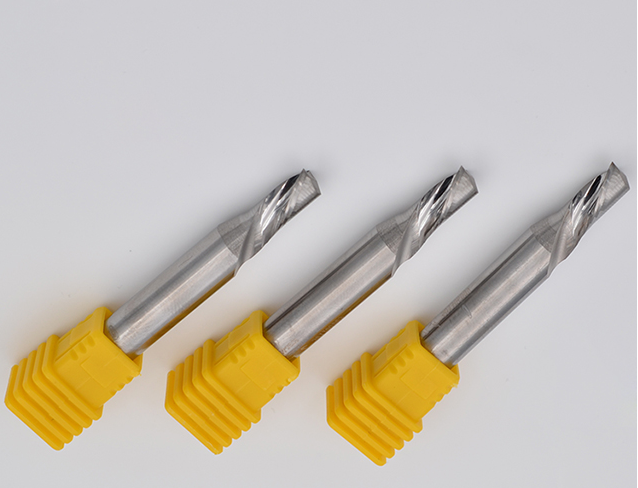

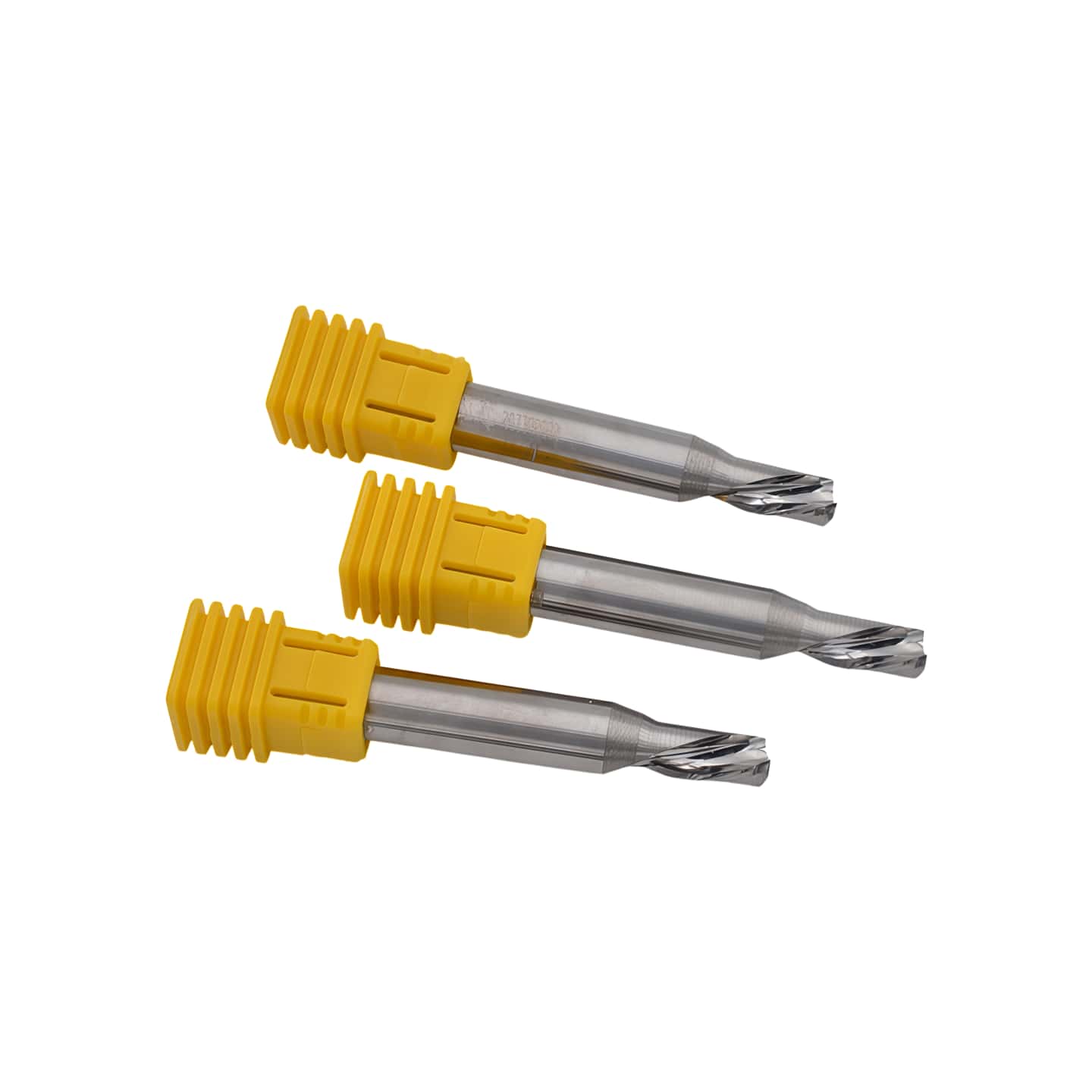

1 Flute Spiral Router Bits Cnc End Mill Mdf Fresa Milling Cutter For Pure Aluminum Plate Copper Shop

china Single-flute spiral router bit (O-Flute End Mill)It is the core ideal tool for CNC engraving machines to process materials such as pure aluminum plates, red copper, and high-density fiberboard (MDF). Enquire now

Description

1 Flute Spiral router bits CNC end mill MDF Fresa Milling Cutter for pure Aluminum plate Copper

Core Advantages (Why choose a single-blade blade?)

Large Chip Space : The single-blade design provides an extremely wide discharge channel for chips generated during machining, which can greatly avoid problems such as welding, tool sticking and tool breakage caused by poor chip removal when cutting soft metals such as aluminum and copper .
High-Speed Cutting : Made of micronized cemented carbide (tungsten steel), the cutting edge is extremely sharp, providing excellent surface finish while maintaining high rotational speed (RPM), resulting in a mirror-like or burr-free cut .
Versatility (versatility across multiple materials) :
- Pure aluminum/copper plates : do not easily accumulate heat, and are easy to cut.
- Medium-density fiberboard (MDF)/wood/acrylic/PVC : Dust and particles can be expelled instantly, making them less prone to scorching.

CNC Machining Practical Skills

Chip removal direction : It is recommended to use an **up-cut** spiral cutter first, which can pull the chips upward along the spiral groove, greatly reducing the chance of secondary chip removal on the workpiece.
Machining aluminum/copper : Soft metals are very prone to "heat melting". When machining, try to use air cooling , water mist cooling , or apply a small amount of cutting oil/alcohol for lubrication.
Machining MDF : Due to the high hygroscopicity and dust content of MDF, a single-edged cutter can maintain an extremely fast feed rate, preventing the cutter from overheating and burning due to prolonged friction in the same spot

Good for: Low power spindle, high speed rotation above 15000 per minute processing. Dry cutting, smooth surface, high durability.

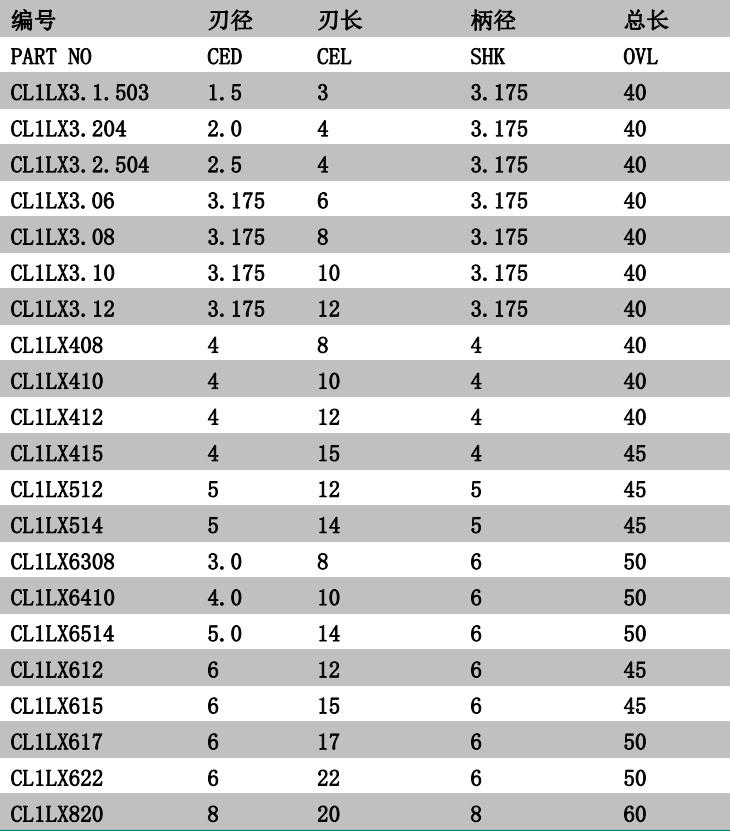

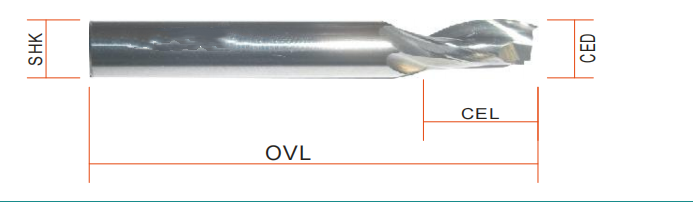

In addition to the above table column specifications, a variety of other specifications are limited to the layout, not one one listed, if necessary, welcome to contact.
