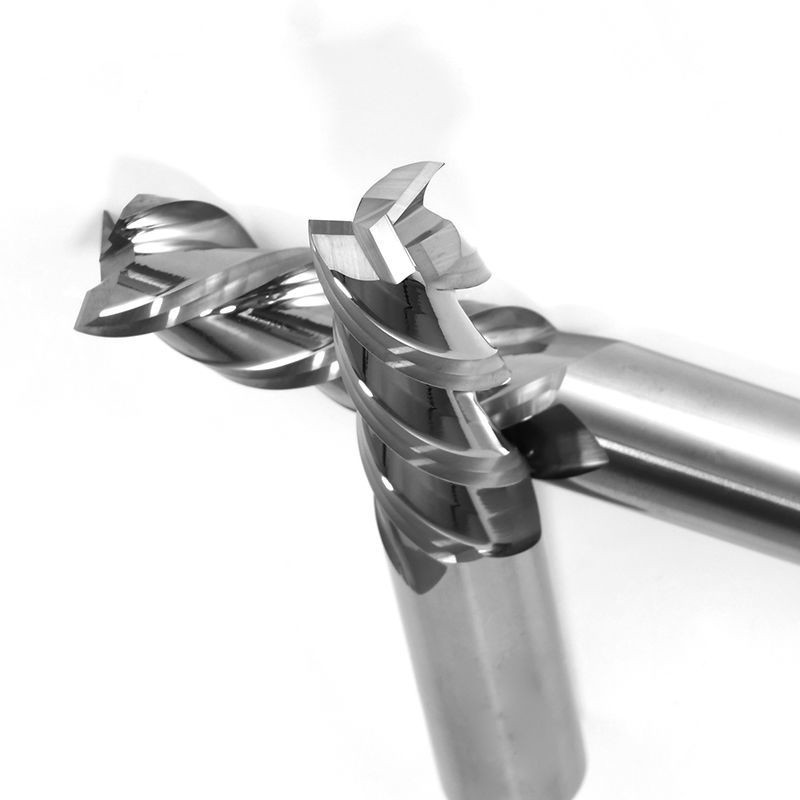

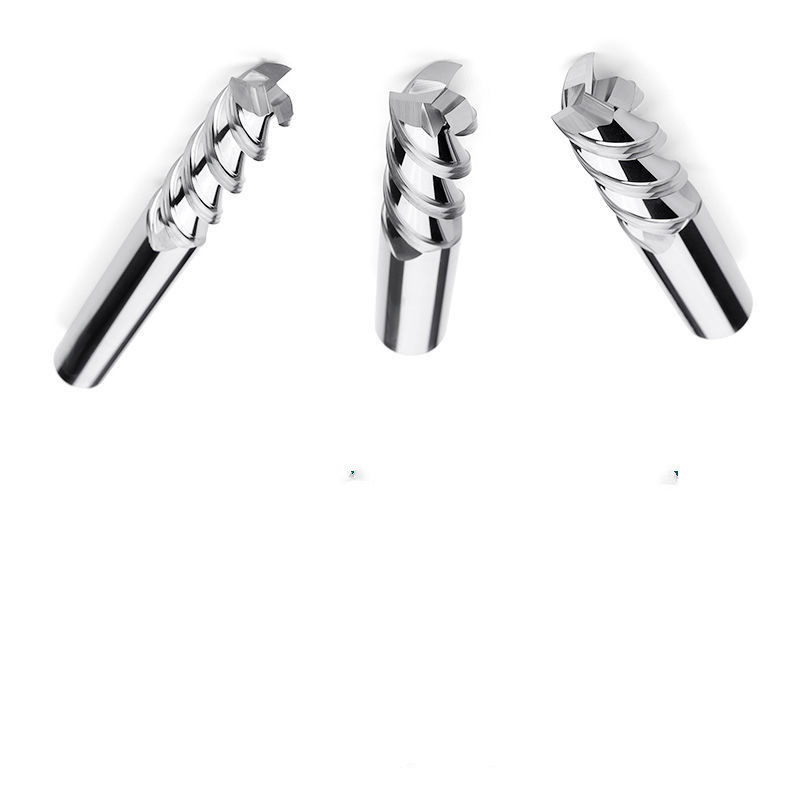

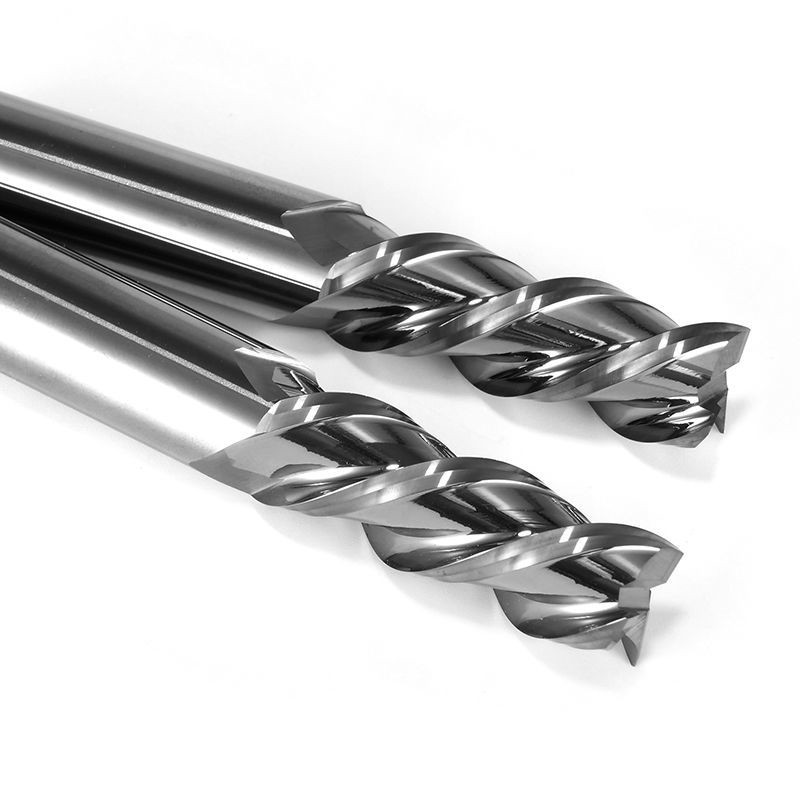

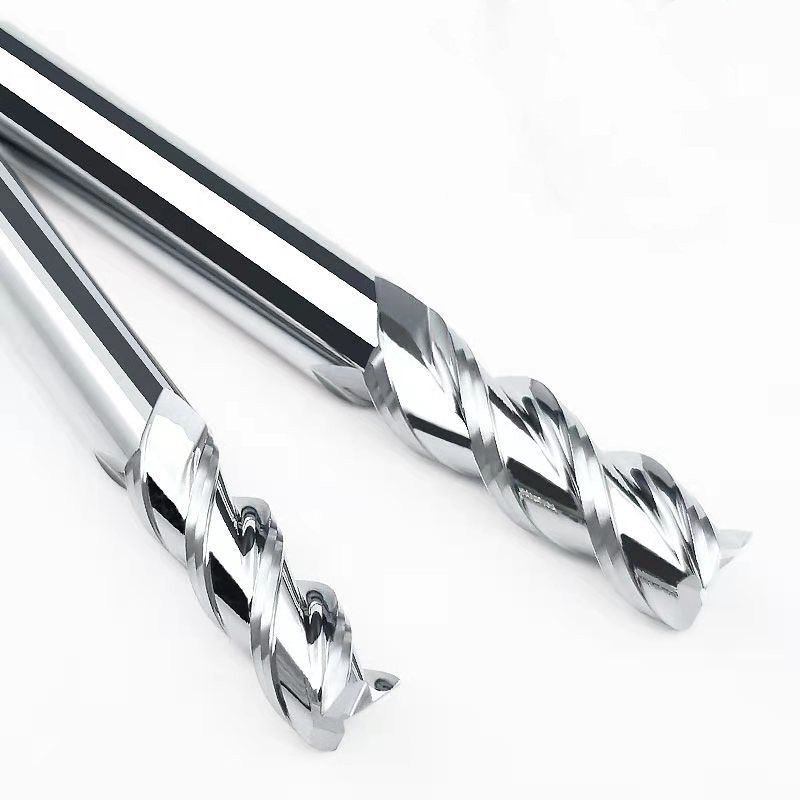

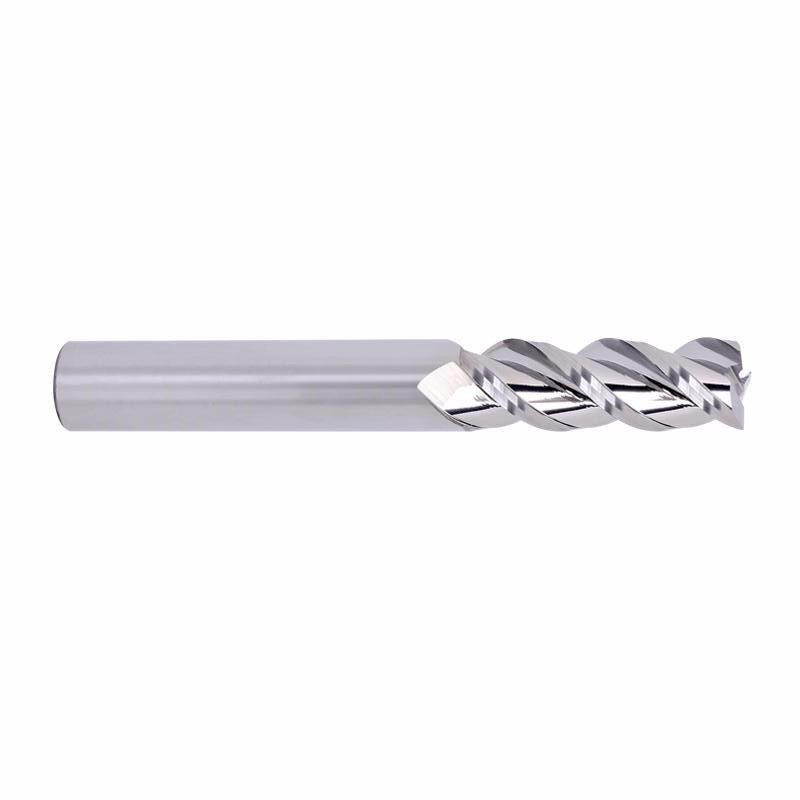

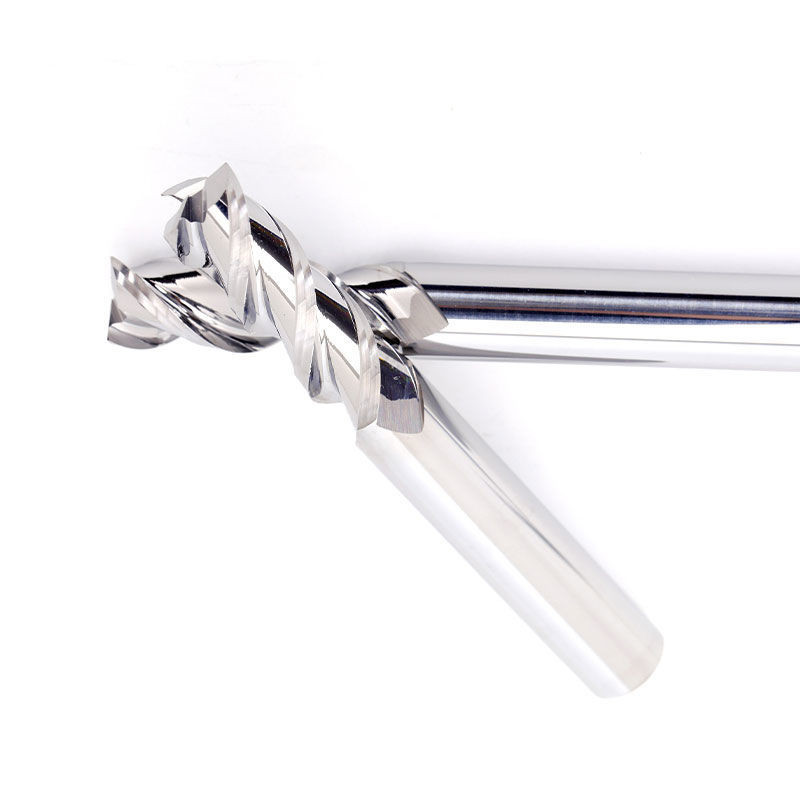

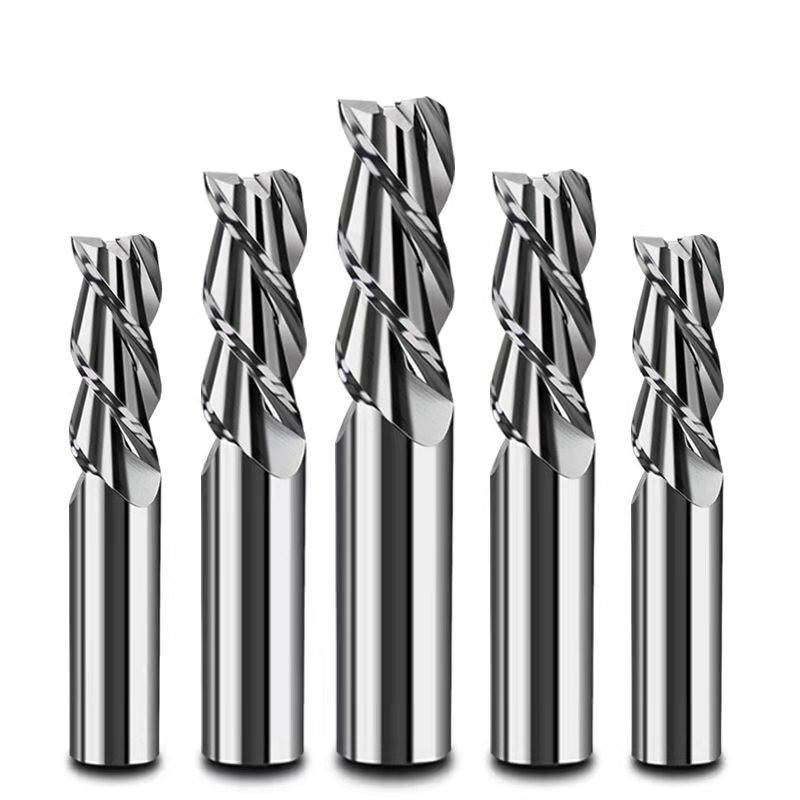

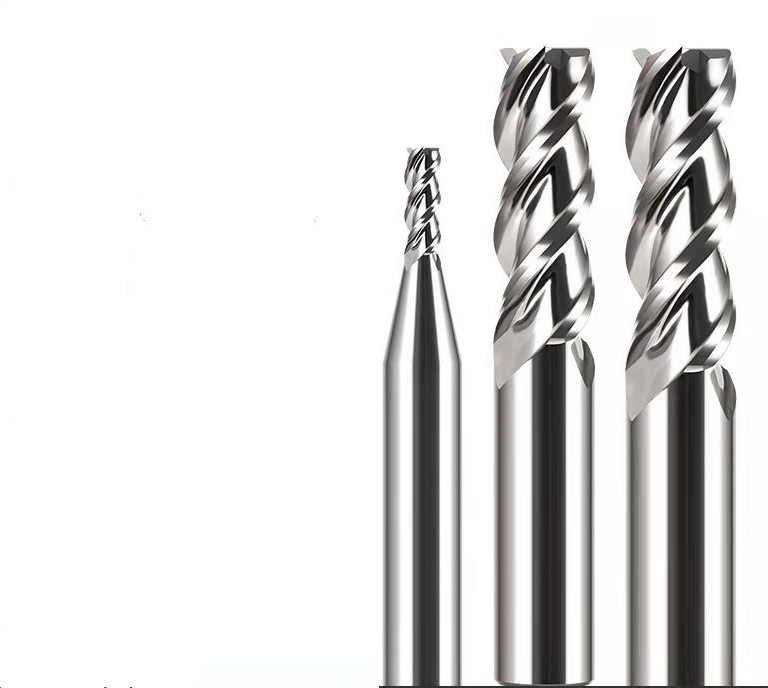

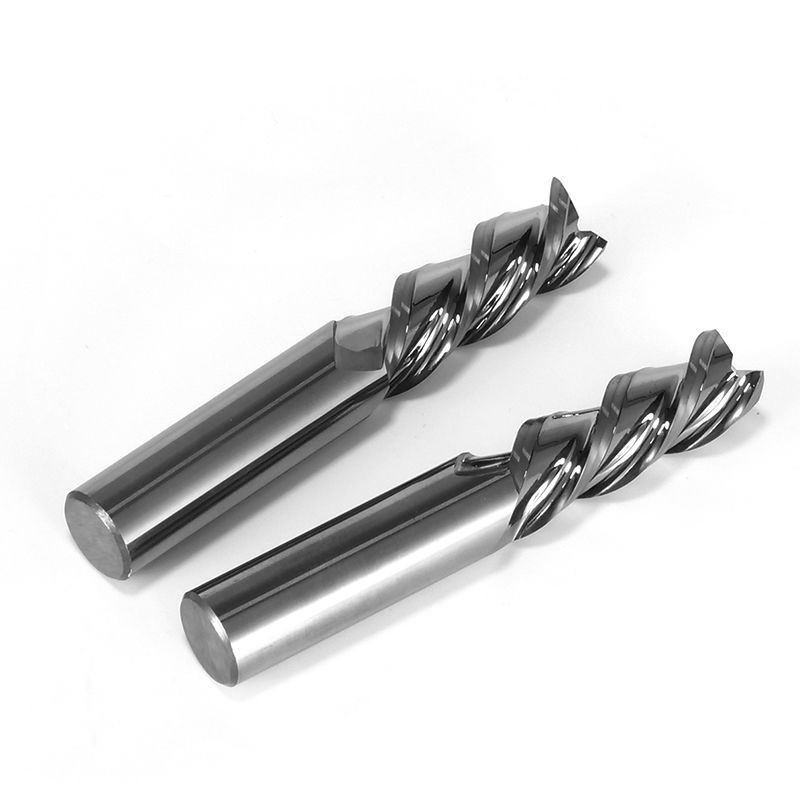

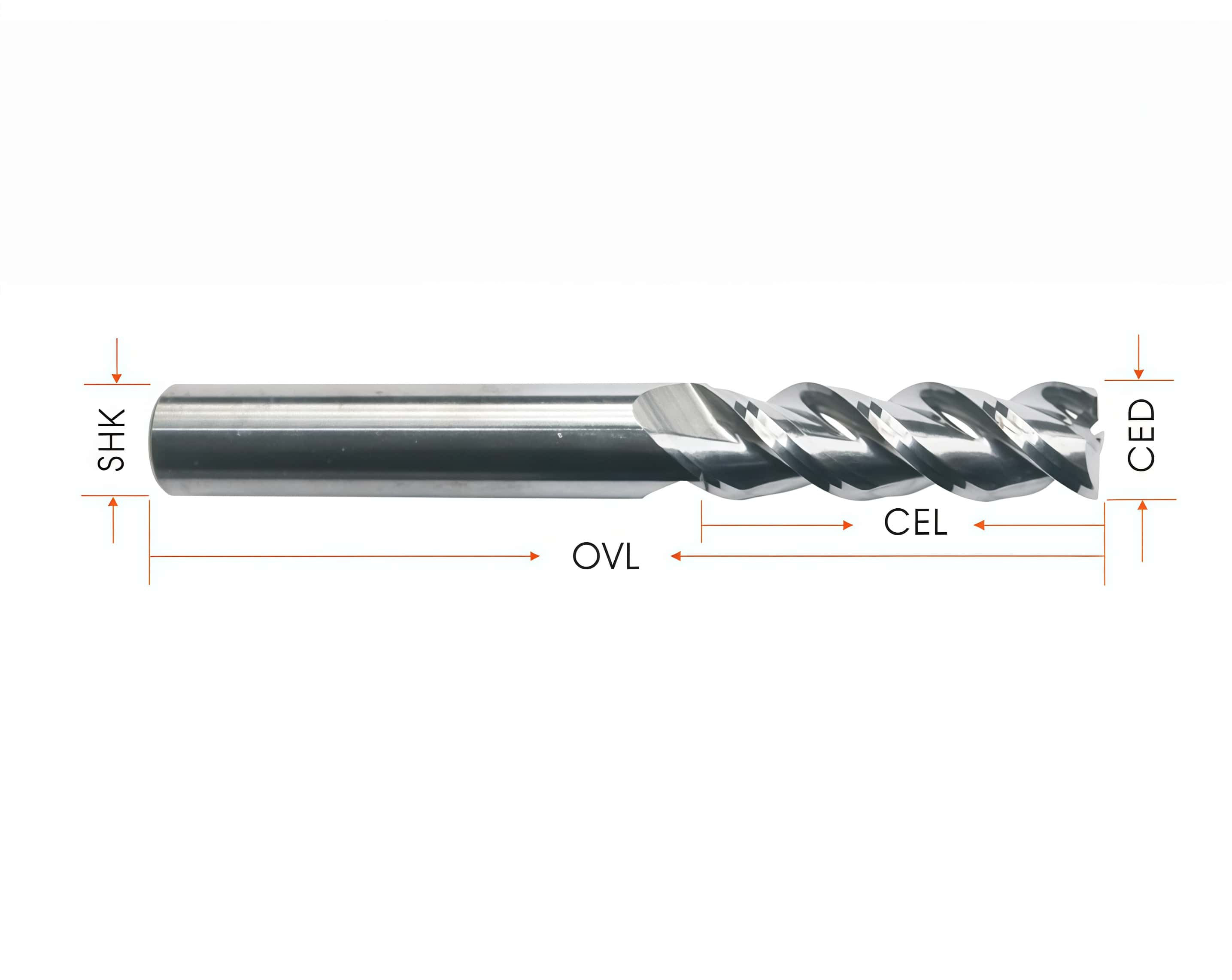

3 Flute Spiral highlights router bits CNC Square Carbide End Mills for Cutting Aluminum Alloys

CHINA Three-flute solid carbide spiral end mills are the best choice for high-speed CNC milling of aluminum alloys and non-ferrous metals (such as copper and plastics). In CNC machining, these tools, with their unique geometry, perfectly balance chip evacuation space and cutting edge rigidity Enquire now

Description

3 Flute Spiral highlights router bits CNC Square Carbide End Mills for Cutting Aluminum Alloys Brass, Bronze, Copper and More

Good for: High power spindle, low speed rotation less than 12000 per minute processing. A series are good for processing rigidity up to 45 HRC, AA series are good for processing rigidity up to 50HRC, 3A are good for processing rigidity up to HRC60.

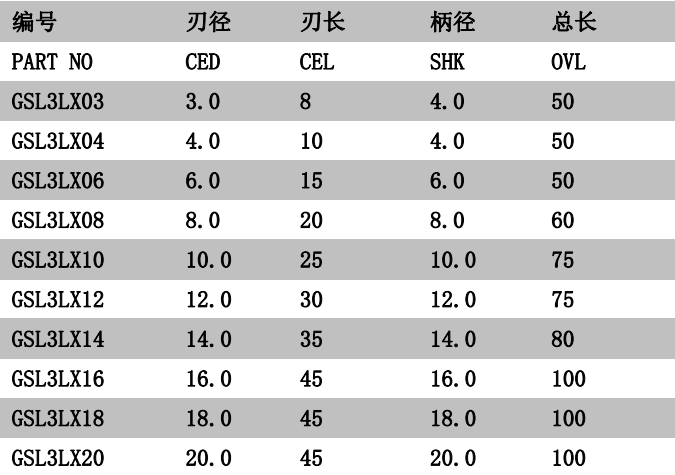

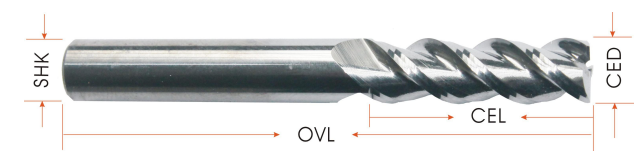

In addition to the above table column specifications, a variety of other specifications are limited to the layout, not one one listed, if necessary, welcome to contact.

Key Highlights and Performance Advantages

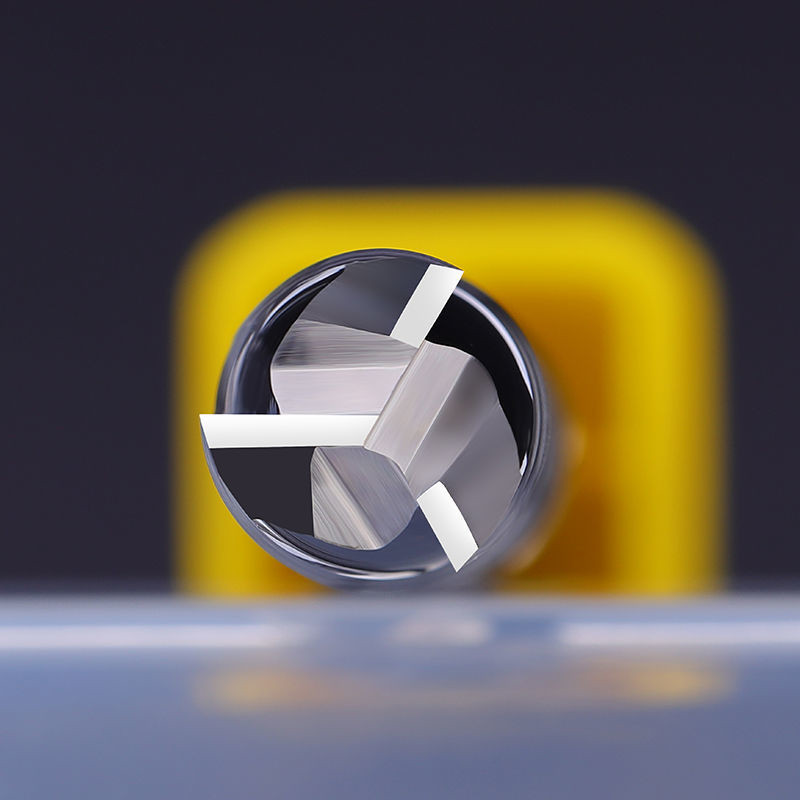

Perfect chip removal (chip control) : "Sticking" or chip remelting is very common in aluminum alloy machining. The 3-flute design has a larger chip groove space than the 4-flute design, and higher cutting efficiency and better workpiece surface finish than the 2-flute design.

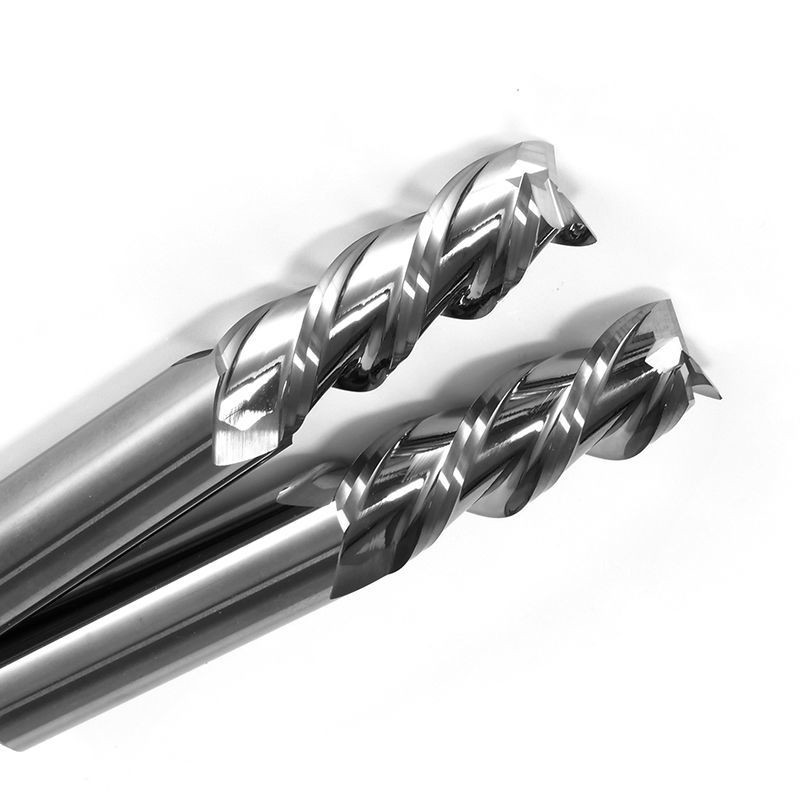

High helix angle (usually 45° or 55°) : A helix angle of 45° or higher allows the cutting edge to enter the workpiece more smoothly (soft entry), greatly reducing vibration and resonance (chatter), while the powerful **up-cut** action quickly removes the chips away from the machining area.

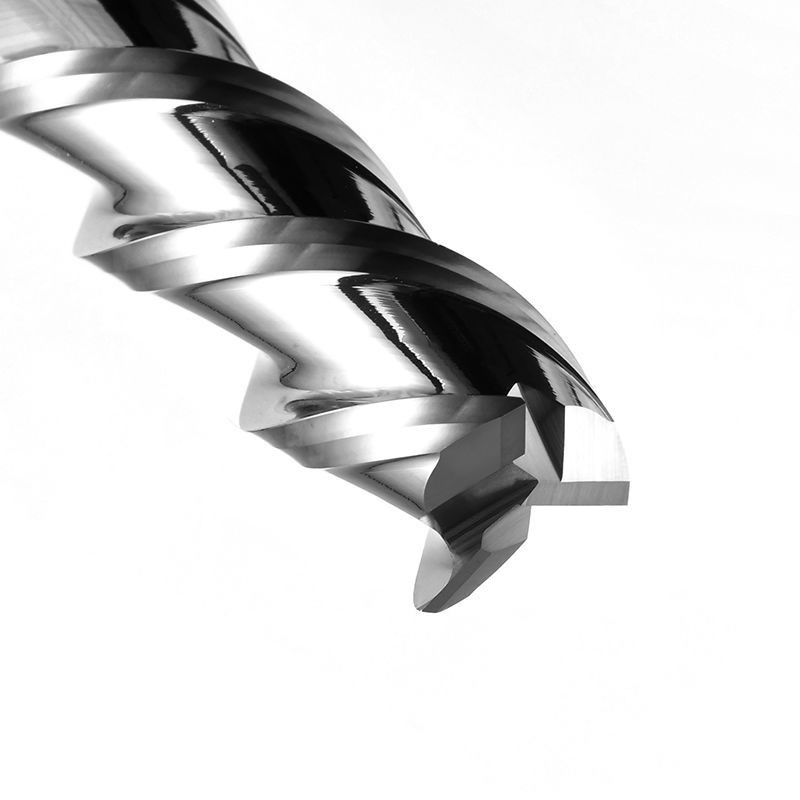

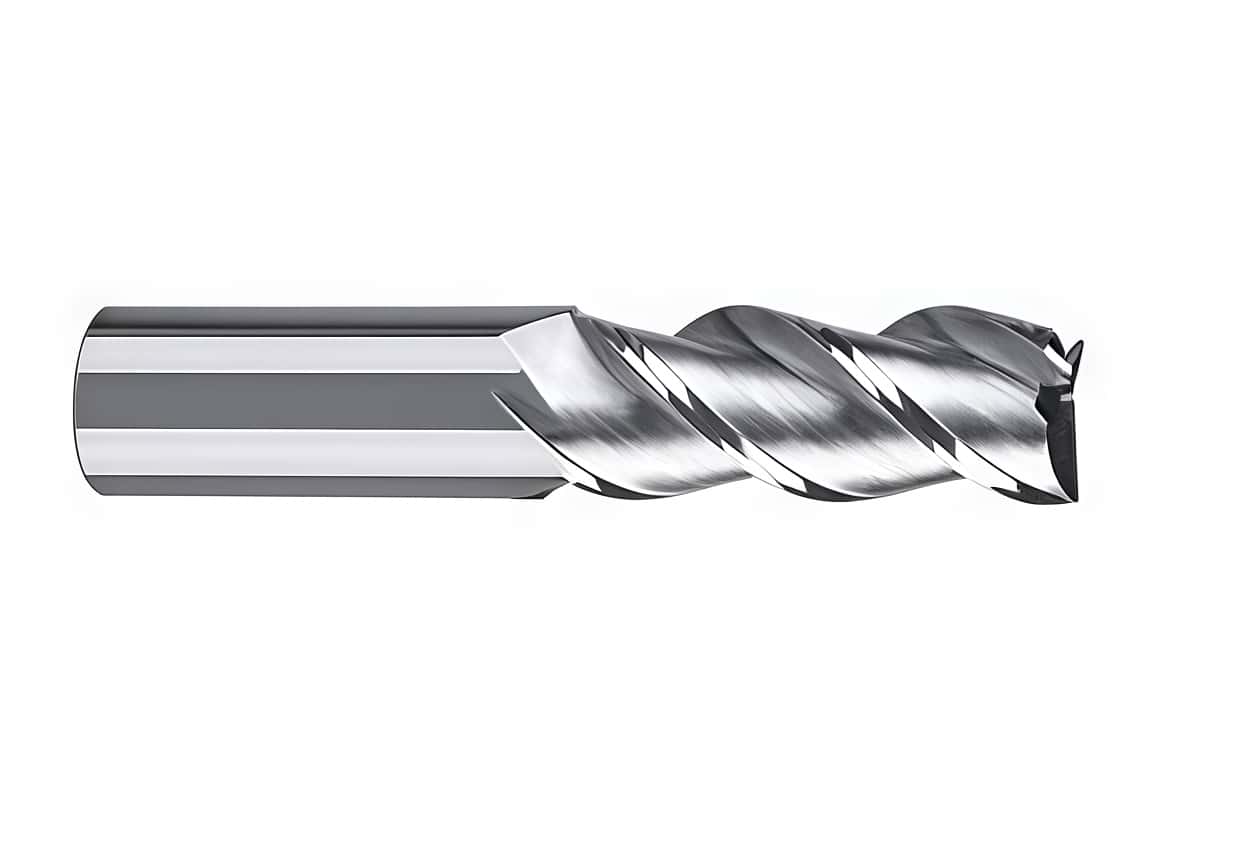

Flat bottom/square end design : Ideal for side milling, slotting, flat surface finishing, and high-precision right-angle step machining.

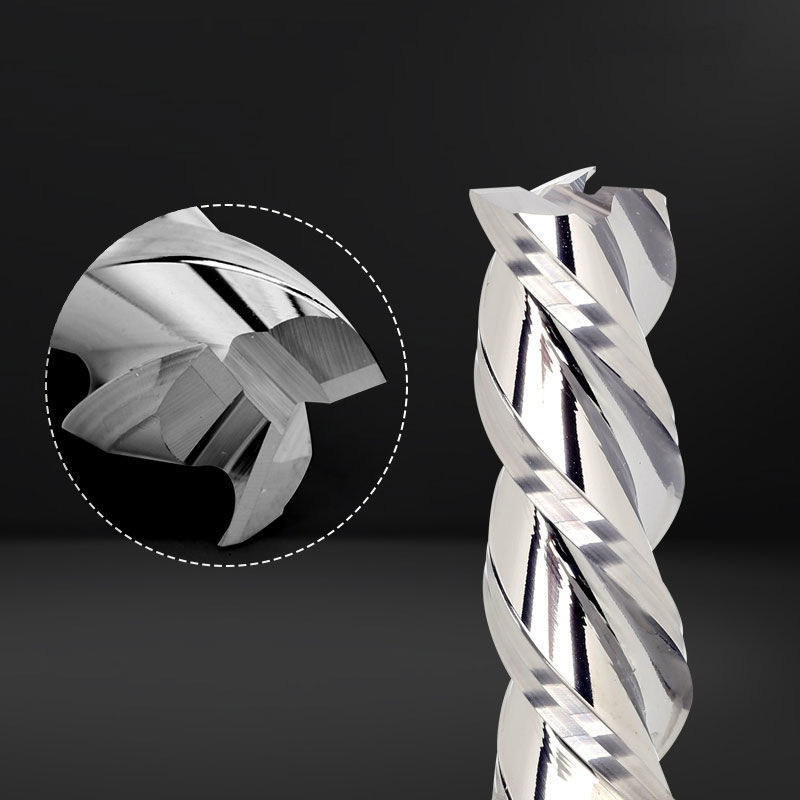

High-gloss milling cutter grooves (Mirror Finish) : The surface of high-quality aluminum milling cutter grooves undergoes a mirror polishing process. The extremely smooth surface minimizes the coefficient of friction and prevents the formation of built-up edges.

Specialized coating selection

While some aluminum cutting tools are uncoated to maintain absolute sharpness, in order to achieve higher feed rates and excellent lifespan, the following two types of special coatings that are not compatible with aluminum are usually added:

ZrN (zirconia) coating : presents a light gold color, significantly improves tool hardness, is extremely wear-resistant, and provides high thermal resistance to prevent material adhesion.
DLC (diamond-like carbon/color) coating : It has extremely high hardness close to that of diamond and a very low coefficient of friction (as low as 0.1), which makes it outstanding in high-speed finishing and dry cutting
