Summa 500-9872 Multipurpose F Series Router Bit D3/3 L38/6 1FL UC MP-Replacement Compatible

Summa 500-9872 is a versatile, single-edged, multi-purpose end mill crafted for optimal performance with the Routing Engraving Module—compatible with both the Standard and High-Frequency Routing Systems—used in Summa F-Series flatbed plotters. Enquire now

Description

Summa Multipurpose F Series Router Bit D3/3 L38/6 1FL UC MP,500-9872-Replacement Compatible

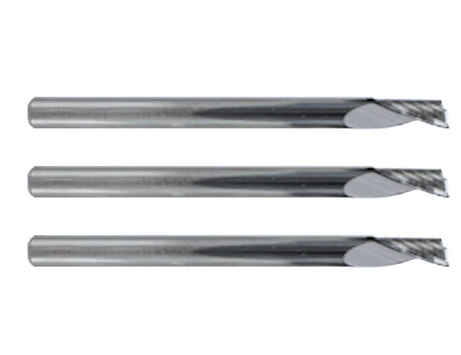

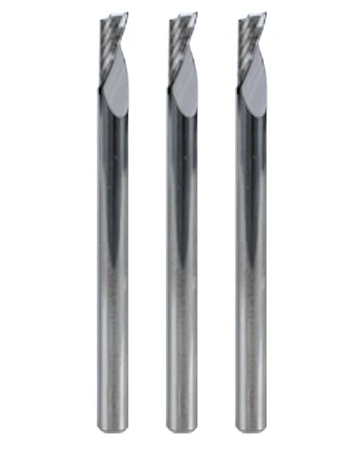

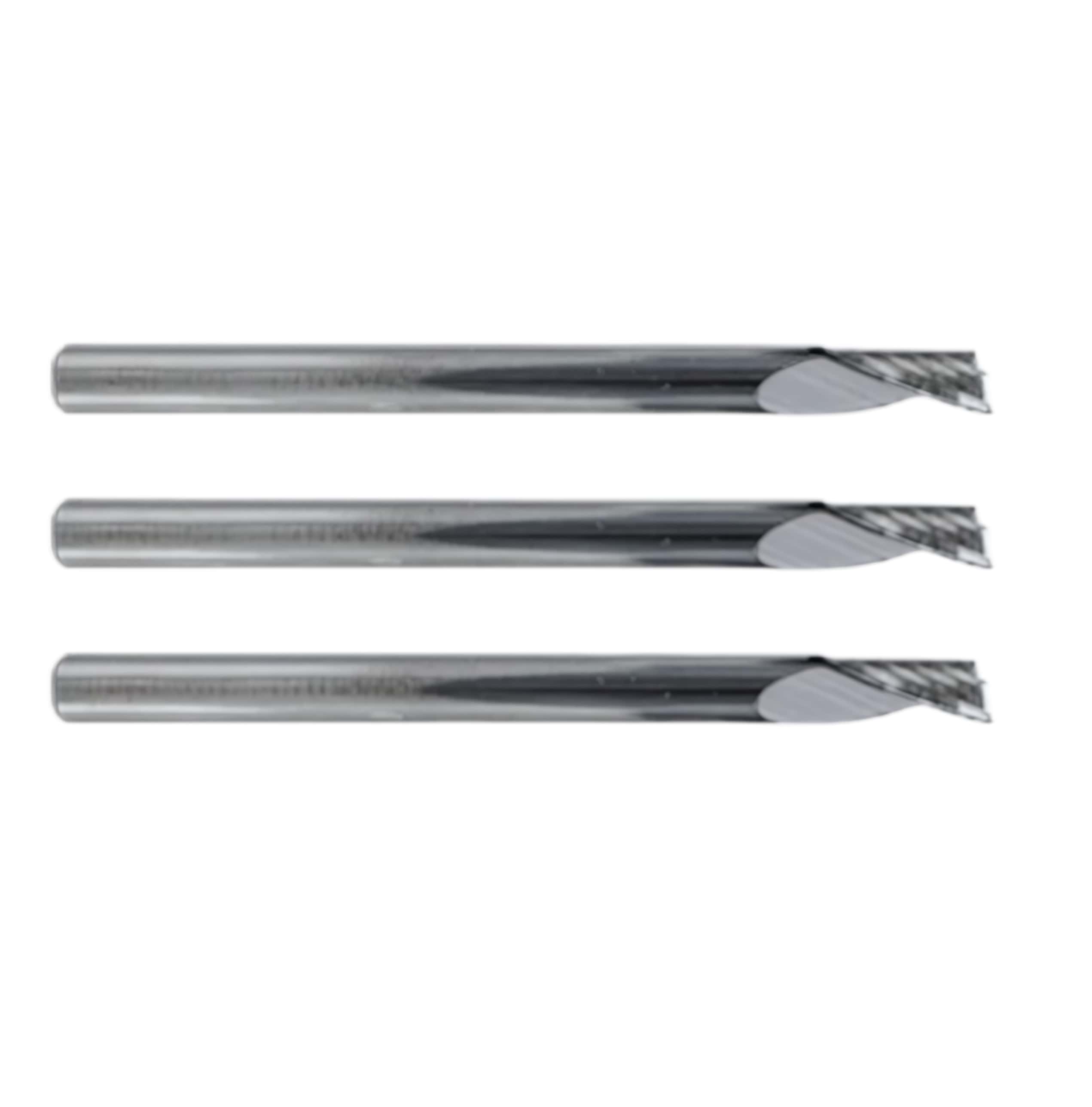

Summa 500-9872 Multipurpose F Series Router Bit

Core Technical Specifications

Product Model : D3/3 L38/6 1FL UC MP ( Zund R71 specifications compatible with the standard)
Shank Diameter : 3 mm
Cutting Diameter : 3 mm
Maximum Milling Depth : 6 mm (or 4 mm depending on the specific modification)
Flute & Type : 1FL (Single Flute); UC (Up Cut) - Up-cut chip removal.
Material and manufacturing process : High-hardness cemented carbide
Application Classification : MP (Multi-Purpose) Multi-purpose conventional machining tools

Applicable Materials and Cutting Characteristics

Versatile Coverage : As a general-use end mill, it is ideal for machining a variety of advertising signs and industrial packaging materials, including wood, wood composite panels, acrylic, PVC, foam boards, and aluminum composite panels (ACM).
Up Cut Advantages : The single-blade spiral up-cut design quickly ejects chips upwards from the groove as the blade rotates at high speed . This effectively reduces heat buildup and prevents acrylic or plastic materials from melting and sticking together again due to high temperatures during cutting.
High cost-performance balance : The multi-purpose end mill is suitable for daily operations involving cutting multiple materials. However, if you require extremely high-quality single-pass forming of aluminum sheets or large-volume acrylic mirror polishing, it is recommended to use it with the official, more specialized material-specific cutting tools (such as aluminum-specific cutting tools with special coatings or acrylic cutting tools specifically designed for high-frequency operation).
