Summa 500-9873 Multipurpose F Series Router Bit D3/3 L38/6 1FL UC MP-Replacement Compatible

Summa 500-9873 (frequently designated as part of the D3/3 L38/6 or D4/4 L50/6 family depending on specific OEM packaging) is a high-performance Multipurpose (MP) router bit engineered specifically for Summa F Series Flatbed Cutters. Enquire now

Description

Summa Multipurpose F Series Router Bit D3/3 L38/6 1FL UC MP,500-9873-Replacement Compatible

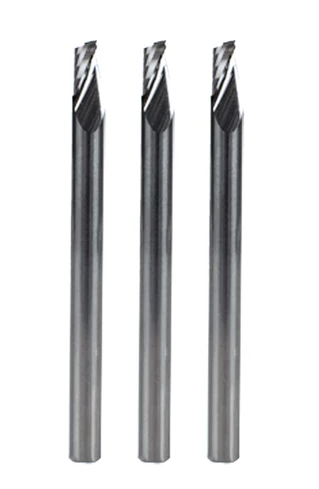

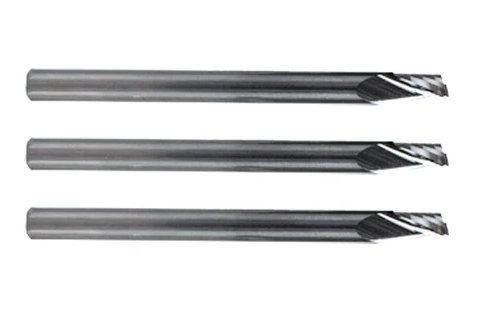

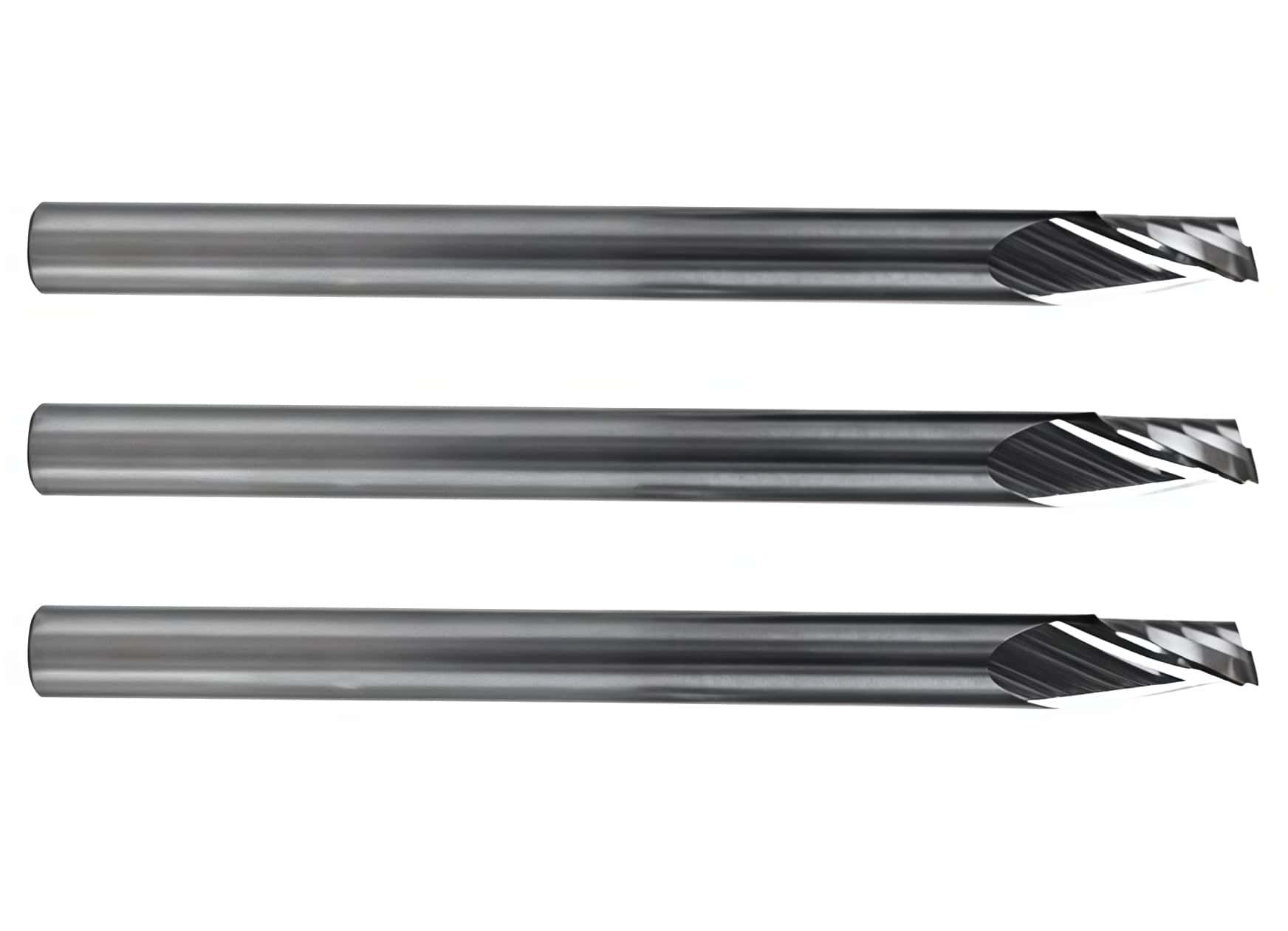

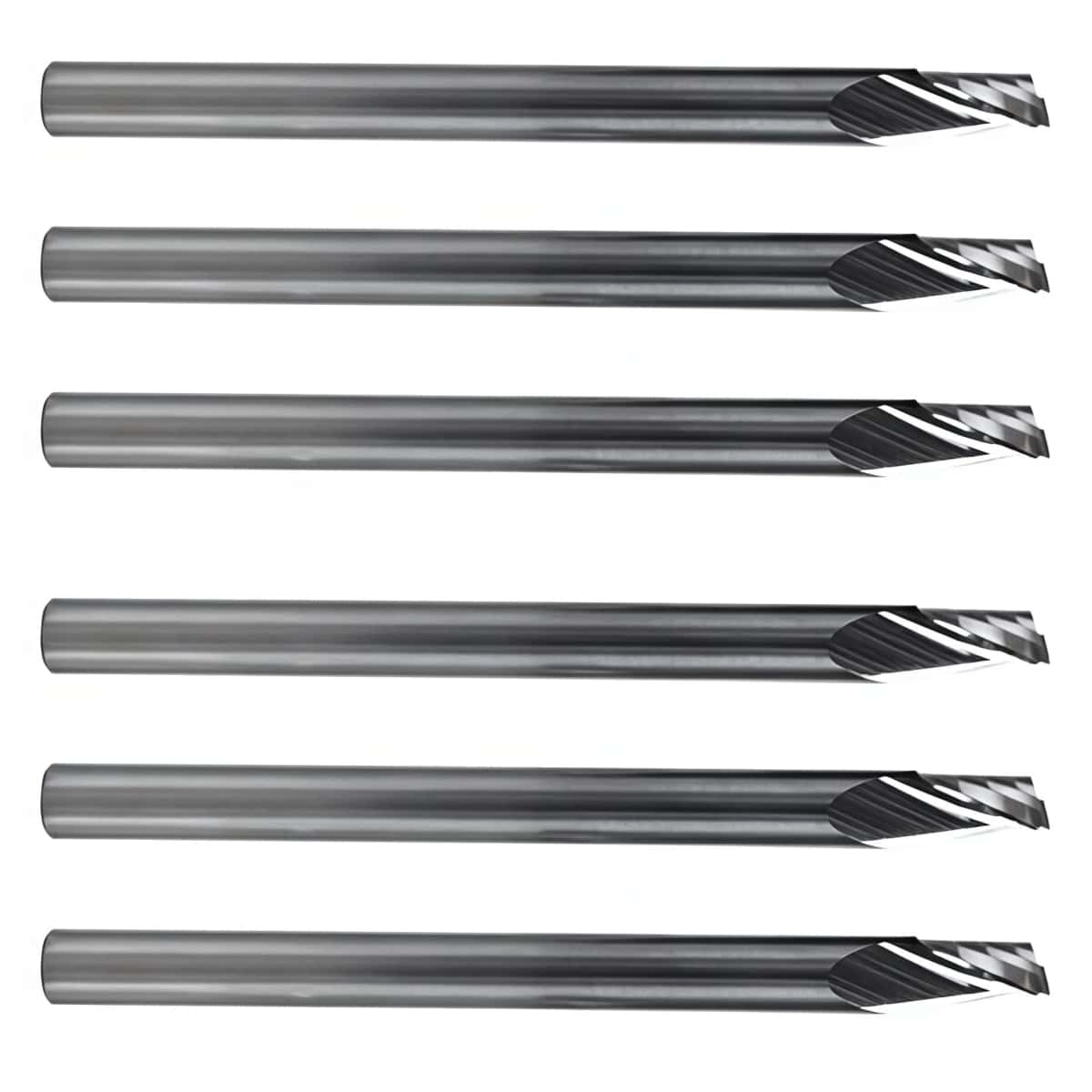

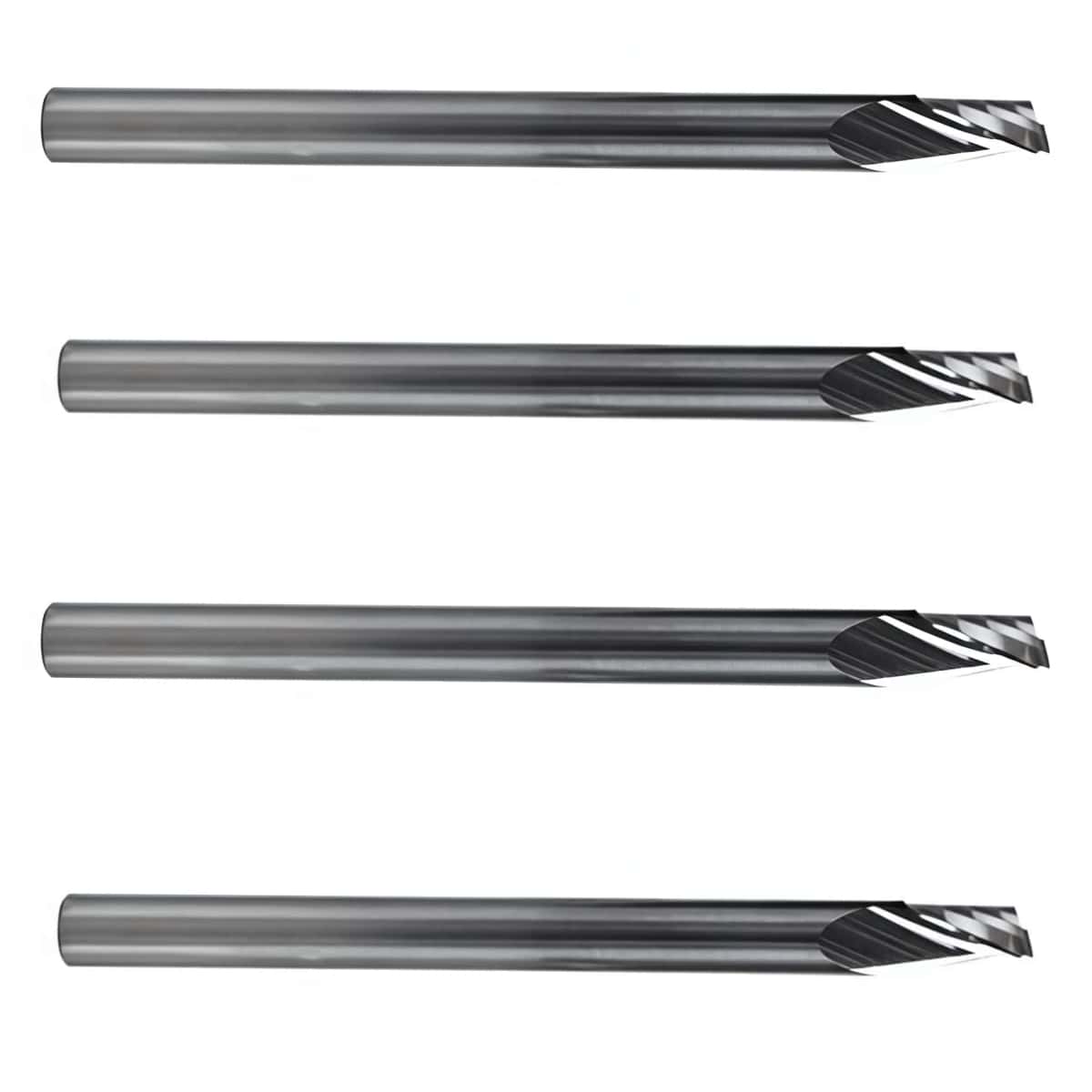

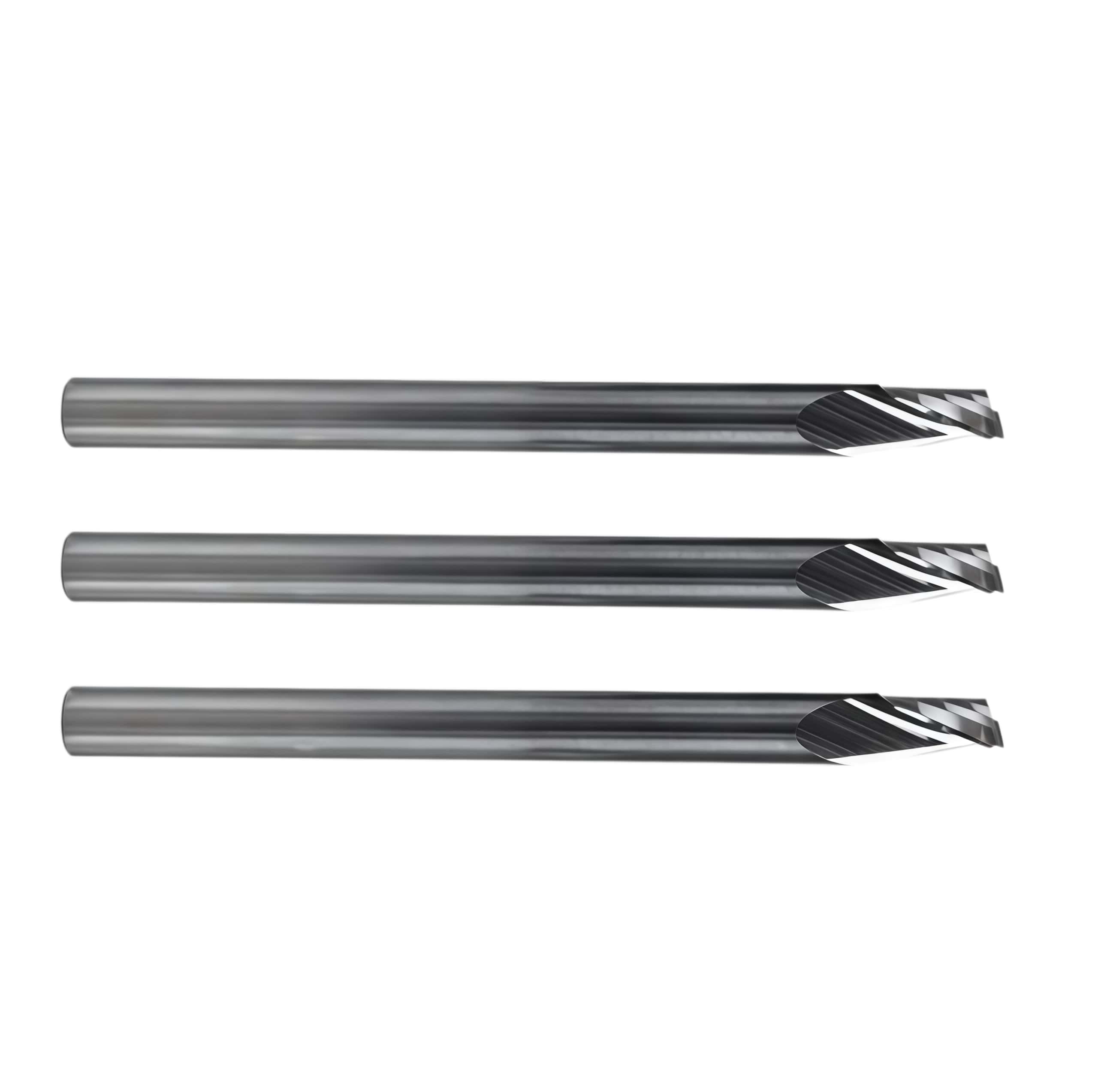

Summa 500-9873 Multipurpose F Series Router Bit

For use with the Summa F Series Standard Routing System.

Details
Shank Diameter 4 mm
Routing Diameter 4 mm
Tool Length 50 mm
Max. Routing Depth 6 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

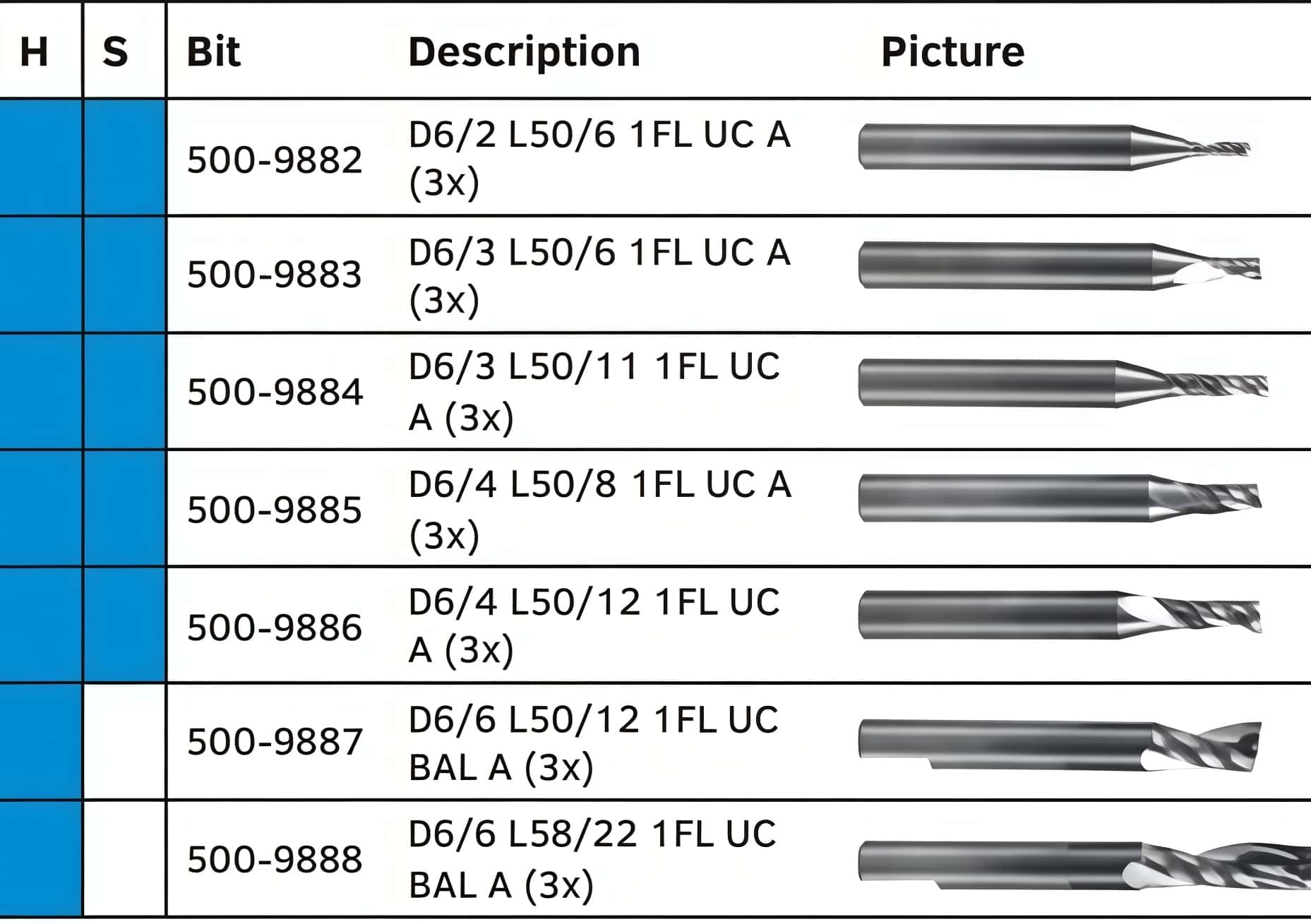

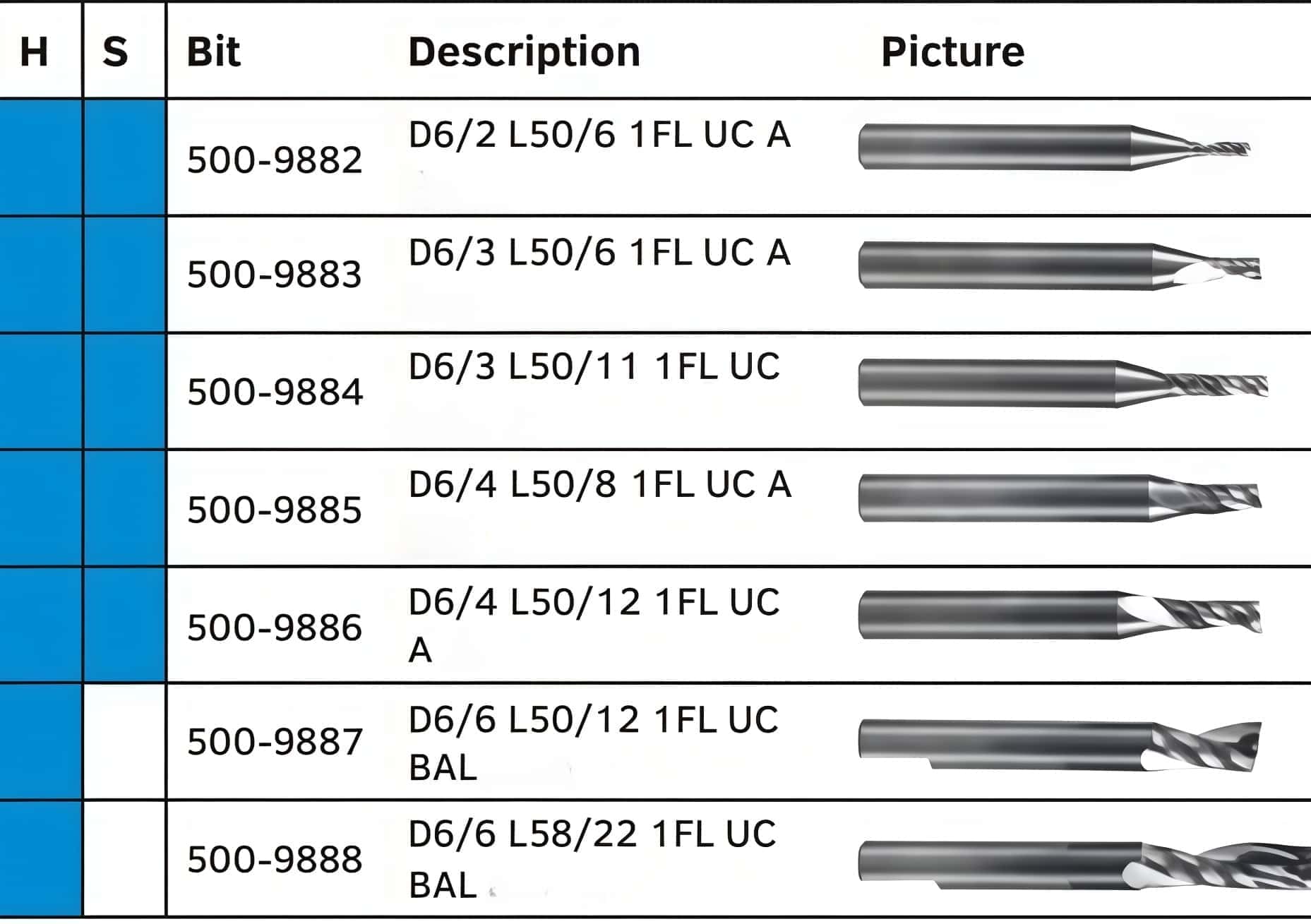

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Summa Router Bit, D4/4 L50/6 1FL UC MP

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System

Summa Operating Tips

Vibration Prevention: To limit chatter and programmatic vibration, select a bit length that aligns as closely as possible to your exact material thickness.
Pass-Depth Limits: When utilizing the Standard Router System, restrict your depth-per-pass to 1x the diameter of the bit (e.g., a maximum 3 mm depth per pass for a 3 mm bit). For the HF (High Frequency) Router, you can safely scale up to 1.5x the diameter.
Maximum Thickness: Avoid processing materials that exceed 3x the bit's cutting diameter.
Initialization Tip: When establishing your down-position in Summa Axis Control, calibrate the Z-axis origin over your routing/protective mat off the material surface to avoid snapping the fine carbide tip.
