Summa 500-9874 Multipurpose F Series Router Bit ,D6/6 L50/14 1FL UC MP For Summa Cutter Sale

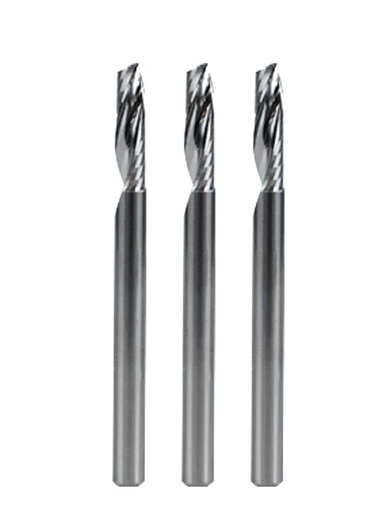

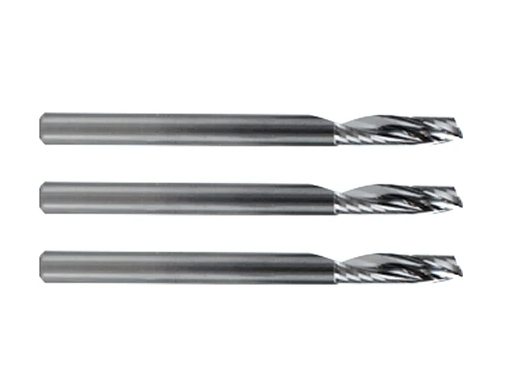

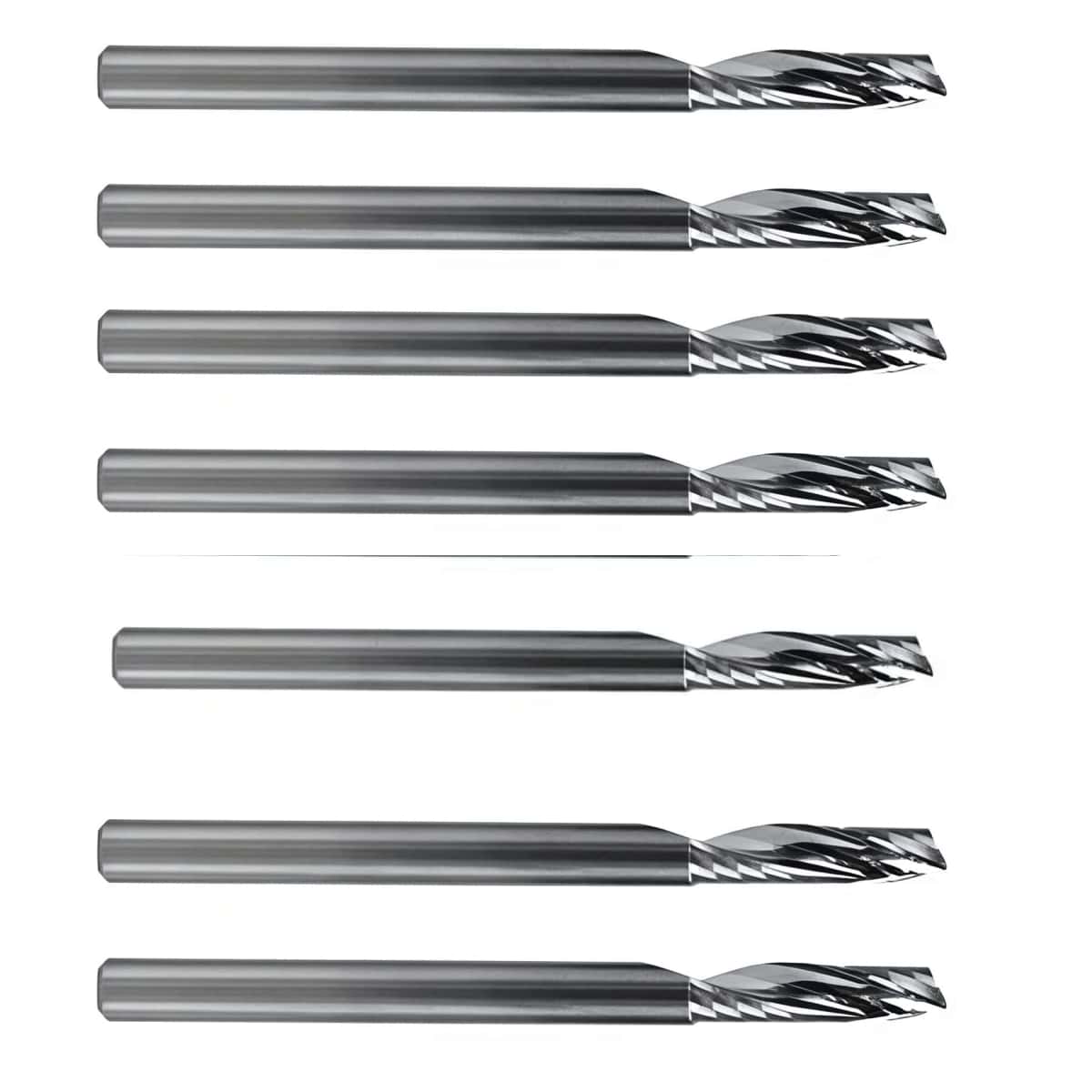

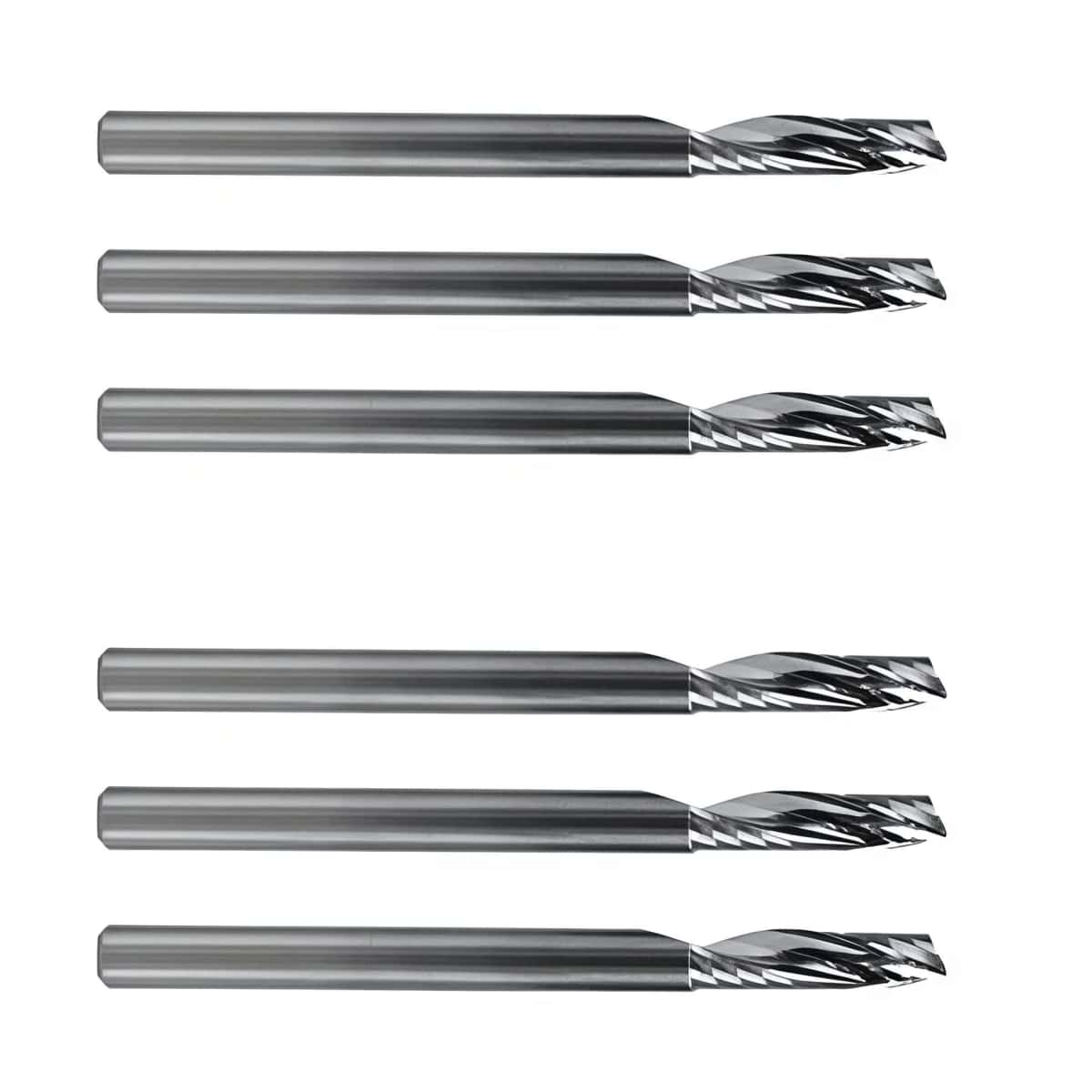

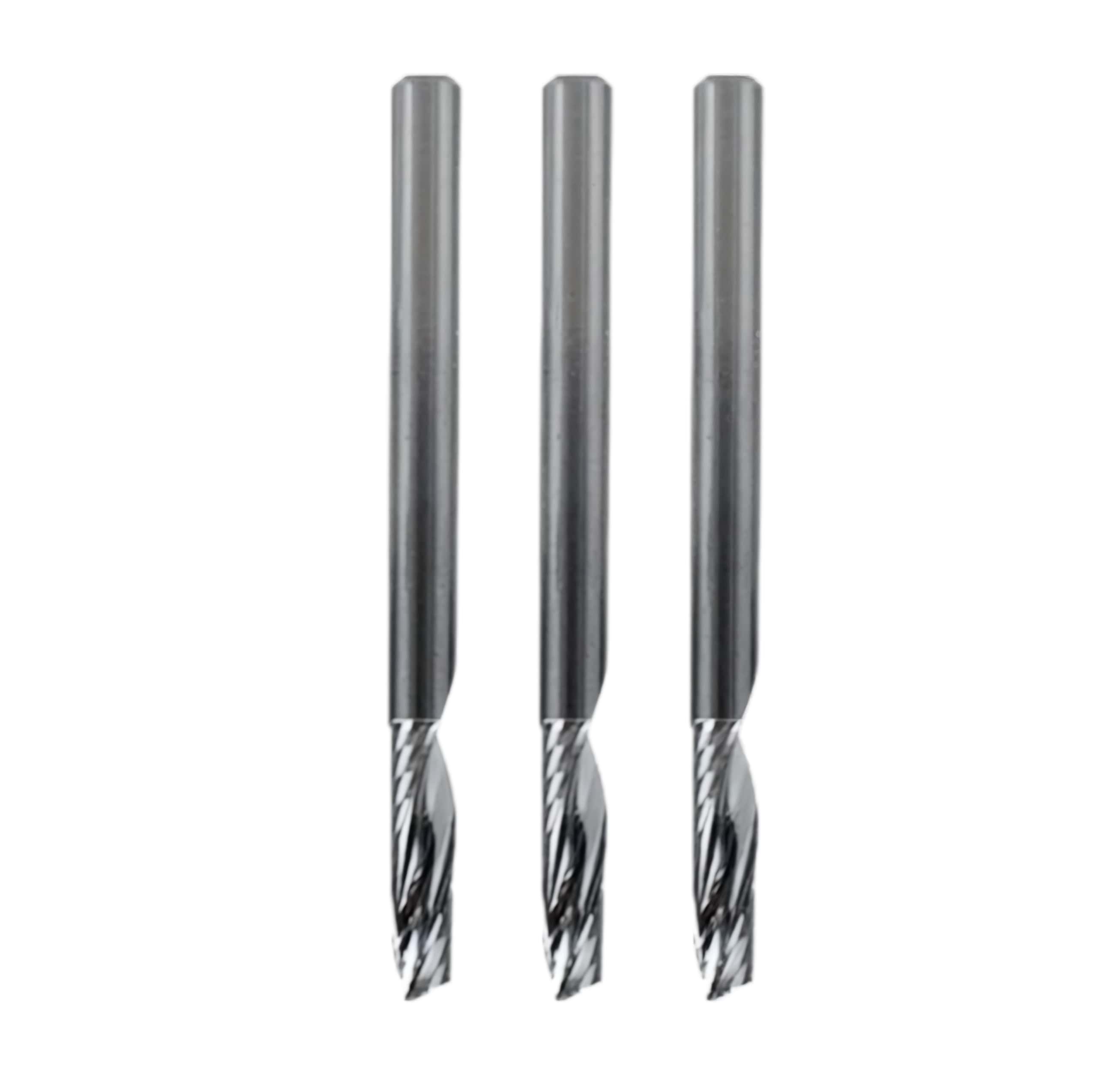

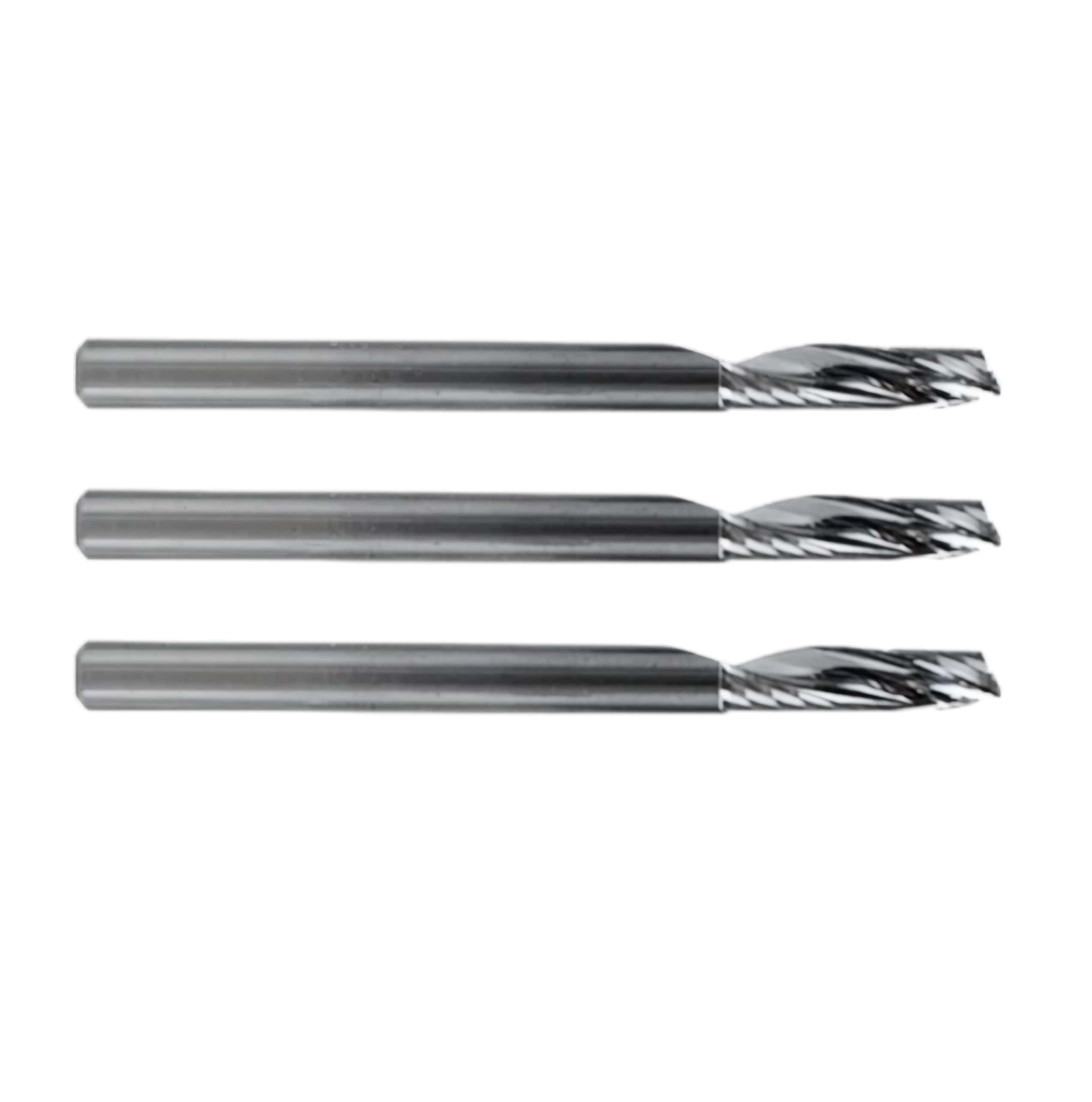

Summa 500-9874 Multipurpose Router Bit is a genuine OEM tool designed for the Summa F Series Flatbed Cutters. It operates with the Standard Routing System to handle mid-range routing depths across rigid and semi-rigid signage substrates. Enquire now

Description

Summa 500-9874 Multipurpose F Series Router Bit ,D6/6 L50/14 1FL UC MP For Summa Cutter Sale

Technical Specifications

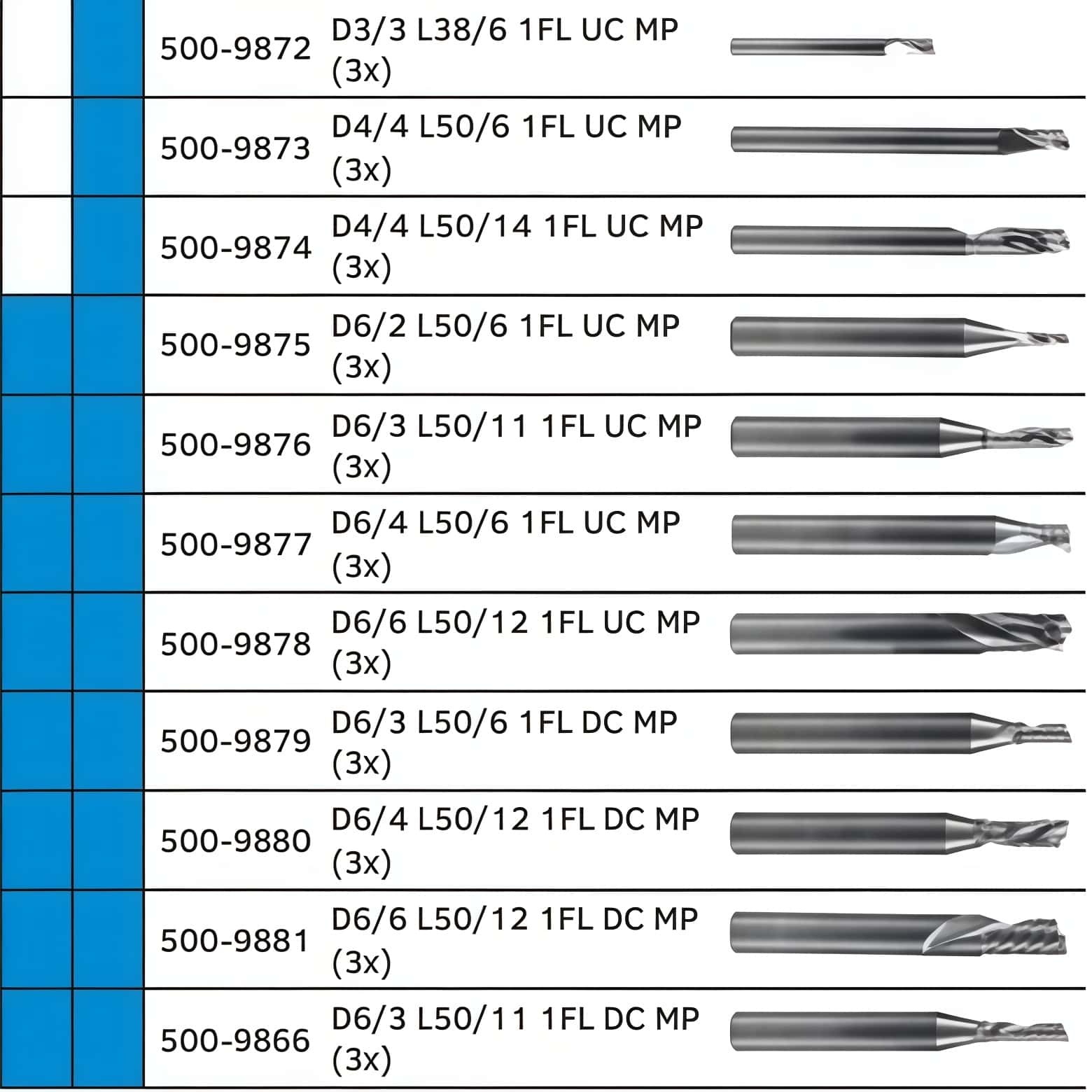

Depending on the manufacturing batch and distributor nomenclature, the 500-9874 corresponds to one of two primary geometry configurations:

Configuration A (D4/4 L50/14 1FL UC MP):

Shank Diameter: 4 mm
Routing Diameter: 4 mm
Total Tool Length: 50 mm
Maximum Routing Depth: 14 mm

Configuration B (D6/6 L50/14 1FL UC MP):

Shank Diameter: 6 mm
Routing Diameter: 6 mm
Total Tool Length: 50 mm
Maximum Routing Depth: 14 mm (or up to 22 mm for extended throughput)

Flutes (1FL): 1 single-flute design to prevent material melting and optimize chip extraction.
Geometry (UC): Up Cut spiral, which forces chips upward away from the cutting bed.
Application Class (MP): Multi-Purpose tooling.
